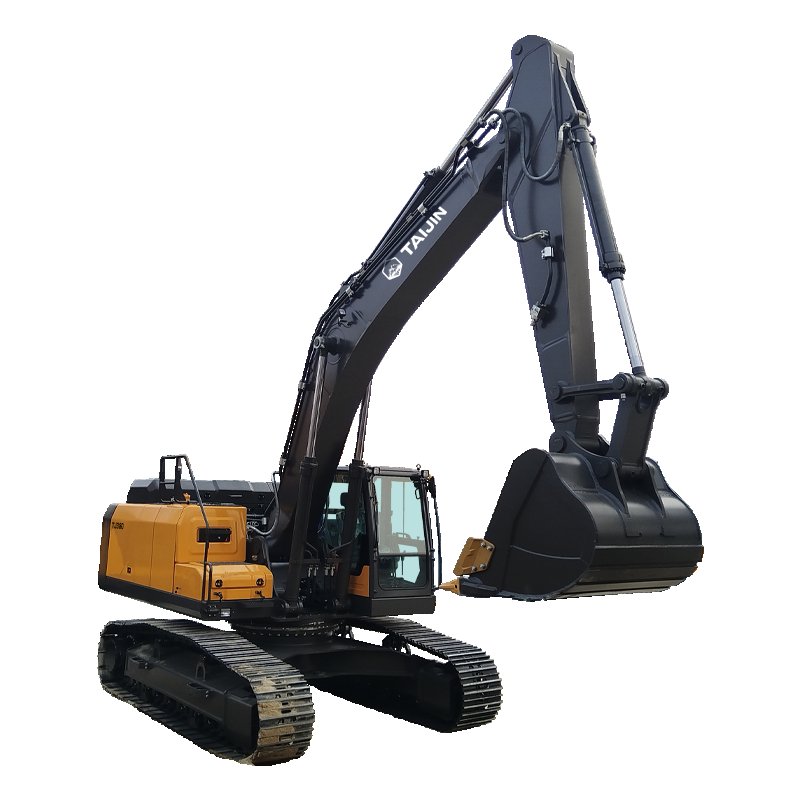

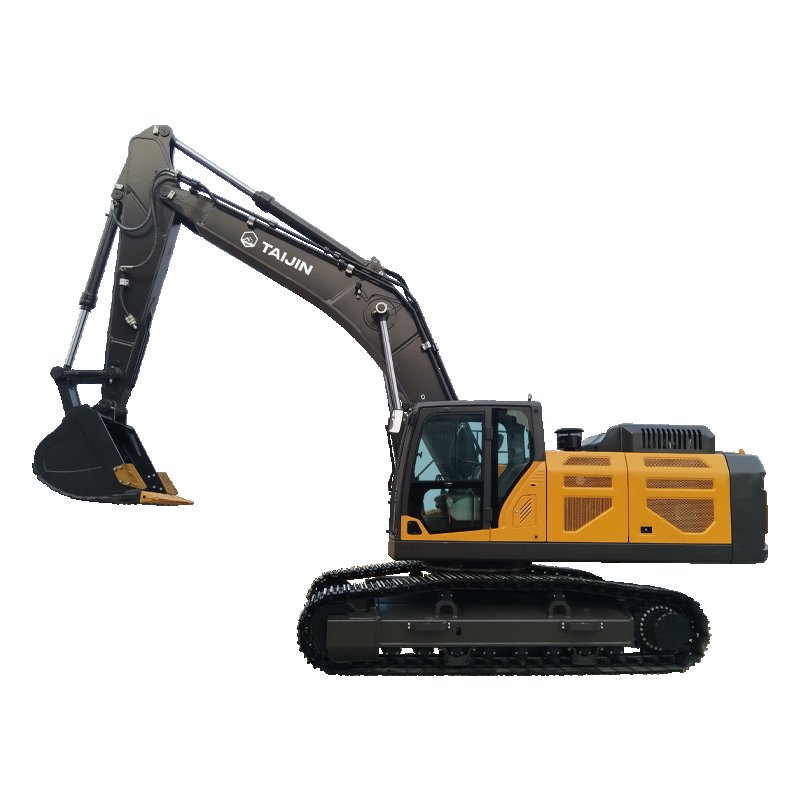

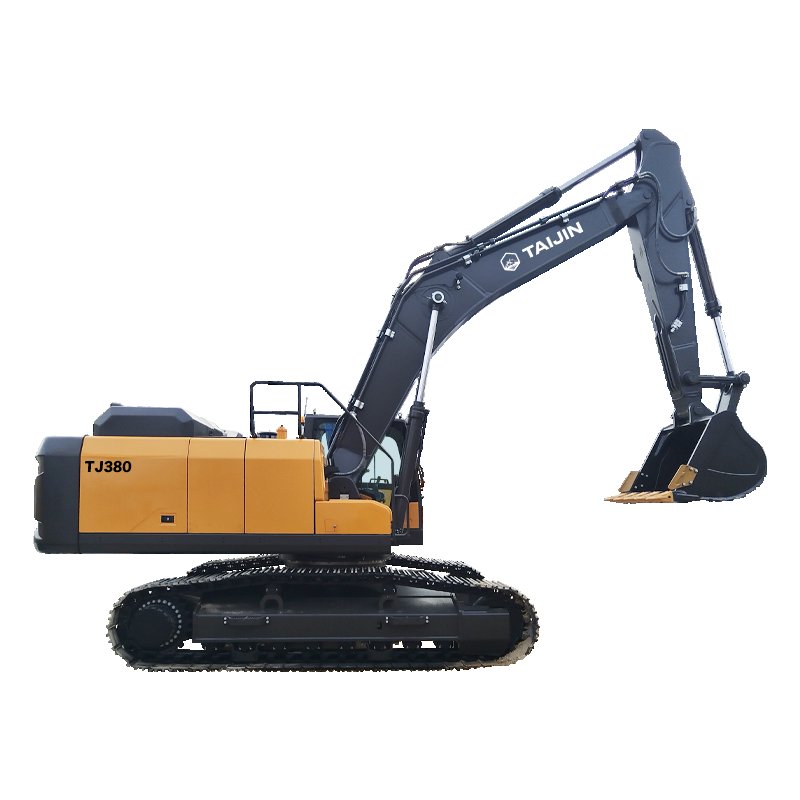

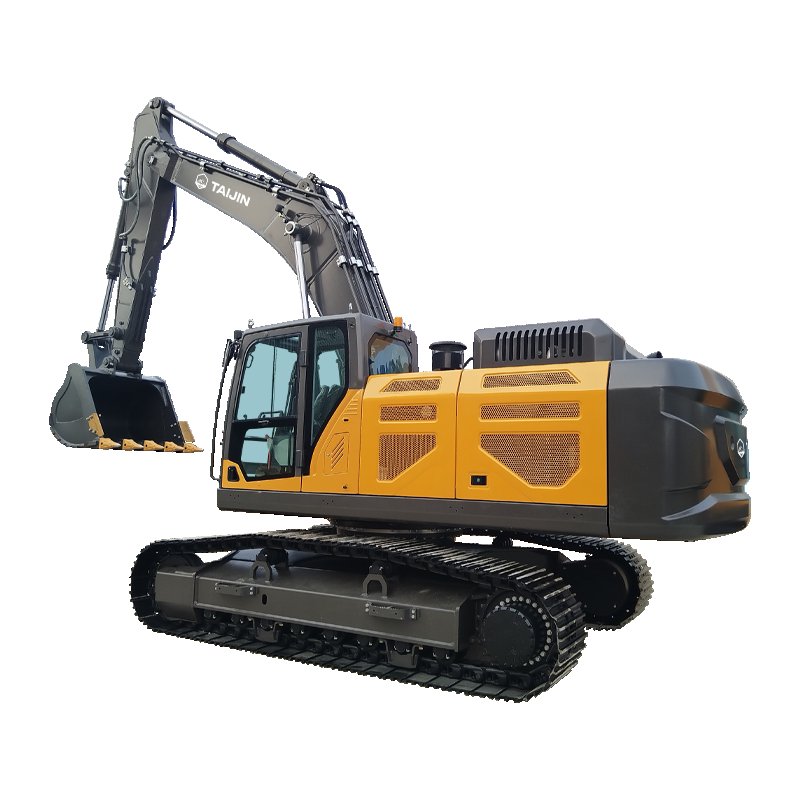

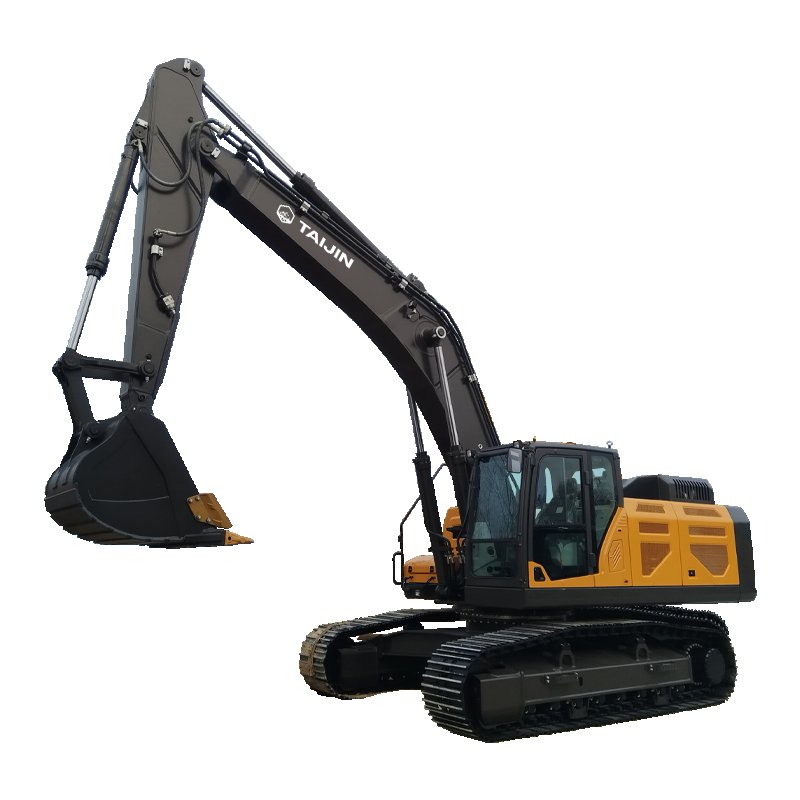

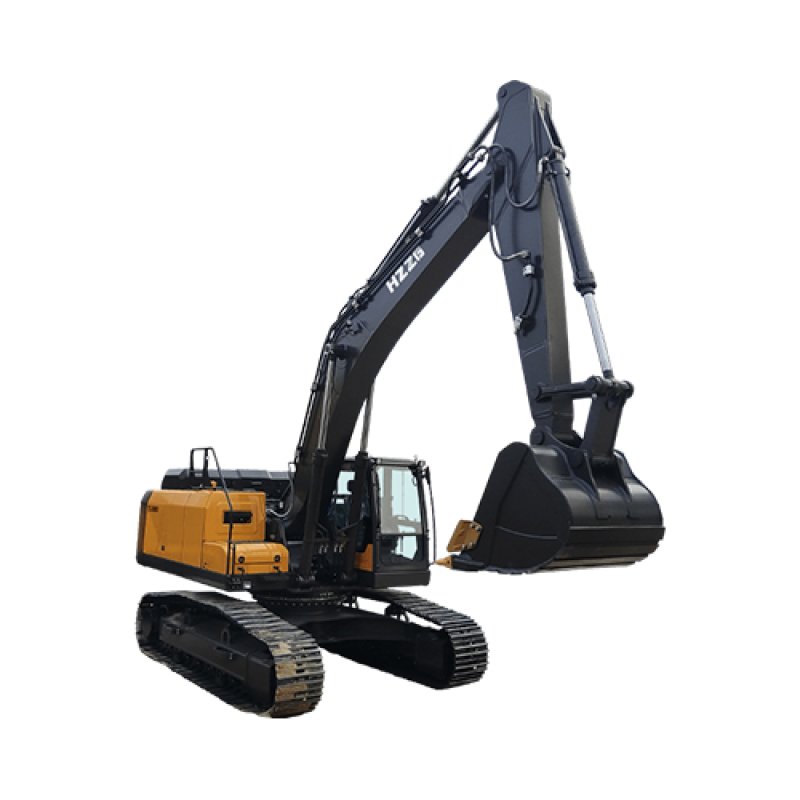

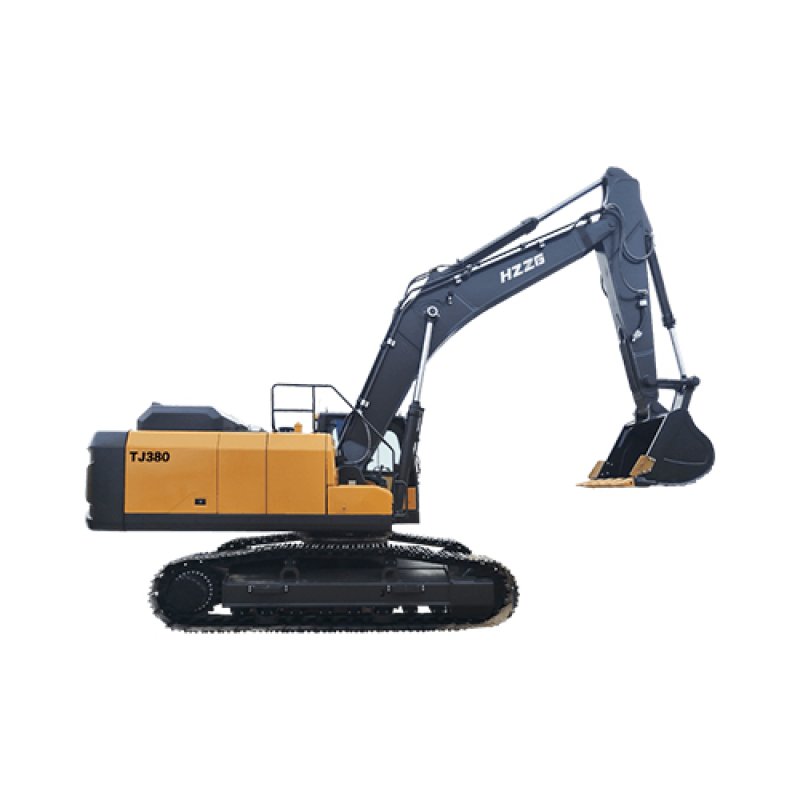

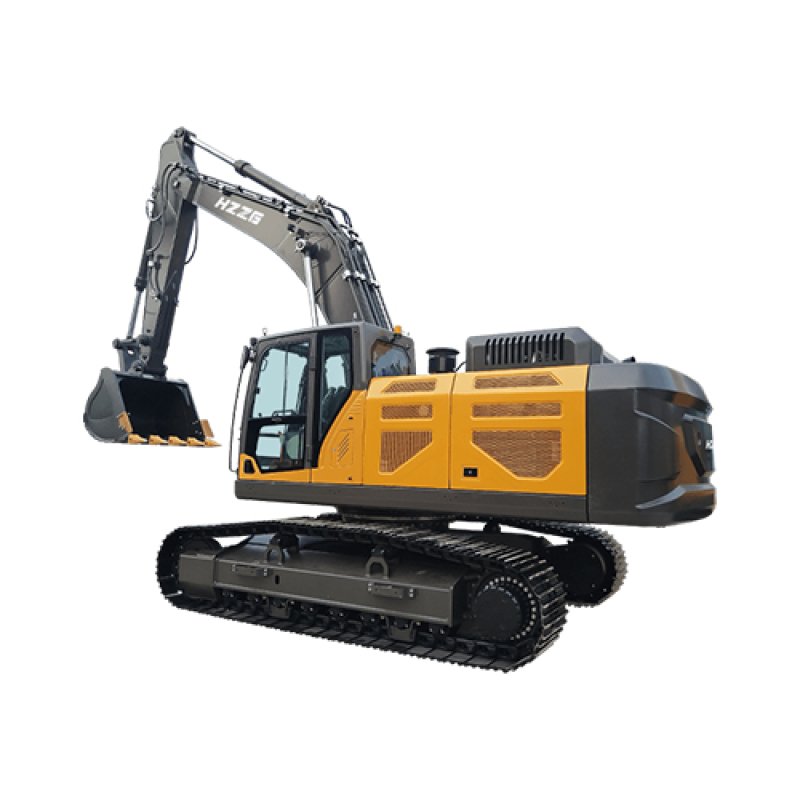

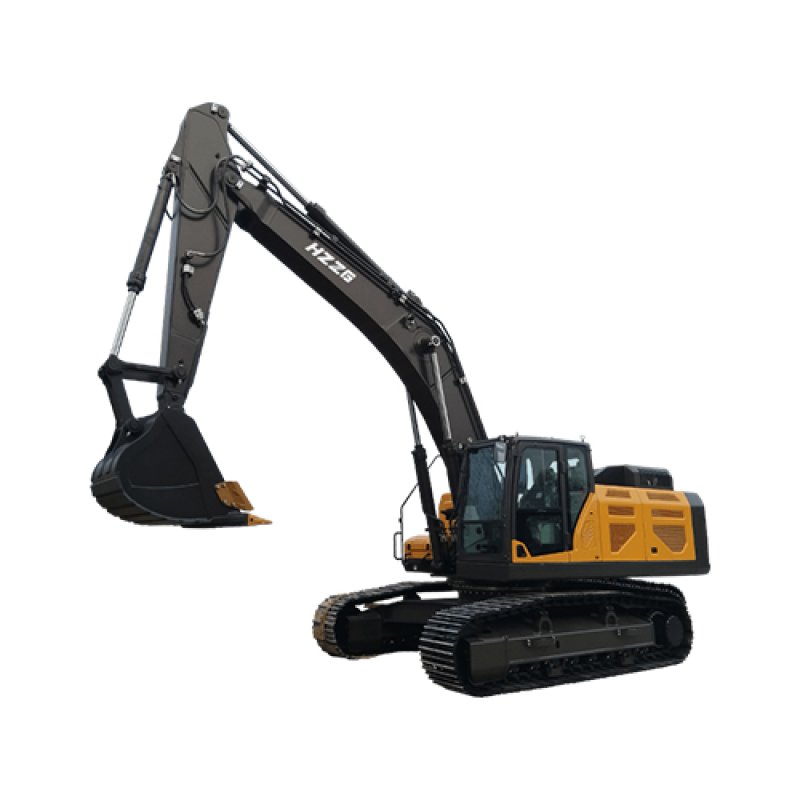

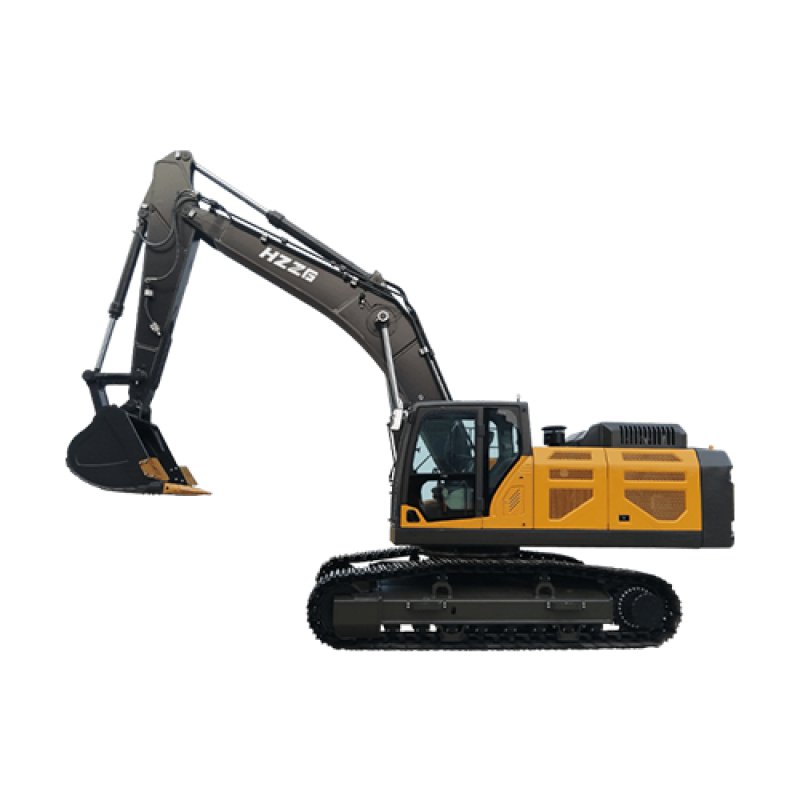

The 38-ton excavator is engineered for high-load and complex geological conditions. It excels in large infrastructure, hard rock mining, deep water foundation pits, port heavy-duty handling and heavy demolition. With versatile attachments and superior stability, it delivers consistent high performance in harsh environments to boost efficiency for large-scale projects.
Operating Weight: 38000 KG
Engine: CUMMINS 6LTAA8.9
Max Power: 241 kW
Bucket Capacity: 1.7 m³
Max Digging Depth: 7.372 m
Max Dumping Height: 7.572 m
Max Digging Height: 10.511 m

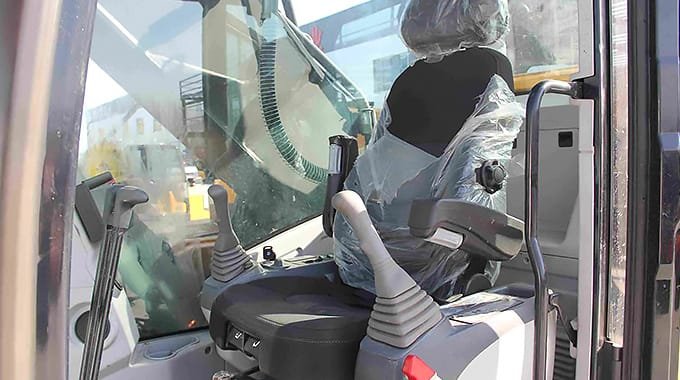

Pilot control
High and low speed

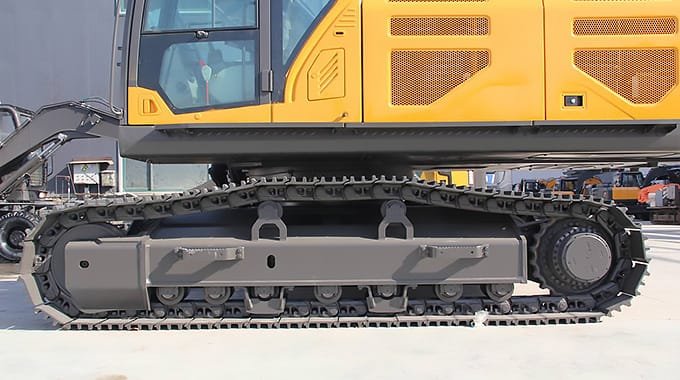

Steel tracks

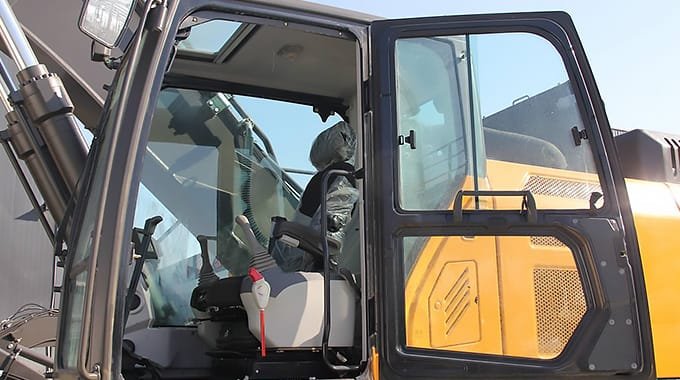

Cab
Cold air conditioning
Rear-View Camera: Provides real-time monitoring of rear blind spots to prevent collisions with personnel and obstacles. It significantly reduces the risk of safety incidents during reversing operations, making it particularly well-suited for use in large construction sites and complex working environments.
| Bucket Capacity | 1.7m³ |
| Swing Speed | 0-11rmp |
| Gradeablity | 35° |
| Max.Bucket Digging Force | 244KN |
| Max.Arm Digging Force | 200KN |
| Engine Model | 6LTAA8.9 |
| Power/Revolution Speed | 241kw/2200rmp |
| System Pressure | 35MPA |
| Dimension | 11285×3190×3664mm |
| Cabin Height | 3168mm |
| Axle Base | 4099mm |
| Track Distance | 2590mm |
| Minimum Ground Clearance | 536mm |
| Tail Swing Radius | 3590mm |
| Max.Digging Height | 10511mm |
| Max.Dumping Height | 7572mm |
| Max.Digging Depth | 7372mm |
| Max.Vertical Digging Depth | 6731mm |
| Max.Digging Radius | 11178mm |
| Min.Swing Radius | 3865mm |
