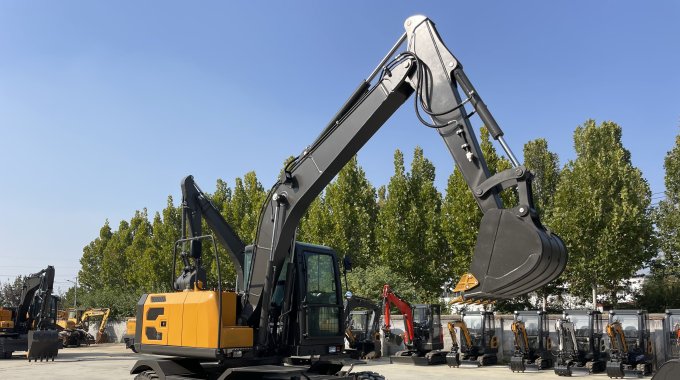

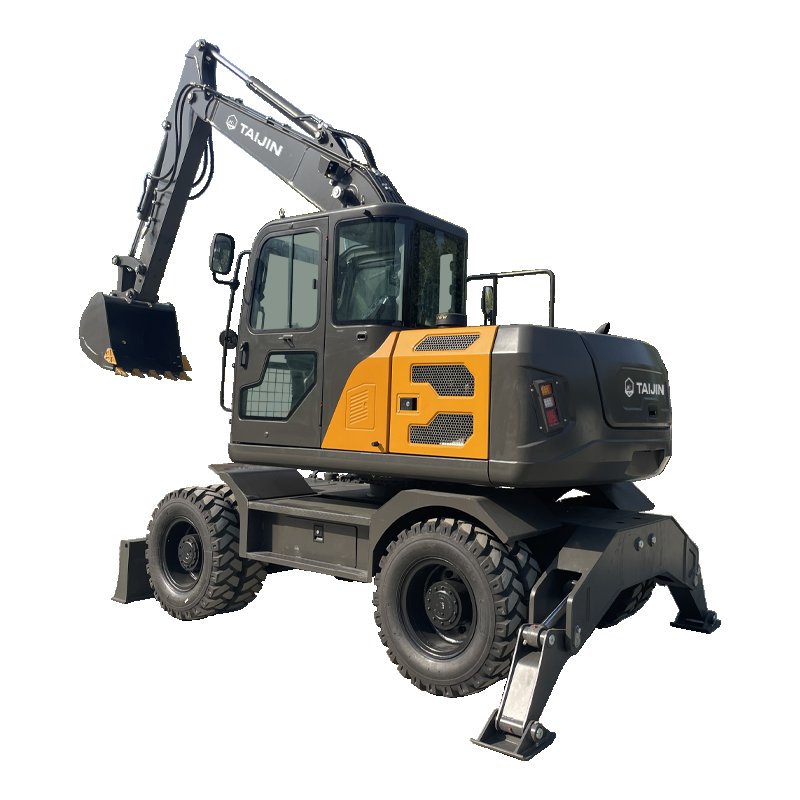

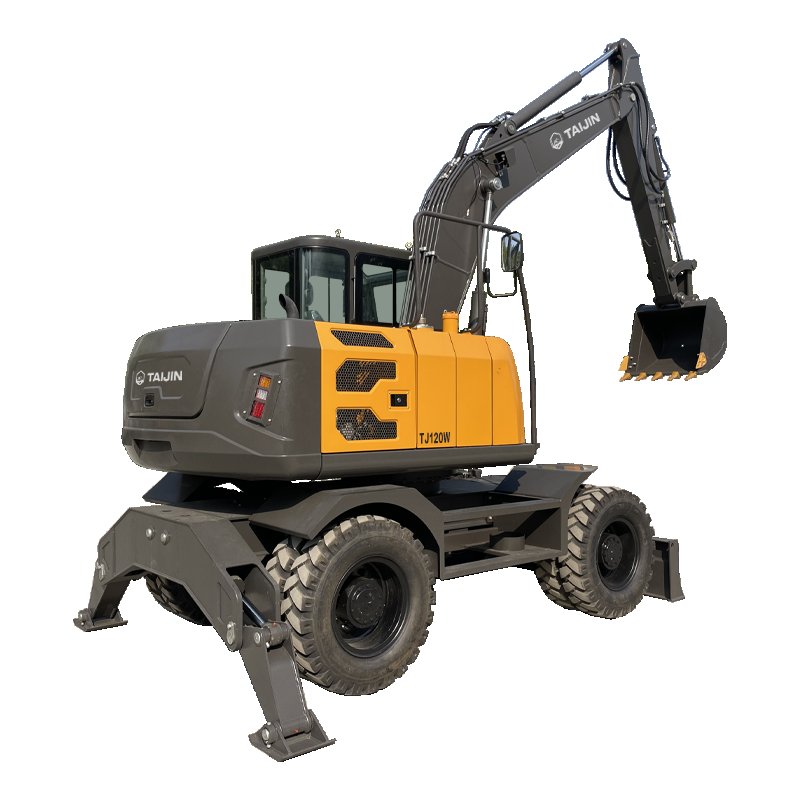

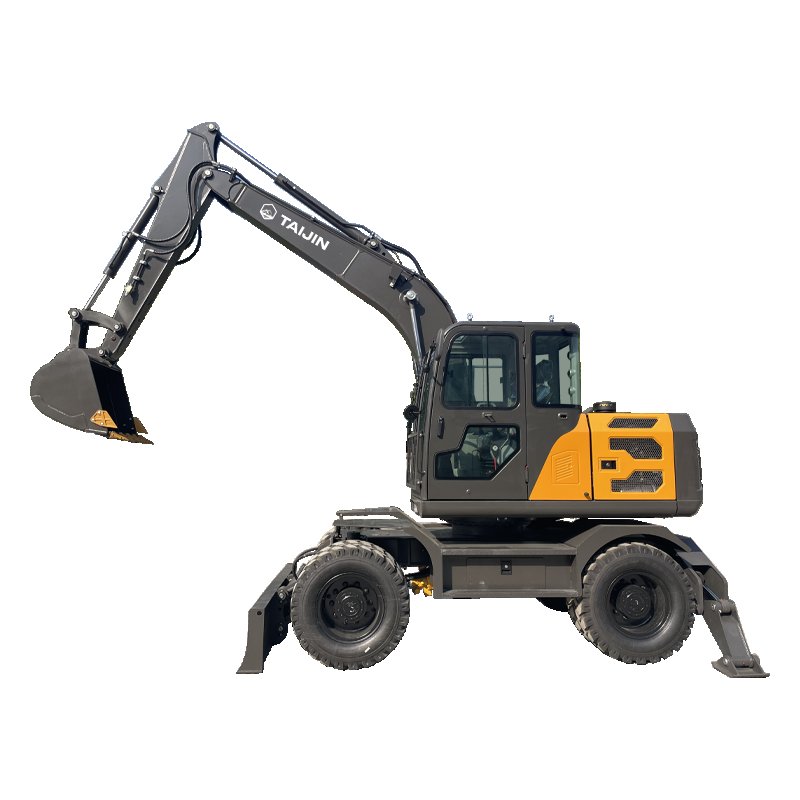

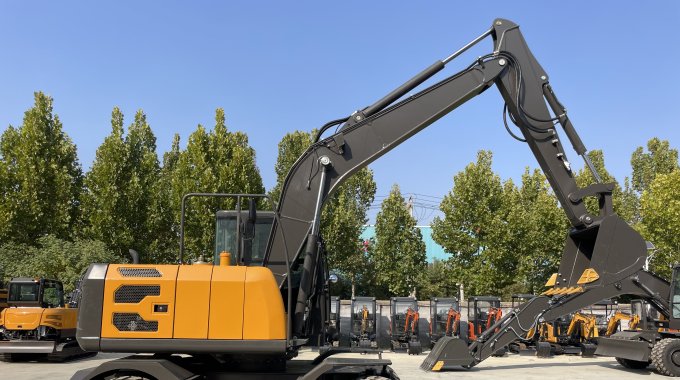

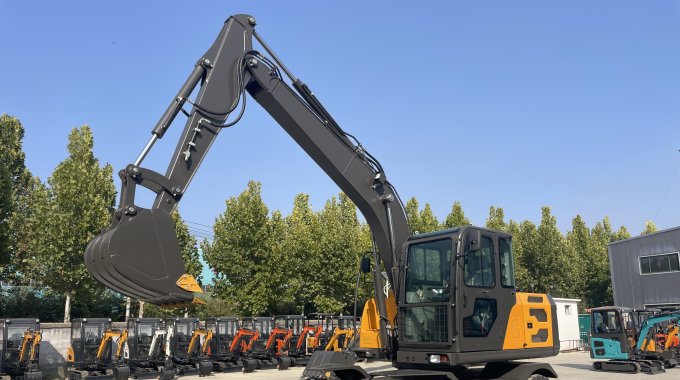

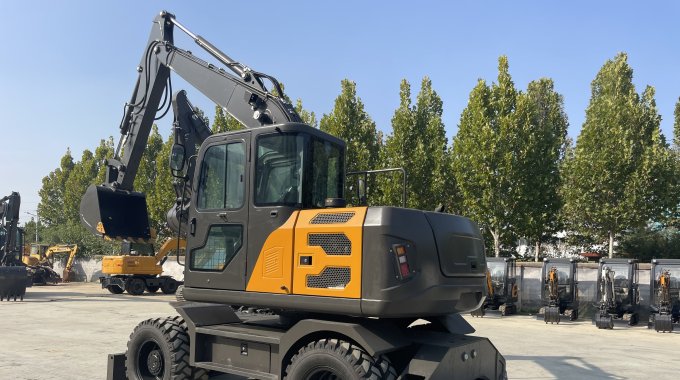

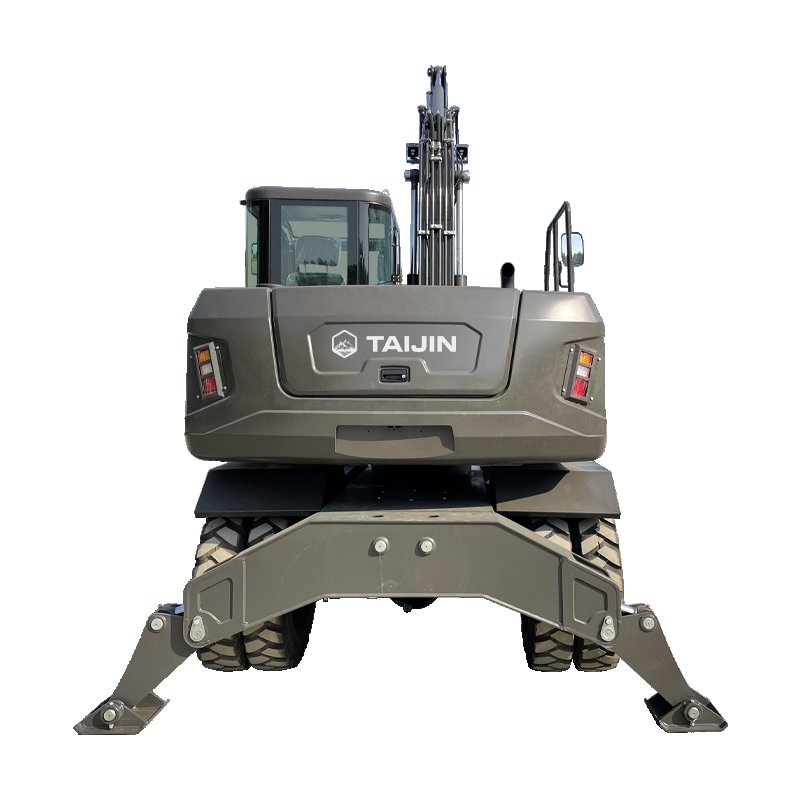

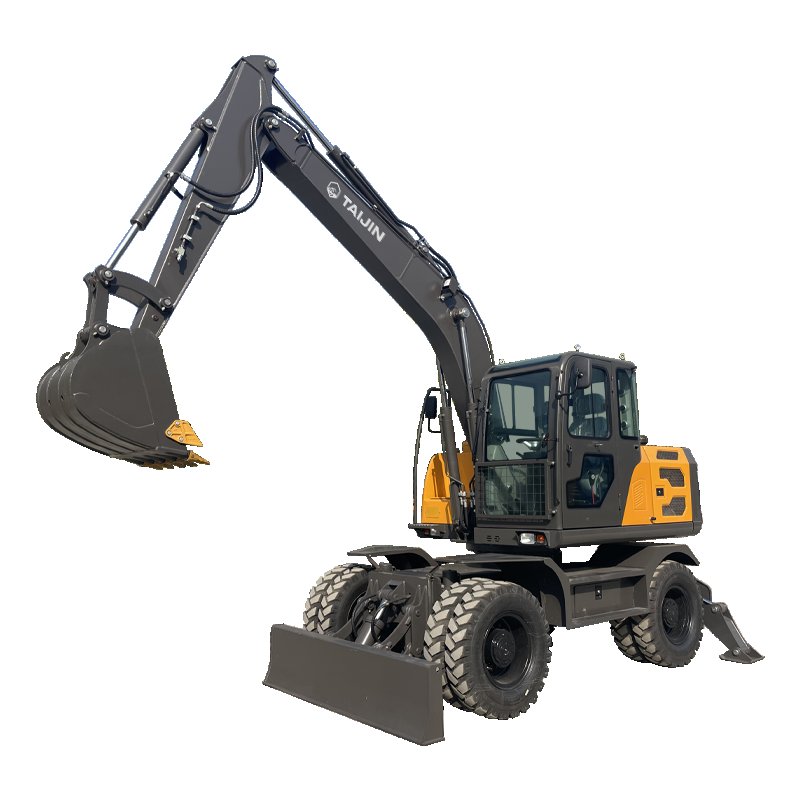

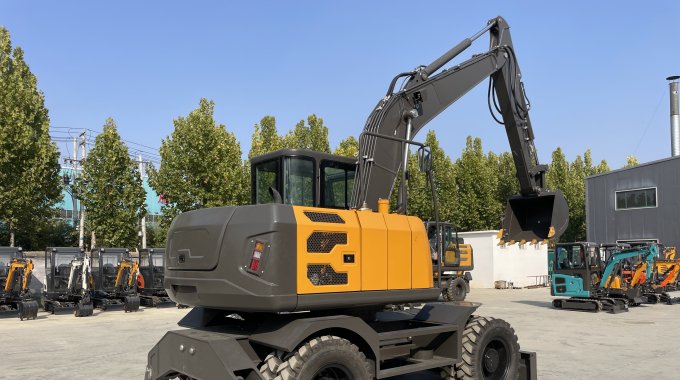

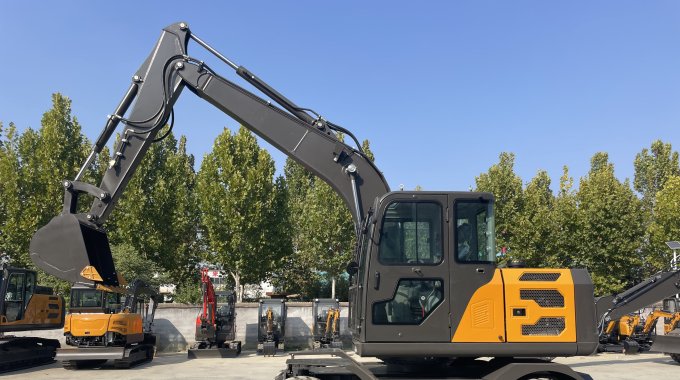

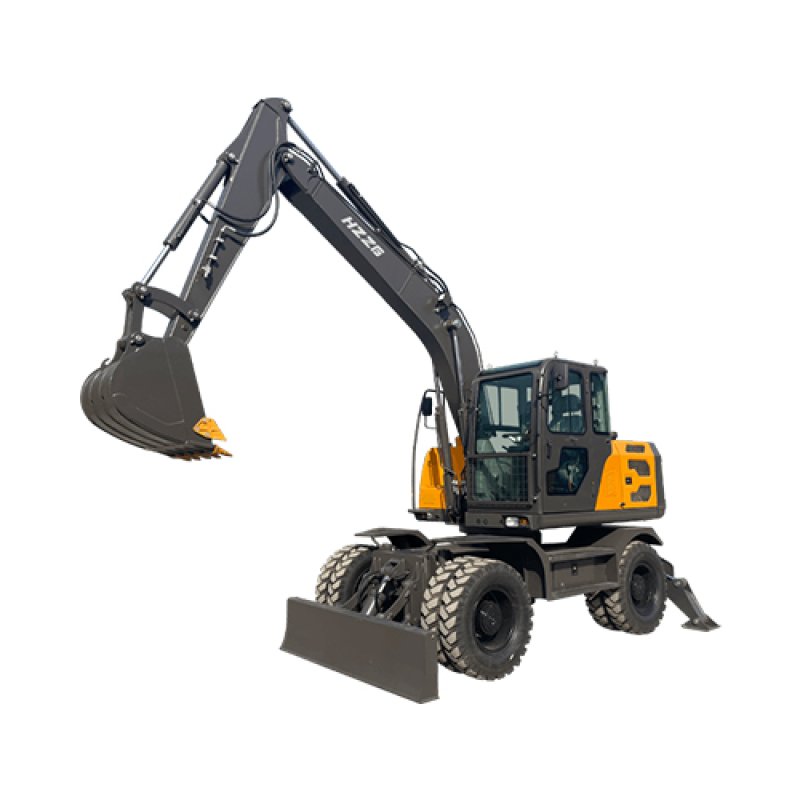

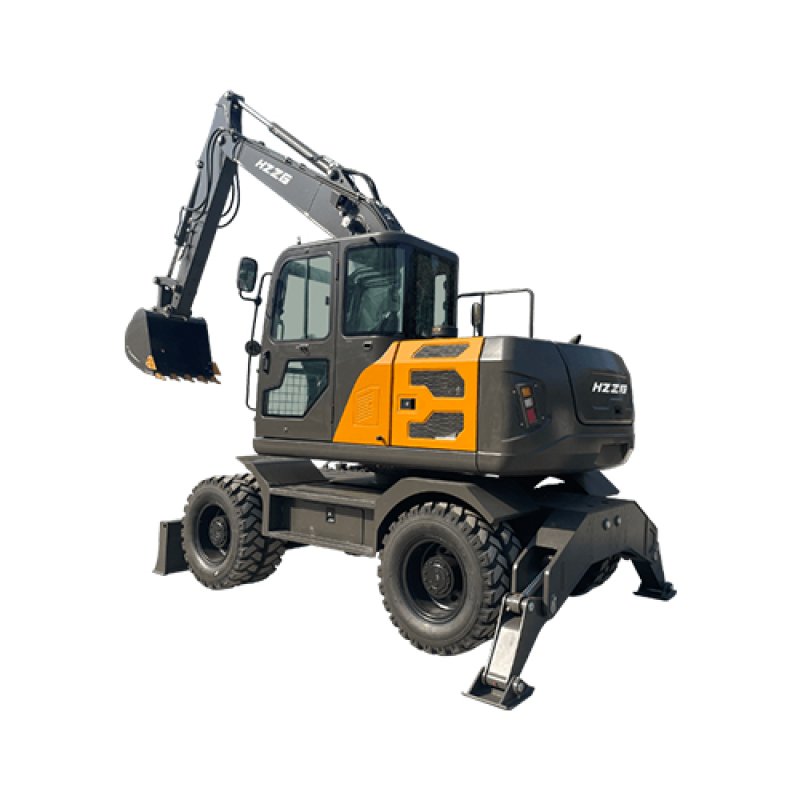

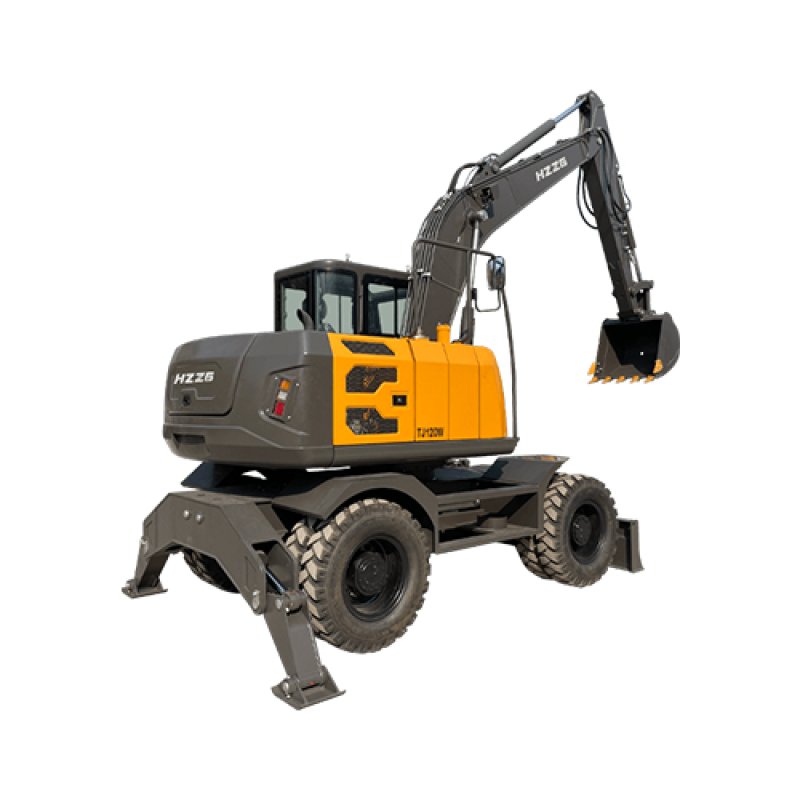

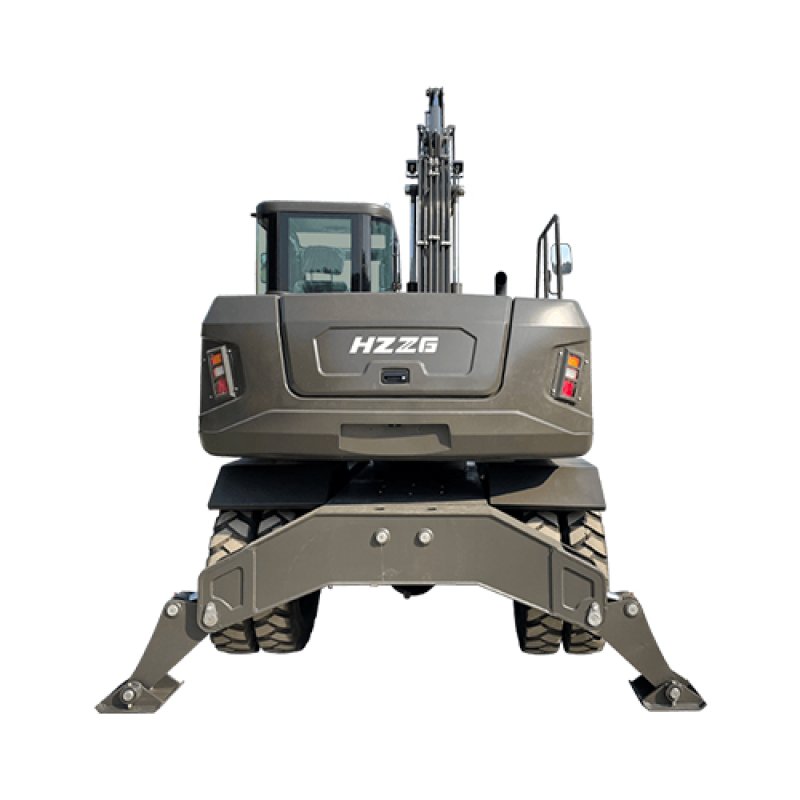

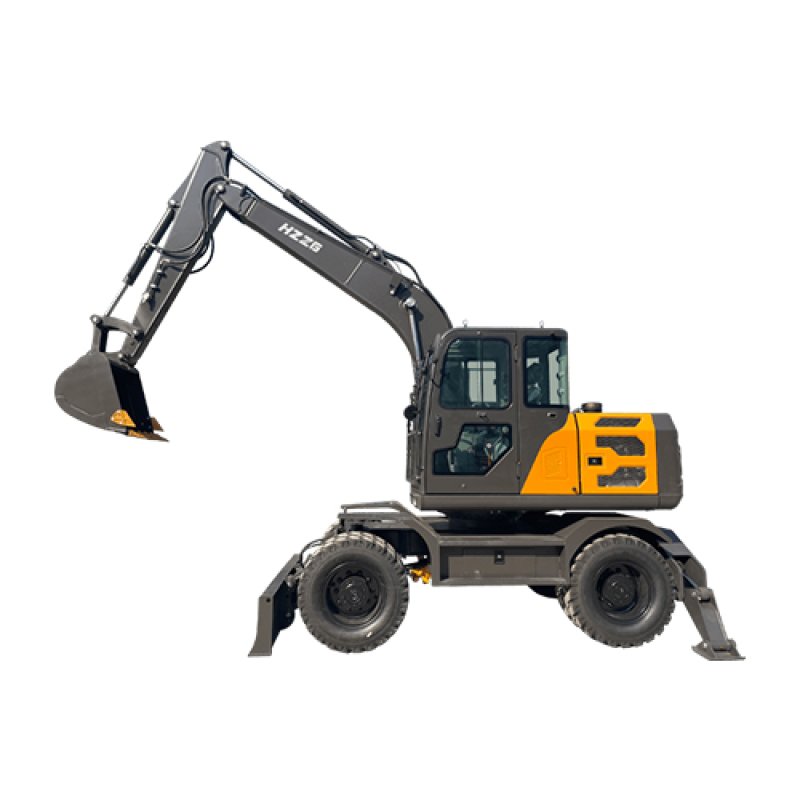

This 12 ton wheel excavator is built for heavy-duty works. Widely used in large construction sites, port handling, quarry operations and infrastructure projects. It features strong power, large working range and high stability to handle tough tasks efficiently.
Operating Weight: 12000KG
Engine Model: Yuchai 4DK100
Maximum Power: 74kw
Bucket Capacity: 0.4m³
Max. Digging Depth: 4.33m
Max. Dumping Height: 6.38m
Max. Digging Height: 8.3m
Pilot control
High and low speed
Crushing line
cab
Air conditioner
| Bucket Capacity | 0.4m³ |
| Swing Speed | 11rmp |
| Gradeablity | 25° |
| Max.Bucket Digging Force | 75KN |
| Max.Arm Digging Force | 52KN |
| Engine Model | YC4DK100 |
| Power/Revolution Speed | 74kw/2200rmp |
| Tire Model | 9.00-20 |
| System Pressure | 35MPA |
| Dimension | 7285×2270×3010mm |
| Cabin Height | 3010mm |
| Axle Base | 2500mm |
| Wheel Distance | 1250mm |
| Minimum Ground Clearance | 335mm |
| Tail Swing Radius | 2160mm |
| Max.Digging Height | 8300mm |
| Max.Dumping Height | 6380mm |
| Max.Digging Depth | 4330mm |
| Max.Vertical Digging Depth | 3950mm |
| Max.Digging Radius | 7580mm |
| Min.Swing Radius | 2160mm |
| Max.Dozer Blade Lifting Distance | 385mm |
| Max.Dozer Blade Cutting Distance | 70mm |
