Application
1. An off-road forklift is a specialized piece of equipment capable of horizontal and vertical transport of goods, offering comprehensive functions including loading, unloading, lifting, and transportation.
2. Off-road forklifts are widely used in construction, agriculture, forestry, animal husbandry, mining, quarrying, and other industries operating in challenging environments.
3. Off-road forklifts can load and unload parts, packages, pallets, containers, and other items, performing stacking and short-distance transport operations. Because forklifts can carry various accessories,
they are also widely used in road transport, rail transport, water transport, material warehousing, postal services, and other fields, demonstrating their wide range of applications.
Introduction
Deatails
Summary

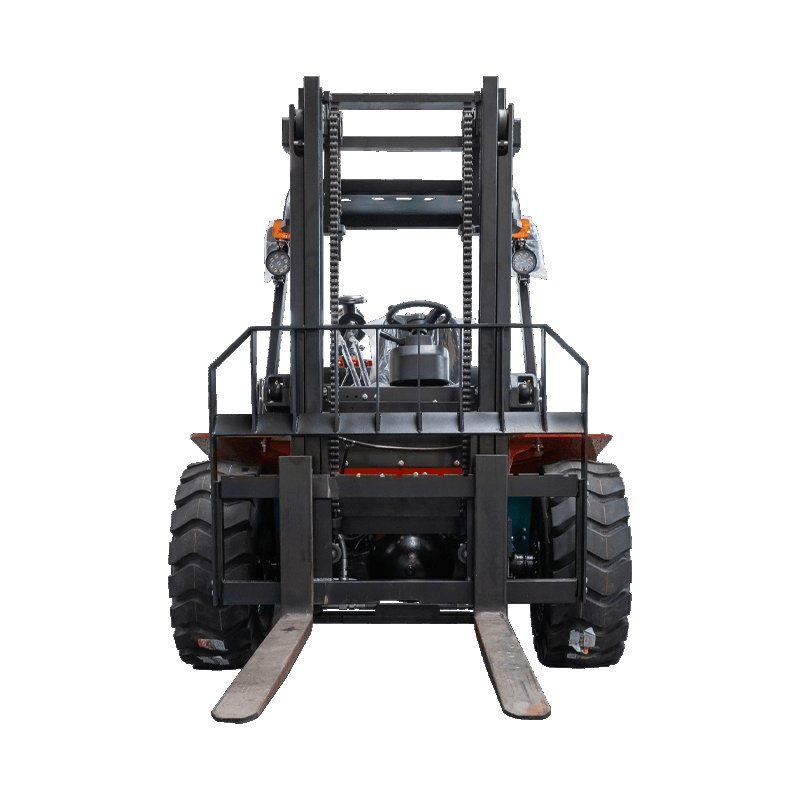

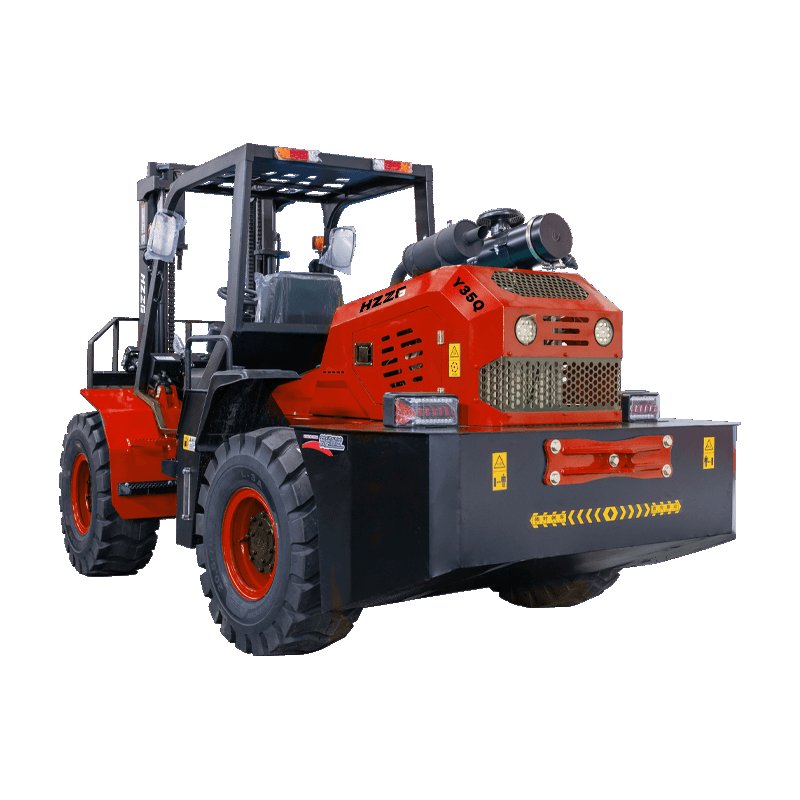

Off-Road Forklift Introduction

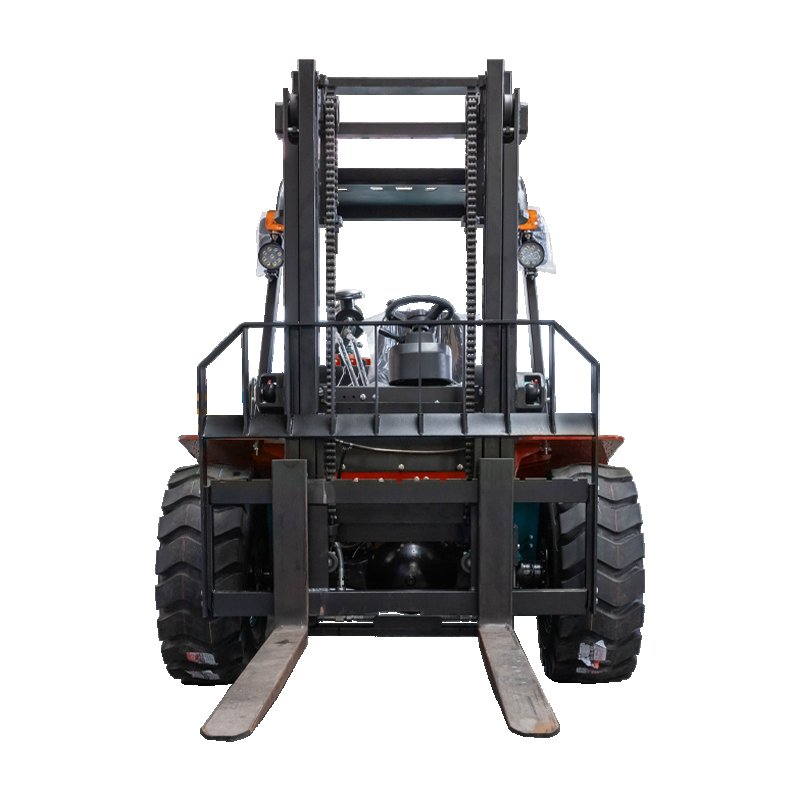

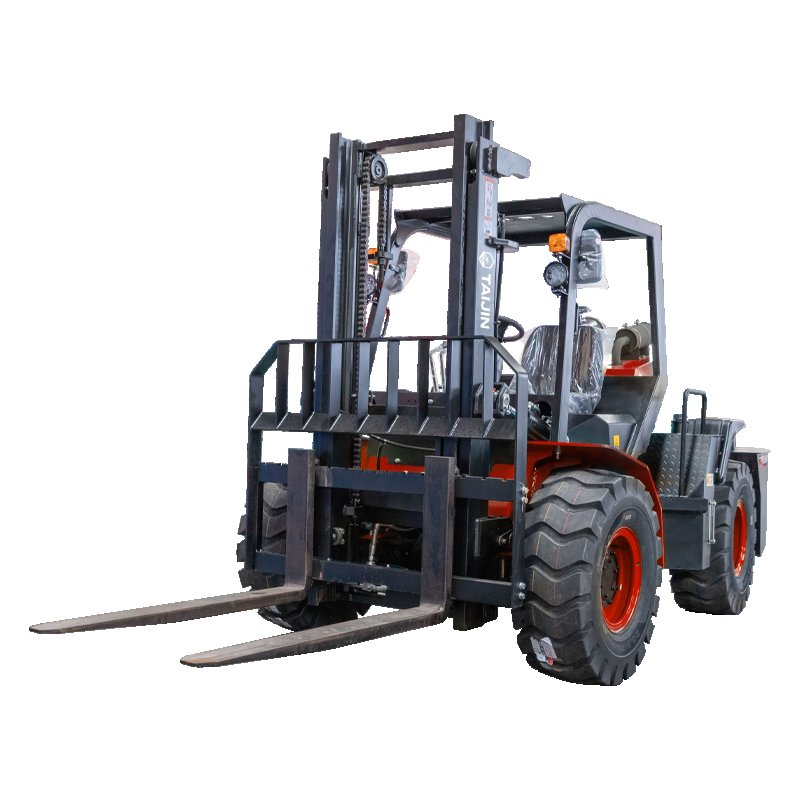

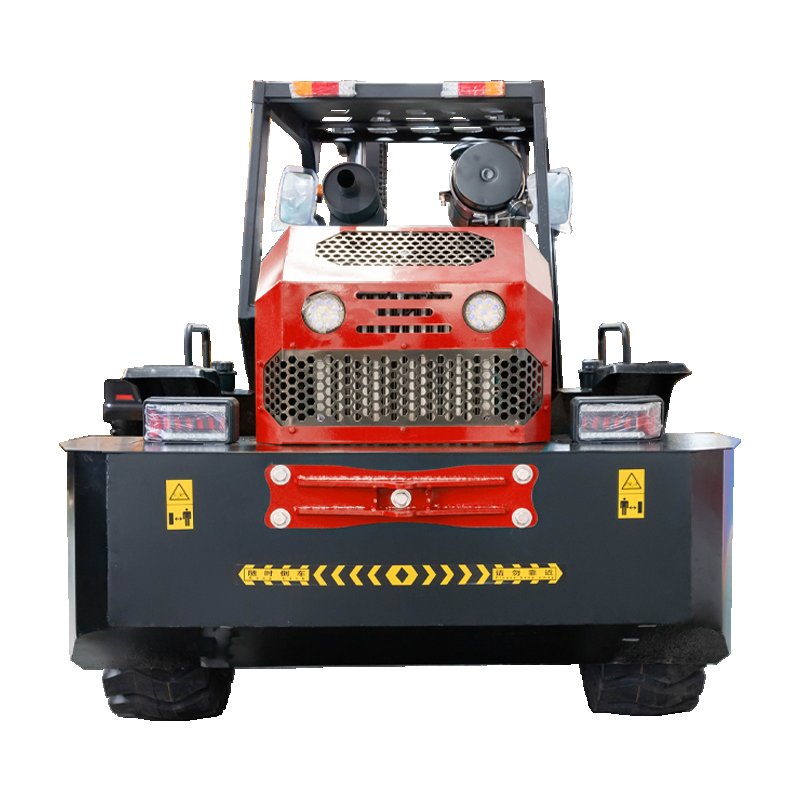

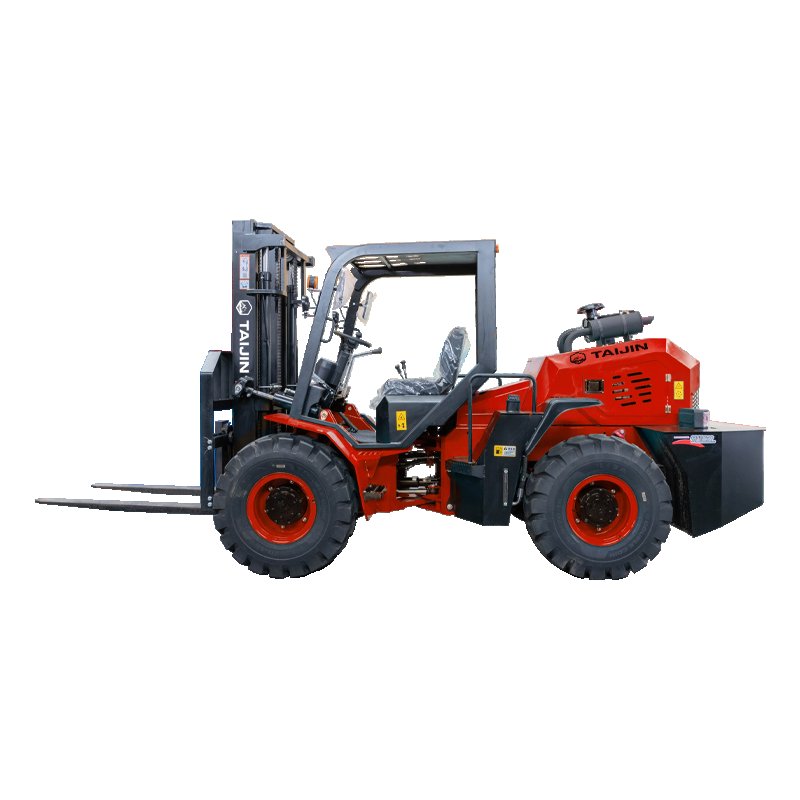

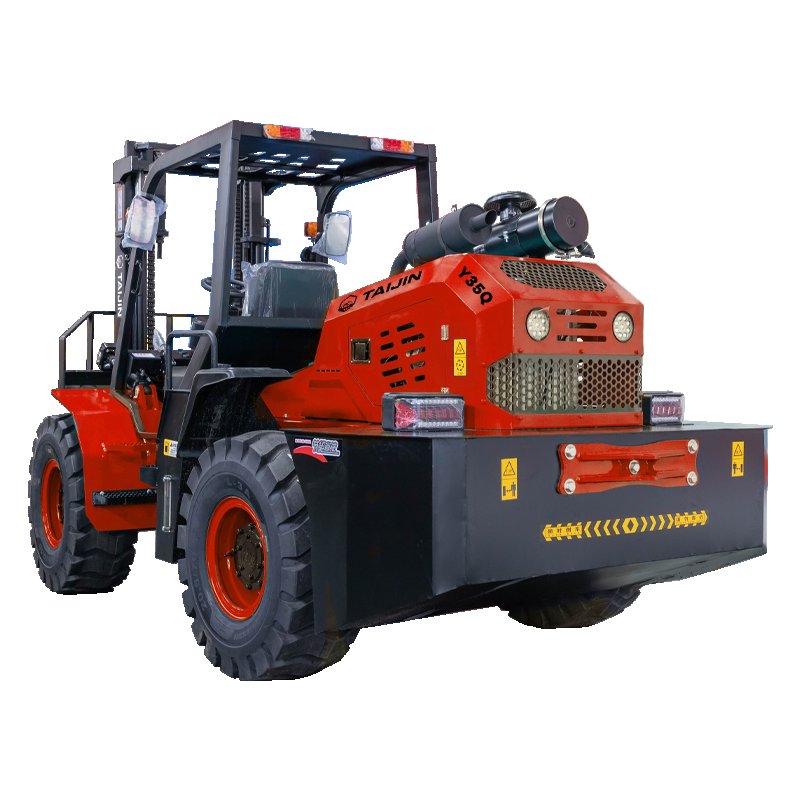

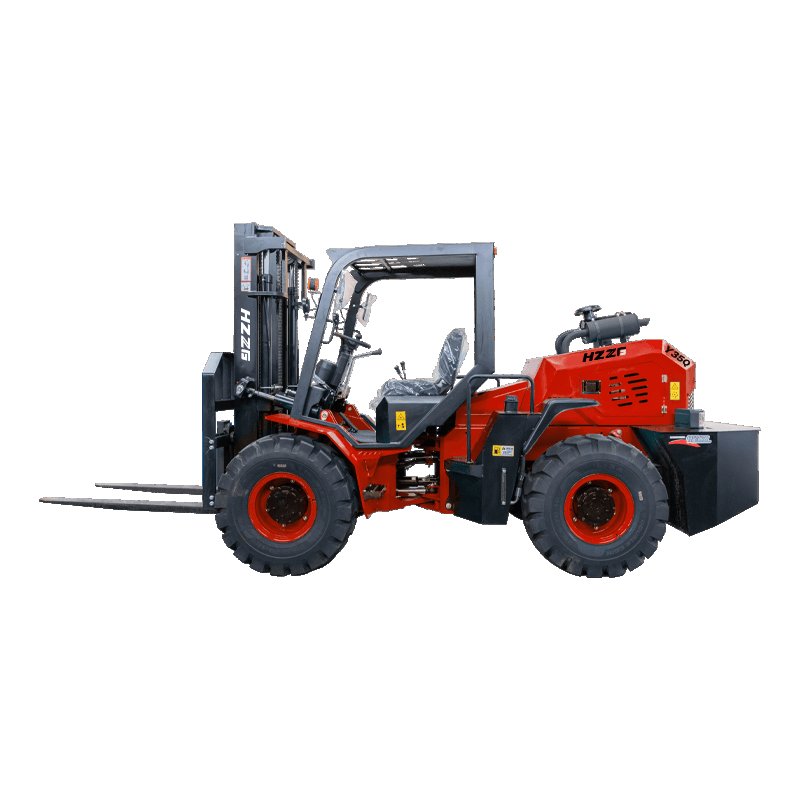

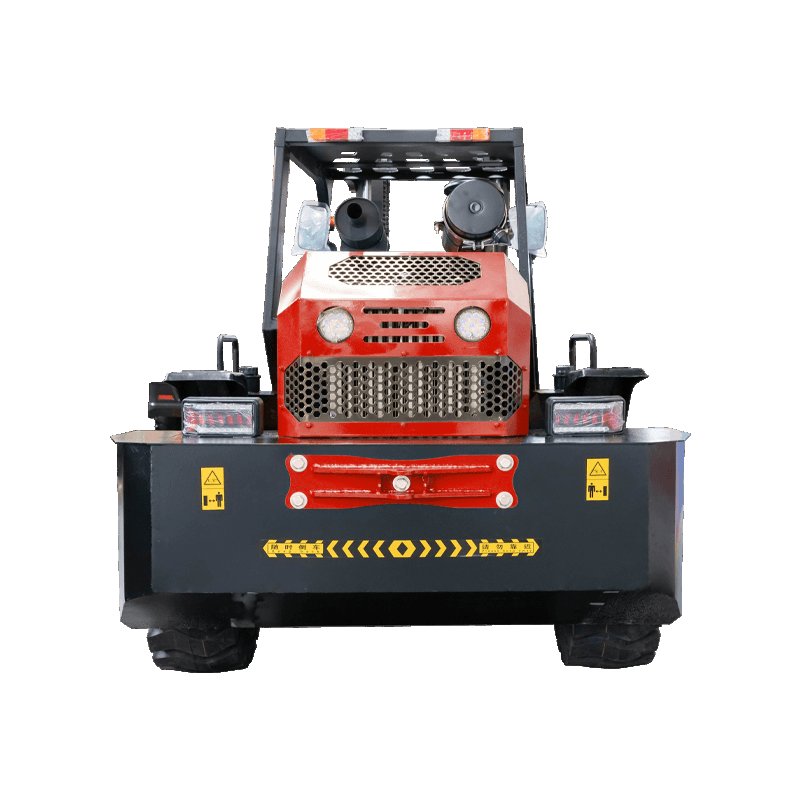

This 3.5-ton off-road forklift is designed for efficient indoor and outdoor material handling.
It easily handles mud, sand, gravel, and slopes without getting stuck or slipping. It ensures stable power and continuous
operation.
Equipped with a reliable engine, a comfortable operating system, and a robust safety structure, this forklift meets
CE and international standards. It features low emissions, low noise, easy maintenance, and a long service life,
making it ideal for special environments such as construction sites, mines, and quarries.
We also offer optional configurations such as more efficient engines, fully enclosed cabs, and air conditioning.
Furthermore, we can customize different attachments to meet your needs. Whatever your requirements, we can
meet them!
Technical Data:
| Model | Y35Q | ||||||
| Rated Load Capacity | kg | 3500 | |||||
| Loader Center | mm | 500 | |||||
| Lifting Height | mm | 3000 | |||||
| Free lifting Height | mm | 140 | |||||
| Fork Size | LxWxT | mm | 1220×125×50 | ||||
| Mast Tilting Angle | F/R | 6/12 | |||||
| Length(without fork) | mm | 3700 | |||||
| Overall Width | mm | 1800 | |||||
| Mast Hight After Mast Fall | mm | 2275 | |||||
| Lift Height | mm | 4100 | |||||
| Overhead Guard Height | mm | 2170 | |||||
| Turning Radius | mm | 4060 | |||||
| Front /Back Overhang | mm | 615 | |||||
| Min.Right Angle Channel Width | mm | 3670 | |||||
| Wheelbase | mm | 1920 | |||||
| Track | Front | mm | 1500 | ||||
| Rear | mm | 1500 | |||||
| Ground Clearance | Mast | mm | 230 | ||||
| Car Center | mm | 300 | |||||
| Speed | Travel | Full Load | km/h | 20 | |||
| No load | km/h | 30 | |||||
| Lifting | Full Load | mm/s | 320 | ||||
| No load | mm/s | 340 | |||||
| Lowering | Full Load | mm/s | 360 | ||||
| No load | mm/s | 320 | |||||
| Max.Drawbar Pull | Full/No Load | kg | 1850/1250 | ||||
| Max.Gradeability | Full/No Load | % | 15/20 | ||||
| Total Weight | kg | 4630 | |||||
| Battery | Voltage/Capacity | V/AH | 24/60 | ||||
| Engine | Model | YN27GB | |||||
| Rated Pover/Speed | Kw/rpm | 36.8/2500 | |||||
| Max.Torque/Speed | N.m/rpm | 185/1800 | |||||
| Work Pressure | Mpa | 17.5 | |||||
| Gear | F/R | 4/4 | |||||
| Tire | 20.5/70-16 | ||||||
