Application
1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.
2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.
3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.
Introduction
Deatails
Summary

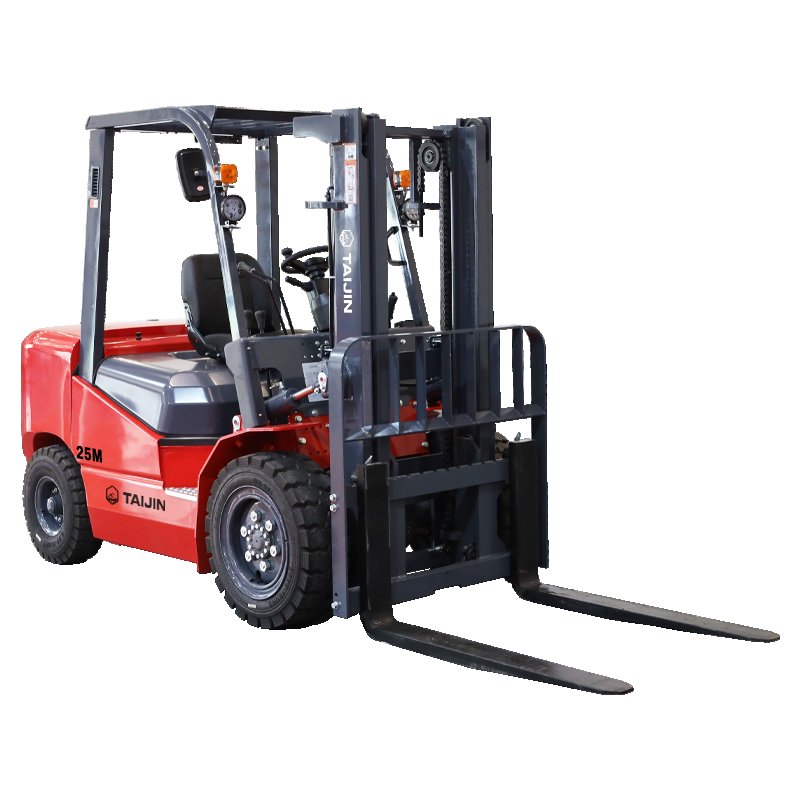

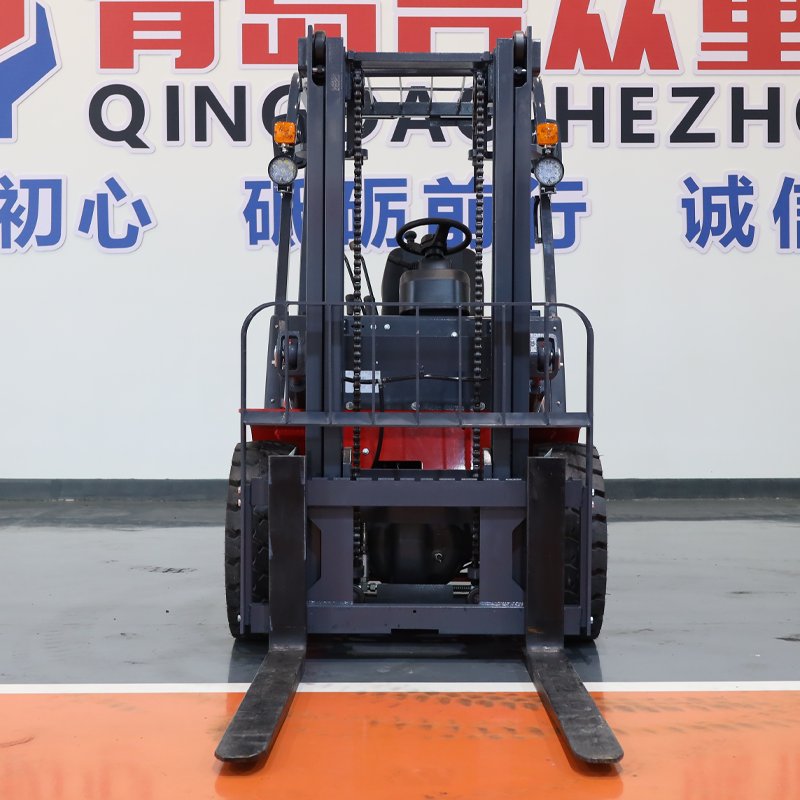

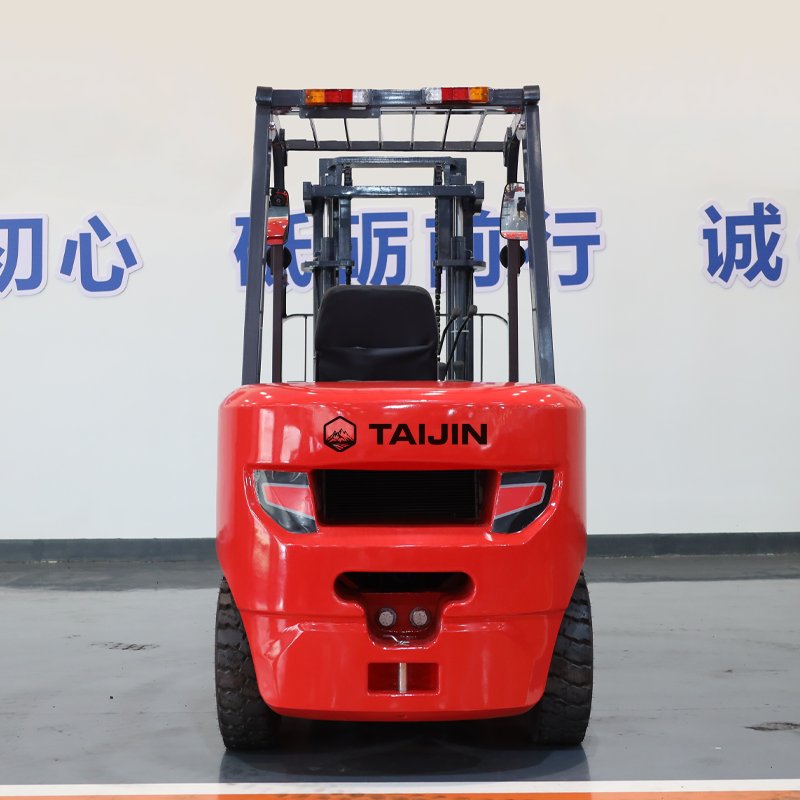

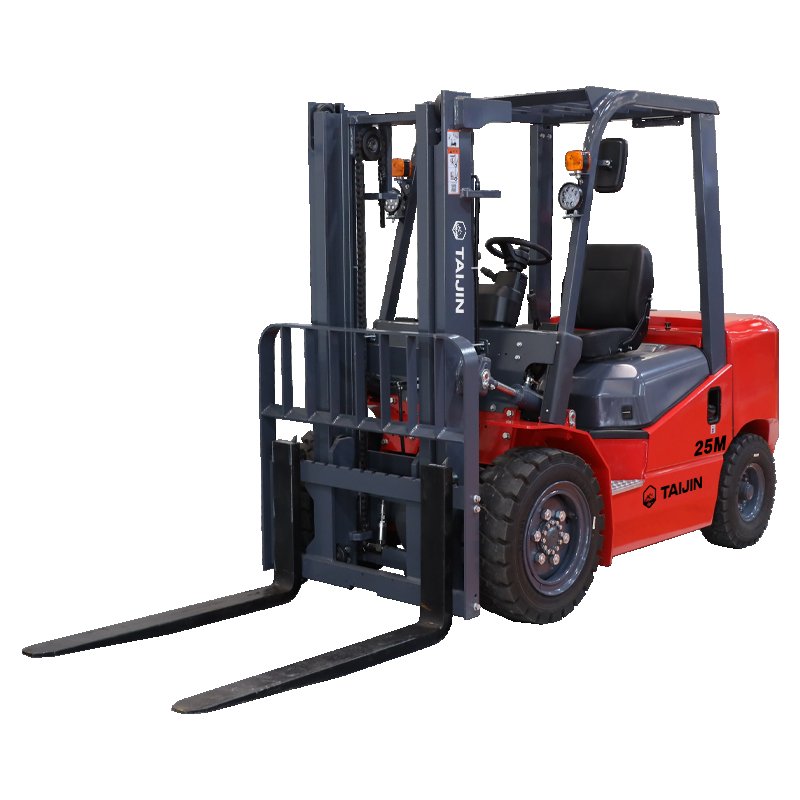

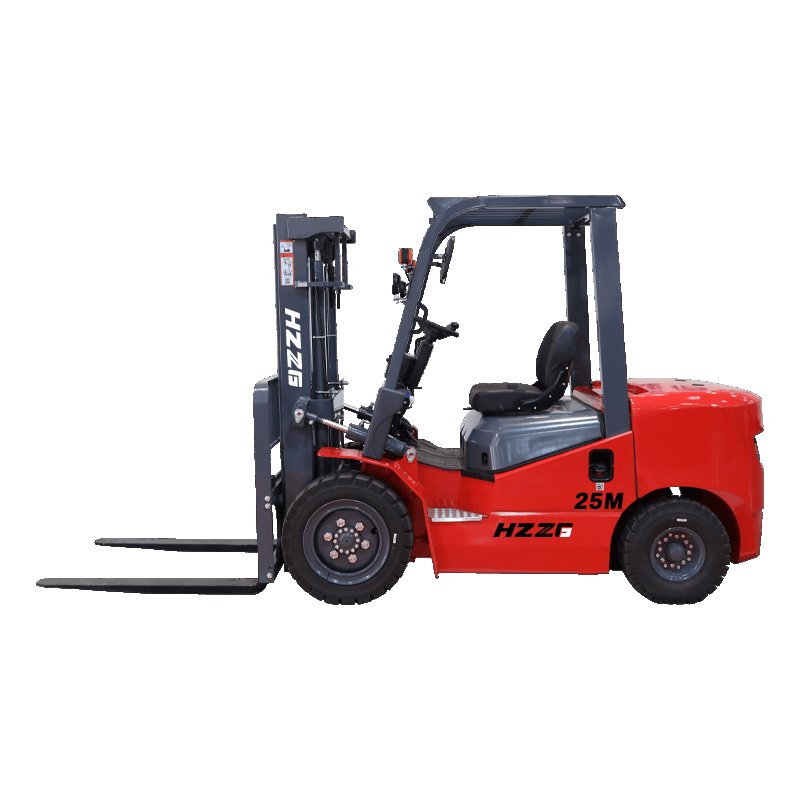

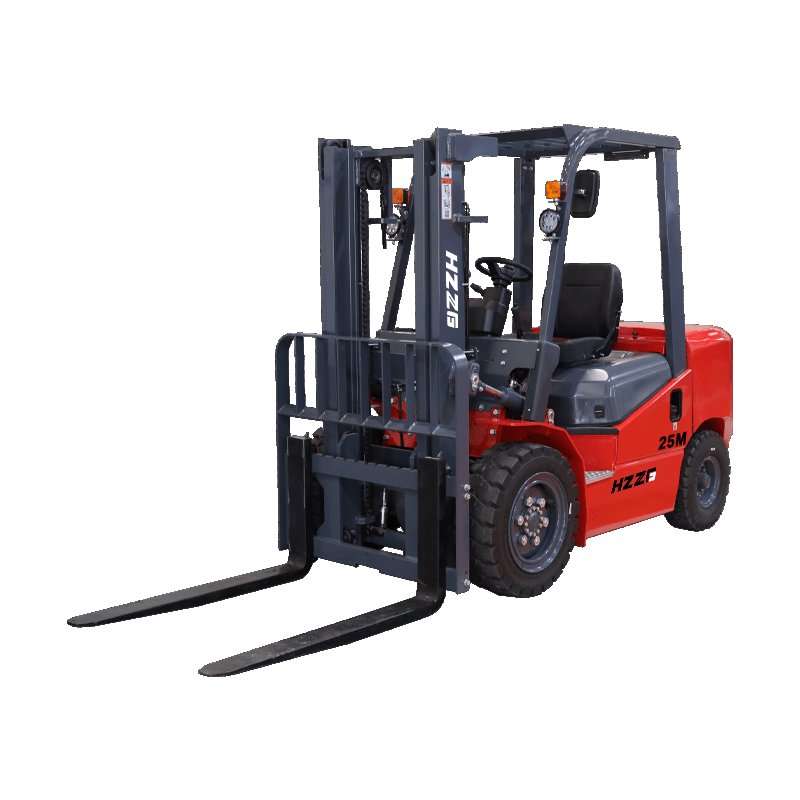

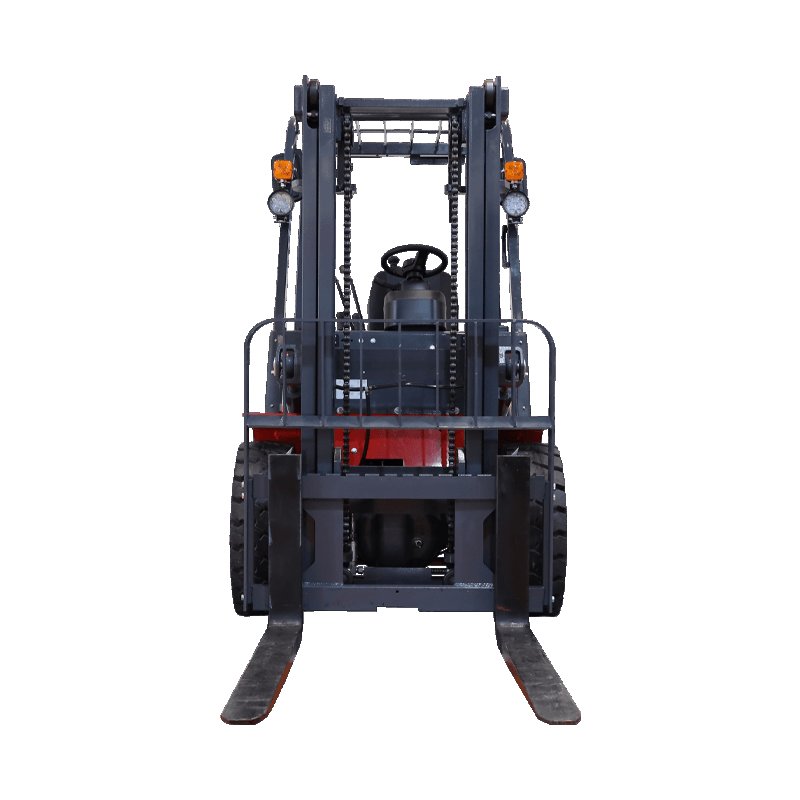

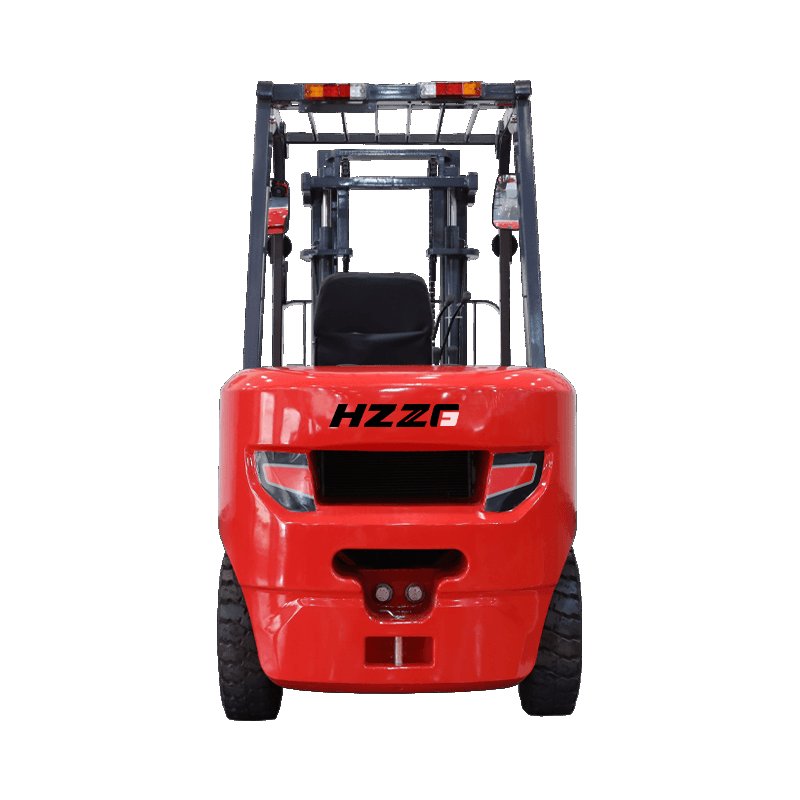

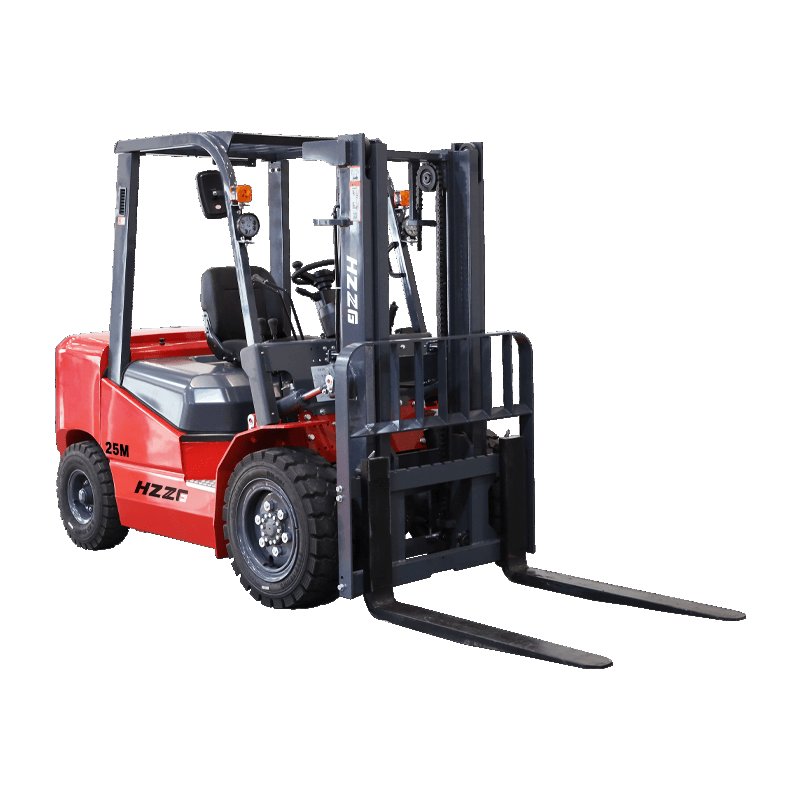

This 2.5-ton diesel forklift is designed for efficient material handling in both indoor and outdoor applications.
Powered by a high-performance diesel engine, it delivers strong power and high torque, ensuring stable performance even under heavy loads and demanding working conditions. Built with a reliable engine, an ergonomic operator system, and a rugged safety structure, it meets CE and international standards.
The forklift features excellent fuel efficiency, long operation duration, low noise levels, and easy maintenance, offering an extended service life. It is ideal for warehouses, logistics centers, manufacturing facilities, and outdoor job sites.
We also offer a range of optional upgrades, including an energy-efficient engine, a fully enclosed cab, and air conditioning. Various attachments can also be customized to meet your specific application needs. Whatever your requirements, we can achieve them!
Technical Data:
| Model | CPC25M/CPCD25M | ||||
| Rated Load Capacity | kg | 2500 | |||
| Loader Center | mm | 500 | |||
| Lifting Height | mm | 3000 | |||
| Free lifting Height | mm | 135 | |||
| Fork Size | LxWxT | mm | 1070×120×45 | ||
| Mast Tilting Angle | F/R | deg | 6/12 | ||
| Length (without fork) | mm | 2665 | |||
| Overall Width | mm | 1170 | |||
| Mast Hight After Mast Fall | mm | 2000 | |||
| Lift Height | mm | 4010 | |||
| Overhead Guard Height | mm | 2130 | |||
| Turning Radius | mm | 2450 | |||
| Front /back Overhang | mm | 455/560 | |||
| Min.Right Angle Channel Width | mm | 2430 | |||
| Wheelbase | mm | 1650 | |||
| Track | Front | mm | 1000 | ||
| Rear | mm | 970 | |||
| Ground Clearance | Mast | mm | 115 | ||
| Car Center | mm | 130 | |||
| Speed | Travel | Full Load | km/h | 17 | |
| No load | km/h | 19 | |||
| Lifting | Full Load | mm/s | 500 | ||
| No load | mm/s | 530 | |||
| Max.Drawbar Pull | Full/No Load | kg | 1800/1500 | ||
| Max.Gradeability | Full/No Load | % | 20/20 | ||
| Total Weight | kg | 3650 | |||
| Battery | Voltage/Capacity | V/AH | 12/80 | ||

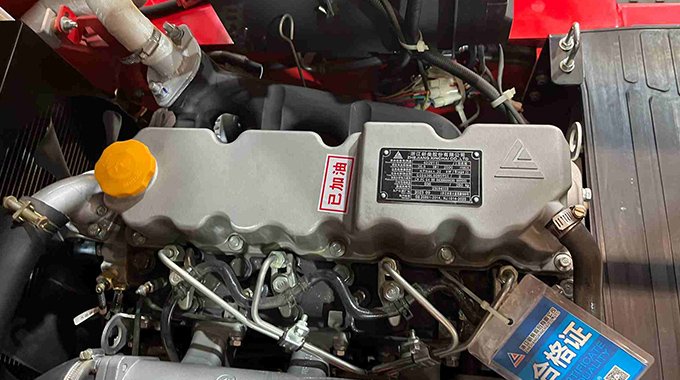

| Engine | Model | XINCHAI C490BPG | |||
| Rated Pover/Speed | Kw/rpm | 36.8/2500 | |||
| Max.Torque/Speed | N.m/rpm | 165/1600~1800 | |||
| Work Pressure | Mpa | 17.5 | |||
