Application
1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.
2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.
3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.
Introduction
Deatails
Summary

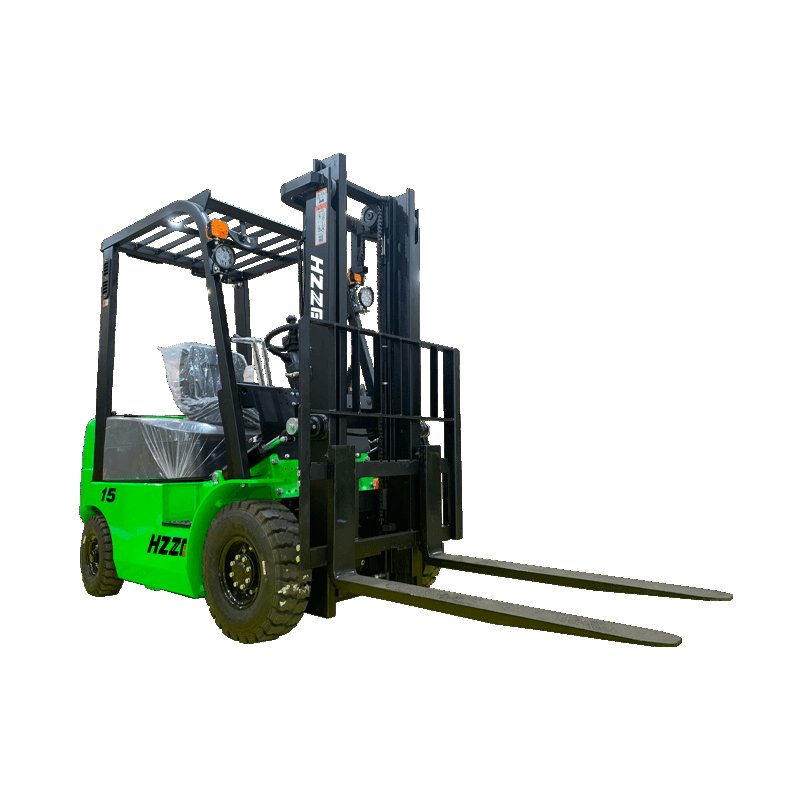

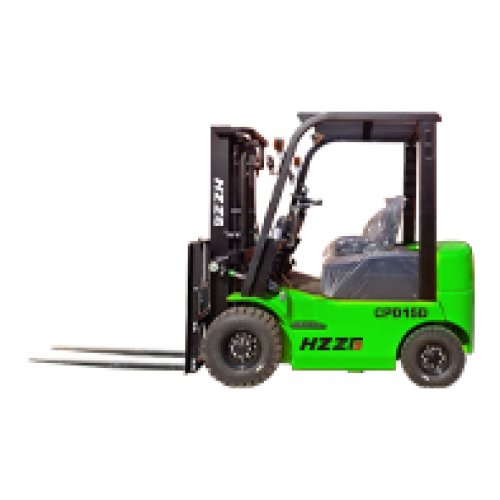

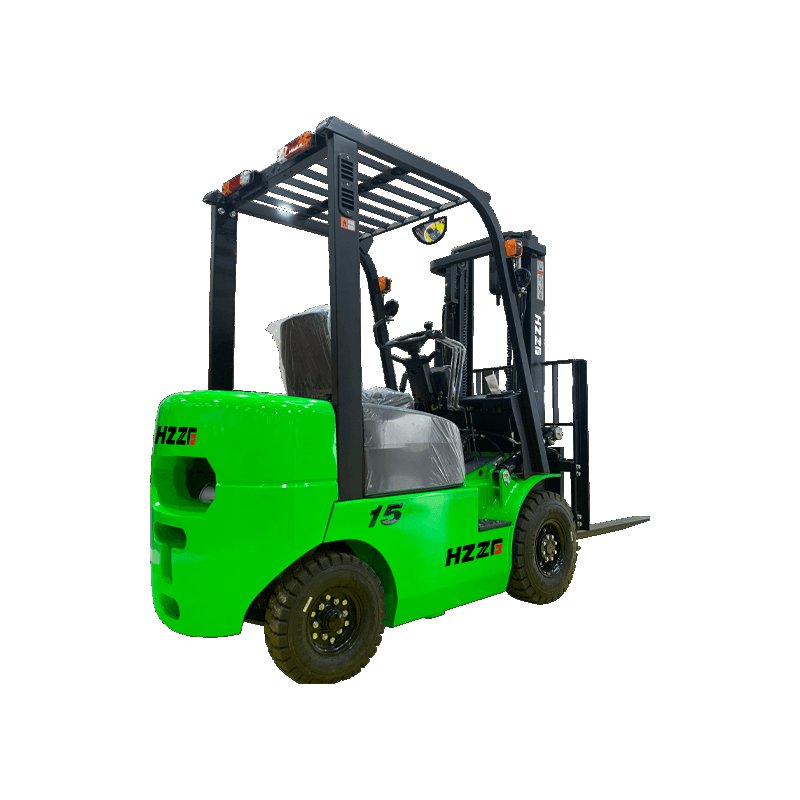

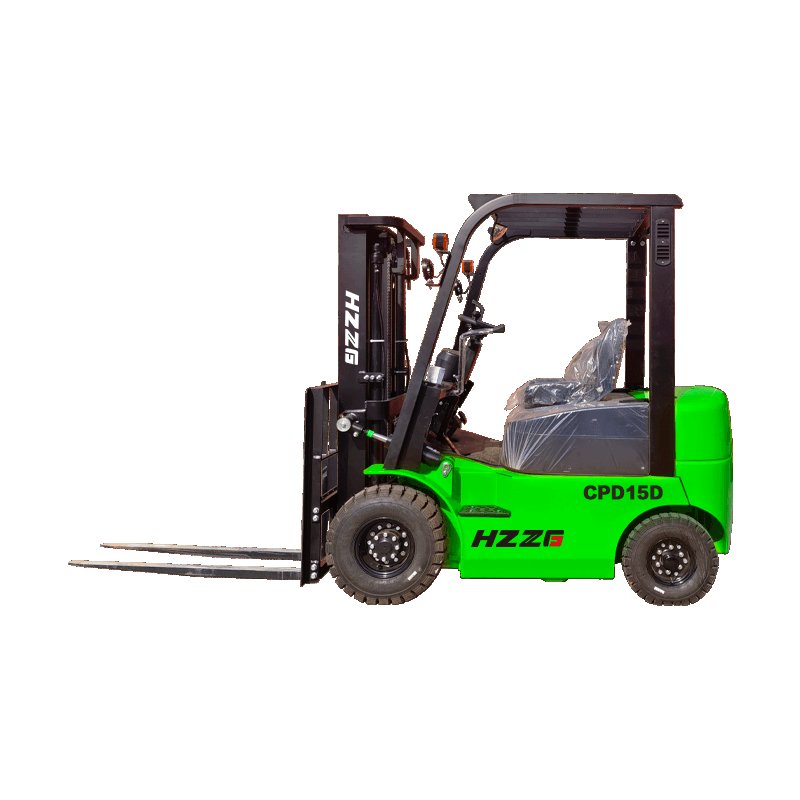

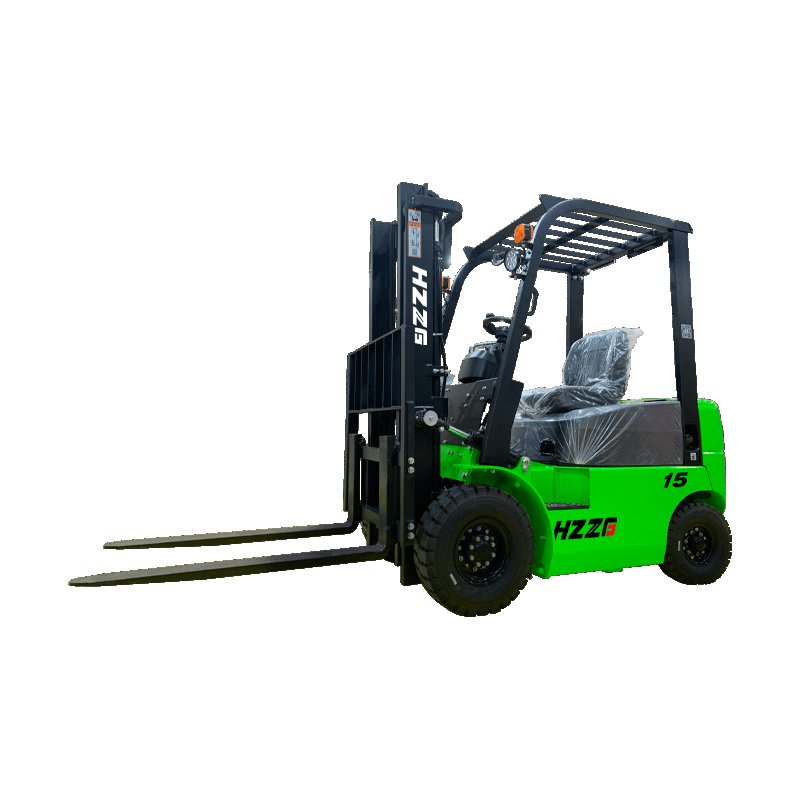

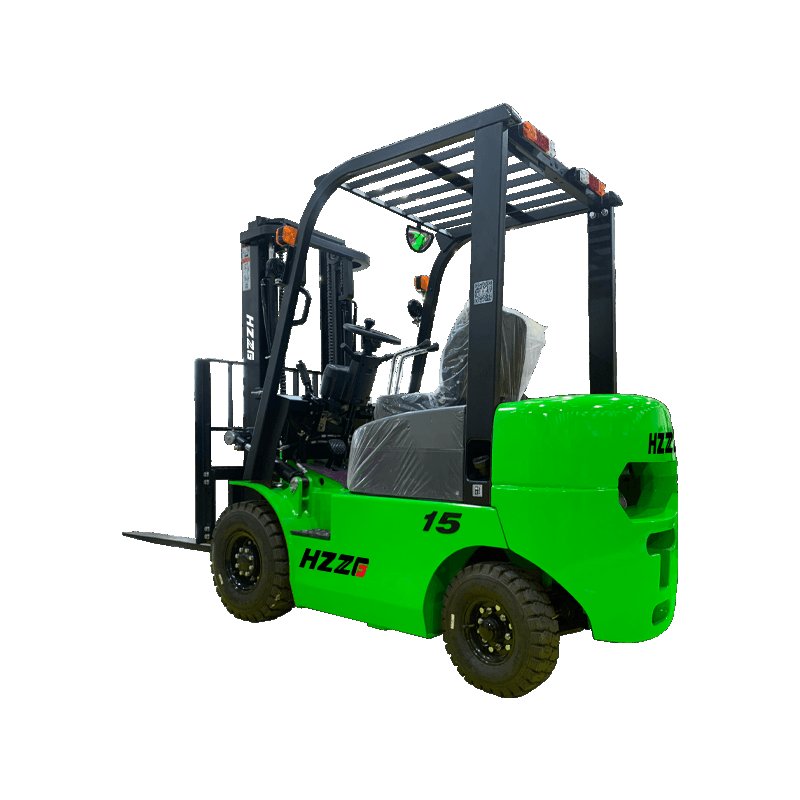

1.5 Ton electric Forklift Introduction
This 1.5-ton electric forklift is suitable for cold storage, cleanrooms, warehousing and logistics, supermarket delivery,
and other applications, and is not subject to environmental policy restrictions.
Our electric forklift boasts an attractive design and powerful performance. It uses lithium iron phosphate blade
batteries, which are less prone to ignition during collisions and compression. It features zero pollution, zero
emissions, no noise, and high energy efficiency.
We also offer various types of lithium batteries, giving you more options for extended runtime, and optional
configurations such as a fully enclosed cab and air conditioning. Furthermore, we can customize different
attachments to meet your needs. Whatever your requirements, we can fulfill them!
Technical Data
| QINGDAO HEZHONG MACHINERY MANUFACTURING CO.,LTD www.hezhongmachinery.com | |||||||||
| General | 1 | Model | CPD15D | ||||||
| 2 | Rated Load Capacity | kg | 1500 | ||||||
| 3 | Load Center | mm | 500 | ||||||
| Dimensions | 4 | Lifting Height | mm | 3000 | |||||
| 5 | Free lifting Height | mm | 130 | ||||||
| 6 | Fork Size | LxWxT | mm | 1070×100×35 | |||||
| 7 | Mast Tilting Angle | F/R | 6/12 | ||||||
| 8 | Length(without fork) | mm | 2210 | ||||||
| 9 | Overall Width | mm | 1095 | ||||||
| 10 | Mast Height After Mast Fall | mm | 1990 | ||||||
| 11 | Lift Height | mm | 4055 | ||||||
| 12 | Overhead Guard Height | mm | 2070 | ||||||
| 13 | Turning Radius | mm | 2085 | ||||||
| 14 | Front Overhang | mm | 405/420 | ||||||
| 15 | Min. Right Angle Stacking Width | mm | 2280 | ||||||
| 16 | Wheelbase | mm | 1400 | ||||||
| 17 | Track | Front | mm | 900 | |||||
| 18 | Rear | mm | 920 | ||||||
| 19 | Ground Clearance | Mast | mm | 110 | |||||
| 20 | Car Center | mm | 130 | ||||||
| Tire | 21 | Front Tire | 6.50-10-10PR | ||||||
| 22 | Rear Tire | 5.00-8-10PR | |||||||
| Performance | 23 | Speed | Travel | Full Load | km/h | 14 | |||
| 24 | No load | km/h | 15 | ||||||
| 25 | Lifting | Full Load | mm/s | 380 | |||||
| 26 | No load | mm/s | 450 | ||||||
| 27 | Lowering | Full Load | mm/s | 530 | |||||
| 28 | No load | mm/s | 500 | ||||||
| 29 | Max.Drawbar Pull | Full/No Load | kg | 1030/700 | |||||
| 30 | Max.Gradeability | Full/No Load | % | 18/27 | |||||
| Weight | 31 | Total Weight | kg | 2670 | |||||
| Power | 32 | Battery | Voltage/Capacity | V/AH | 76.8/280 | ||||
| 33 | Controller | Model/Brand | AC/MEGMEET | ||||||
| 34 | Pump Controller | Model/Brand | AC/MEGMEET | ||||||
| 35 | Traction Motor | Power 60min | Kw | 12 | |||||
| 36 | Lifting Motor | Power 15min | Kw | 13 | |||||
| 37 | Work Pressure | Mpa | 14.5 | ||||||
| 38 | Operating Hours | H | 6~8 | ||||||
