Application
1,Forklift is a special equipment that can transport goods horizontally and vertically.It has comprehensive functions such as loading and unloading,lifting and transportation.
2,Forklift is widely used in mining sites, warehouses, stations, ports, airports, freight yards, circulation centers and logistics distribution centers and other industries, and even some can enter the cabin, carriage and container.
3,Forklift can load and unload parts, packaging parts, pallets, containers and other objects, stacking, short-distance handling and so on. Because it can carry different accessories, it is also widely used in road transportation, railway transportation, water transportation, and material storage and transportation, postal applications, so the range of use of forklift is very large.
Introduction
Deatails
Summary

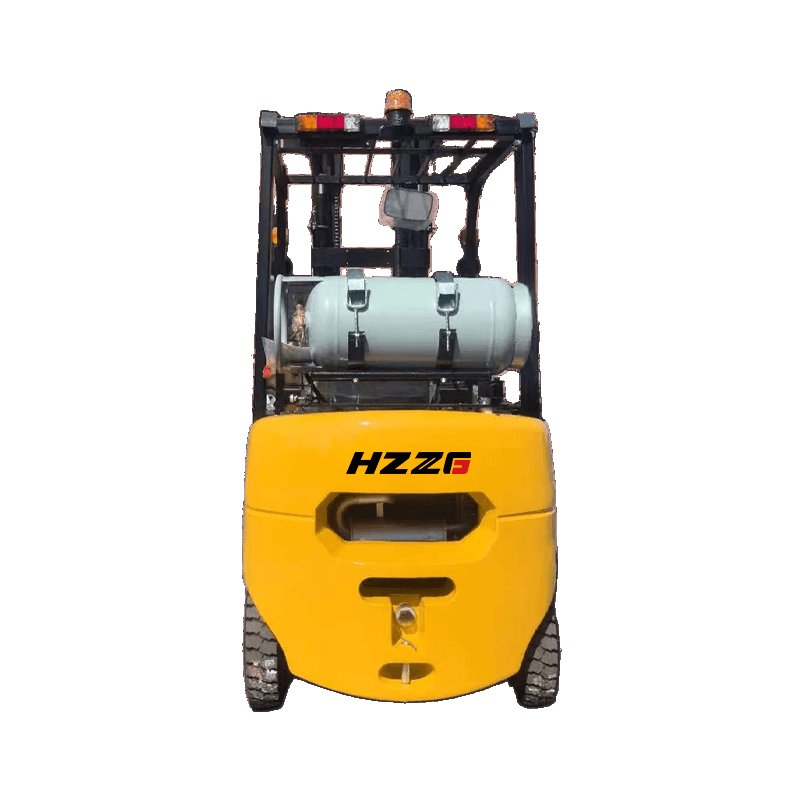

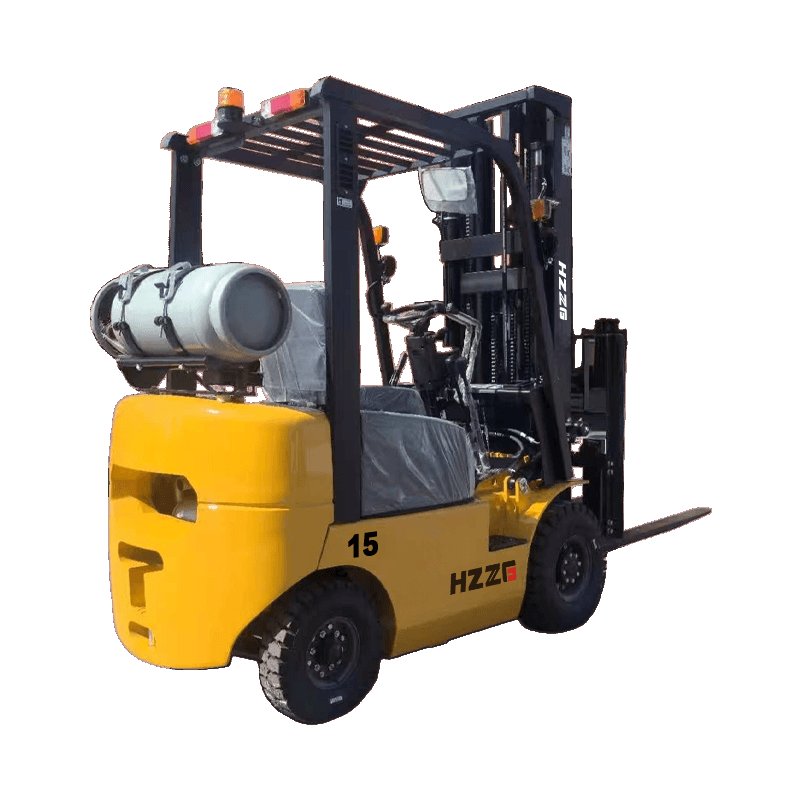

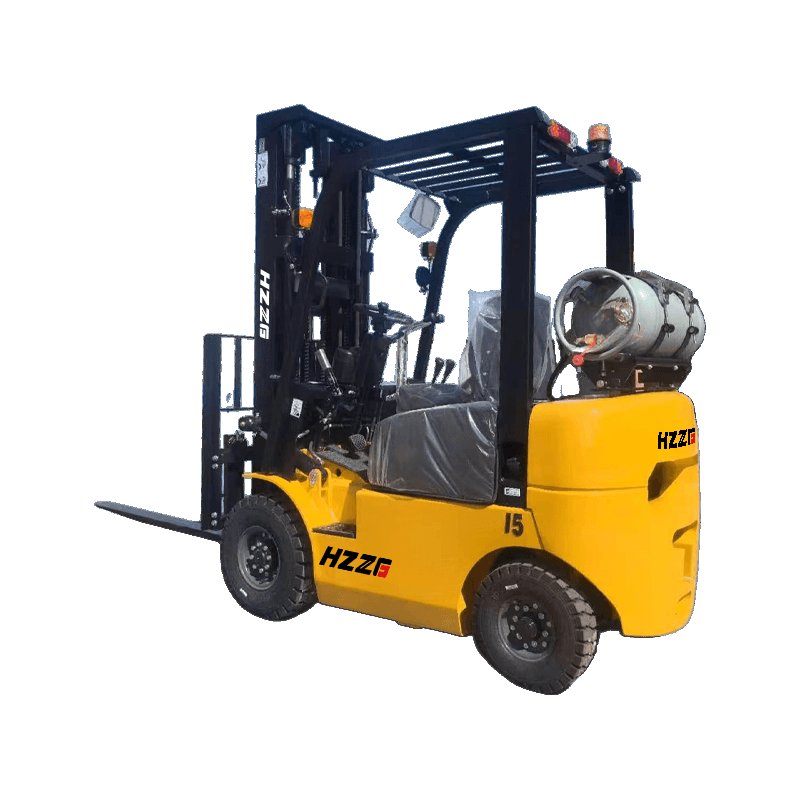

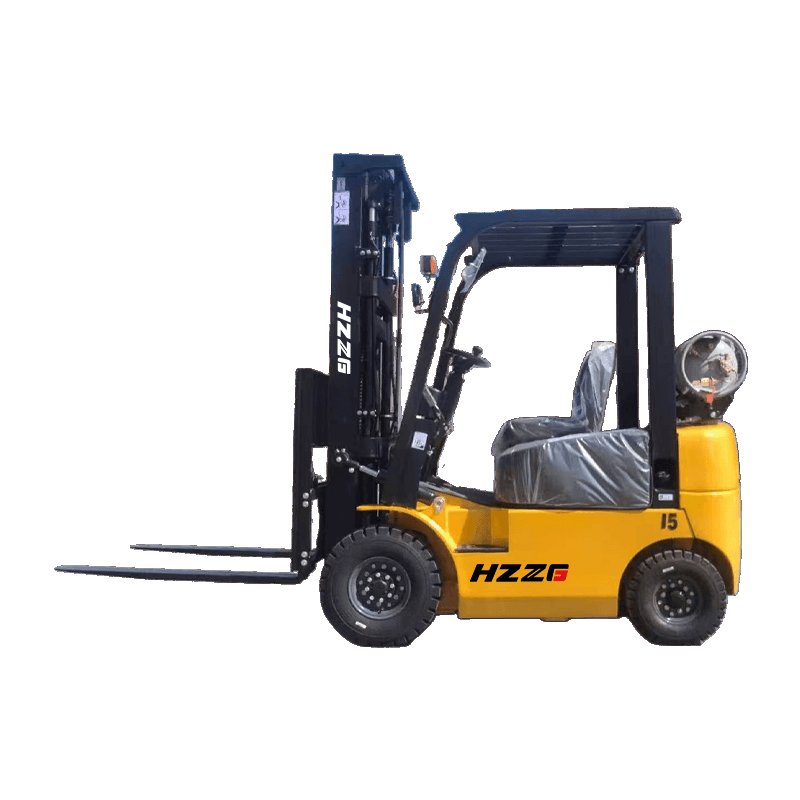

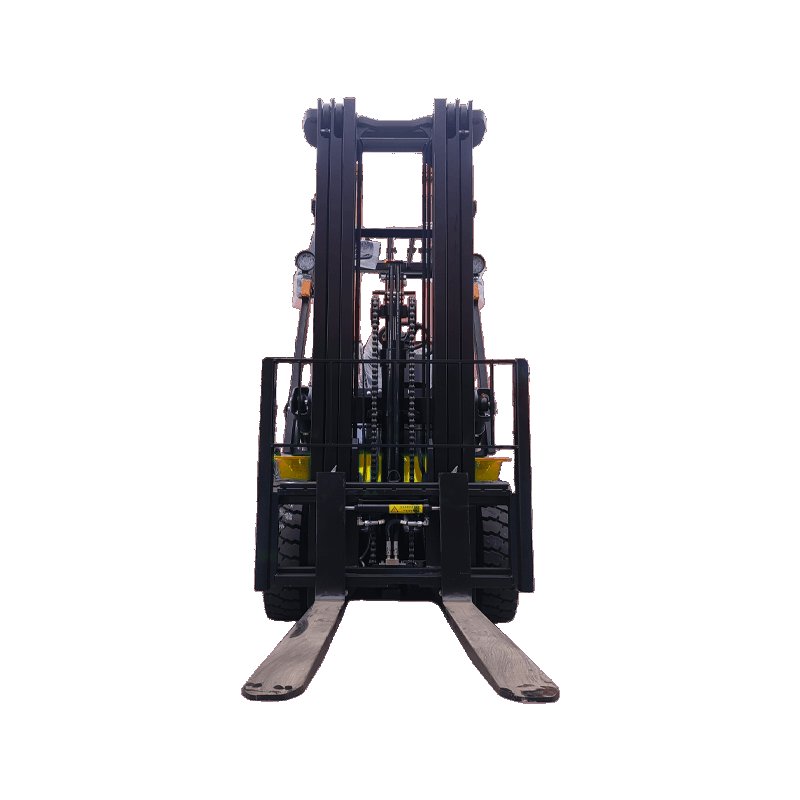

1.5 Ton LPG Dual Fuel Forklift Introduction
This 1.5-ton LPG dual fuel forklift is designed for efficient indoor and outdoor material handling.
It can switch freely between LPG and gasoline, ensuring stable power and continuous operation.
Equipped with a reliable engine, comfortable operation system and strong safety structure, it meets CE and international standards. The forklift features low emissions, low noise, easy maintenance and long service life, ideal for warehouses, logistics, factories and outdoor working sites.
We also offer optional features such as a more efficient engine, a fully enclosed cab, and air conditioning. Different attachments can also be customized to meet your needs. Whatever your requirements, we can achieve them!
Technical Data:
 | QINGDAO HEZHONG MACHINERY MANUFACTURING CO.,LTD www.hezhongmachinery.com | ||||||||
| General | 1 | Model | CPY-15 | ||||||
| 2 | Rated Load Capacity | kg | 1500 | ||||||
| 3 | Load Center | mm | 500 | ||||||
| Dimensions | 4 | Lifting Height | mm | 3000 | |||||
| 5 | Free lifting Height | mm | 130 | ||||||
| 6 | Fork Size | LxWxT | mm | 1070×100×35 | |||||
| 7 | Mast Tilting Angle | F/R | 6/12 | ||||||
| 8 | Length (without fork) | mm | 2210 | ||||||
| 9 | Overall Width | mm | 1095 | ||||||
| 10 | Mast Height After Mast Fall | mm | 1990 | ||||||
| 11 | Lift Height | mm | 4055 | ||||||
| 12 | Overhead Guard Height | mm | 2070 | ||||||
| 13 | Turning Radius | mm | 2085 | ||||||
| 14 | Front /back Overhang | mm | 405/420 | ||||||
| 15 | Min. Right Angle Stacking Width | mm | 2280 | ||||||
| 16 | Wheelbase | mm | 1400 | ||||||
| 17 | Track | Front | mm | 900 | |||||
| 18 | Rear | mm | 920 | ||||||
| 19 | Ground Clearance | Mast | mm | 110 | |||||
| 20 | Car Center | mm | 130 | ||||||
| Tire | 21 | Front Tire | 6.50-10-10PR | ||||||
| 22 | Rear Tire | 5.00-8-10PR | |||||||
| Performance | 23 | Speed | Travel | Full Load | km/h | 14 | |||
| 24 | No load | km/h | 15 | ||||||
| 25 | Lifting | Full Load | mm/s | 380 | |||||
| 26 | No load | mm/s | 450 | ||||||
| 27 | Lowering | Full Load | mm/s | 530 | |||||
| 28 | No load | mm/s | 500 | ||||||
| 29 | Max.Drawbar Pull | Full/No Load | kg | 1030/700 | |||||
| 30 | Max.Gradeability | Full/No Load | % | 18/27 | |||||
| Weight | 31 | Total Weight | kg | 2750 | |||||
| Power&Transmission | 32 | Battery | Voltage/Capacity | V/AH | 12/80 | ||||
| 33 | Engine | Model | GCT GK21 | ||||||
| 34 | Rated Power/Speed | Kw/rpm | 29/2500 | ||||||
| 35 | Max.Torque/Speed | N.m/rpm | 157/1800 | ||||||
| 36 | Work Pressure | Mpa | 17.5 | ||||||
| 37 | Fuel Tank Capacity | L | 60 | ||||||
| 38 | Transmission Type | Mechanical/Automatic | |||||||
