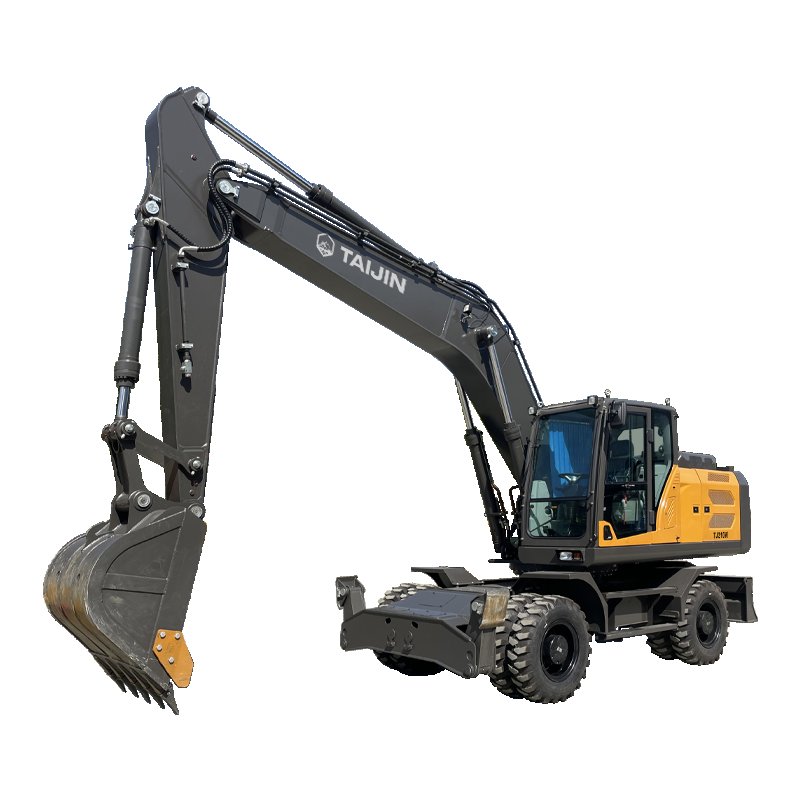

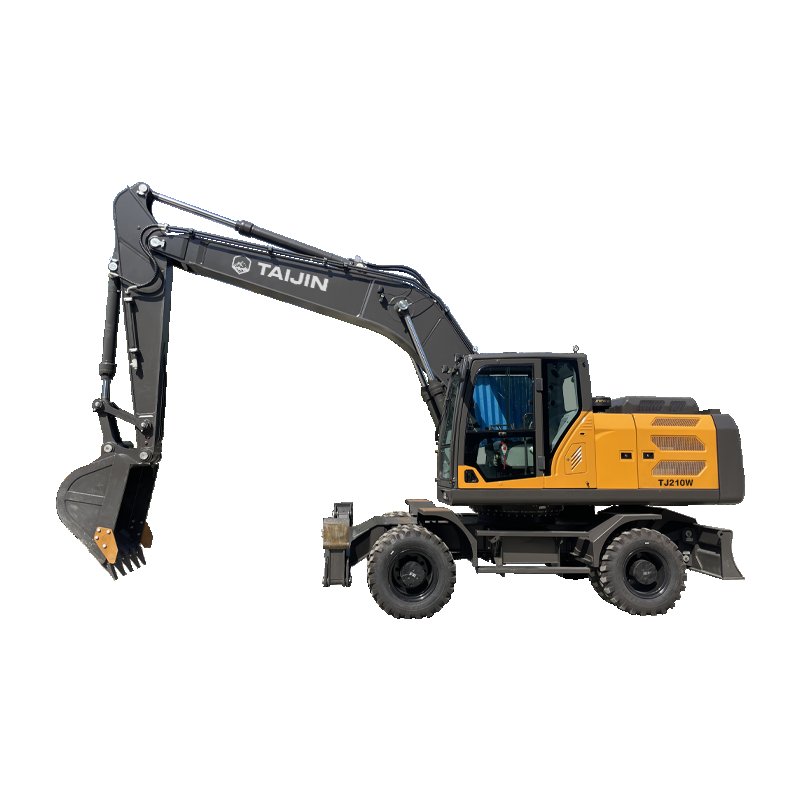

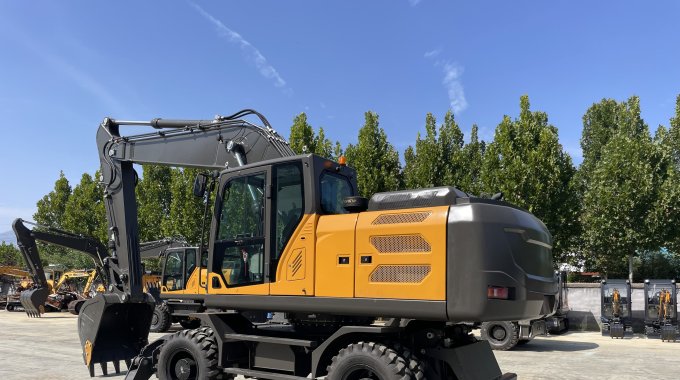

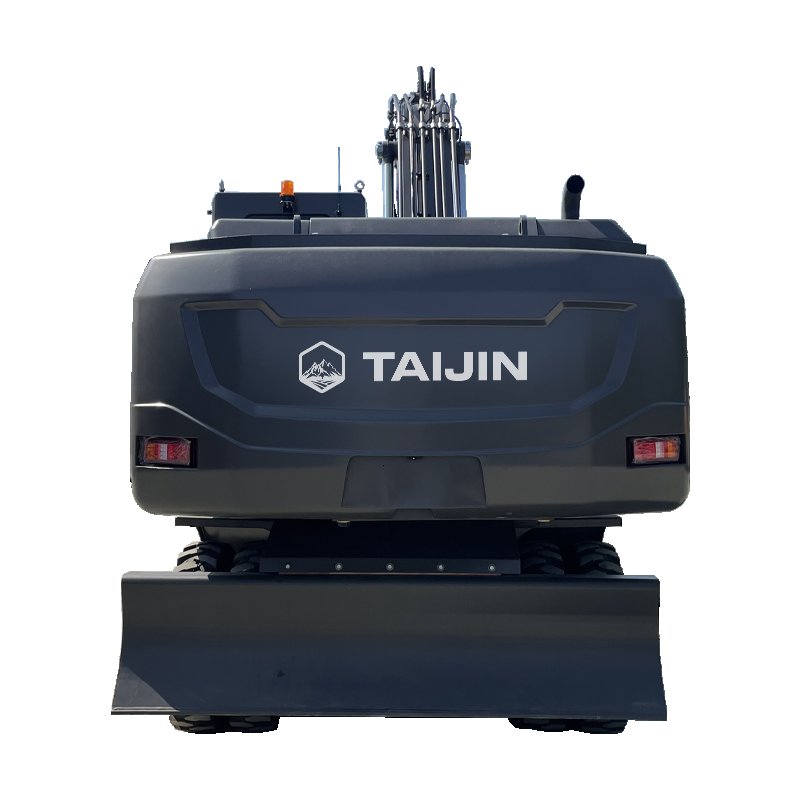

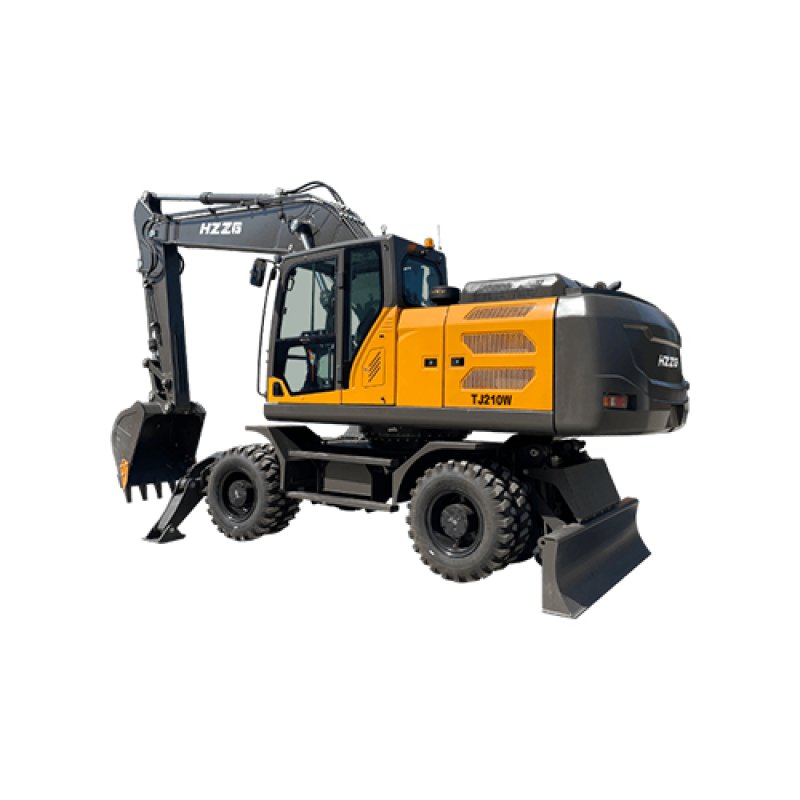

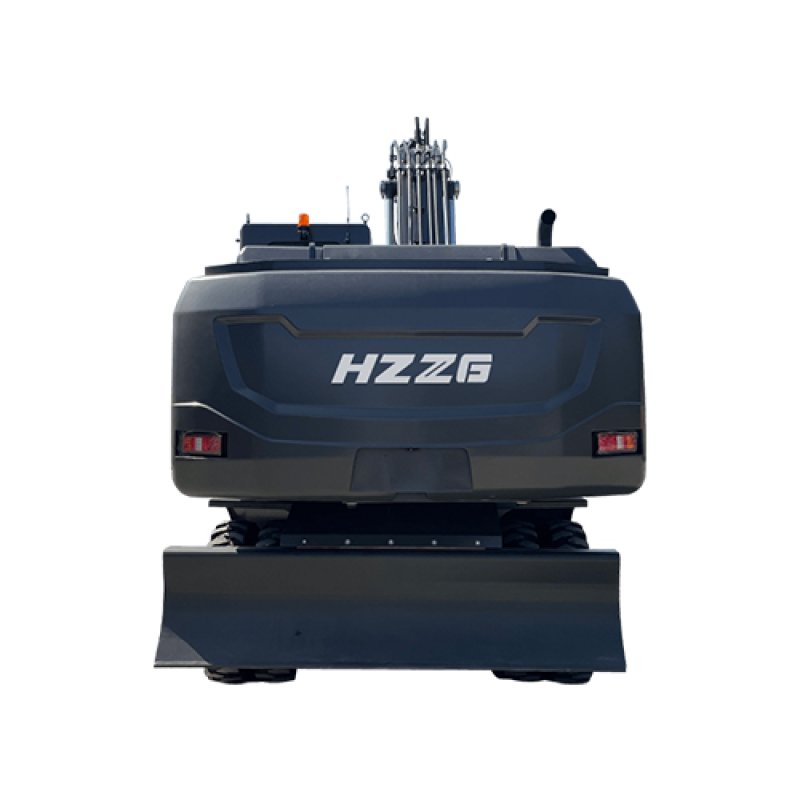

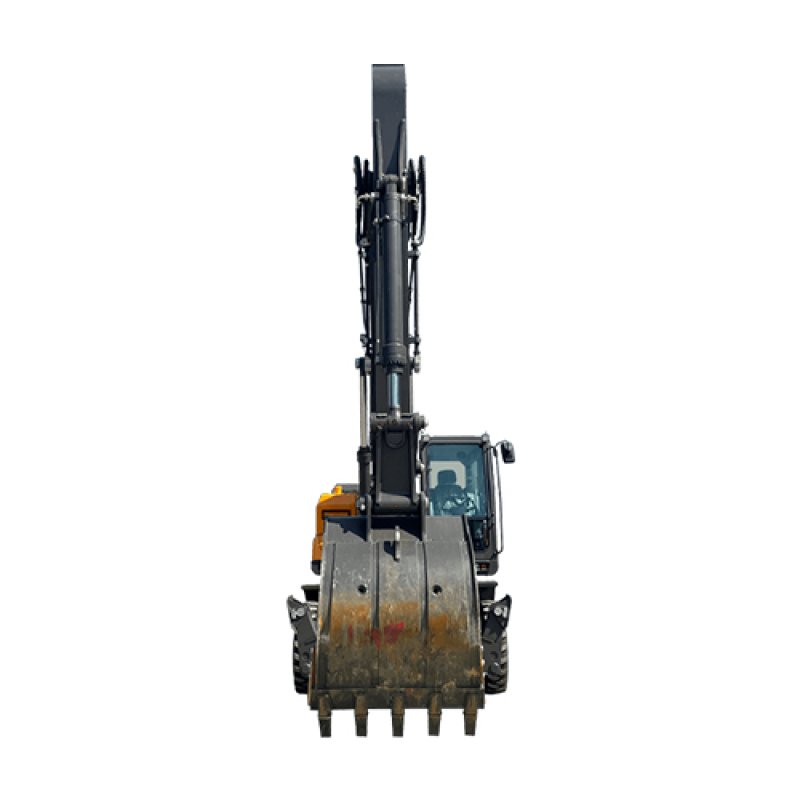

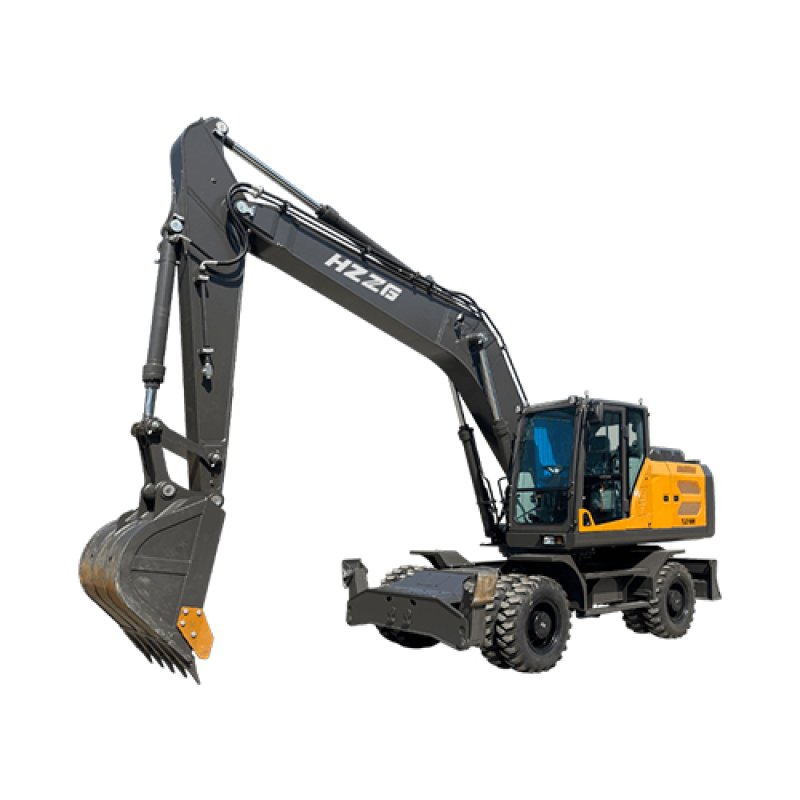

The 21-ton wheel excavator is mainly used in highway and high-speed railway construction, large-scale mining earthwork stripping, deep-water port bulk cargo handling, large municipal deep foundation pit excavation and water conservancy dam construction.It excels in ultra-deep digging, heavy-load earthmoving and continuous high-intensity mining operations with high efficiency and stability in harsh conditions.
Operating Weight: 21000KG
Engine Model: Cummins 6BTAA5.9
Maximum Power: 153kw
Bucket Capacity: 1.1m³
Max. Digging Depth: 6.052m
Max. Dumping Height: 7.397m
Max. Digging Height: 10.329m
Pilot control
High and low speed
Crushing line
cab
Air conditioner
| Bucket Capacity | 1.1m³ |
| Swing Speed | 0-12rmp |
| Gradeablity | 25° |
| Max.Bucket Digging Force | 140KN |
| Max.Arm Digging Force | 100KN |
| Engine Model | 6BTAA5.9 |
| Power/Revolution Speed | 153kw/2000rmp |
| Tire Model | 10.00-20 |
| System Pressure | 34MPA |
| Dimension | 10006×2500×3515mm |
| Cabin Height | 3216mm |
| Axle Base | 2850mm |
| Wheel Distance | 1920mm |
| Minimum Ground Clearance | 380mm |
| Tail Swing Radius | 2412mm |
| Max.Digging Height | 10329mm |
| Max.Dumping Height | 7397mm |
| Max.Digging Depth | 6052mm |
| Max.Vertical Digging Depth | 5682mm |
| Max.Digging Radius | 10283mm |
| Min.Swing Radius | 3458mm |
| Max.Dozer Blade Lifting Distance | 410mm |
| Max.Dozer Blade Cutting Distance | 125mm |
