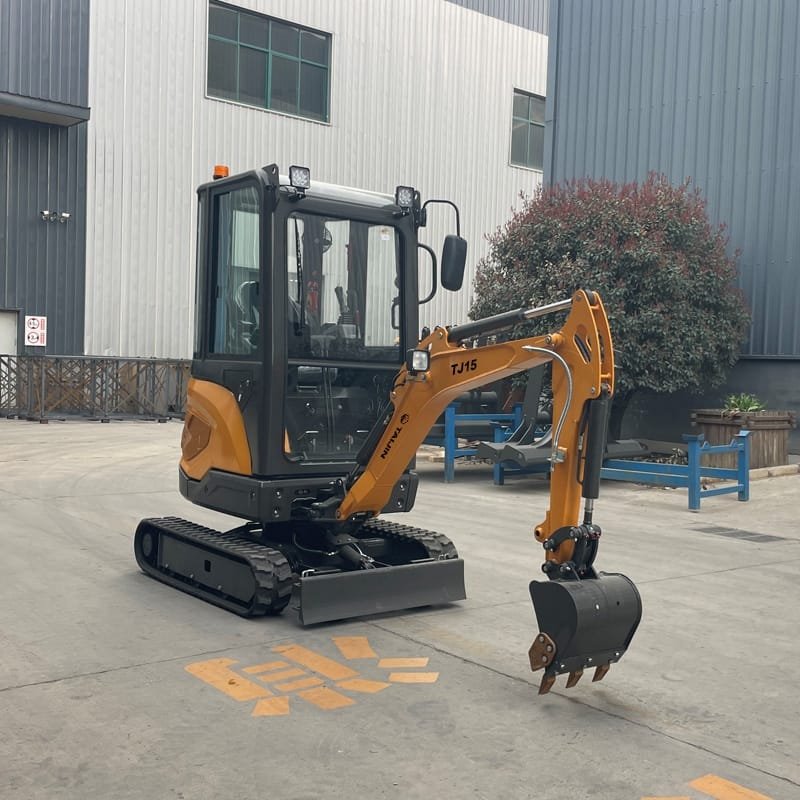

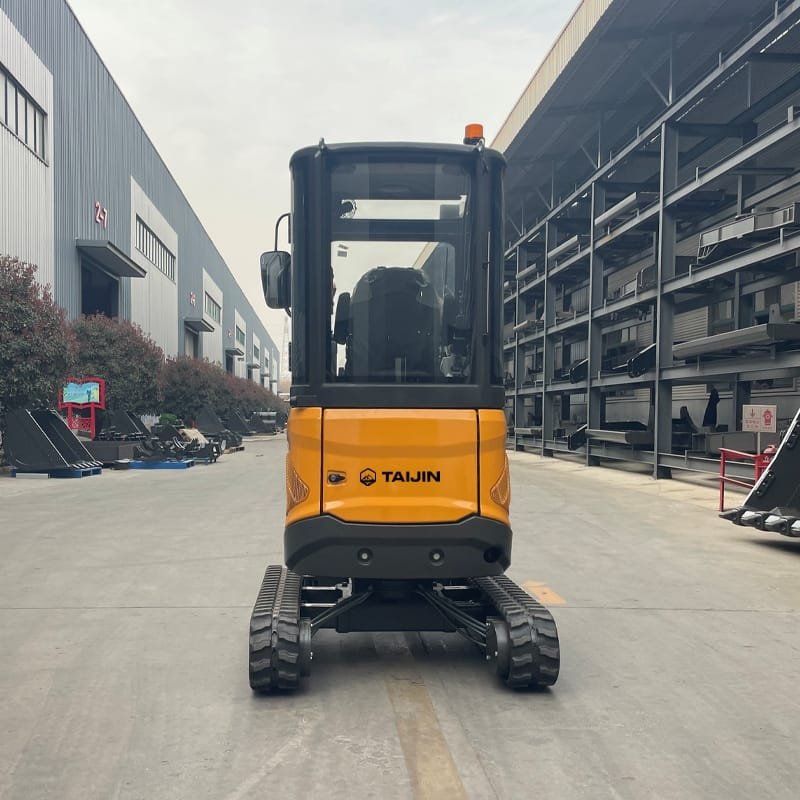

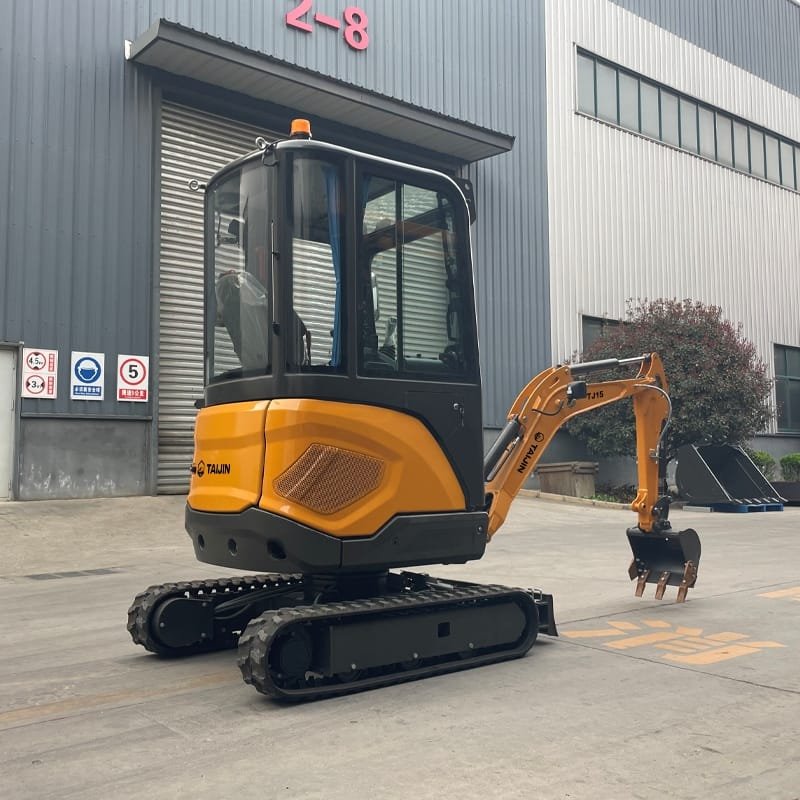

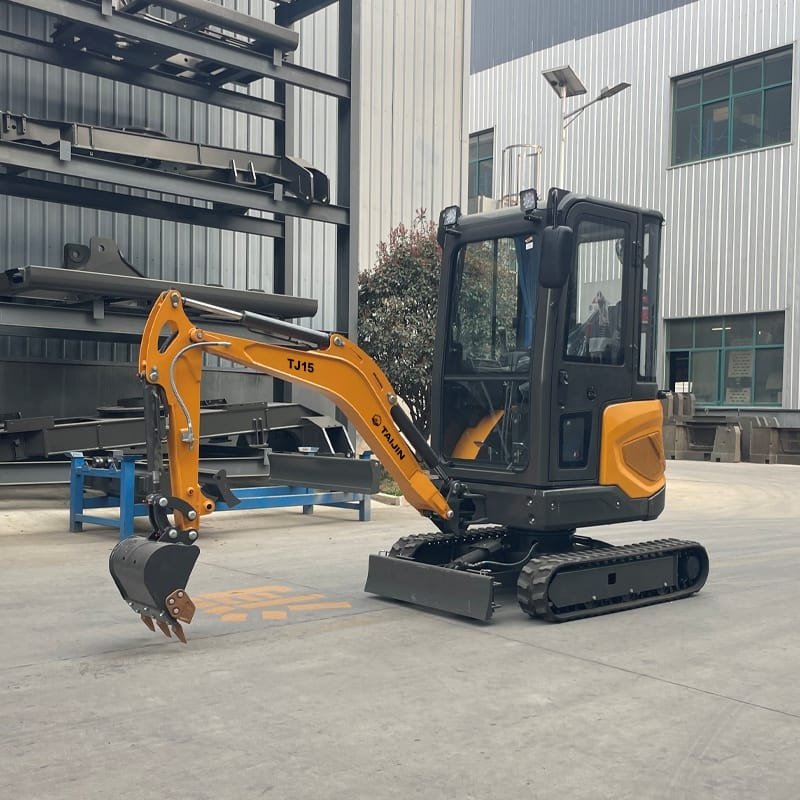

This model features precise and sensitive operation with stable and efficient power output. The optimized heat dissipation system ensures stronger continuous working performance and more reliable overall operation. It is especially suitable for farm development, garden landscaping and house construction, easy to operate and convenient to maintain, making it an ideal choice for small-scale construction projects.
Operating Weight: 1500KG
Engine: KUBOTA D722 (Euro 5, EPA 4)
Max Power: 10.2kw
Bucket Capacity: 0.03m³
Max Digging Depth: 2.015m
Max Dumping Height: 2.442m
Max Digging Height: 3.381m
Pilot control
Side swing
Crushing line
Rubber tracks
Cab
Track Extension: The track width can be flexibly adjusted. In narrow spaces, the tracks retract for easy movement. In open sites, the tracks extend to improve stability and prevent rollover. One-key adjustment, suitable for various working conditions.
High and Low Speed Driving: The dual high & low speed travel system allows free switching: high speed for fast and efficient movement between job sites, while low speed ensures stable running and precise control, improving safety and construction accuracy for various working conditions.
Steel Tracks: Non-slip on steep slopes and muddy terrain, resistant to rock penetration, suitable for harsh working conditions; strong grip and high wear resistance ensure stable and reliable operation on complex construction site roads.
Multi-Attachment Compatible
Breaker / Ripper / Wood Grapple / Rake / Auger / Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

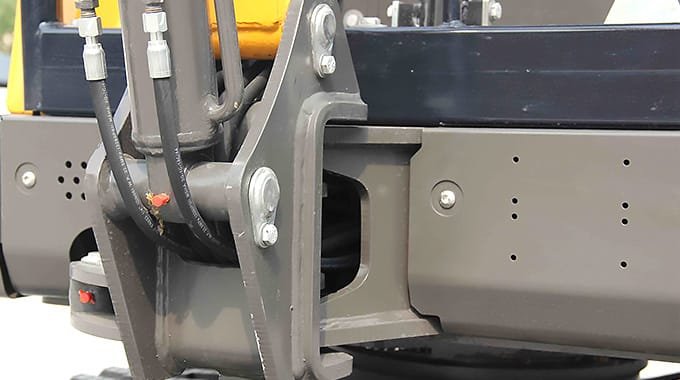

With boom side swing function, the excavator can adjust digging position left and right without moving the whole machine. It improves flexibility and efficiency, especially in narrow working spaces.

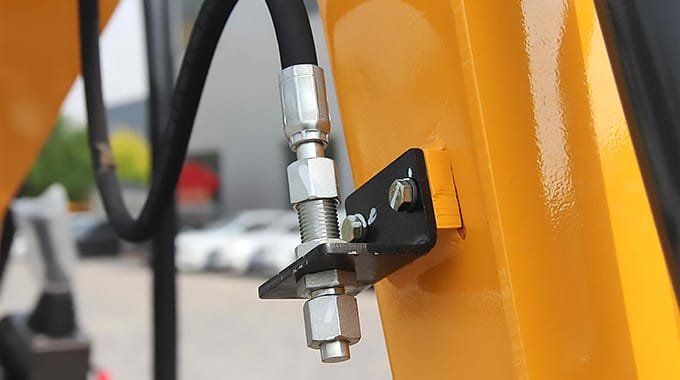

Crushing line allowing quick change of various hydraulic attachments such as breakers, augers, and grapplers. One machine for multiple uses.

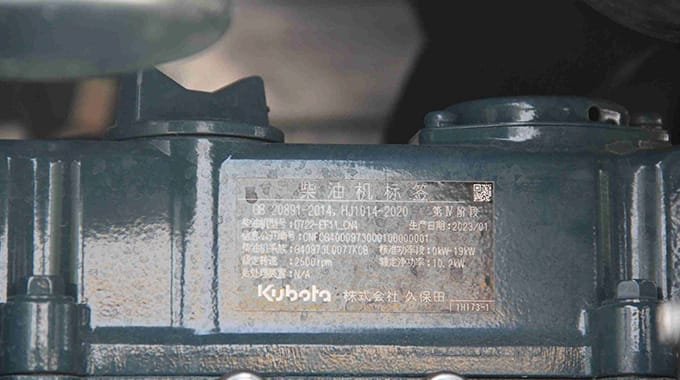

The Kubota D722 three-cylinder diesel engine has a maximum power output of 10.2 kW. Meeting Euro 5 and EPA4 emission standards, featuring strong and stable power, compact structure, excellent fuel economy, fast cold start, low noise, low vibration, high durability and easy maintenance.

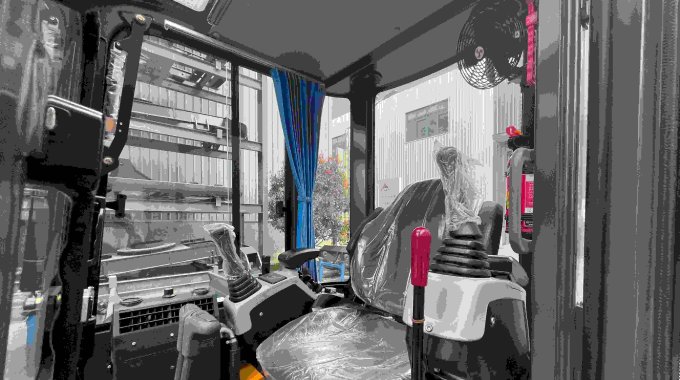

Pilot control with dual-side joysticks for comfortable operation; Flip-up armrest box for easy cab access + pilot lock for anti-misoperation safety; Weatherproof cab for wind and rain protection
ENGINE | |
Emission Standard | Euro 5,EPA4 |
Make/ Model | KUBOTA / D722-e4b |
Power /Rotation speed | 10.4kw |
Number of cylinder | 3 |
Displacement | 0.719L/min |
TRACK SYSTEM | |
Maximum Travel speed(High-low speed) | 2.4（1.8）/4.3km/h |
Width of track shoe(Rubber) | 200mm |
PERFORMANCE PARAMETER | |
Standard Bucket capacity | 0.03m³ |
Swing speed | 0-12rpm |
Maximum Grade ability | 35% |
Maximum Bucket digging force | 15.2KN |
Maximum Arm digging force | 9KN |
Hydraulic system pressure | 17Mpa |
Machine weight(with cabin) | 1480kg |
Boom length | 1700mm |
Arm length | 890mm |
Fuel tank capacity | 15L |
Hydraulic oil tank capacity | 14L |
MACHINE SIZE | |
Overall dimension (L*W*H) | 3488mm*990/1300mm*2186mm |
Axle base(Track length on ground) | 1174mm |
Track length | 1510mm |
Track gauge | 790/1100mm |
Minimum Ground clearance | 150mm |
Swing radius at tail | 715mm |
WORKING RANGE | |
Maximum Digging height | 3381mm |
Maximum Dumping height | 2442mm |
Maximum Digging depth | 2015mm |
Maximum Vertical digging depth | 1807mm |
Maximum Digging radius | 3753mm |
Max .digging reach on the ground level | 3705mm |
Minimum swing radius(at front) | 1555mm |
Maximum Lifting height of blade | 365mm |
Maximum Cutting depth of blade | 230mm |
Boom swing angle(Left/Right) | 70°/50° |
