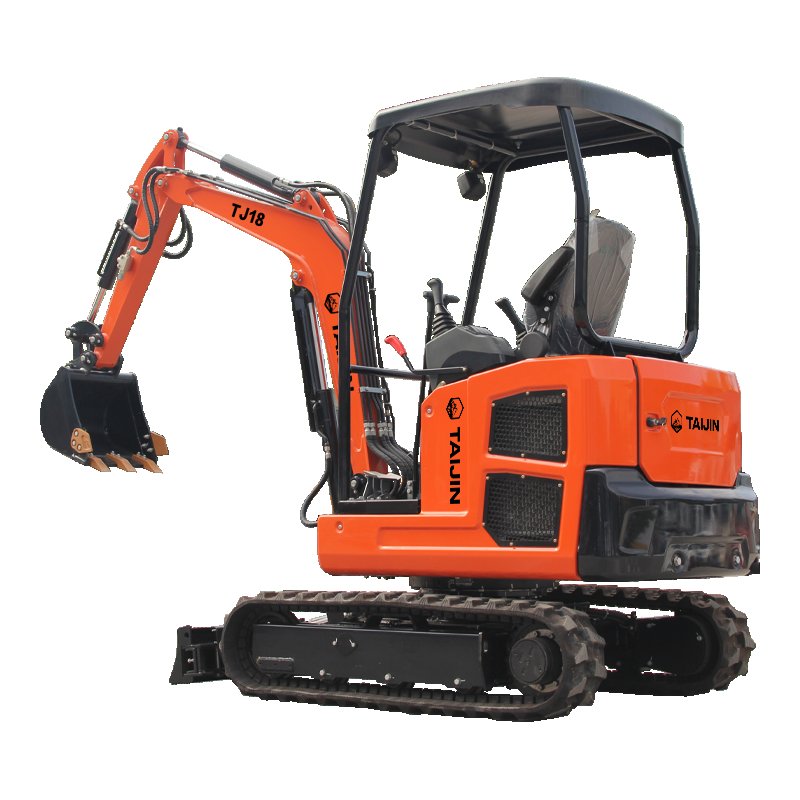

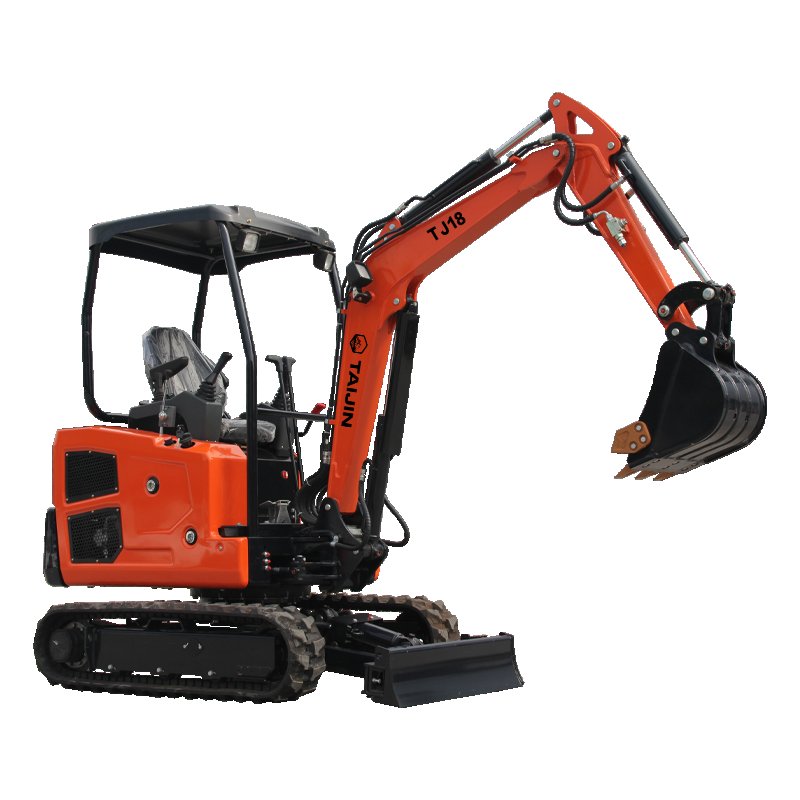

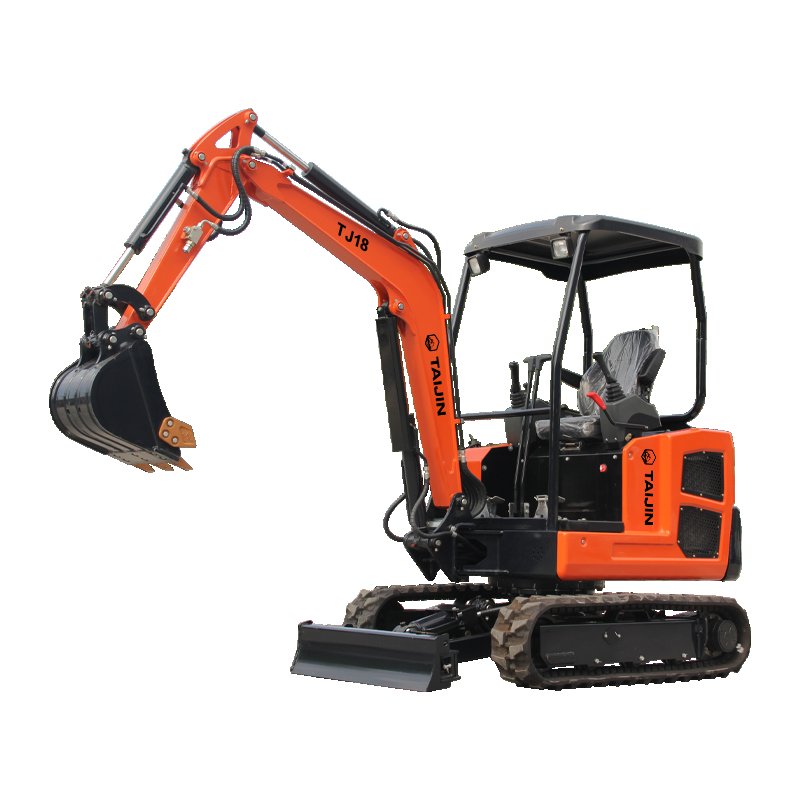

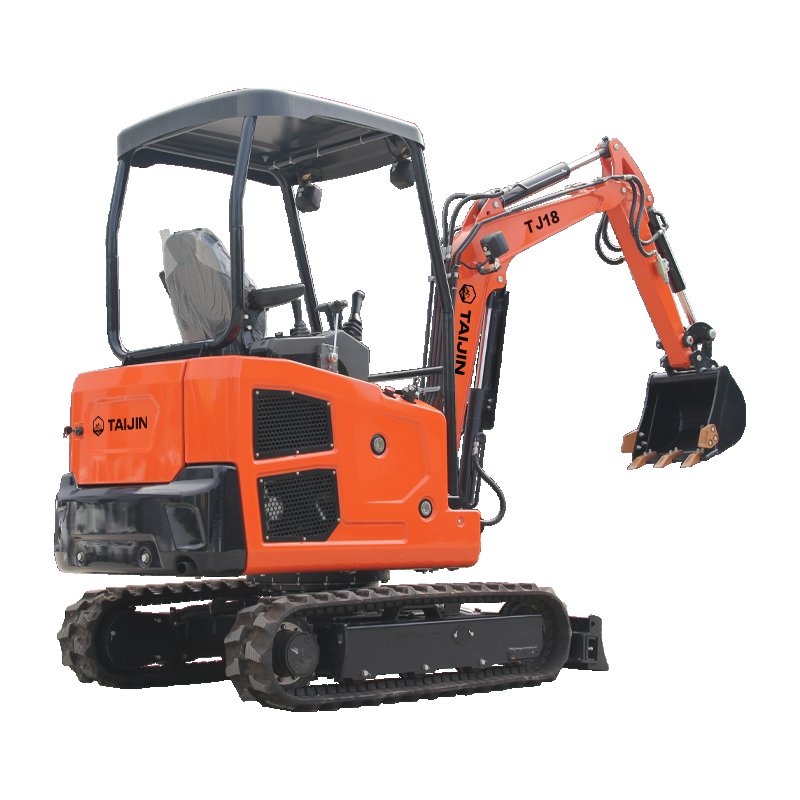

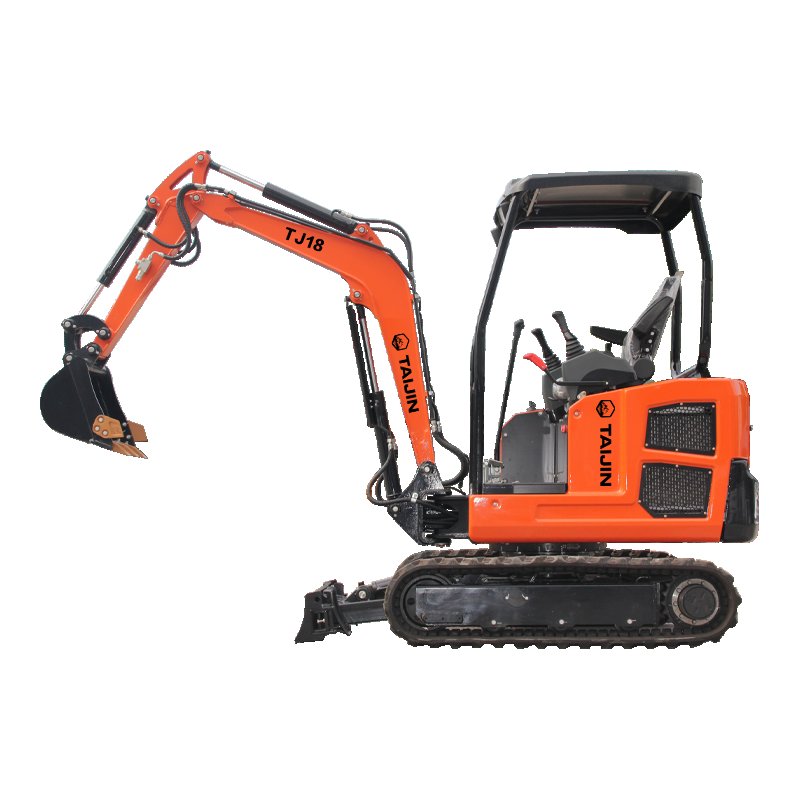

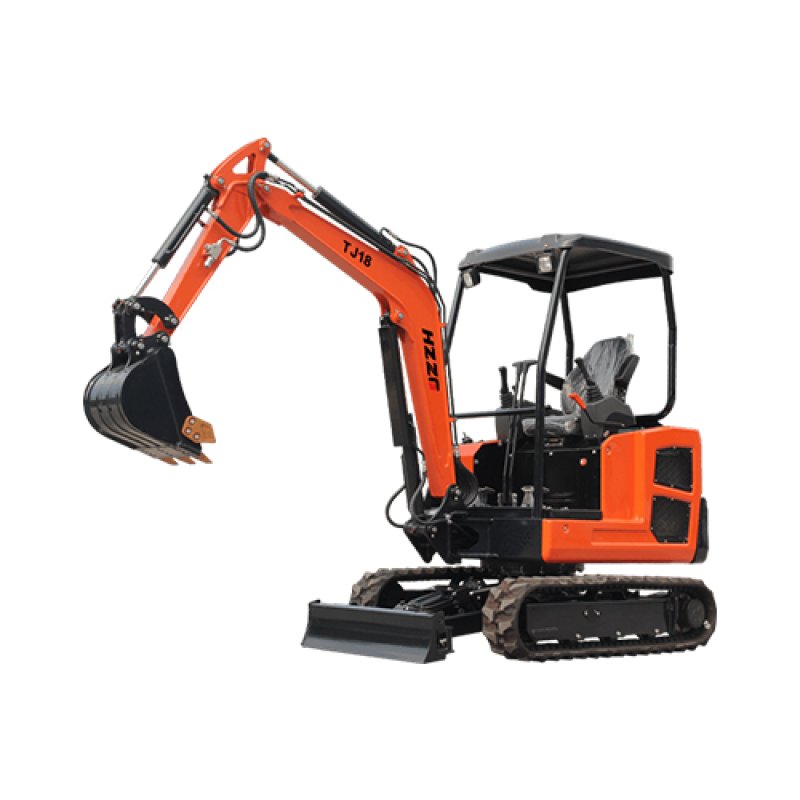

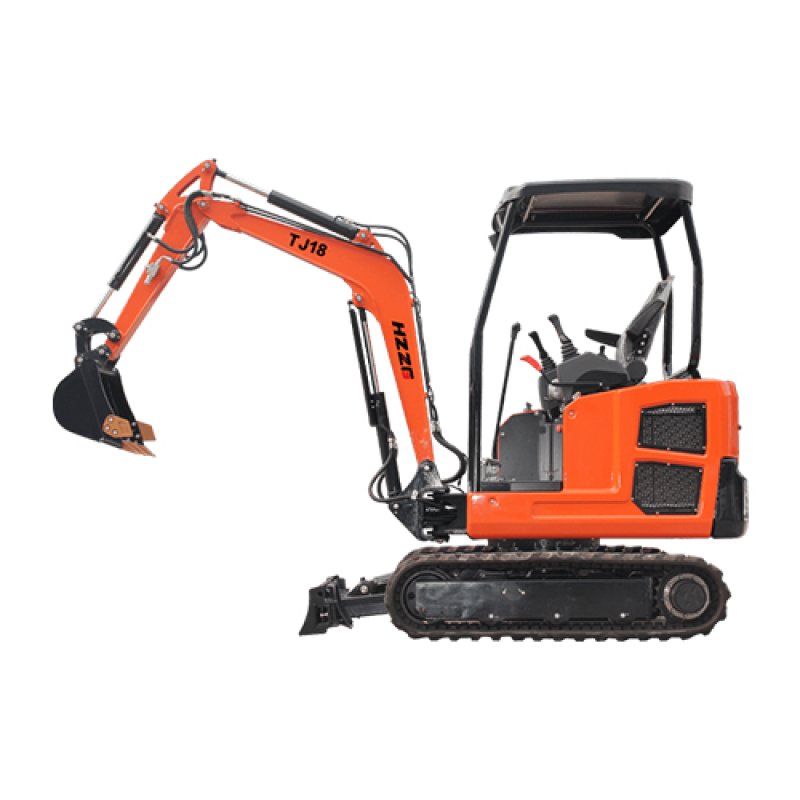

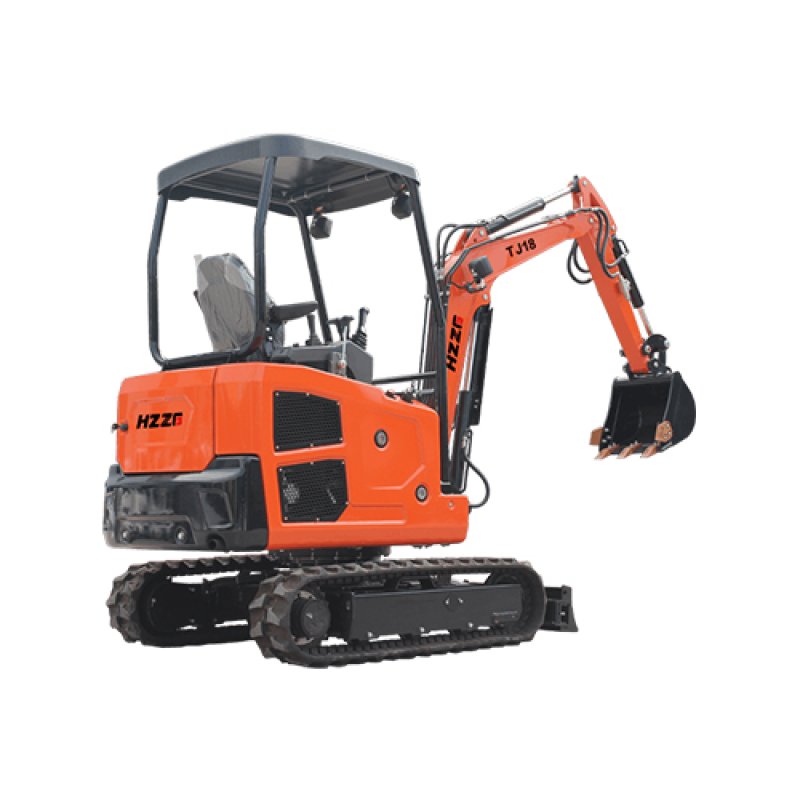

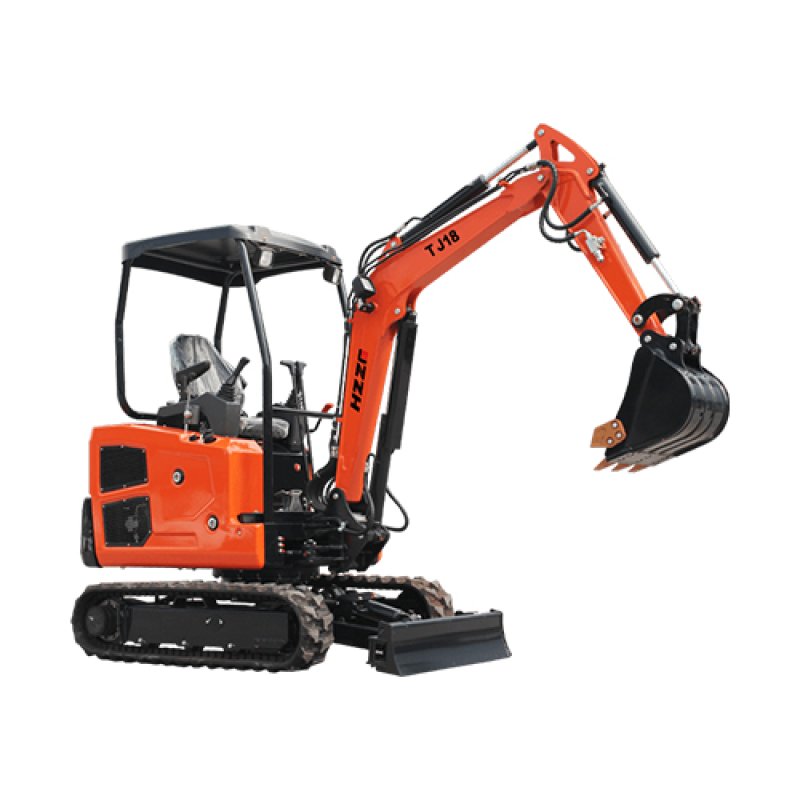

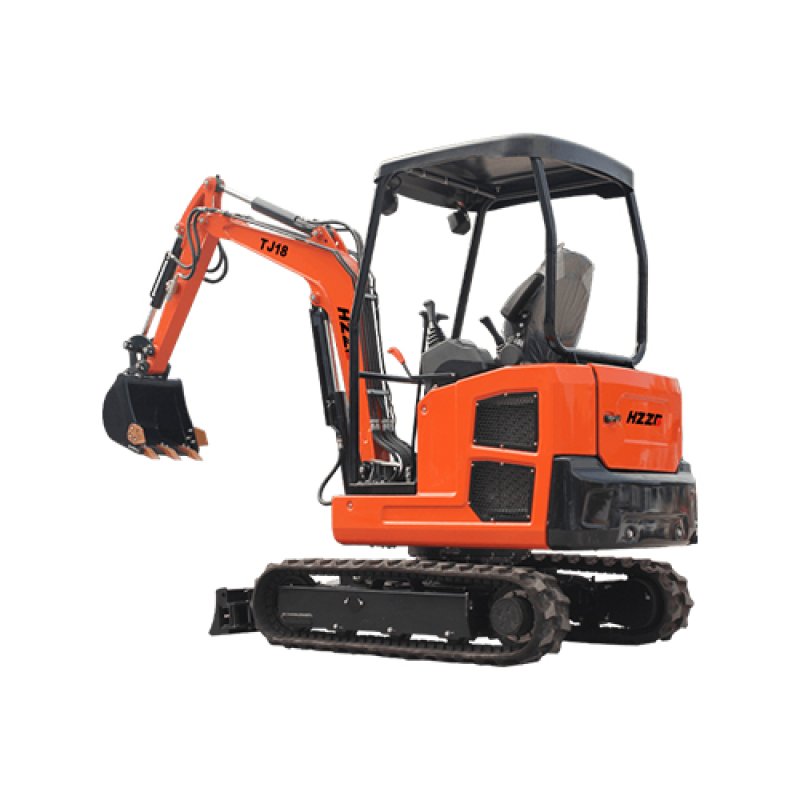

Our 1.8 ton mini excavator is a versatile workhorse designed for diverse job sites, from road repair and concrete breaking to cable laying, water pipe installation, landscaping, and river/ditch dredging. Equipped with multi-functional attachments, it seamlessly handles excavation, breaking, ditch cleaning, drilling, and bulldozing, delivering reliable performance in compact spaces.
Operating Weight: 1800KG
Engine: Laidong 3TE25
Max Power: 18.4kw
Bucket Capacity: 0.06m³
Max Digging Depth: 2.05m
Max Dumping Height: 2.385m
Max Digging Height: 3.365m
Pilot control
Side swing
Crushing line
Rubber tracks
Roof
Optional Engines:
Laidong L385BT three-cylinder diesel engine, 18.8KW, Euro 5 certified, exportable to Europe
KUBOTA D1105 three-cylinder diesel engine, 14.2KW, Euro 5 + EPA certified, exportable globally
PERKINS 403J-11 three-cylinder diesel engine, 14.7KW, Euro 5 + EPA certified, exportable globally
Track Extension: The track width can be flexibly adjusted. In narrow spaces, the tracks retract for easy movement. In open sites, the tracks extend to improve stability and prevent rollover. One-key adjustment, suitable for various working conditions.
High and Low Speed Driving: The dual high & low speed travel system allows free switching, high speed for fast and efficient movement between job sites, while low speed ensures stable running and precise control, improving safety and construction accuracy for various working conditions.
Steel Tracks: Non-slip on steep slopes and muddy terrain, resistant to rock penetration, suitable for harsh working conditions; strong grip and high wear resistance ensure stable and reliable operation on complex construction site roads.
Cab: The closed cabin effectively blocks dust, noise and bad weather, providing a safer and more comfortable operating environment. It offers better protection for the operator, improves working efficiency, and also enhances the overall durability and resale value of the machine.
Breaker / Ripper / Wood Grapple / Rake / Auger / Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

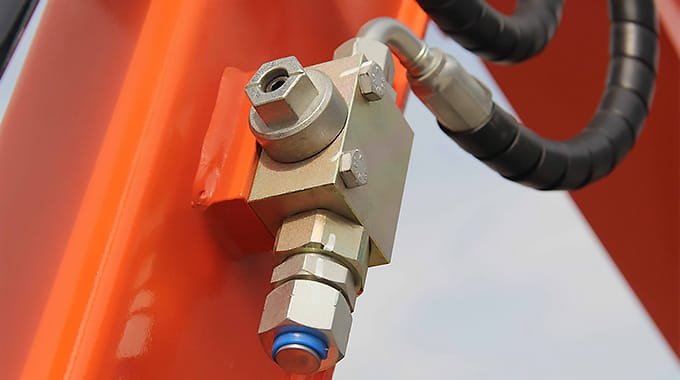

Crushing line allowing quick change of various hydraulic attachments such as breakers, augers, and grapplers. One machine for multiple uses.

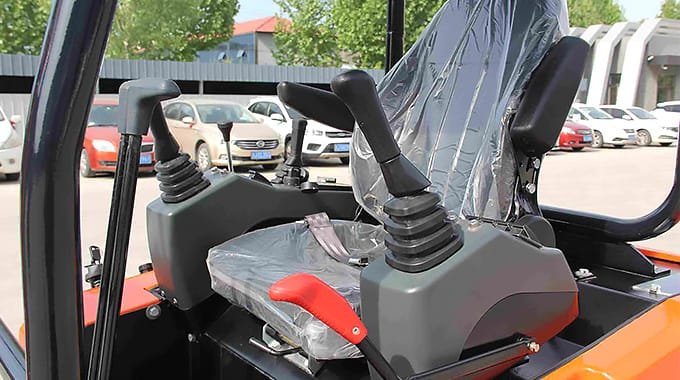

The pilot lock effectively avoids misoperation and ensures safer working and moving, while the flip-up armrest box creates a more spacious operating space and makes it much easier for the operator to get on and off the machine, greatly improving both operation safety and daily use convenience.

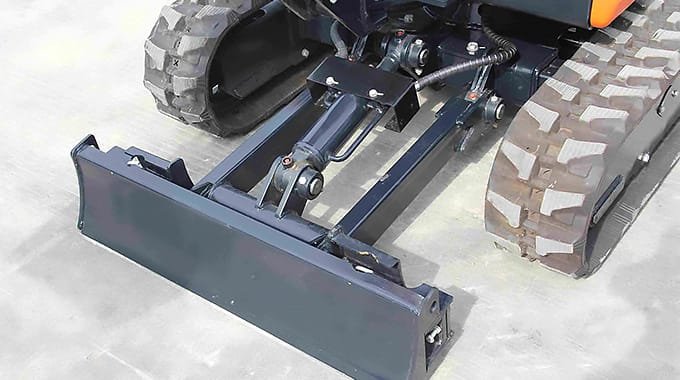

Thickened dozer blade, structurally sturdy, impact-resistant and wear-resistant, features high bulldozing efficiency and is not prone to deformation or damage. The optional track telescopic function enables the installation of foldable lugs on both sides of the dozer blade. It extends when the track is wide and folds when the track is narrow, flexibly adapting to various working conditions.

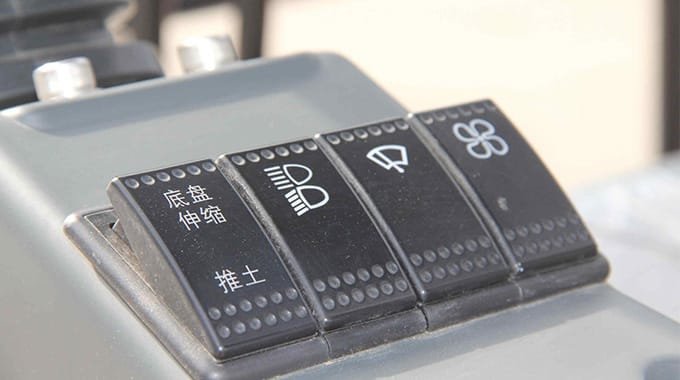

Optional track telescopic function adjust the track width simply by pressing a button and operating the control handle.
| Bucket Capacity | 0.06m³ |
| Swing Speed | 10-12rmp |
| Gradeablity | 35° |
| Max.Bucket Digging Force | 14KN |
| Max.Arm Digging Force | 10KN |
| Engine Model | 3TE25 |
| Power/Revolution Speed | 18.4kw/2350rmp |
| System Pressure | 18MPA |
| Dimension | 3865×1050×2270mm |
| Cabin Height | 2270mm |
| Axle Base | 1230mm |
| Track Distance | 820mm |
| Minimum Ground Clearance | 210mm |
| Tail Swing Radius | 1125mm |
| Max.Digging Height | 3365mm |
| Max.Dumping Height | 2385mm |
| Max.Digging Depth | 2050mm |
| Max.Vertical Digging Depth | 1725mm |
| Max.Digging Radius | 3860mm |
| Min.Swing Radius | 1720mm |
| Max.Dozer Blade Lifting Distance | 230mm |
| Max.Dozer Blade Cutting Distance | 275mm |
| Boom Swing Angle(Left) | 75° |
| Boom Swing Angle(Right) | 45° |
