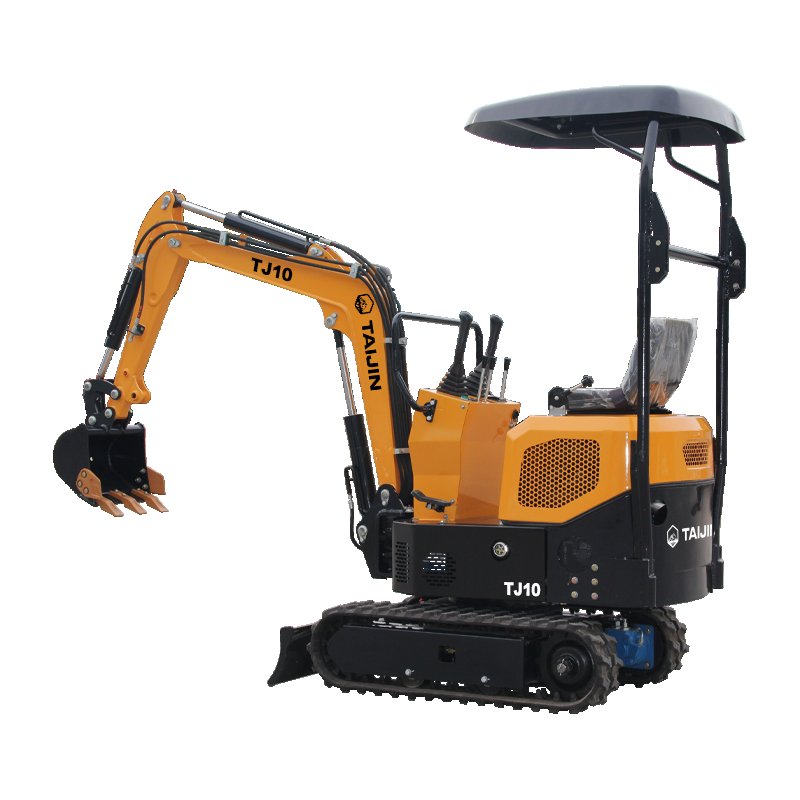

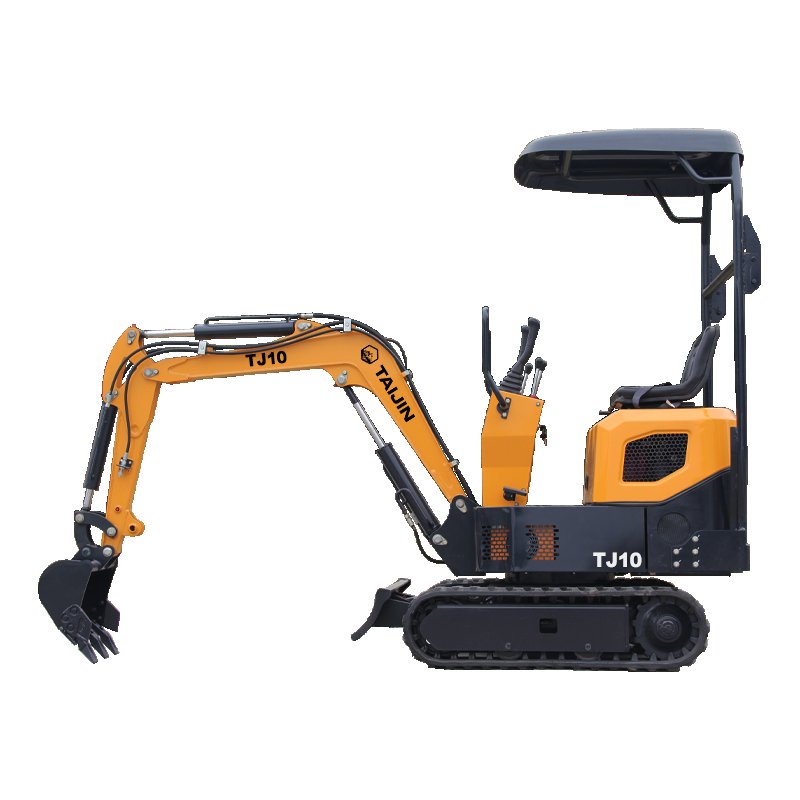

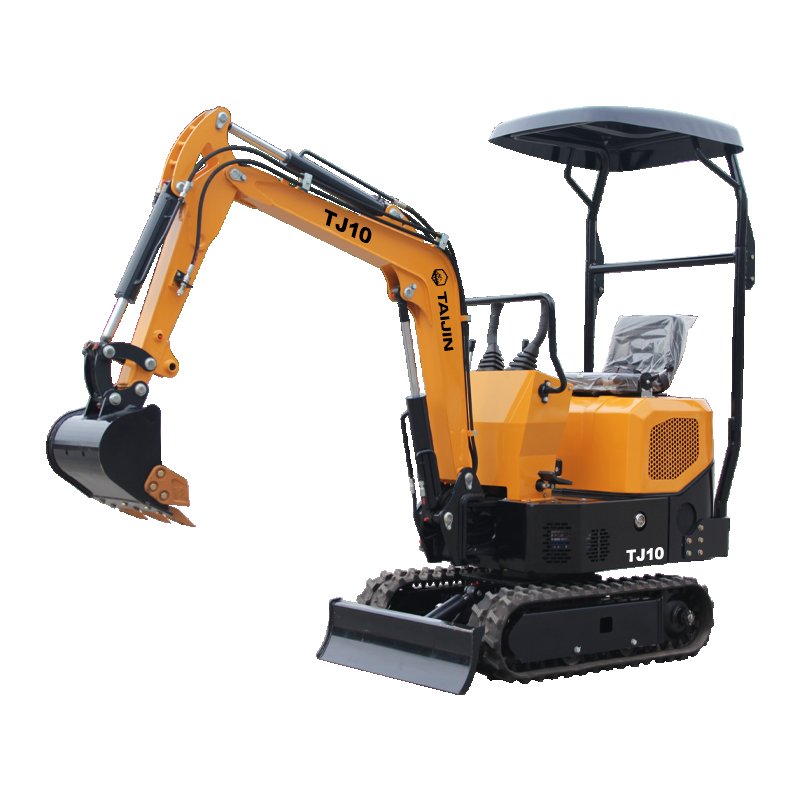

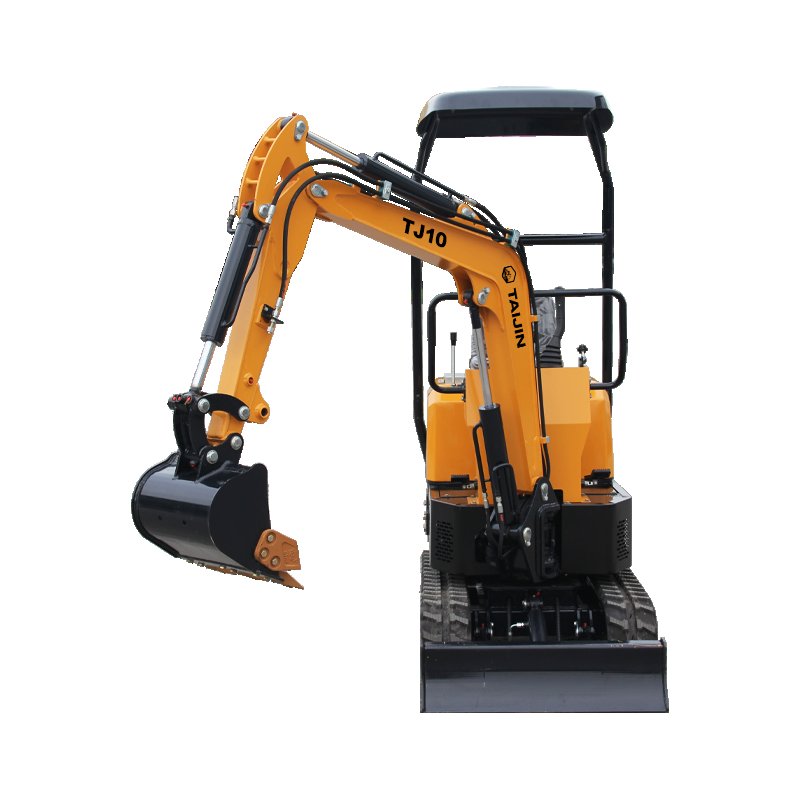

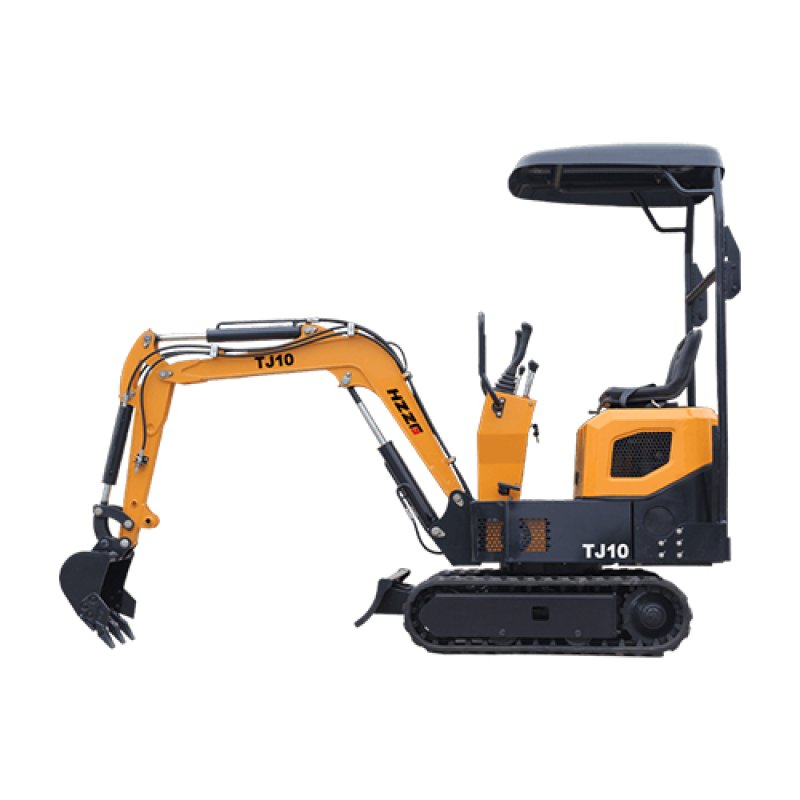

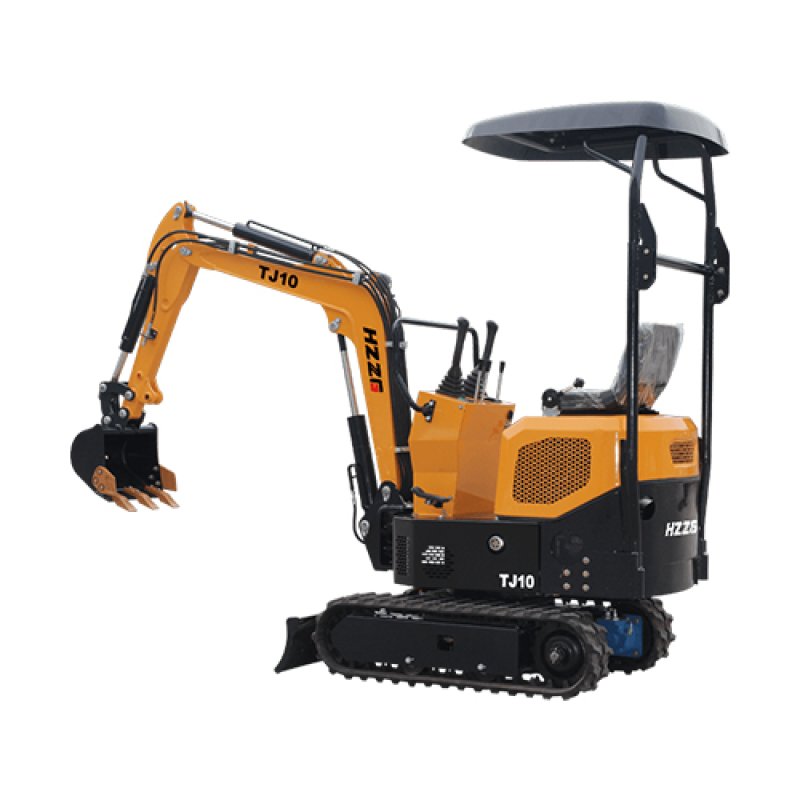

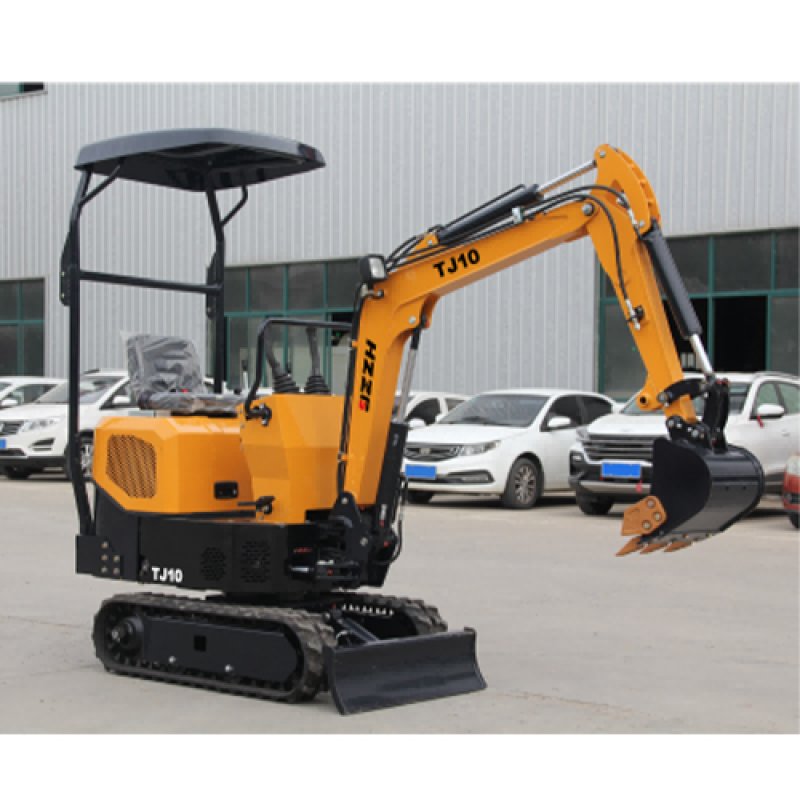

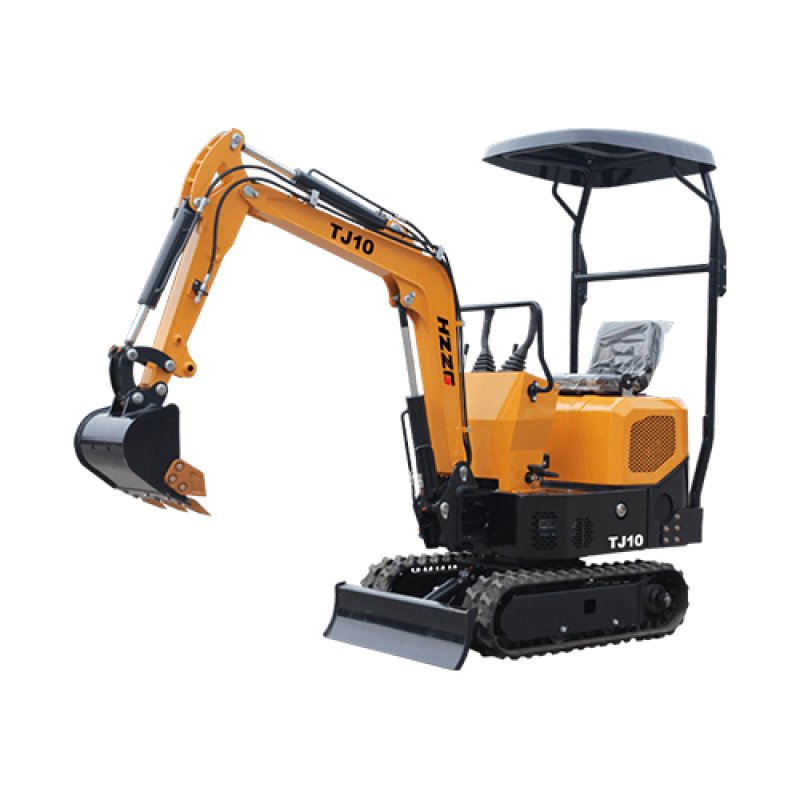

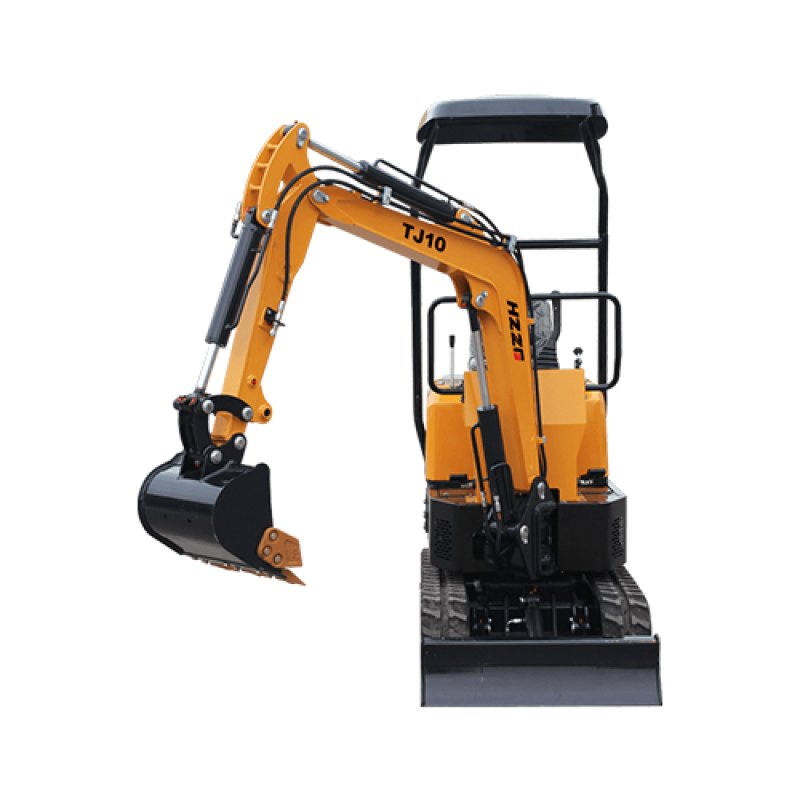

This machine is enhanced type, it is widely used in greenhouse, indoors and landscaping, for example, it canbe used to apply fertilizer, dig deeply in the orchard, channel excavation, plant trees, dig cable trench,excavate water pipe, and to break indoors. It only takes a few minutes to be familiar with its operation
Operating Weight: 1000KG
Engine: KOOP KD192F (Euro 5, EPA 4)
Max Power: 7kw
Bucket Capacity: 0.025m³
Max Digging Depth: 1.715m
Max Dumping Height: 1.83m
Max Digging Height: 2.6m
Mechanical operation
Crushing line
Rubber tracks
Roof

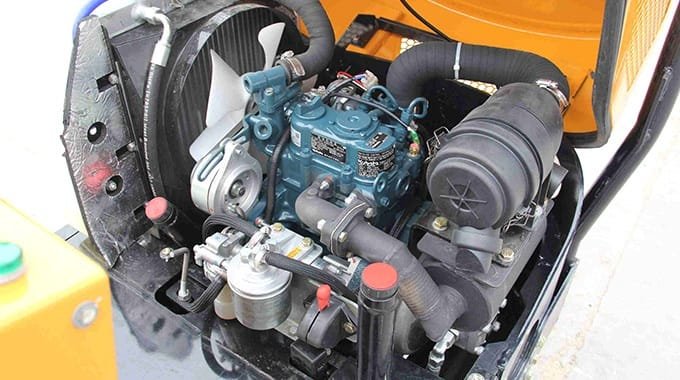

Kubota Z482 Engine：The twin-cylinder diesel engine has a maximum power of 8.2kW, strong power, stable and reliable performance, lower fuel consumption, energy saving and environmental protection, compact structure, durability and easy maintenance.
B&S XR2100：The single-cylinder gasoline engine has a maximum power of 9.9KW, is easy to start, powerful, fuel-efficient, durable, reliable, and easy to maintain.

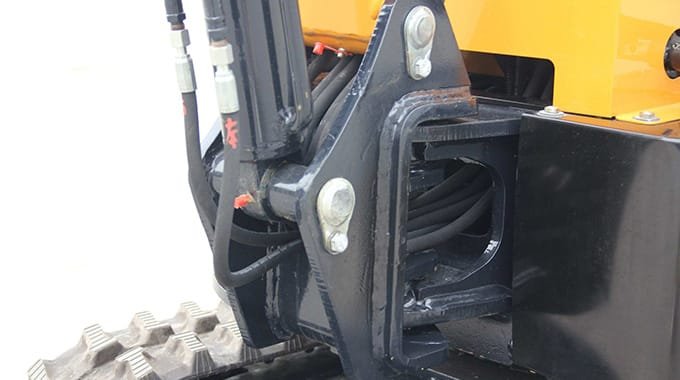

Side Swing：The excavator arm can swing left and right flexibly, eliminating frequent machine movement and enabling operation in narrow spaces such as walls and corners, greatly improving construction flexibility and efficiency.
Track Extension：The track width can be flexibly adjusted. In narrow spaces, the tracks retract for easy movement. In open sites, the tracks extend to improve stability and prevent rollover. One-key adjustment, suitable for various working conditions.
Steel Tracks：Non-slip on steep slopes and muddy terrain, resistant to rock penetration, suitable for harsh working conditions; strong grip and high wear resistance ensure stable and reliable operation on complex construction site roads.
Breaker / Ripper / Wood Grapple / Rake / Auger / Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

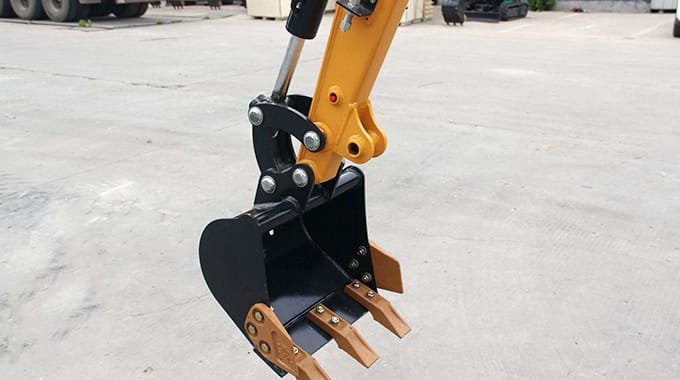

Bucket capacity 0.025m³. Crushing Line allowing quick change of various hydraulic attachments such as breakers, augers, and grapplers. One machine for multiple uses.

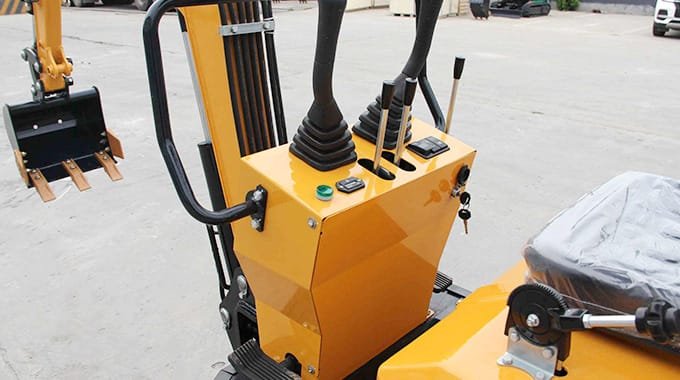

Mechanical Operation user-friendly mechanical operation system, simple structure and easy to learn, effectively shortens training time and improves operating efficiency.

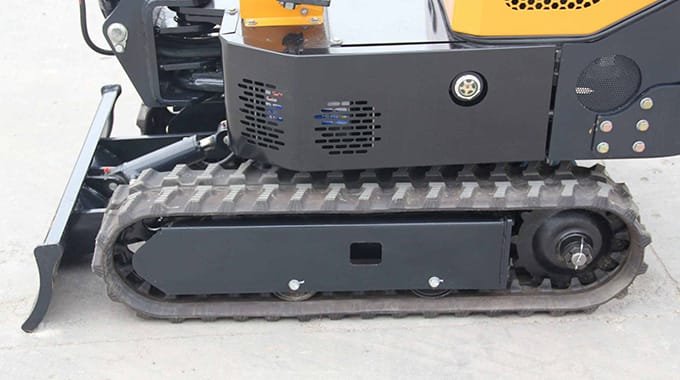

Thailand engineering rubber track low ground pressure, anti-sinking, low running noise, excellent shock absorption and stable operation.

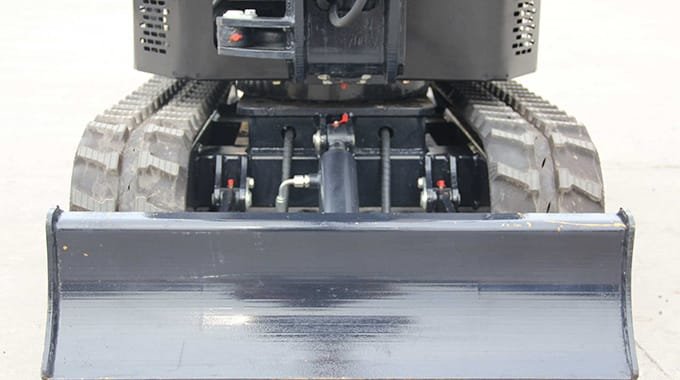

Thickened high-strength steel plate bulldozer blade made of thickened high-strength steel plate, it has higher strength, better resistance to deformation and impact, and greatly improved overall durability.
Optional side swing function, the excavator can adjust digging position left and right without moving the whole machine. It improves flexibility and efficiency, especially in narrow working spaces.
Standard with KOOP 7KW engine, fully compliant with Euro 5, EPA and other import standards.
| Bucket Capacity | 0.023m³ |
| Swing Speed | 0-13rmp |
| Gradeablity | 30° |
| Max.Bucket Digging Force | 7.2KN |
| Max.Arm Digging Force | 4.6KN |
| Engine Model | KD192F-1 |
| Power/Revolution Speed | 7kw/3000rmp |
| System Pressure | 16MPA |
| Dimension | 2840×880×2220mm |
| Cabin Height | 2220mm |
| Axle Base | 900mm |
| Track Distance | 660mm |
| Minimum Ground Clearance | 132mm |
| Tail Swing Radius | 800mm |
| Max.Digging Height | 2600mm |
| Max.Dumping Height | 1830mm |
| Max.Digging Depth | 1715mm |
| Max.Vertical Digging Depth | 1590mm |
| Max.Digging Radius | 3065mm |
| Min.Swing Radius | 1480mm |
