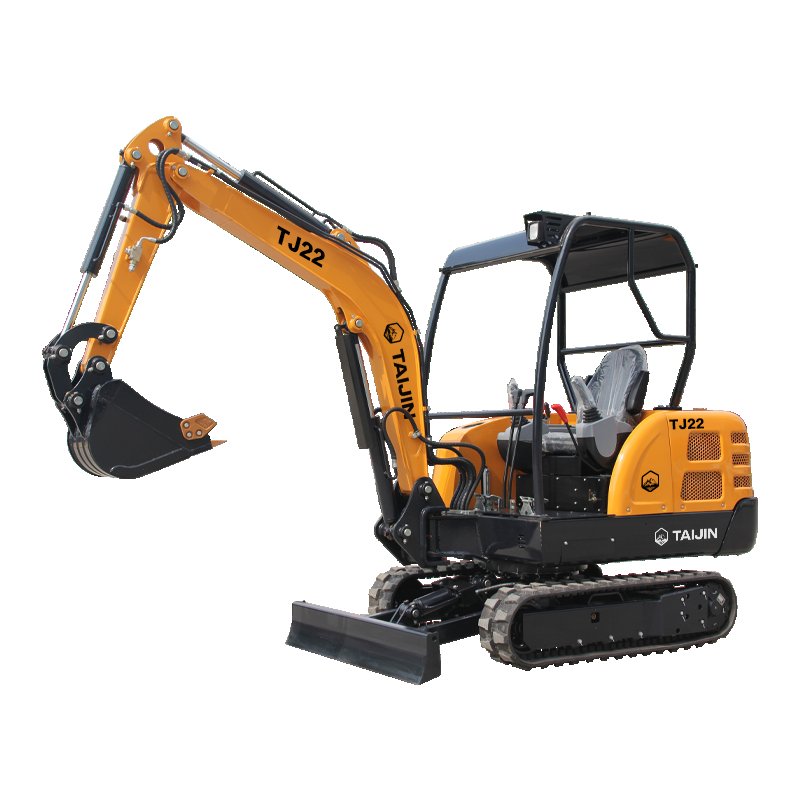

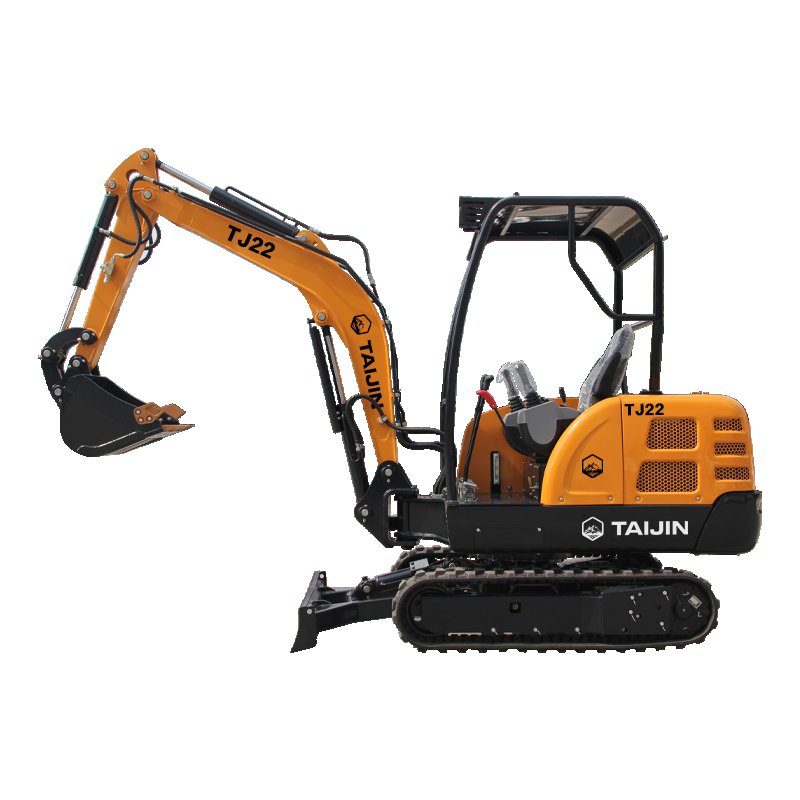

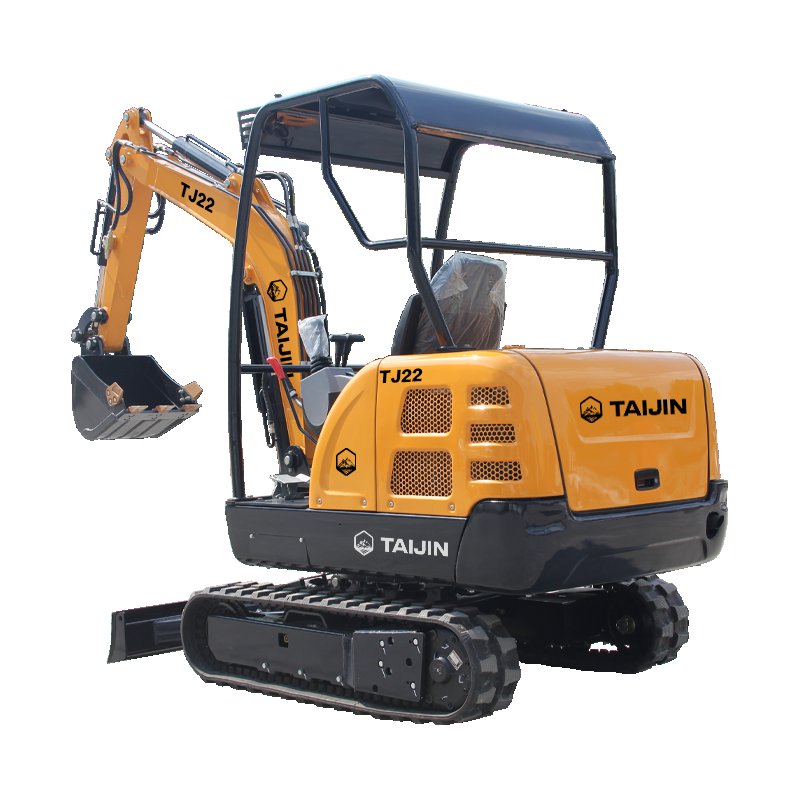

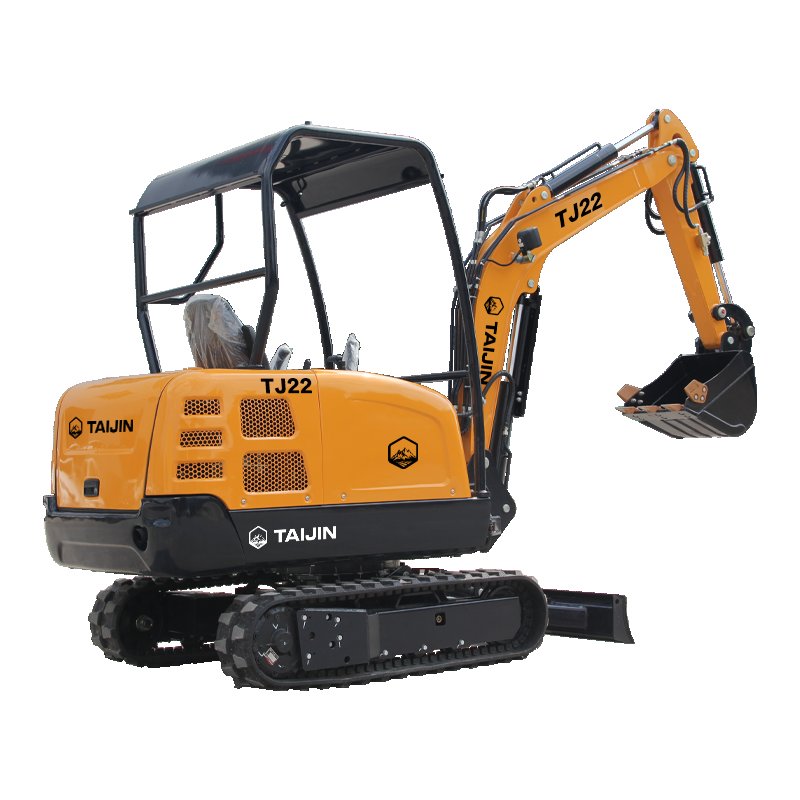

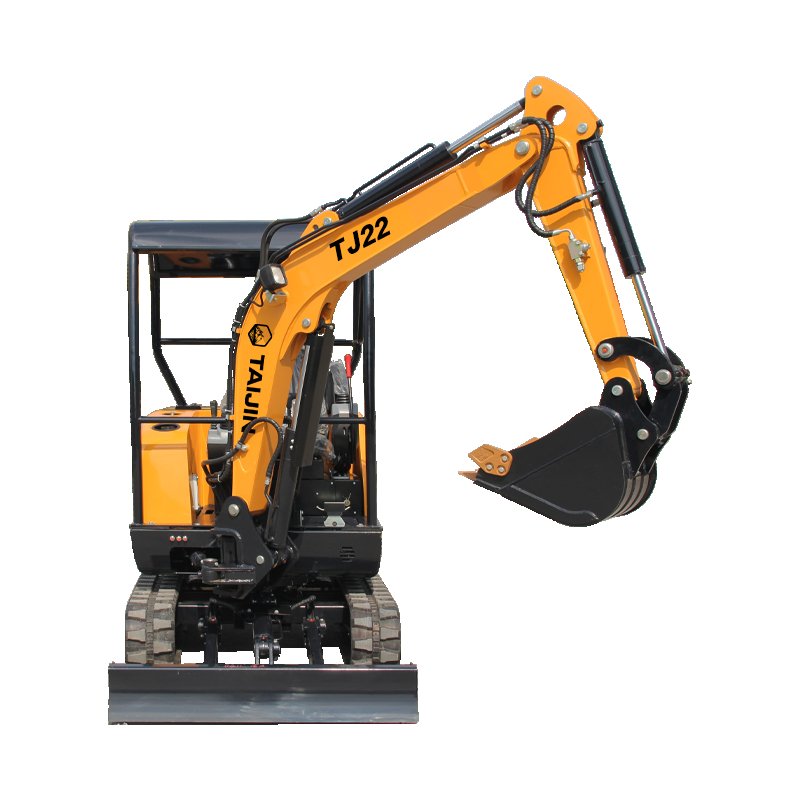

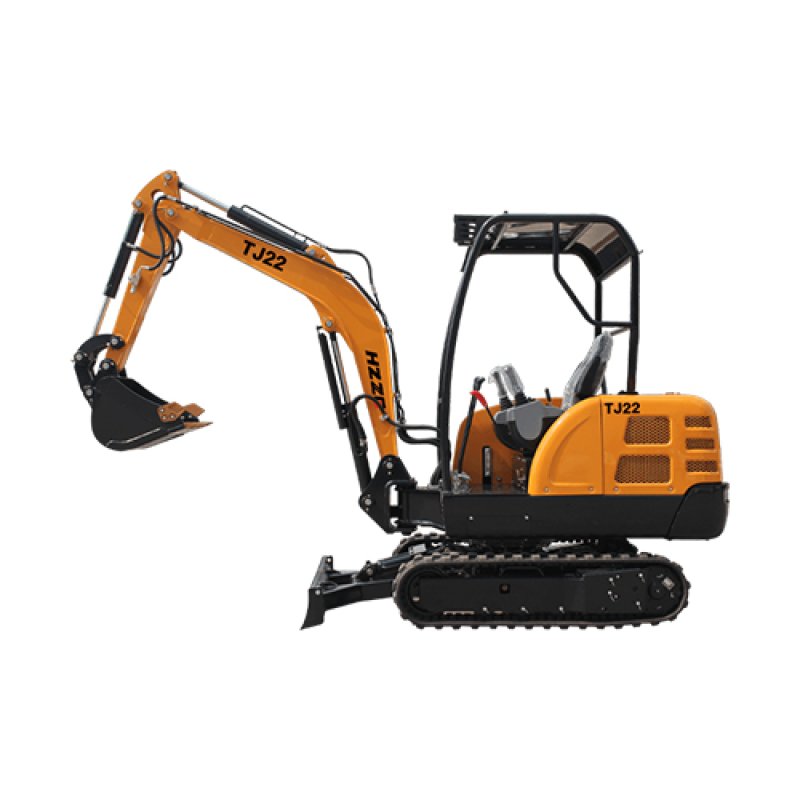

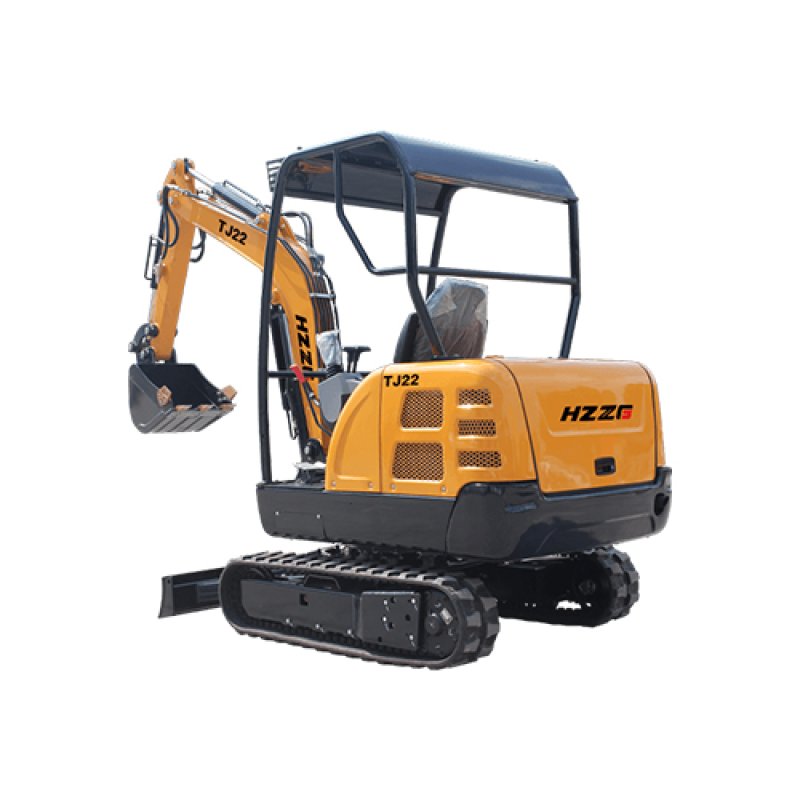

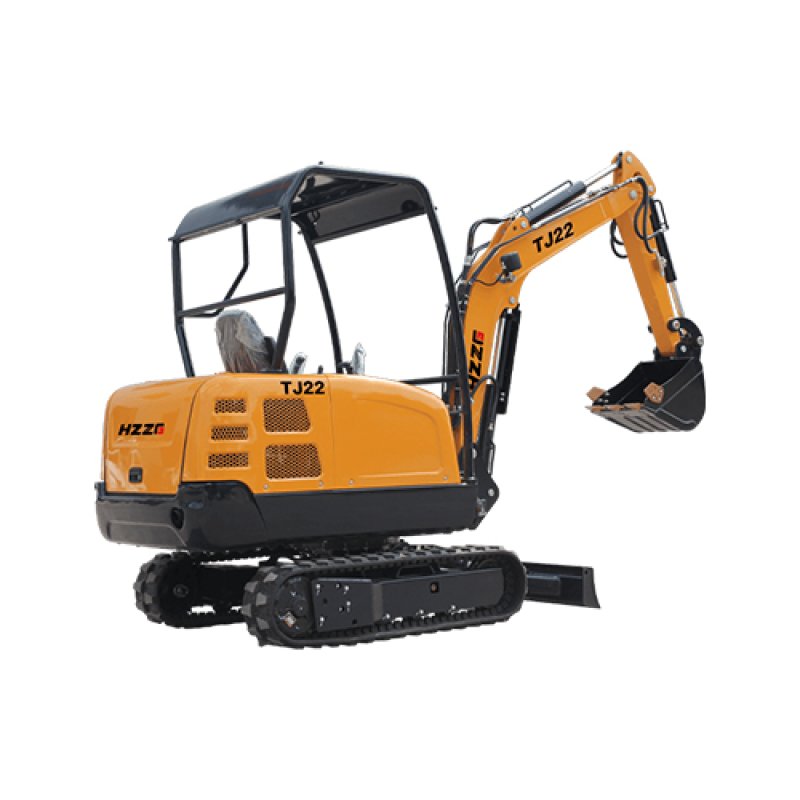

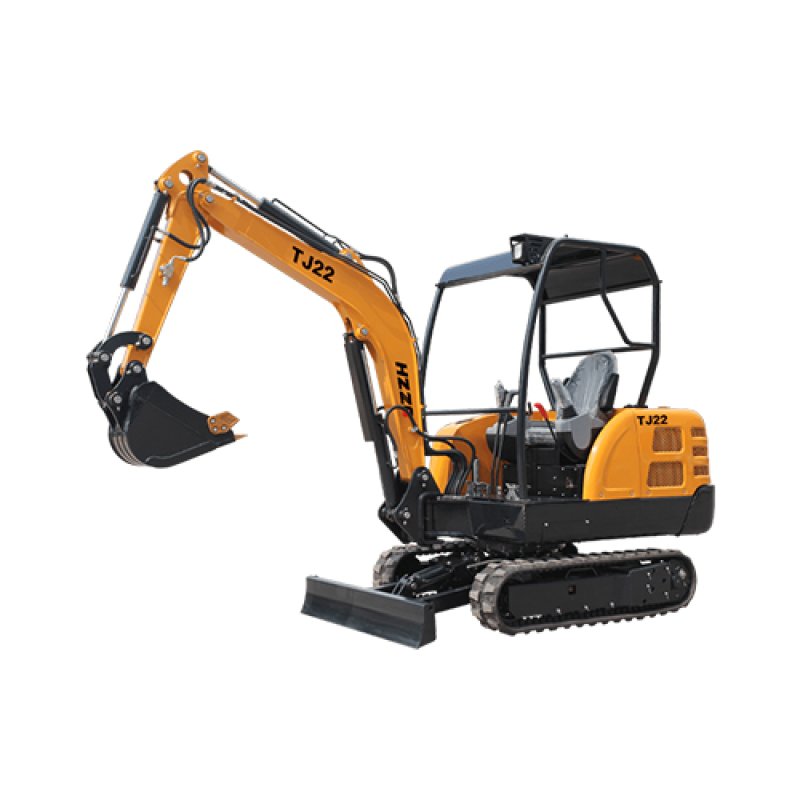

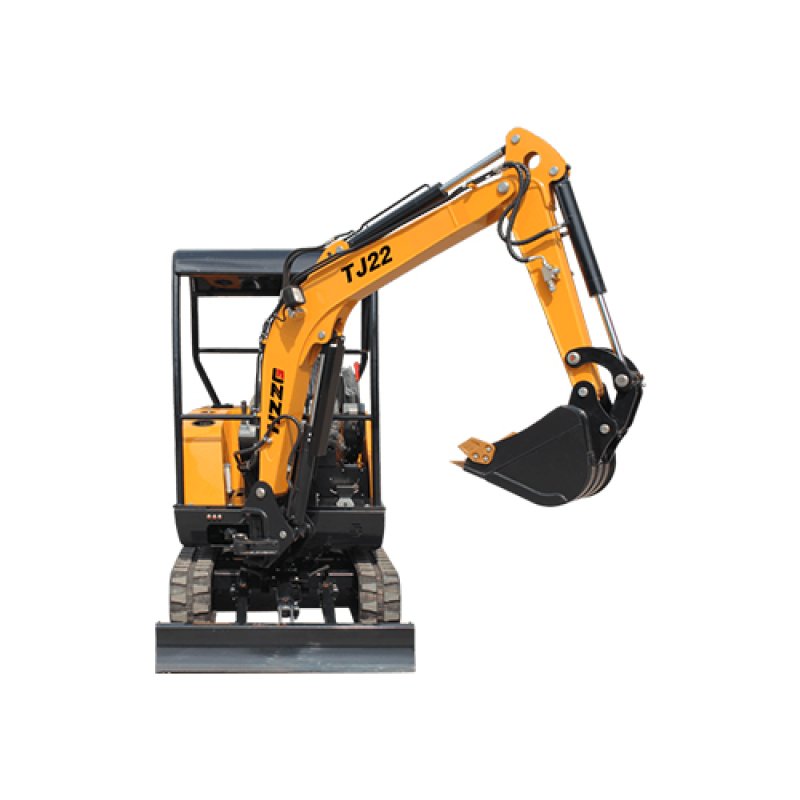

This 2.2 ton mini excavator is compact and flexible, ideal for municipal engineering, gardening, orchard farming, indoor renovation, river dredging and road maintenance. It performs digging, crushing, backfilling, leveling and loading efficiently, perfect for small spaces and various working conditions.
Operating Weight: 2200 KG
Engine: Laidong 3TE30
Max Power: 22.1 kW
Bucket Capacity: 0.1 m³
Max Digging Depth: 2.45 m
Max Dumping Height: 2.29 m
Max Digging Height: 3.7 m
Pilot control
Side swing
Crushing line
Rubber tracks
Roof
Laidong / LL385BT (18.8kW) – Euro 5
KUBOTA / D1105 (14.2kW) – Euro 5, EPA4
PERKINS / 403J-11 (14.7kW) – Euro 5, EPA4
Steel Tracks: Steel tracks feature stronger wear resistance, better grip and higher stability, making them ideal for harsh working conditions with stones, gravel and rough terrain. They effectively prevent slipping and deformation, greatly improving durability and service life while ensuring safer and more stable operation.
Cab: The closed cabin effectively blocks dust, noise and bad weather, providing a safer and more comfortable operating environment. It offers better protection for the operator, improves working efficiency, and also enhances the overall durability and resale value of the machine.
Breaker / Ripper / Wood Grapple / Rake / Auger / Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

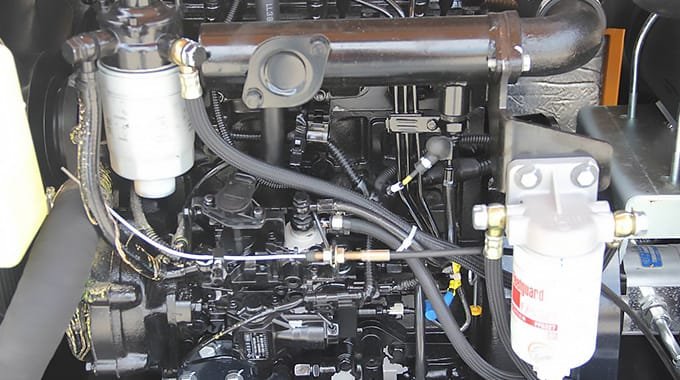

Laidong 3TE30 engine, suitable for export to countries such as South America and Australia with strict emission regulations, cost-effective. In addition, three engine options are available.

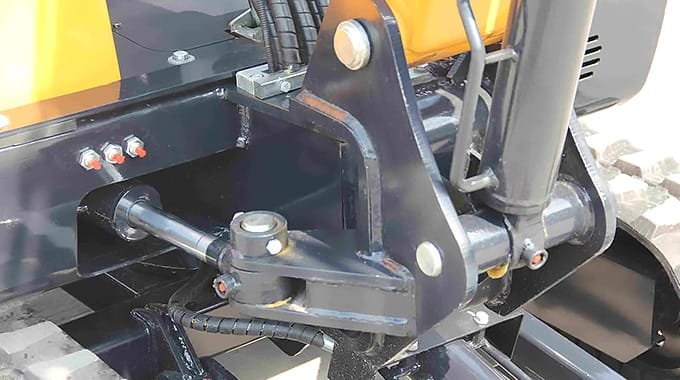

The excavator arm can swing left and right flexibly, eliminating frequent machine movement and enabling operation in narrow spaces such as walls and corners, greatly improving construction flexibility and efficiency.

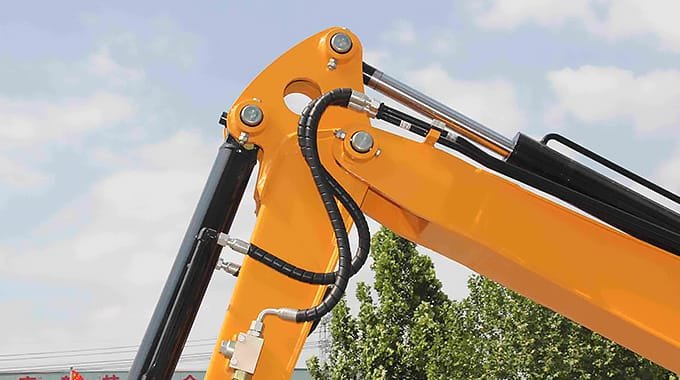

Standard hydraulic tee shut-off valve allows manual switching of hydraulic circuits for installing various attachments, achieving multi-purpose operation with one machine.

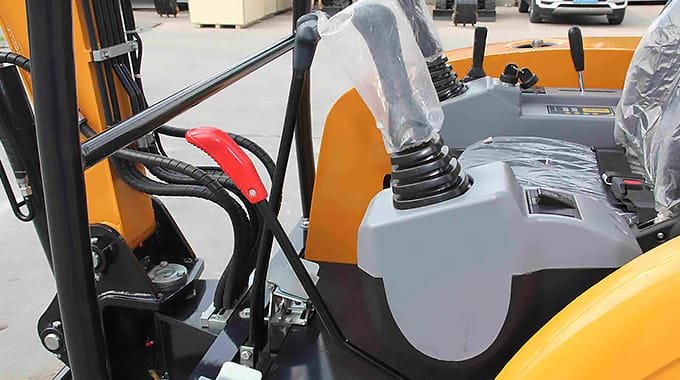

The pilot lock effectively avoids misoperation and ensures safer working and moving, while the flip-up armrest box creates a more spacious operating space and makes it much easier for the operator to get on and off the machine, greatly improving both operation safety and daily use convenience.
| Bucket Capacity | 0.1m³ |
| Swing Speed | 0-12rmp |
| Gradeablity | 30° |
| Max.Bucket Digging Force | 15.3KN |
| Max.Arm Digging Force | 10.5KN |
| Engine Model | 3TE30 |
| Power/Revolution Speed | 22.1kw/2300rmp |
| System Pressure | 18MPA |
| Dimension | 4170×1300×2280mm |
| Cabin Height | 2280mm |
| Axle Base | 1230mm |
| Track Distance | 1050mm |
| Minimum Ground Clearance | 230mm |
| Tail Swing Radius | 1180mm |
| Max.Digging Height | 3700mm |
| Max.Dumping Height | 2290mm |
| Max.Digging Depth | 2450mm |
| Max.Vertical Digging Depth | 2160mm |
| Max.Digging Radius | 4370mm |
| Min.Swing Radius | 2020mm |
| Max.Dozer Blade Lifting Distance | 240mm |
| Max.Dozer Blade Cutting Distance | 310mm |
| Boom Swing Angle(Left) | 70° |
| Boom Swing Angle(Right) | 50° |
