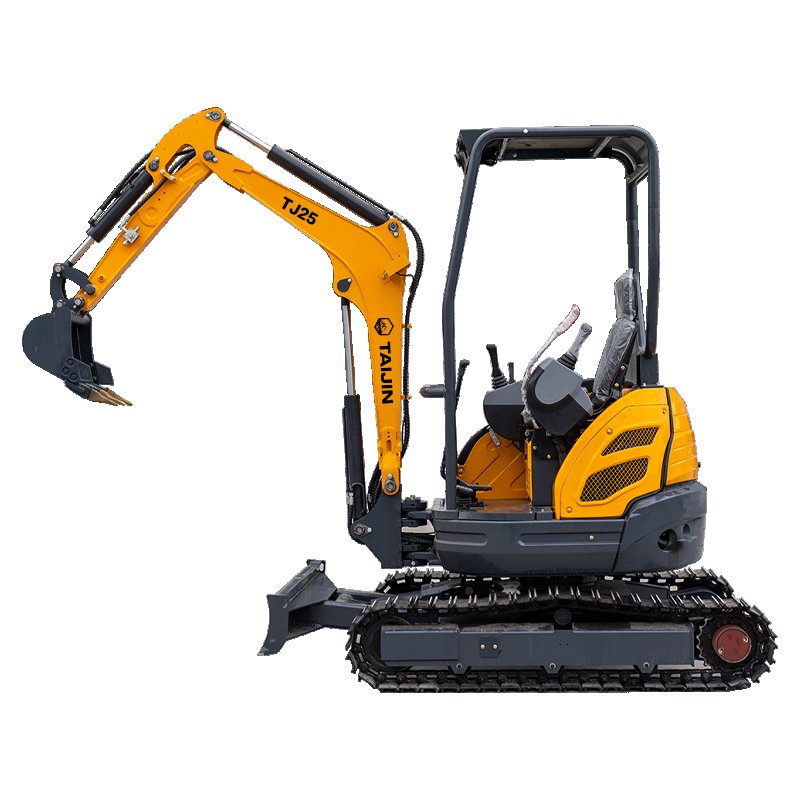

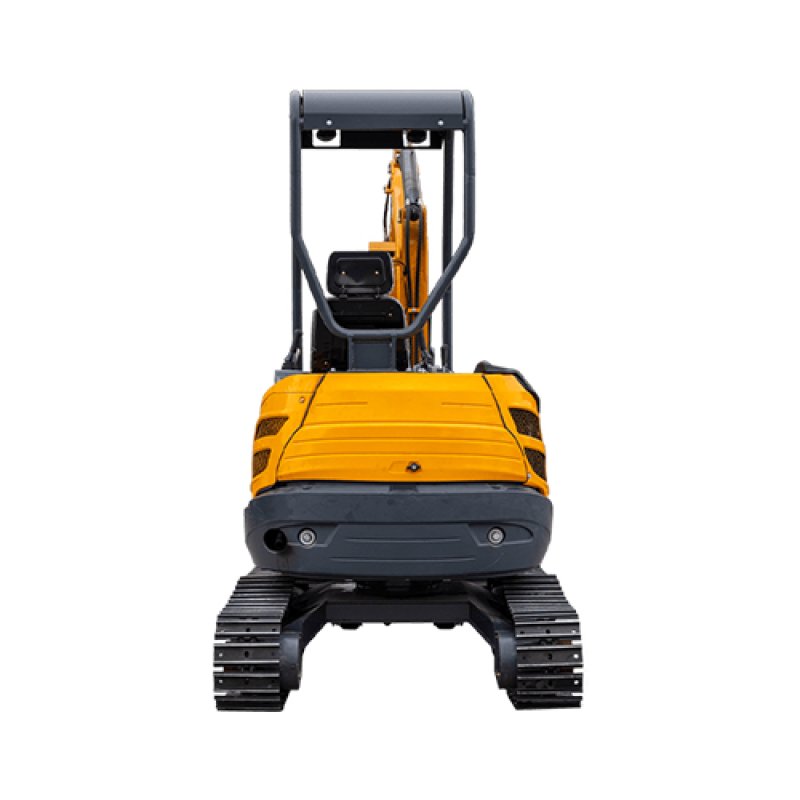

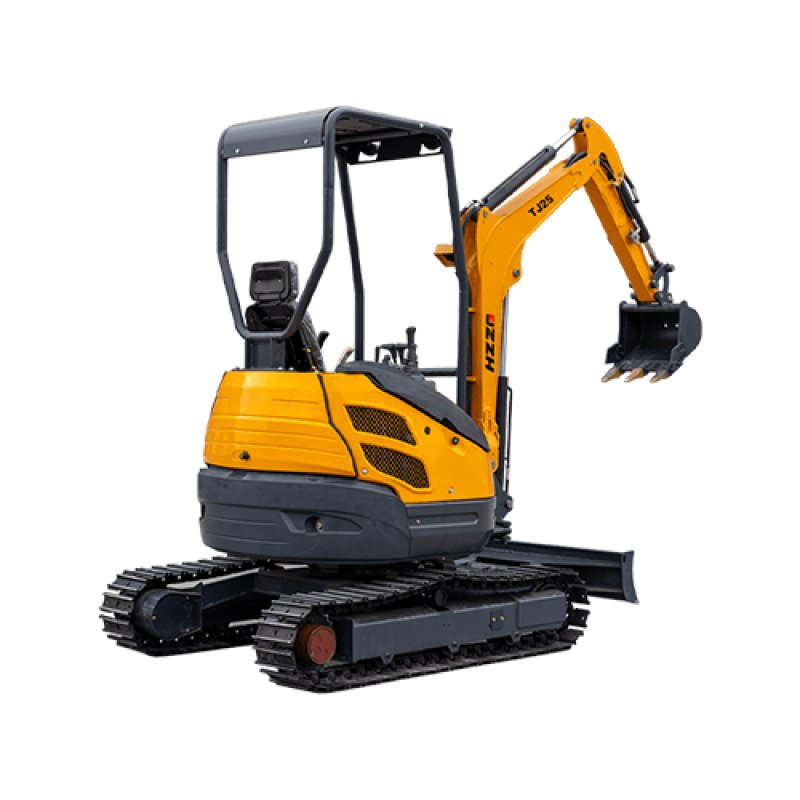

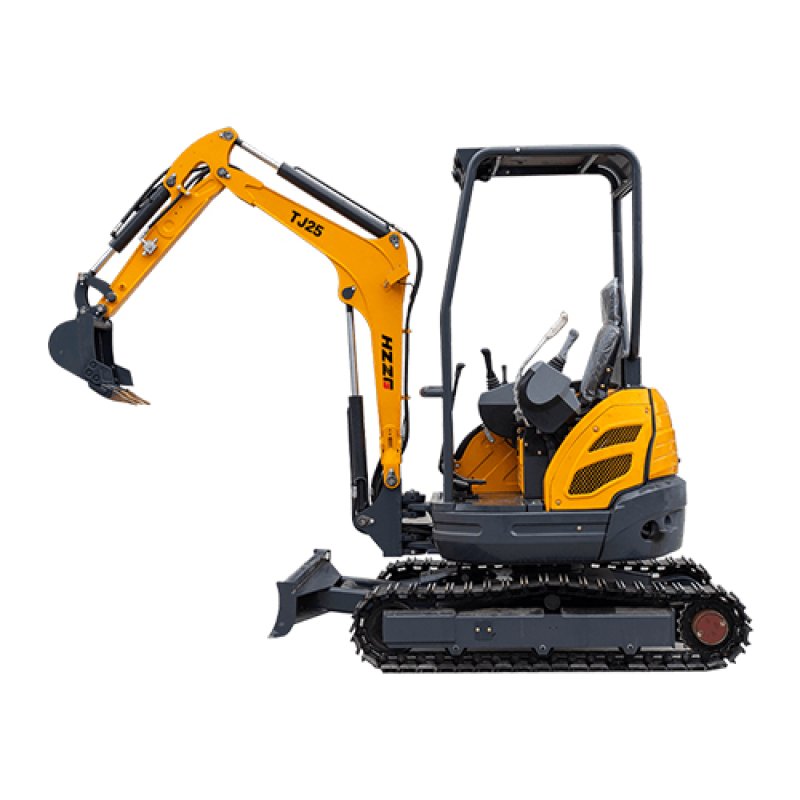

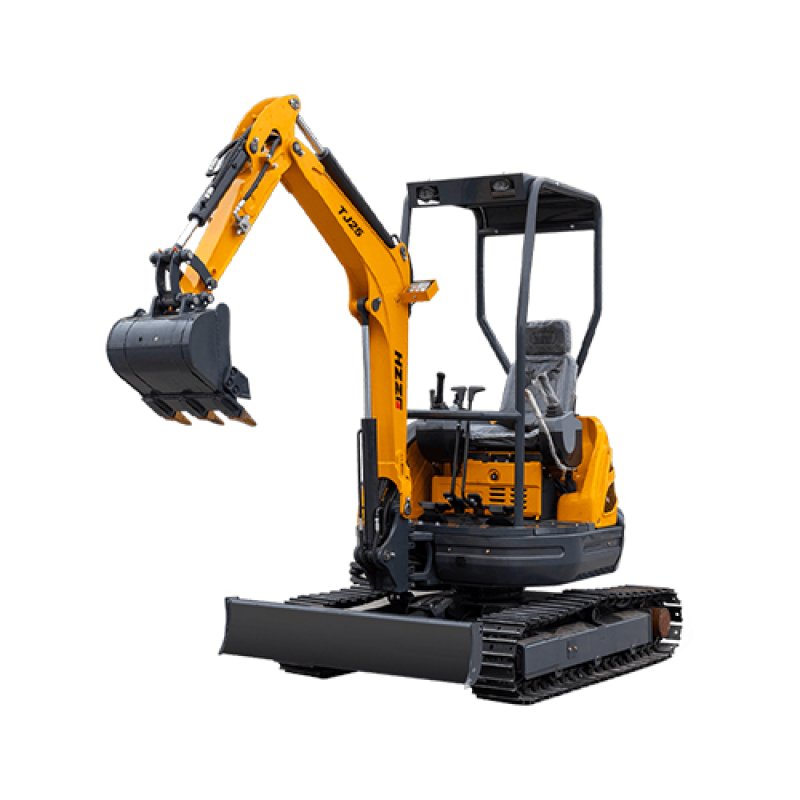

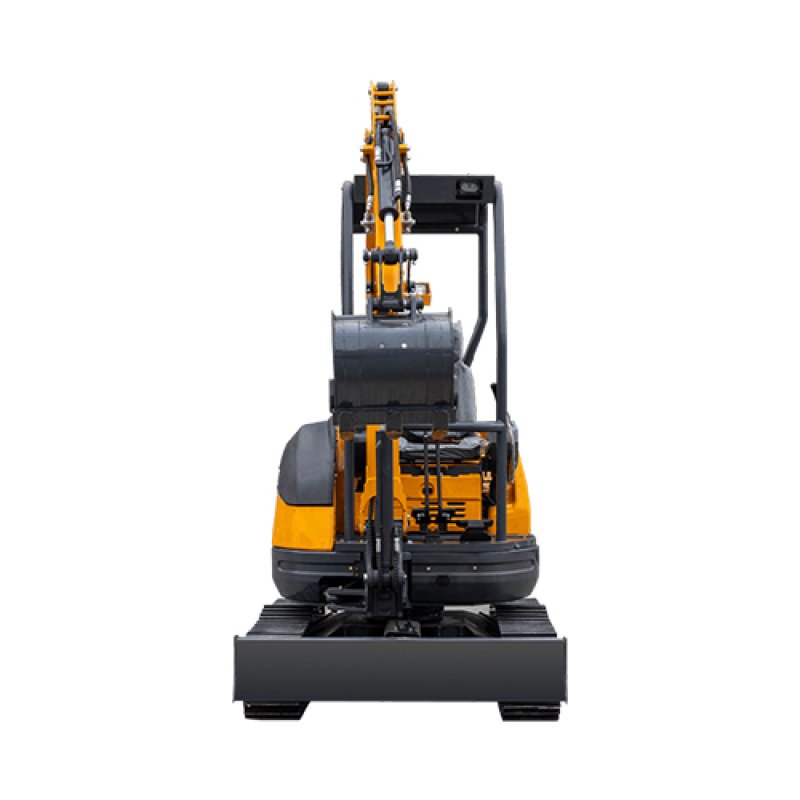

This 2.5 ton mini excavator is a compact and multi-functional construction equipment. It is widely used in garden landscaping, municipal engineering, agricultural farm renovation, indoor demolition, small construction sites, narrow space operation, trenching and planting. With small size, flexible movement and high working efficiency, it can meet various small-scale excavation, crushing and handling demands, which is an ideal choice for personal and small engineering projects.
Operating Weight: 2500 KG
Engine: KUBOTA D1105
Max Power: 14.2 kW
Bucket Capacity: 0.045 m³
Max Digging Depth: 2.045 m
Max Dumping Height: 2.61 m
Max Digging Height: 3.37 m
Pilot control
Side swing
Crushing line
Steel tracks
Plunger pump
High and low speed
Load-sensitive multi-way valve
Roof
Quanchai V13-25C5, 18.9KW, cost-effective, suitable for export to Asia, Australia, South America, Africa and other countries with no strict emission requirements.

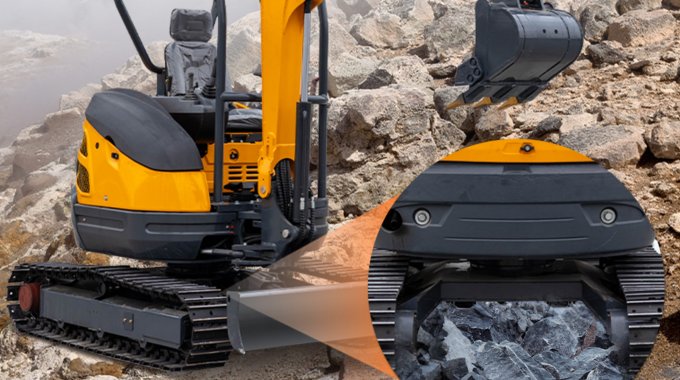

Track Extension Function: With retractable undercarriage, the track width can be adjusted. It ensures more stability during work and easier passage through narrow gates or doors.
Cab: The closed cabin effectively blocks dust, noise and bad weather, providing a safer and more comfortable operating environment. It offers better protection for the operator, improves working efficiency, and also enhances the overall durability and resale value of the machine.
Breaker / Ripper / Wood Grapple / Rake / Auger / Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

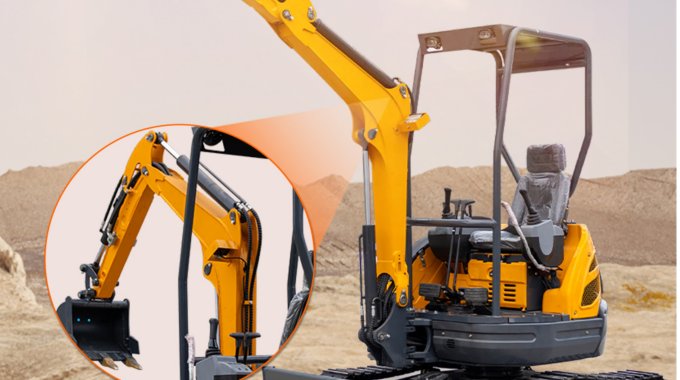

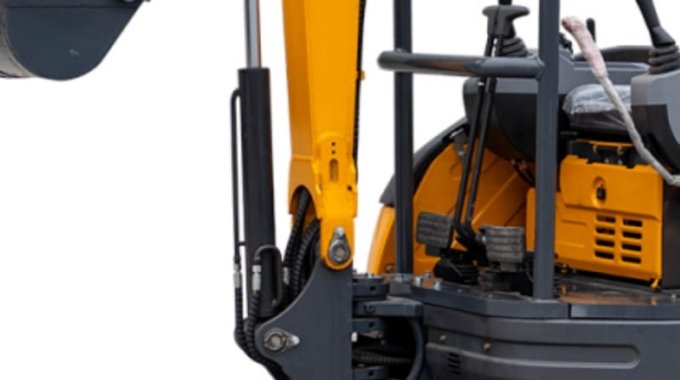

Side Swing：With boom side swing function, the excavator can adjust digging position left and right without moving the whole machine. It improves flexibility and efficiency, especially in narrow working spaces.

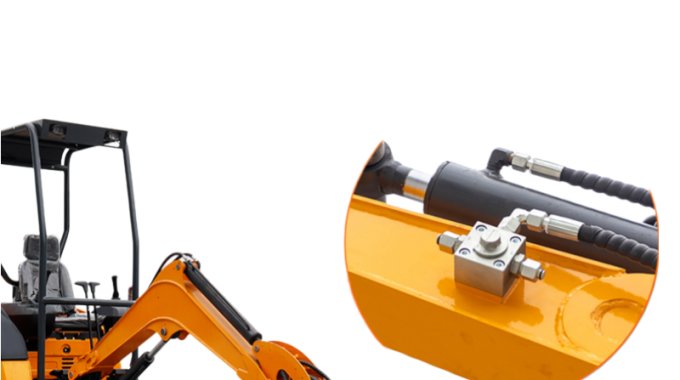

Hydraulic Three-way Shut-off Valve：Standard hydraulic three-way shut-off valve, both oil lines can beswitched back and forth with a spanner to control the oil line when thepipe is not removed.
Hidden High-Low Speed Travel Motor: Enables high and low speed travel for convenient relocation. It effectively prevents hydraulic oil pipes from sun exposure, protects the pipes and reduces wear when working in harsh geological environments, thereby extending their service life.
Concealed Hydraulic Hoses: The hydraulic hoses of the boom are inserted into the internal structure, which is more sun-proof and oxidation-proof than other models. When breaking, the hoses are less likely to be damaged, thus protecting the hoses.
| Total Length / Transport Length | 2870 mm |
| Total Width | 1400 mm |
| Upper Width | 1320 mm |
| Total Height (to Cabin Roof) | 2440 mm |
| Standard Track Shoe Width | 250 mm |
| Track Gauge | 1150 mm |
| Ground Clearance | 145 mm |
| Tail Swing Radius | 700 mm |
| Track Ground Contact Length | 1480 mm |
| Track Length | 1858 mm |
| Operating Weight | 2500 kg |
| Bucket Capacity | 0.045 m |
| Rated Power | 14.2 kW / 2200 RPM |
| Slewing Speed | 12 RPM |
| Gradeability | 40° |
| Max. Digging Height | 3365 mm |
| Max. Dumping Height | 2610 mm |
| Max. Digging Depth | 2045 mm |
| Max. Digging Reach | 3430 mm |
| Slewing Radius | 1955 mm |
| Max. Height at Slewing Radius | 2740 mm |
