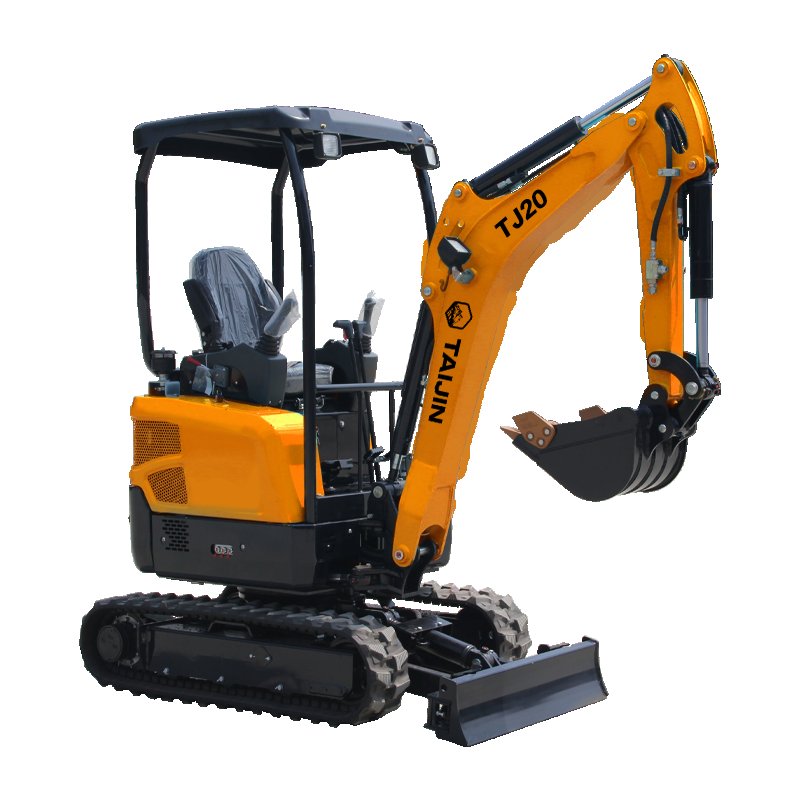

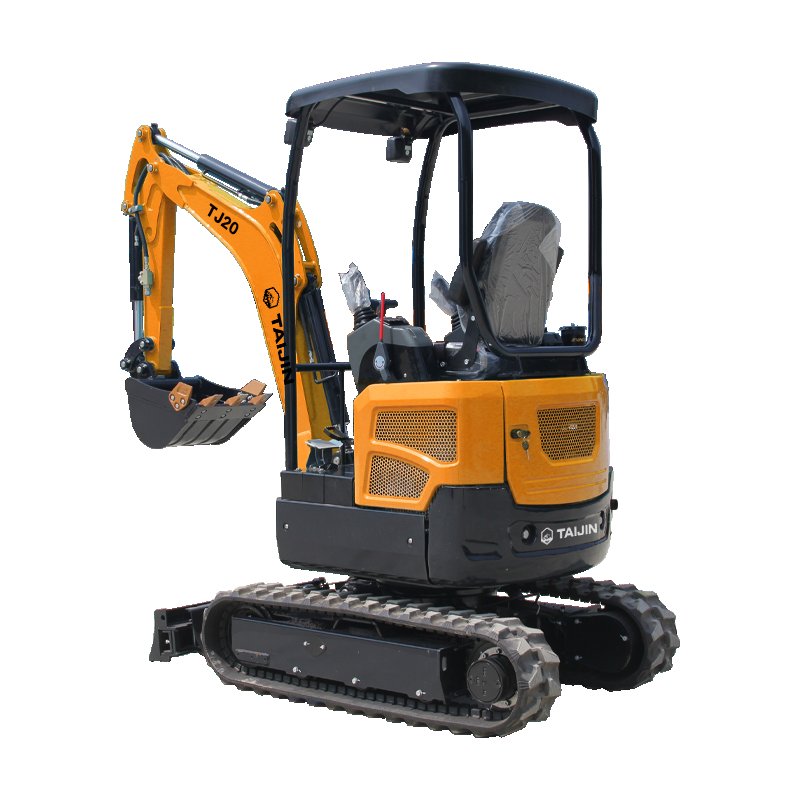

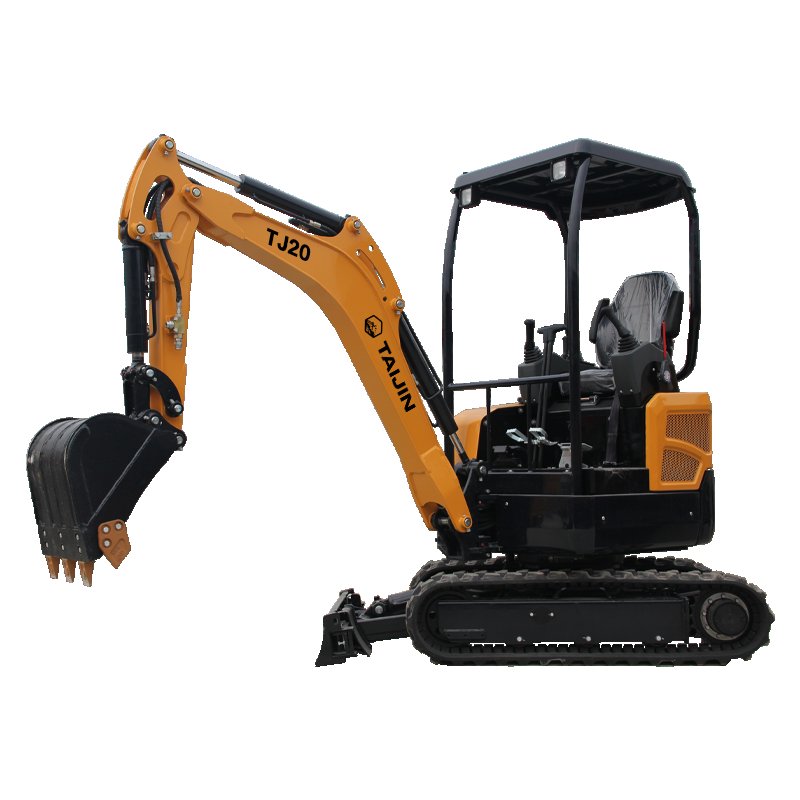

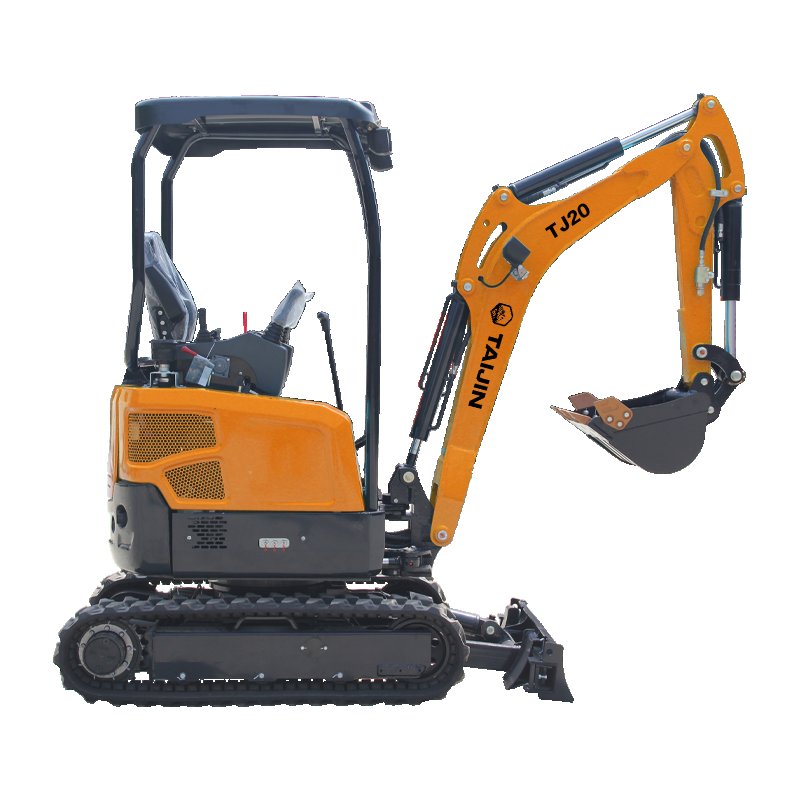

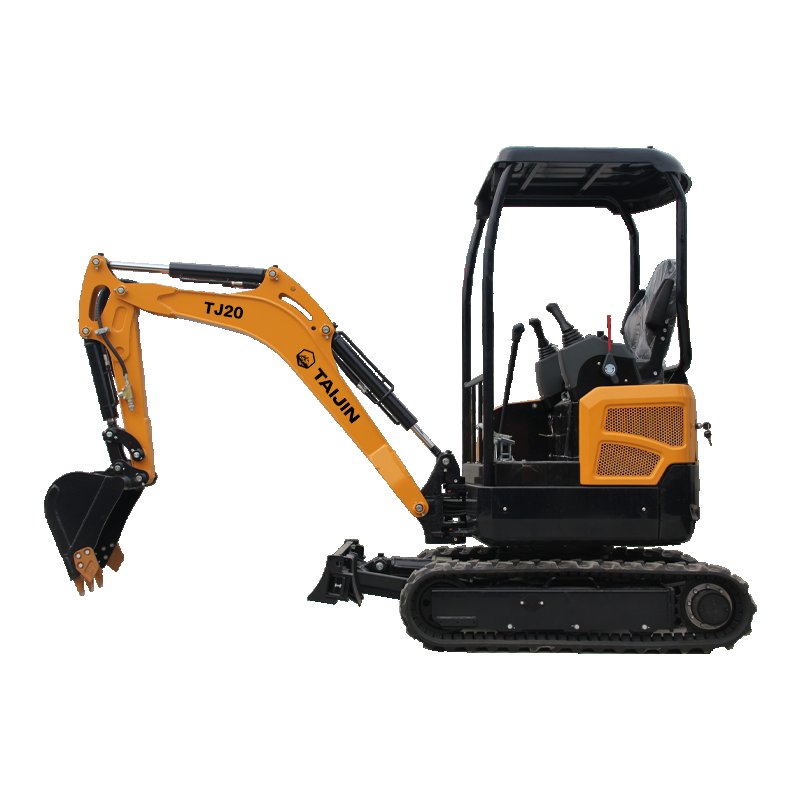

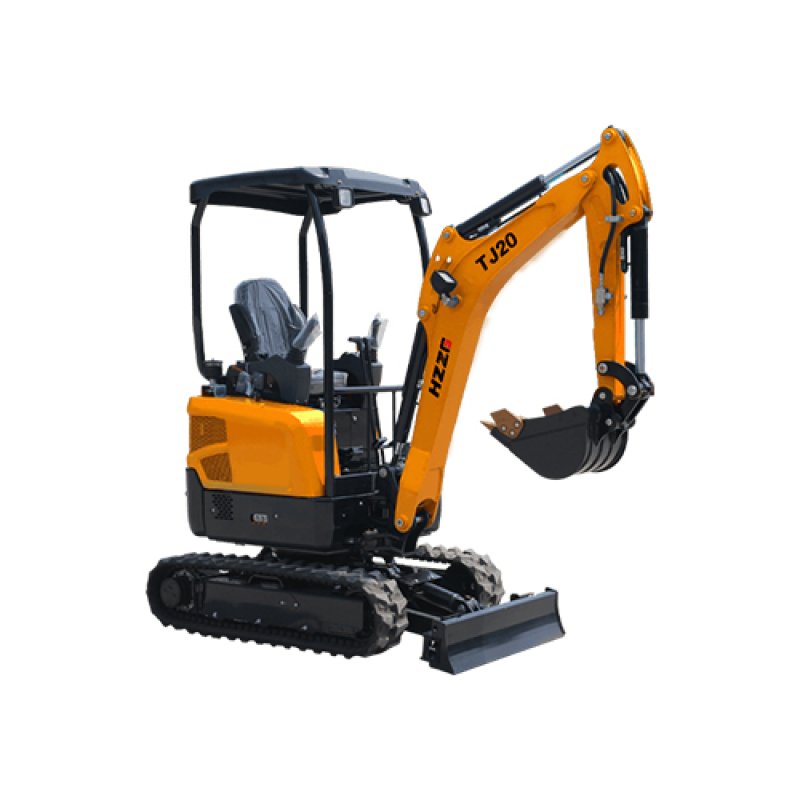

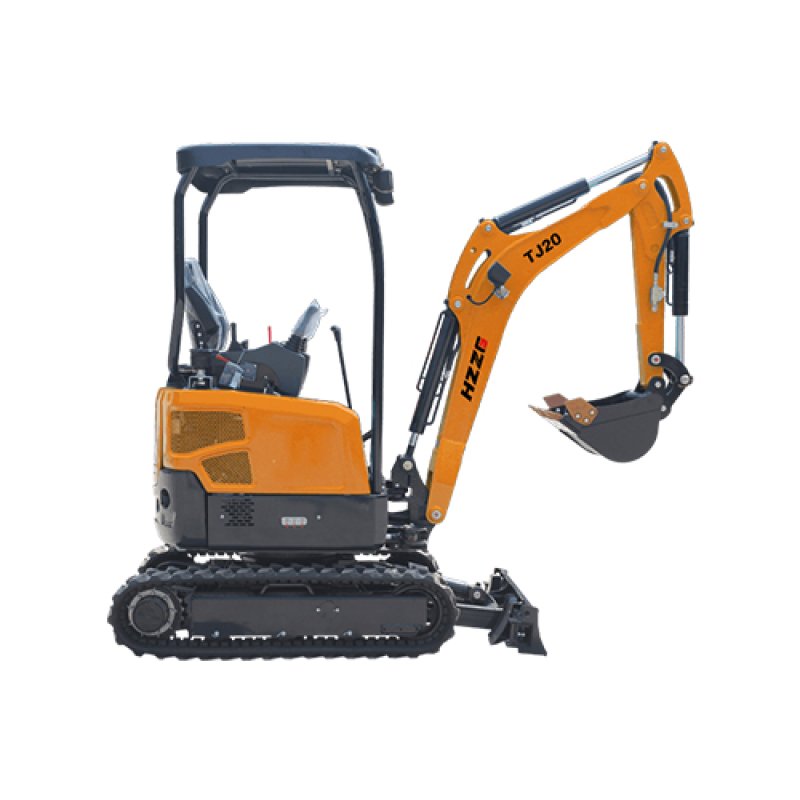

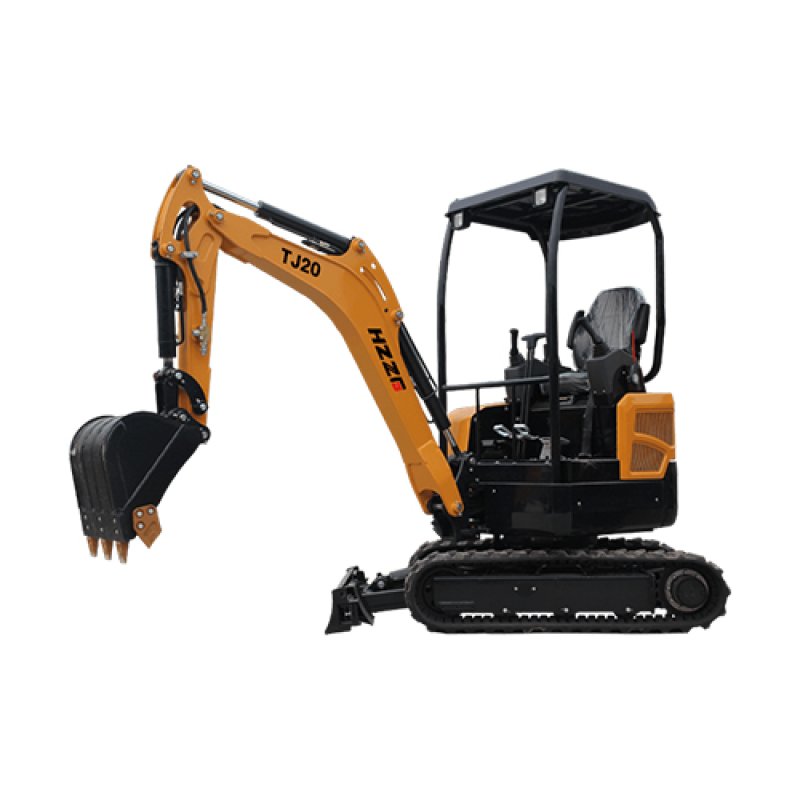

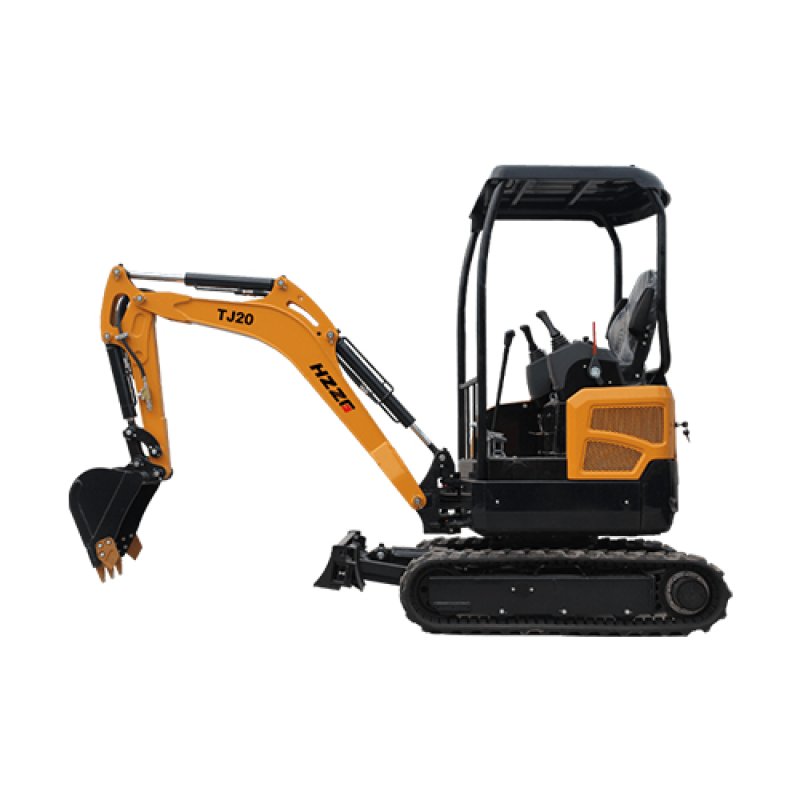

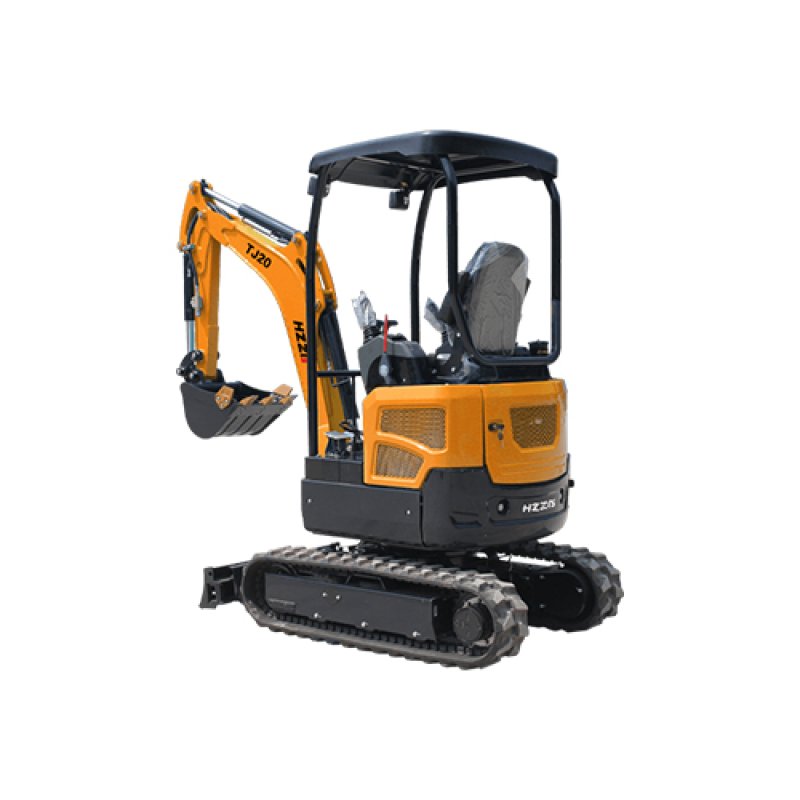

This versatile 2-ton excavator delivers unmatched performance across road repairs, concrete breaking, utility installation, landscaping, and dredging. With integrated functions including excavation, breaking, ditch cleaning, drilling, and bulldozing, it's the compact, fuel-efficient workhorse built to boost productivity and reduce downtime on any job site.
Operating Weight: 2000 KG
Engine: KUBOTA D1105
Max Power: 14.2 kW
Bucket Capacity: 0.07 m³
Max Digging Depth: 2.4 m
Max Dumping Height: 2.44 m
Max Digging Height: 3.7 m
Pilot control
Side swing
Retractable tracks
High and low speed
Load-sensing control system
Crushing line
Rubber tracks
Roof
Steel Tracks: Steel tracks feature stronger wear resistance, better grip and higher stability, making them ideal for harsh working conditions with stones, gravel and rough terrain. They effectively prevent slipping and deformation, greatly improving durability and service life while ensuring safer and more stable operation.
Cab: The closed cabin effectively blocks dust, noise and bad weather, providing a safer and more comfortable operating environment. It offers better protection for the operator, improves working efficiency, and also enhances the overall durability and resale value of the machine.
Multi-Attachment Compatible
Breaker / Ripper / Wood Grapple / Rake / Auger / Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

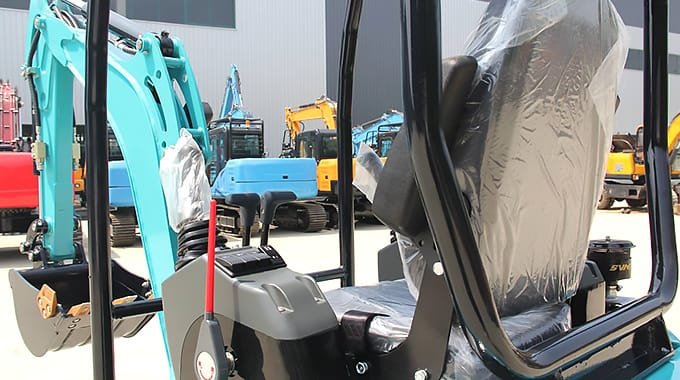

The pilot lock effectively avoids misoperation and ensures safer working and moving, while the flip-up armrest box creates a more spacious operating space and makes it much easier for the operator to get on and off the machine, greatly improving both operation safety and daily use convenience.

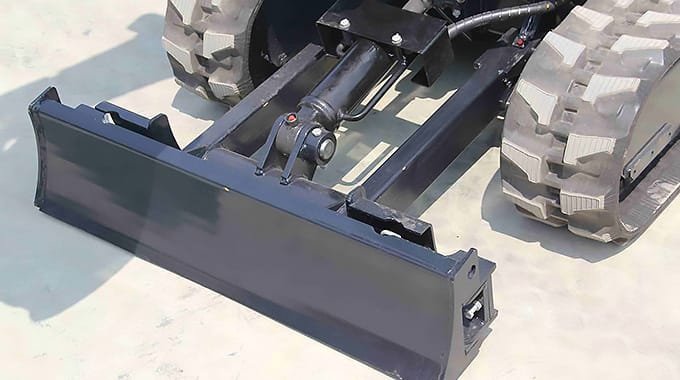

The track width can be adjusted according to the terrain. Meanwhile, foldable lugs are installed on both sides of the dozer blade, extending when the track is wide and folding for storage when the track is narrow.

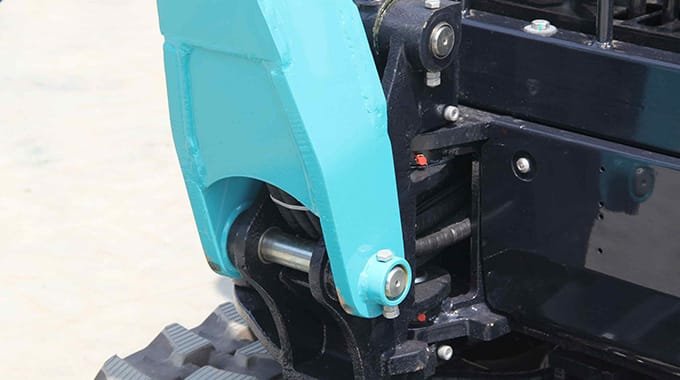

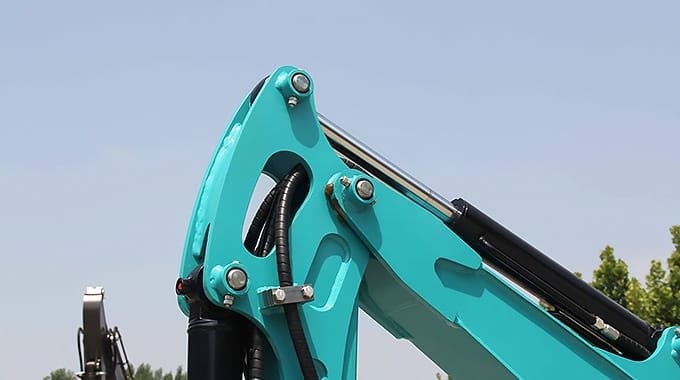

With boom side swing function, the excavator can adjust digging position left and right without moving the whole machine. It improves flexibility and efficiency, especially in narrow working spaces.

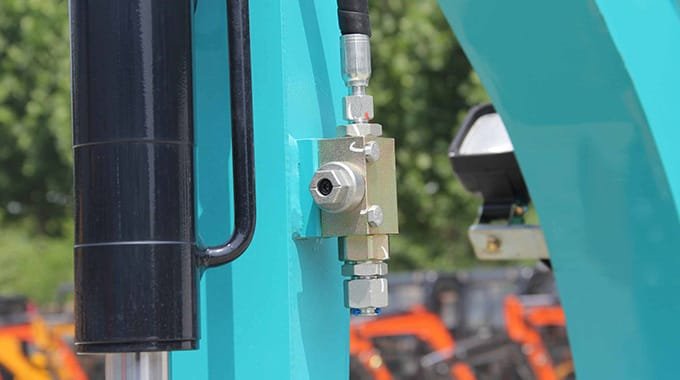

Standard hydraulic tee shut-off valve allows manual switching of hydraulic circuits for installing various attachments, achieving multi-purpose operation with one machine.

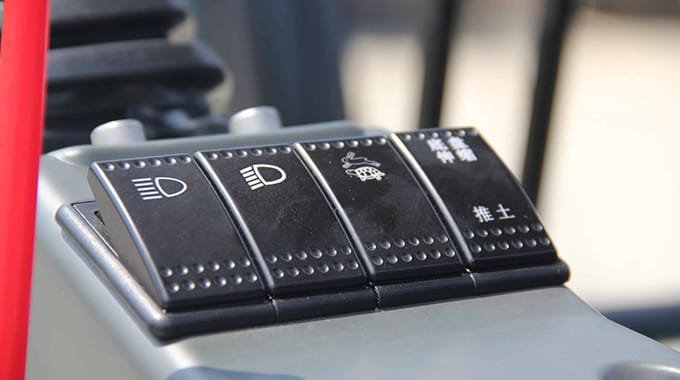

The dual high & low speed travel system allows free switching: high speed for fast and efficient movement between job sites, while low speed ensures stable running and precise control, improving safety and construction accuracy for various working conditions.
Built-in oil pipes ensure a cleaner appearance. Meanwhile, the oil pipes are housed inside the machine, avoiding scratches during operation and extending their service life.
| Bucket Capacity | 0.07m³ |
| Swing Speed | 0-9rmp |
| Gradeablity | 35° |
| Max.Bucket Digging Force | 18KN |
| Max.Arm Digging Force | 11KN |
| Engine Model | KUBOTA D1105 |
| Power/Revolution Speed | 14.2kw/2200rmp |
| System Pressure | 21.5MPA |
| Dimension | 3550×990/1300×2290mm |
| Cabin Height | 2290mm |
| Axle Base | 1230mm |
| Track Distance | 760mm |
| Minimum Ground Clearance | 150mm |
| Tail Swing Radius | 650mm |
| Max.Digging Height | 3700mm |
| Max.Dumping Height | 2440mm |
| Max.Digging Depth | 2400mm |
| Max.Vertical Digging Depth | 2025mm |
| Max.Digging Radius | 4040mm |
| Min.Swing Radius | 1610mm |
| Max.Dozer Blade Lifting Distance | 240mm |
| Max.Dozer Blade Cutting Distance | 270mm |
