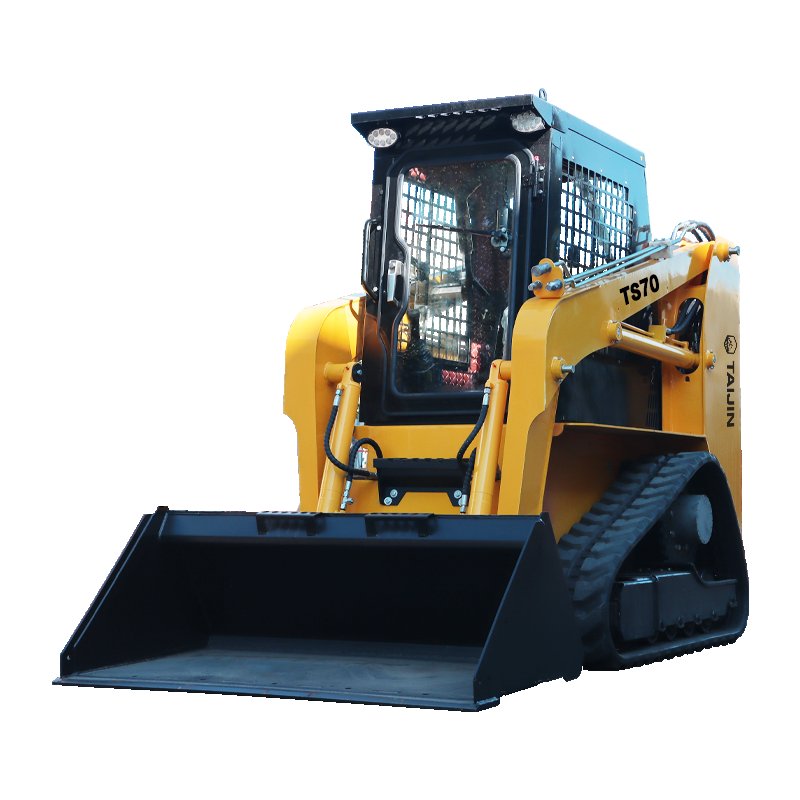

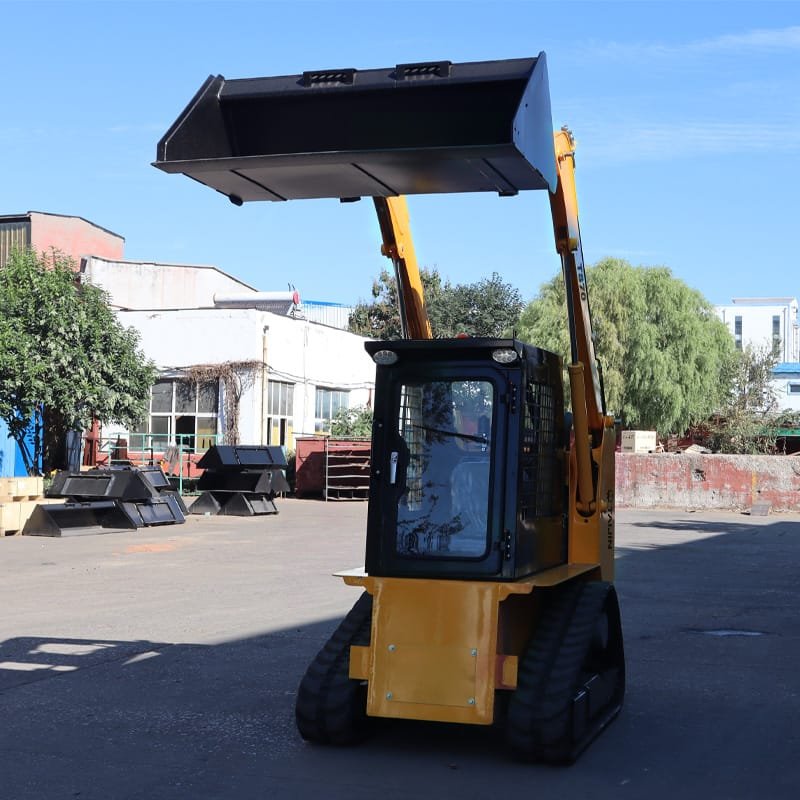

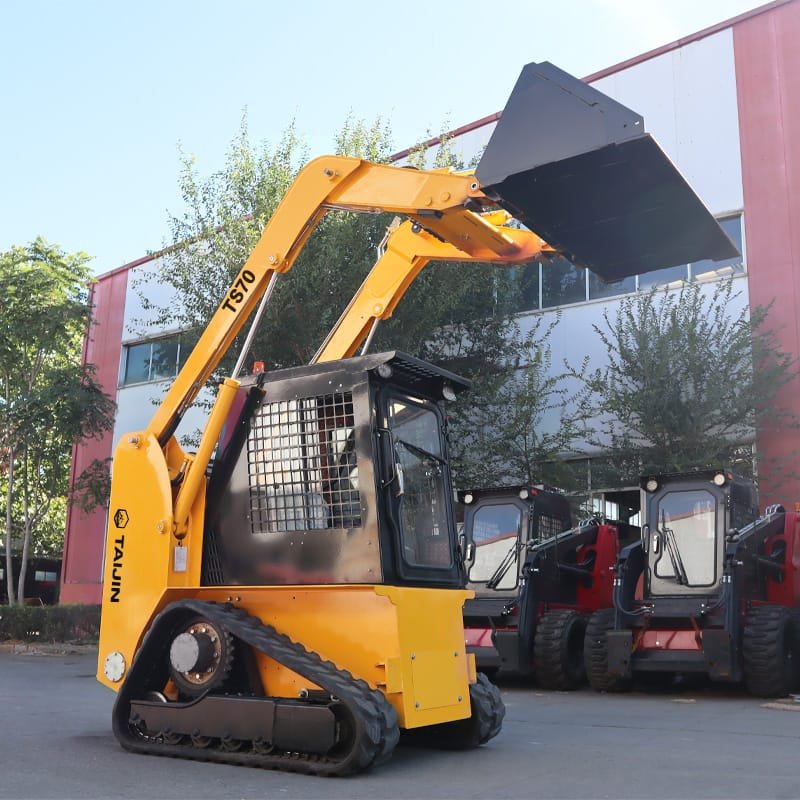

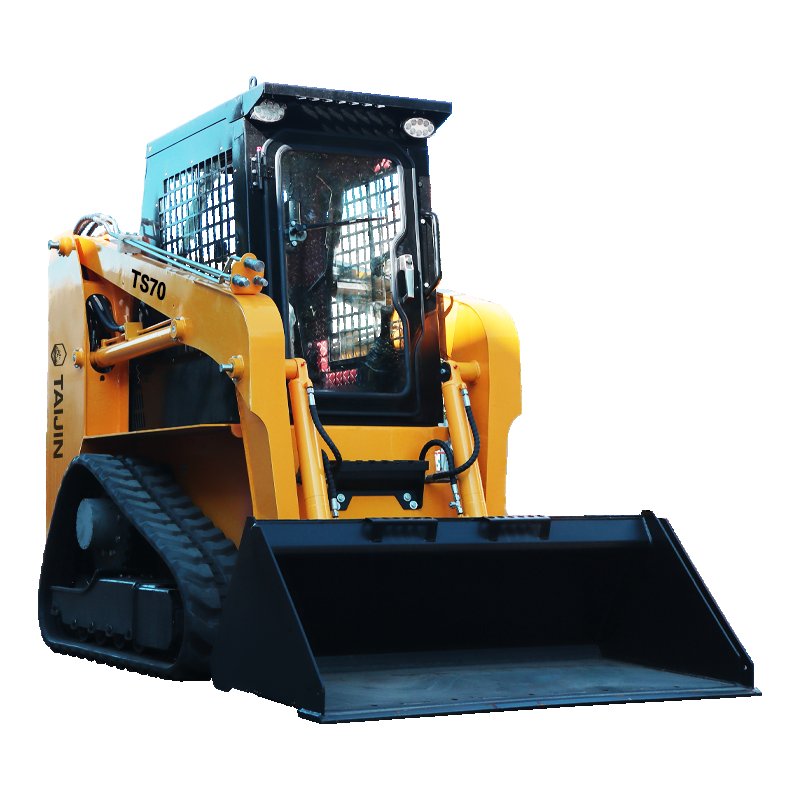

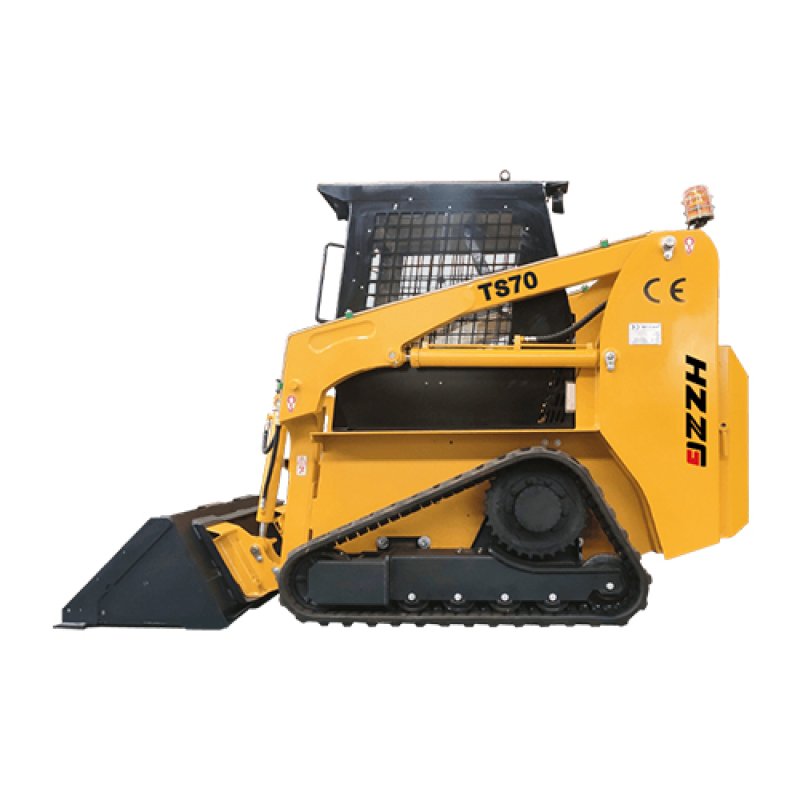

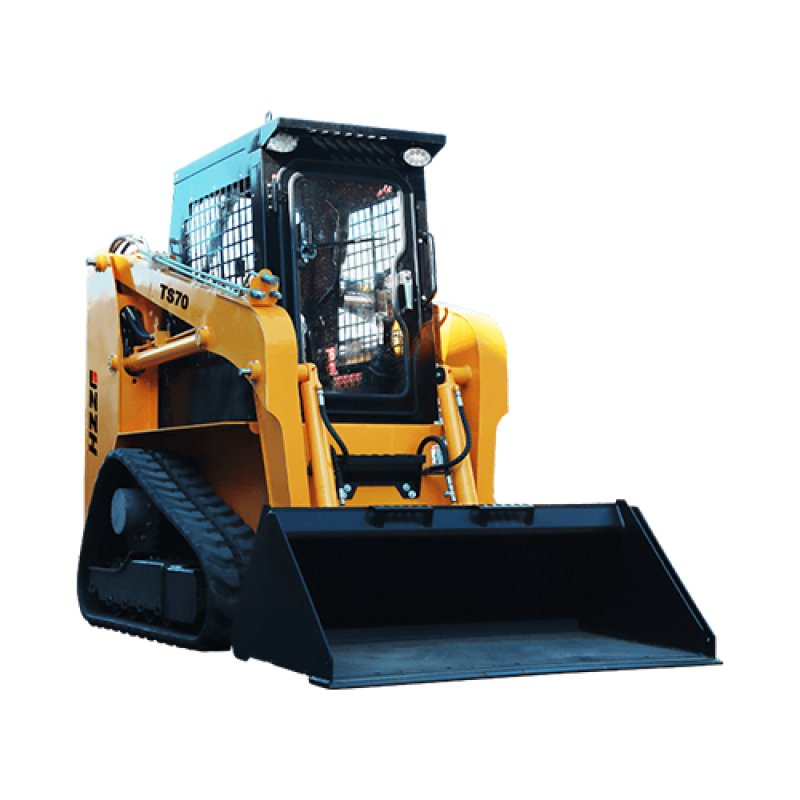

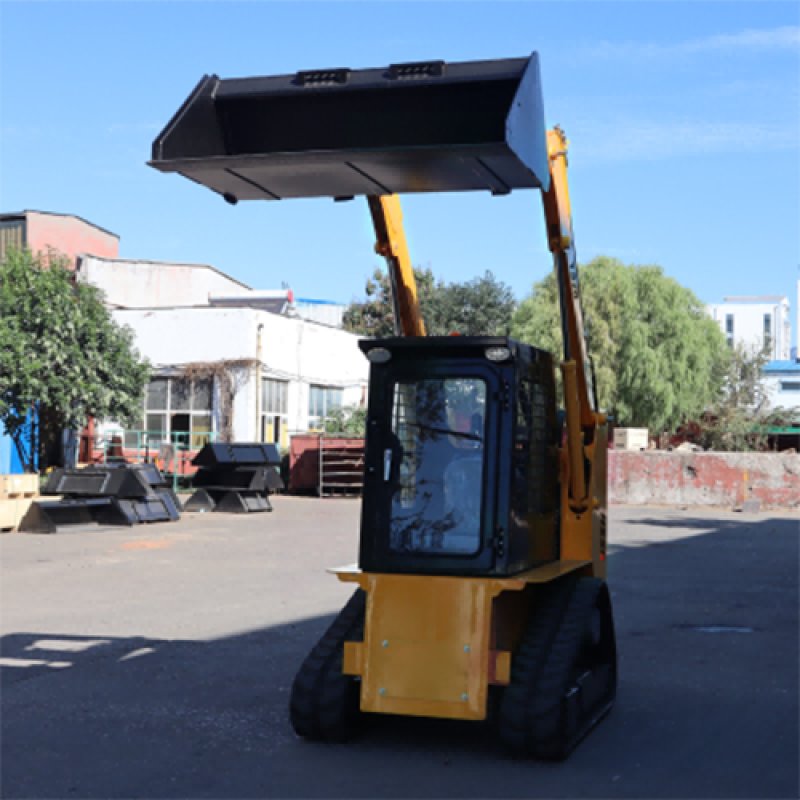

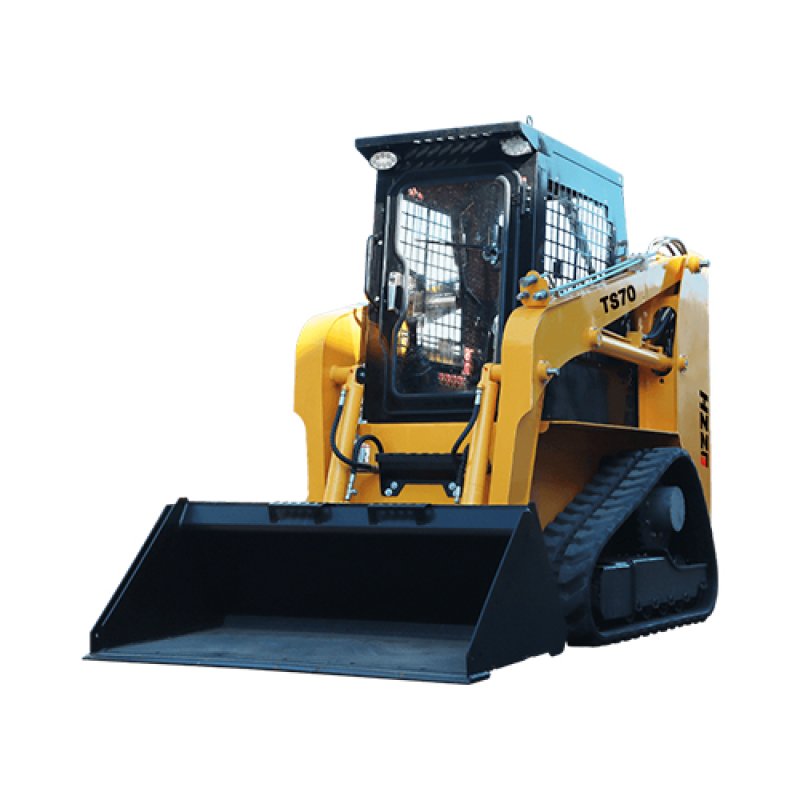

TS70 Compact Track Loader | Track-Driven Traction for Challenging Terrain
The TS70 brings rubber-track stability to our 700kg-rated-load class, giving contractors the same working capacity as the wheeled TS70W but with substantially better traction and flotation on soft, wet or uneven terrain. Powered by a Xinchai C490BPG engine at 40kw, it delivers 25.4kN traction and 18.4kN breakout force, with a max operating height of 3350mm and dumping height of 2100mm — enough for loading trucks and handling material on active construction sites. The tracked undercarriage spreads the machine's weight over a larger footprint, reducing ground pressure and allowing the TS70 to work confidently on freshly disturbed soil, muddy jobsites after rain, or landscaped areas where wheeled machines would leave ruts or lose traction. At 2950×1500×2050mm, it remains compact enough for typical residential and commercial job access while delivering noticeably more pulling power than wheeled equivalents in soft-ground conditions. Its hydraulic quick-attach system works with the full range of buckets, forks, augers and grading attachments. The TS70 is particularly valuable for site development contractors, agricultural operations, forestry support work and landscaping companies operating on terrain that would challenge wheeled skid steers. Taijin Machinery ships the TS70 with configurable attachments and dedicated support worldwide.
