  • Rated Load
    950kg
  • Dumping Height
    2450mm
  • Weight
    3400kg
Product Details

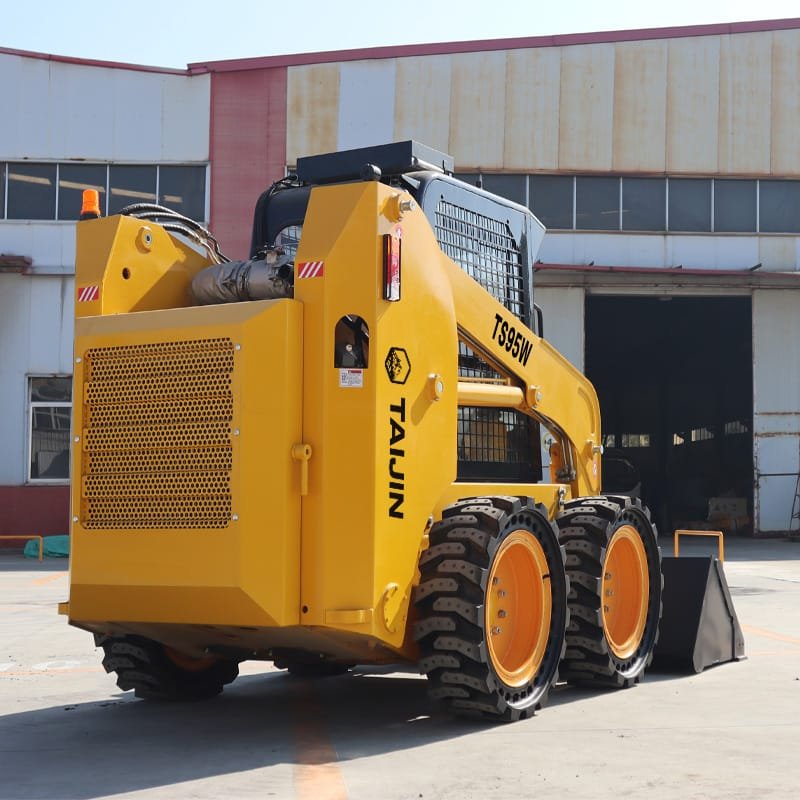

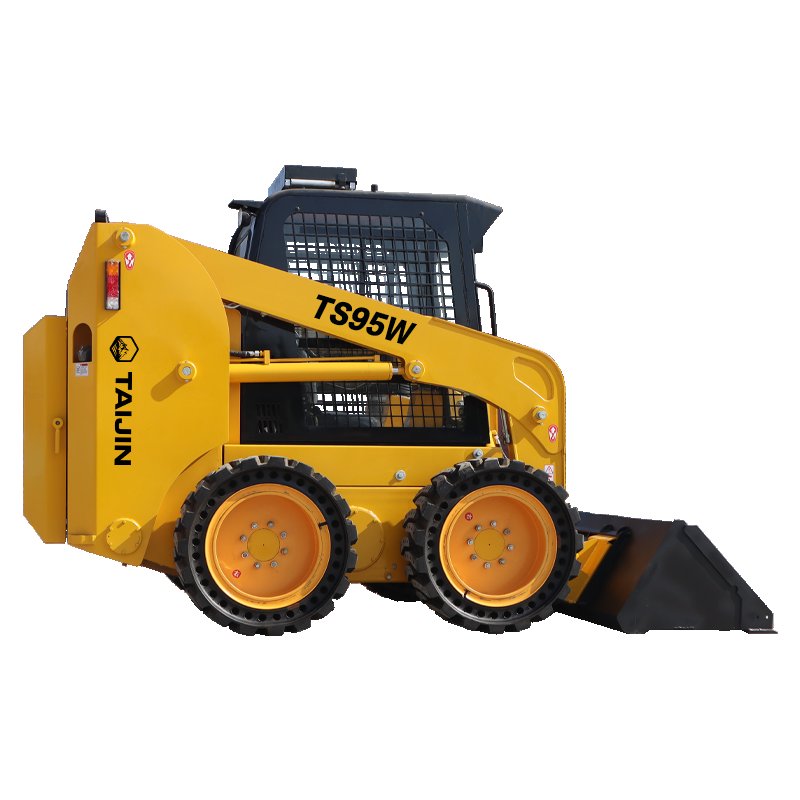

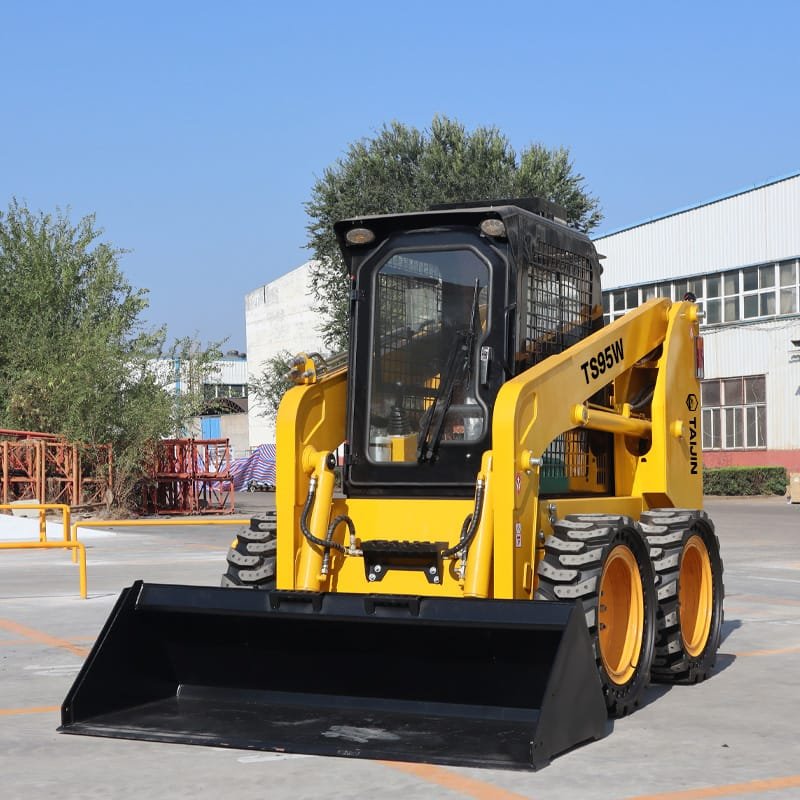

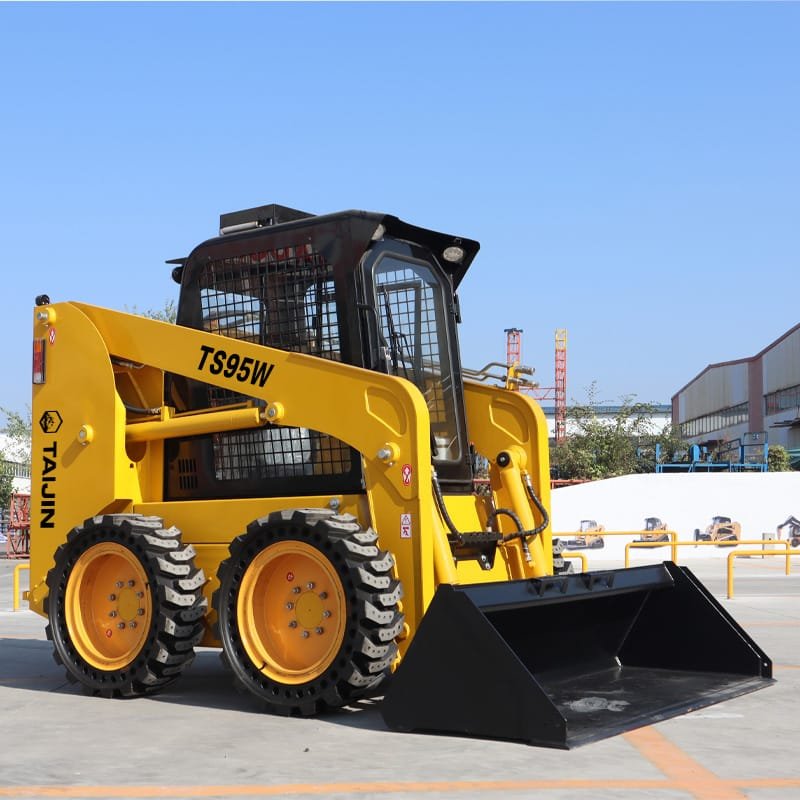

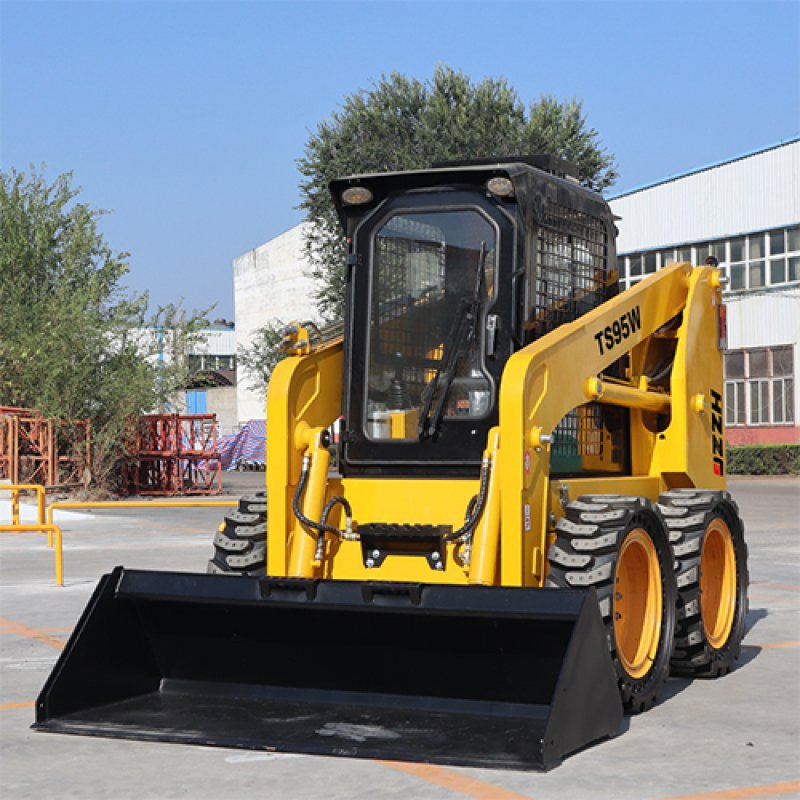

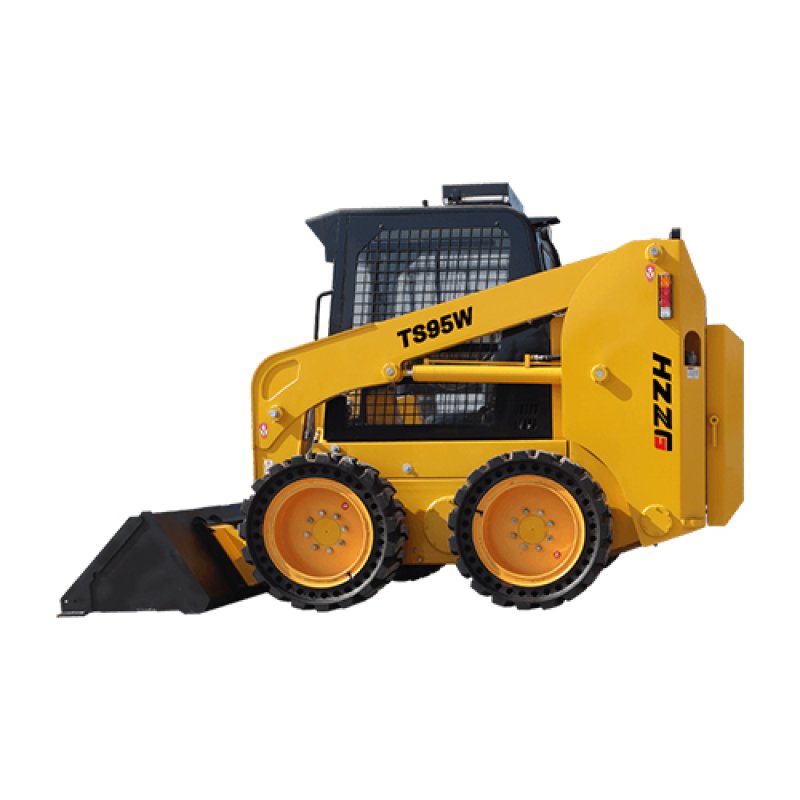

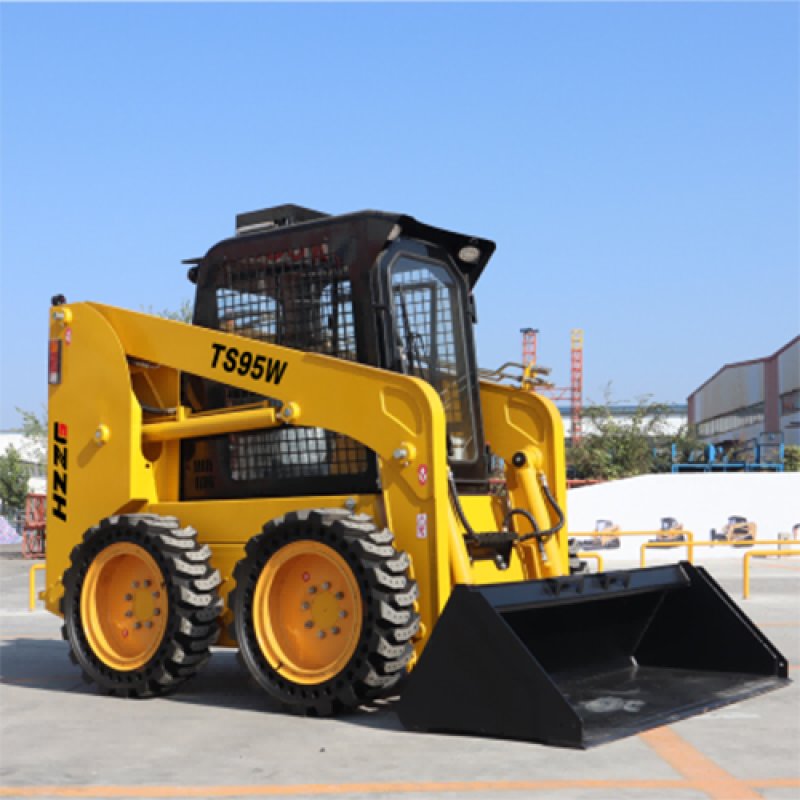

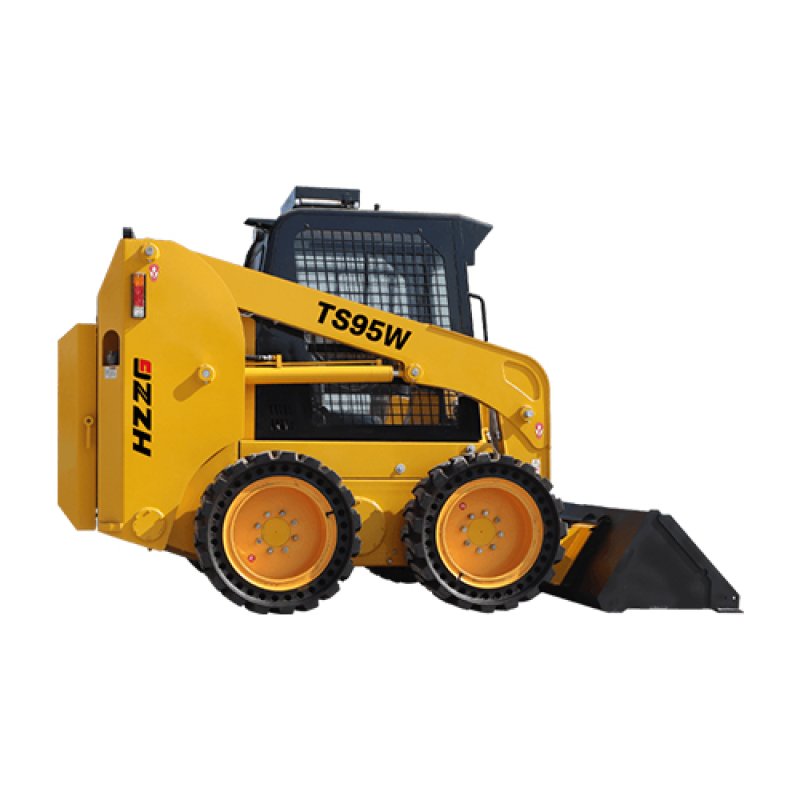

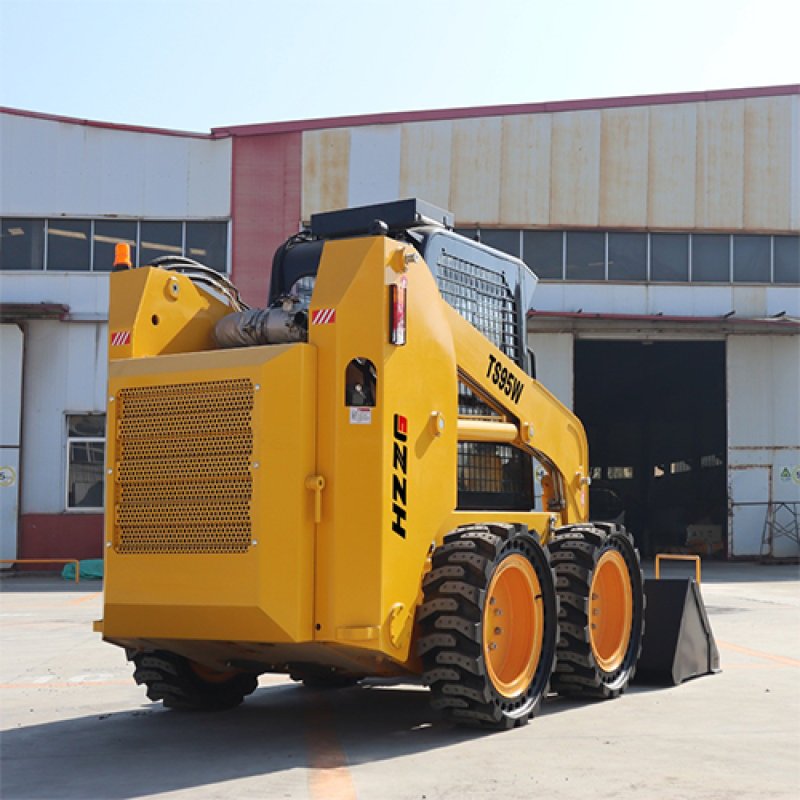

TS95W Wheeled Skid Steer Loader | High-Capacity Machine for Intensive Daily Use

The TS95W offers a 950kg rated load and 3400kg operating weight, powered by a Xinchai A498BZG/T engine delivering 55kw — a meaningful step up in power from our mid-range models. It produces 28.2kN of traction and 20kN breakout force, giving it the strength for intensive daily material handling, aggregate loading, demolition debris removal and heavier earthmoving support tasks. Dumping height reaches 2450mm with a max operating height of 4070mm, allowing efficient loading of standard dump trucks and taller stockpiles. At 3580×1880×2160mm with a 1115mm wheelbase, the TS95W balances solid working capacity with the agility needed on active construction sites, yards and industrial facilities. Its hydraulic quick-attach system works with a full range of buckets, forks, grapples and specialty attachments, letting operators switch tasks quickly without downtime. The TS95W is well suited for construction companies, industrial material handling operations, recycling facilities and equipment rental businesses that need high-capacity performance for demanding daily workloads. Taijin Machinery supplies the TS95W with factory-direct pricing, flexible attachment options and dedicated technical support for international buyers.

Product Data
Rated   Load950kg
Operating Weight3400kg
Bucket Capacity0.5m³
Dimension3580×1880×2160mm
Max Speed12km/h
Max Traction28.2kn
Max Breakout20kn
EngineXinchai   A498BZG/T
Rated Power55kw
Max Operating Height4070mm
Dumping Height2450mm
Dumping Angle At Maximum Height40°
Dumping Reach750mm
Wheelbase1115mm
Ground Clearance205mm
Tread Width1500mm
Front Turning Radius2112mm
Rear Turning Radius1774mm
