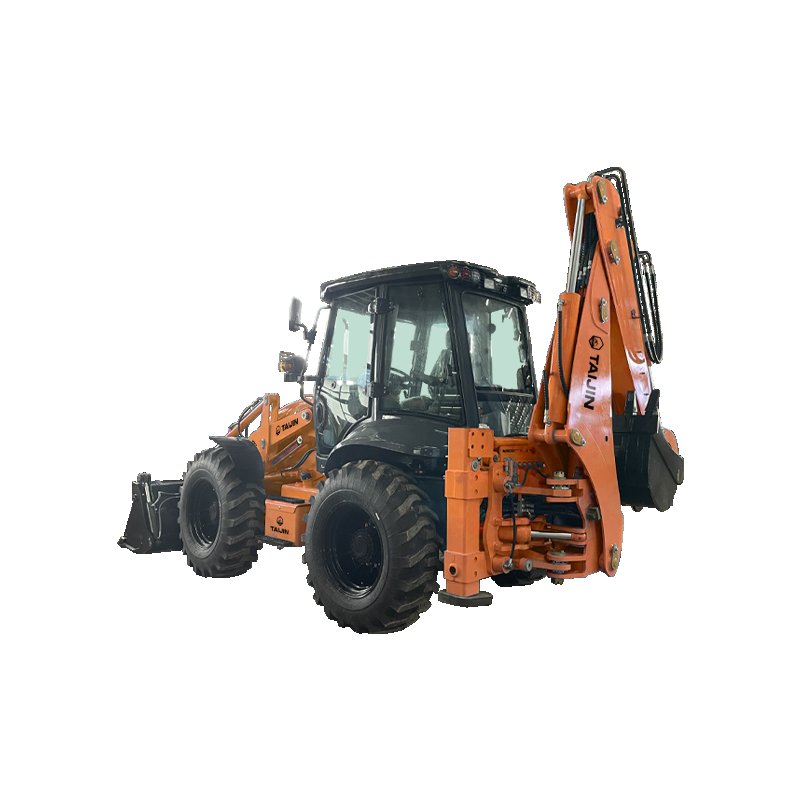

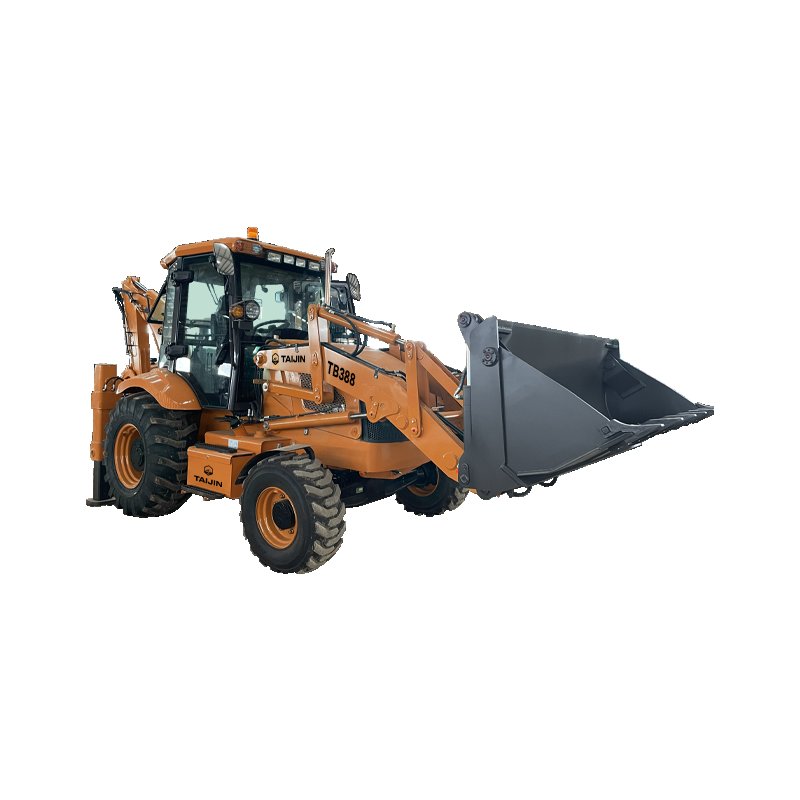

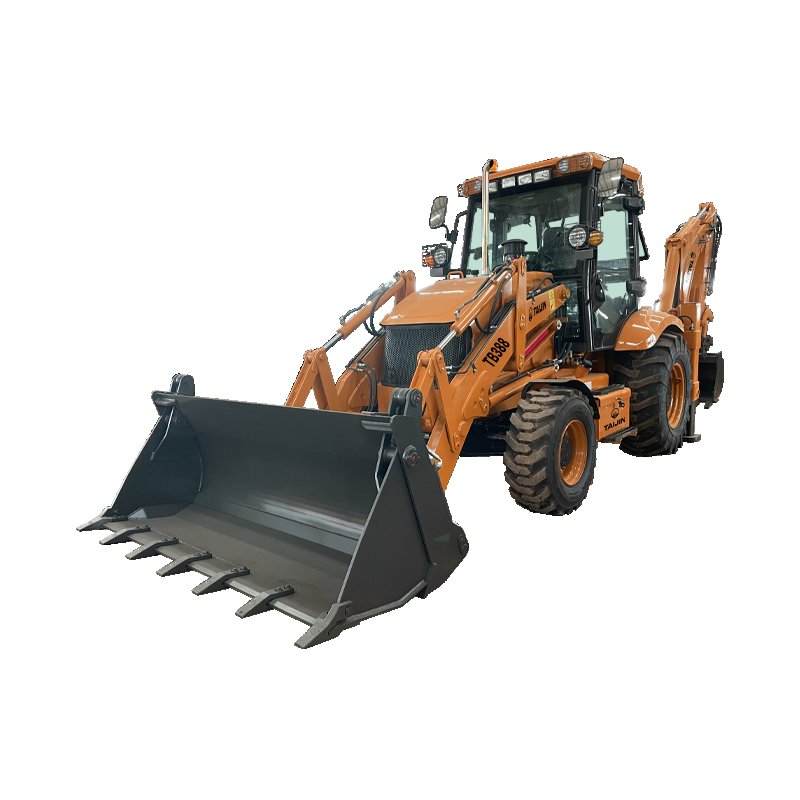

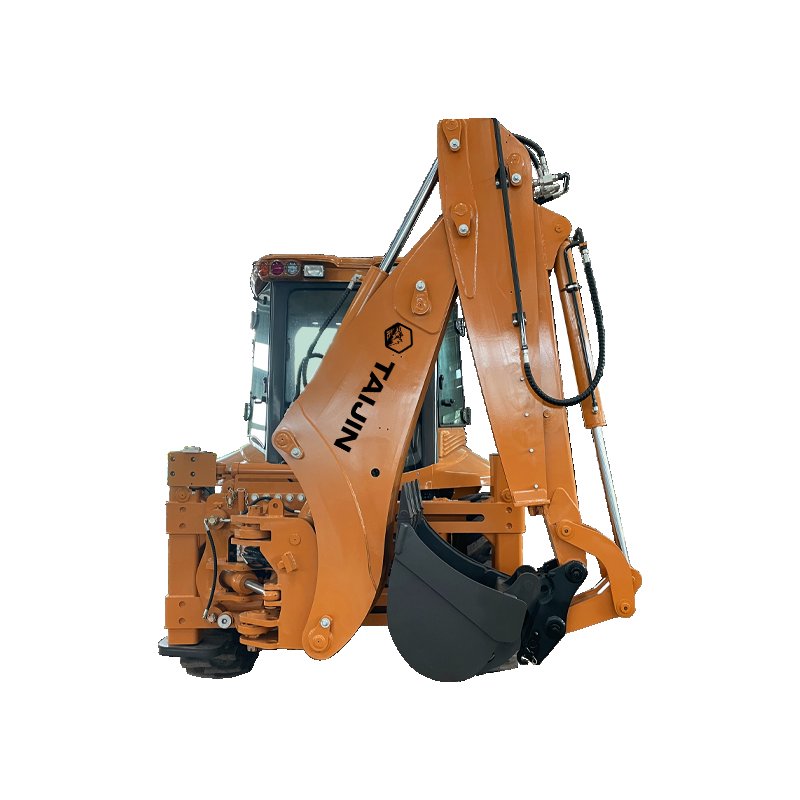

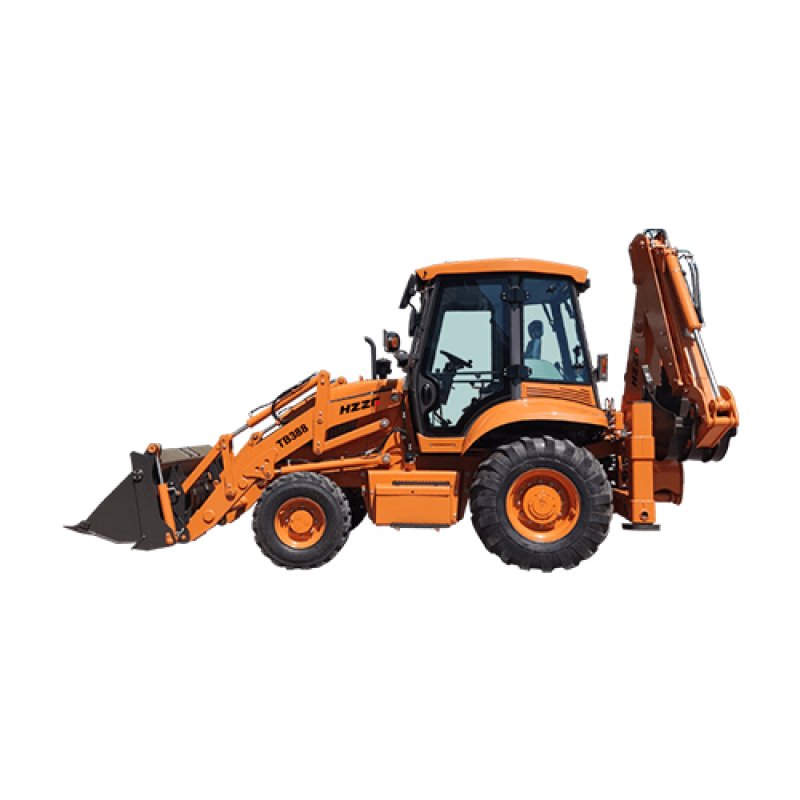

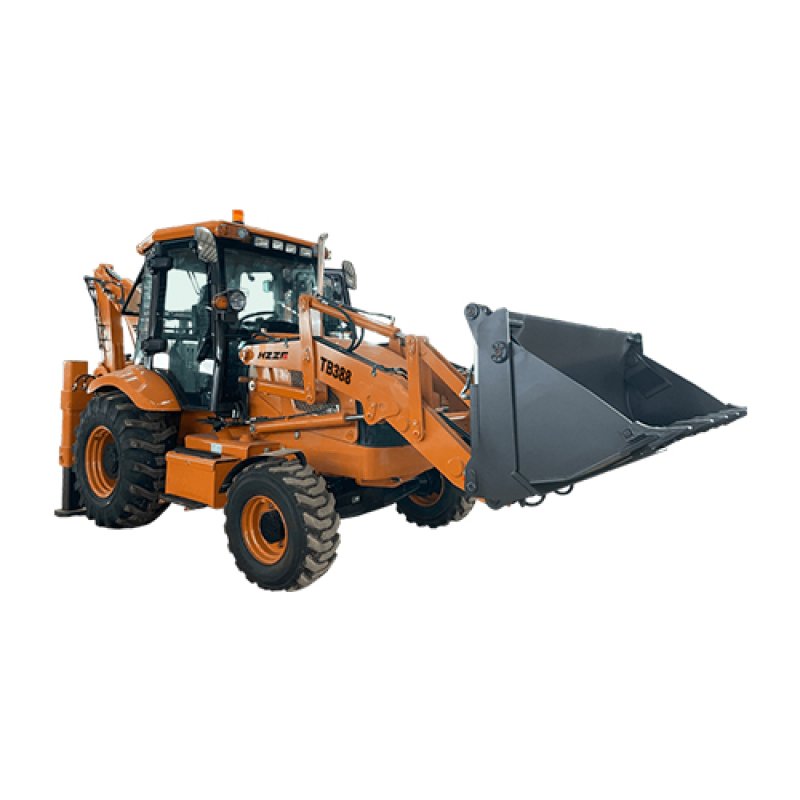

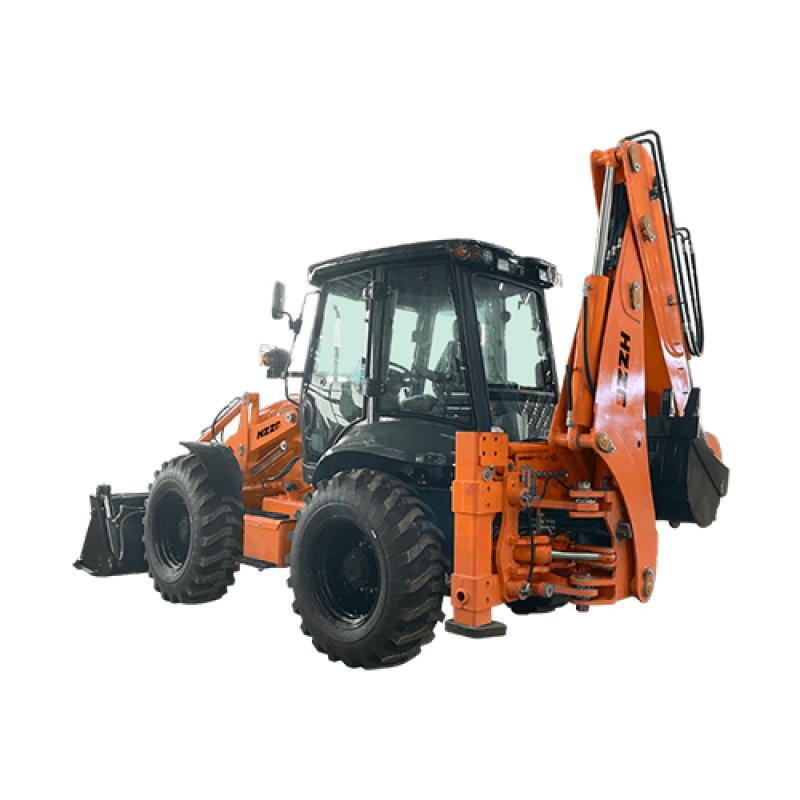

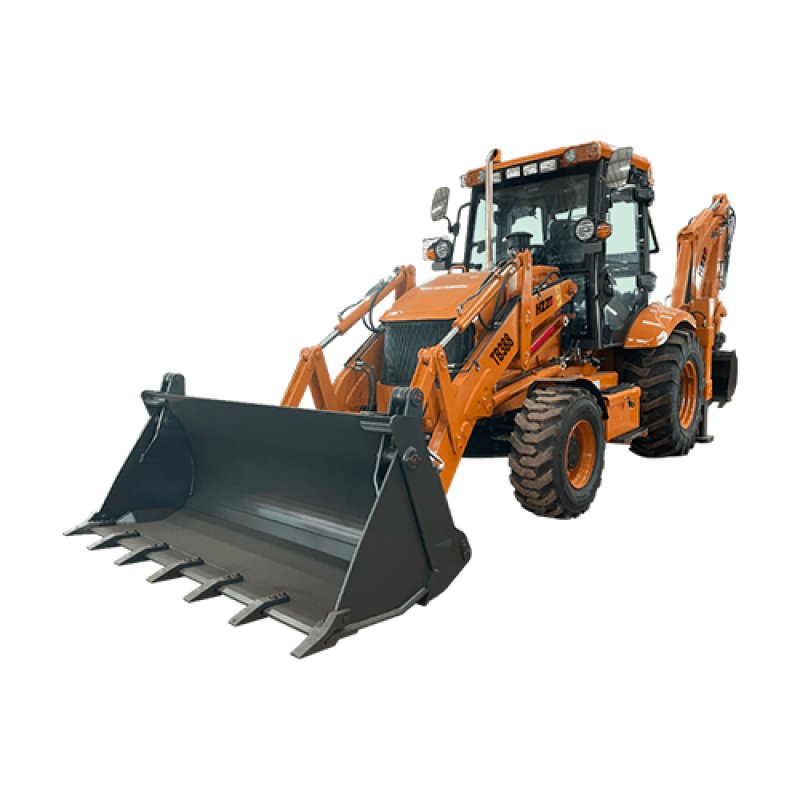

Name: TB388 Backhoe Loader with 1m³ Loading Bucket and 75KW Engine
Brand: Taijin Machinery
SKU: TJ-TB388-2026-VERSATILE-PRO
Rating: 4.9 (26 reviews)

TB388

Inquire Now

Add to cart

Bucket Capacity

1m³
Backhoe Capacity

0.3m³
Rated Power

75KW

Product Details
Product Data
Inquiry Now
Customer Reviews
Recommended products

Product Details

Product Data

Model	TB388
L×W×H	6050×2465×3100mm
Overall Operating Weight	8200kg
Wheel Base	2280mm
Min. Ground Clearance	300mm
Bucket Capacity	1m³
Loading Lifting Capacity	2500kg
Breakout Force	47kn
Dumping Height	2760mm
Dumping Distance	900mm
Backhoe Capacity	0.3m³
Max. Digging Depth	4085mm
Swing Angle Of Backhoe	180°
Backhoe Bucket Digging Force	50kn
Max. Traction Force	60kn
Model	Yuchai YC4A105Z-T20
Rated Power/Speed	75/2200kw/rpm
Cylinder-Inside	4-108×132
Min. Fuel Consumption	230g/km.h
Diverter Model	BZZ5-250
Steering Angle	±36°
Min. Turning Radius	6581mm
Pressure Of The System	14Mpa
Final Reducer	Wheel hub/Single Stage Final Reducer
Model	ZL15
Type	Single-stage Three Elements
Type	Fixed Shaft Power Transmission
Gears	2 Forward And 2 Reverse
Max.Speed	24km/h
F/R	14-17.5/19.5L-24
Service Brake	Air Over Oil Caliper Brake
	External Type
	Self-regulation
	Self-balance
Emergency Brake	Operation Power Implementing Brake
Emergency Brake	Manual Operation Power Terminating Brake
Pressure Of Hydraulic System	19Mpa
