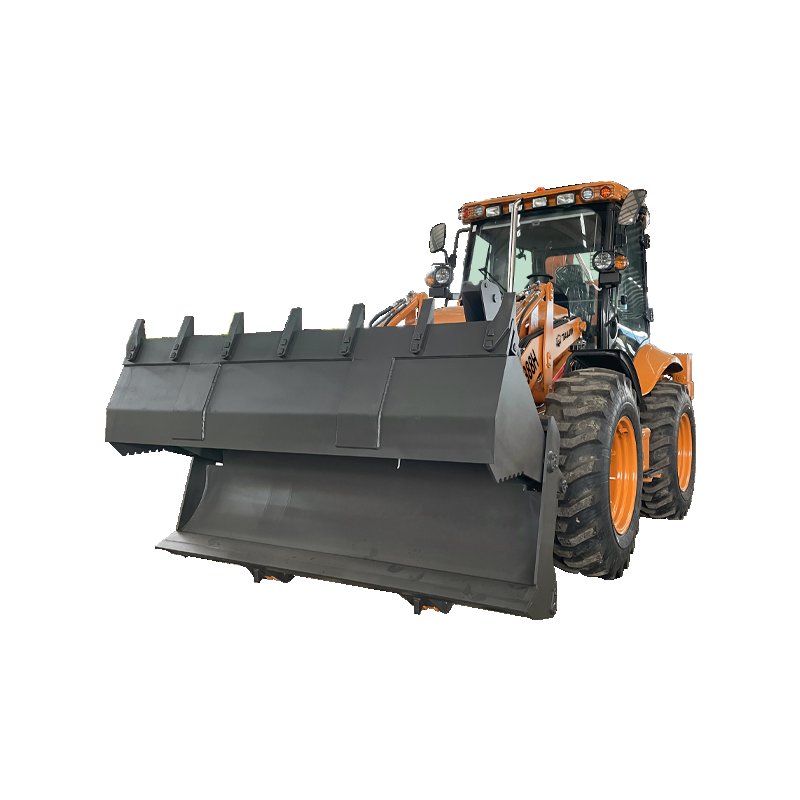

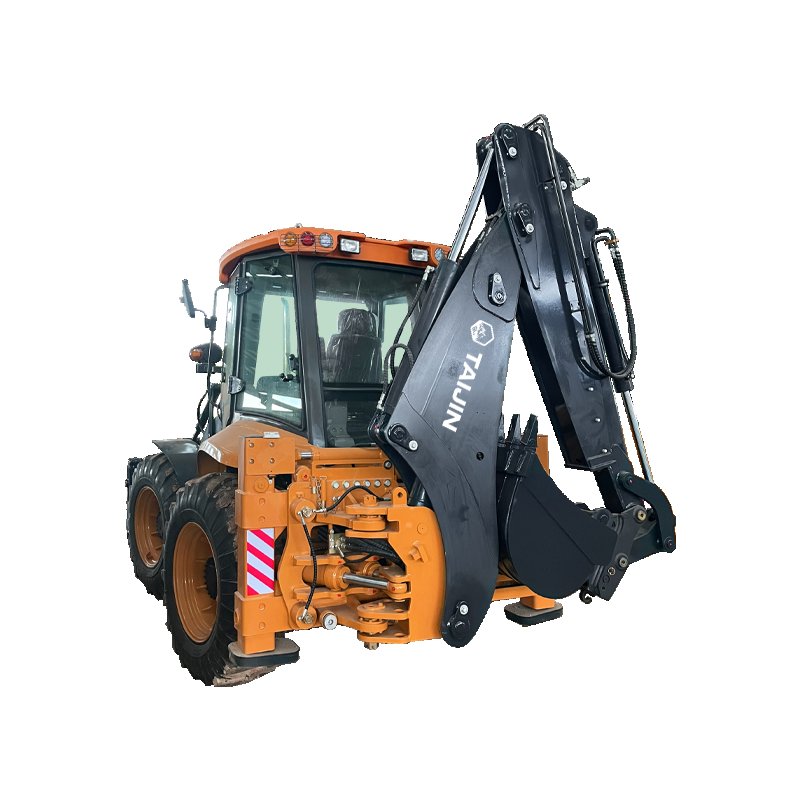

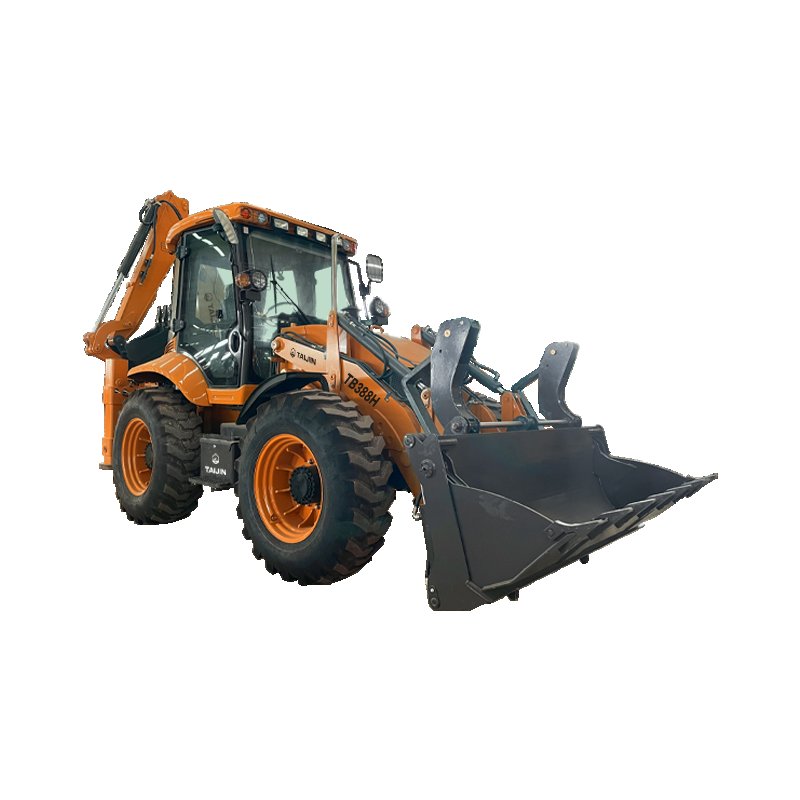

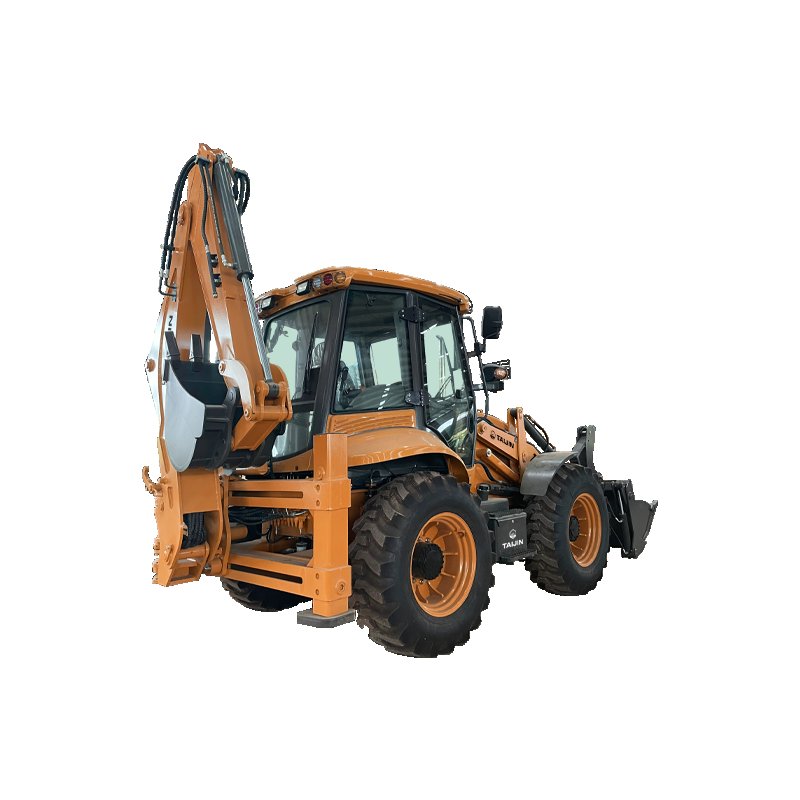

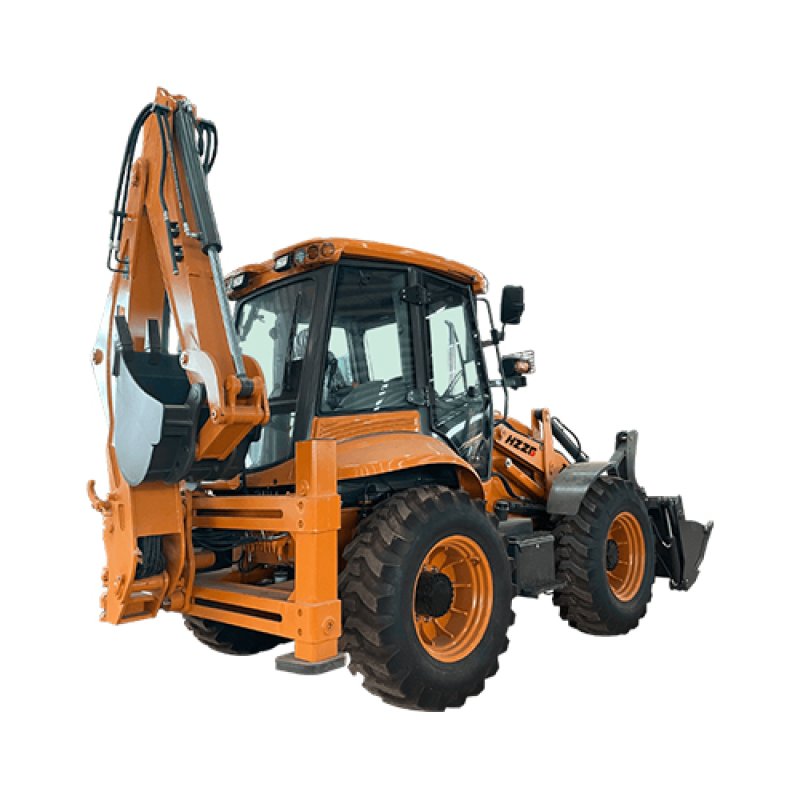

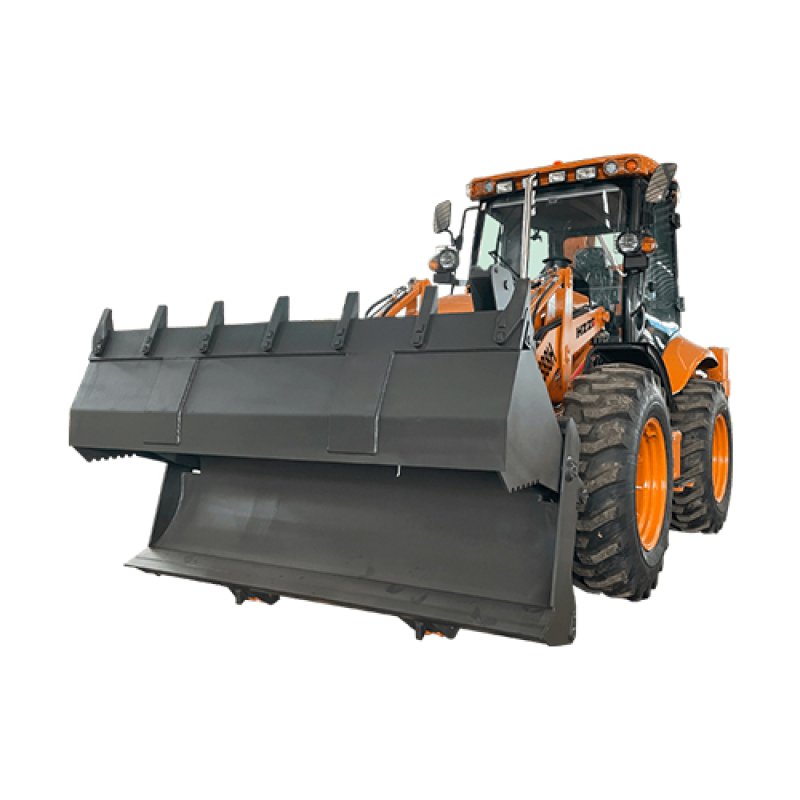

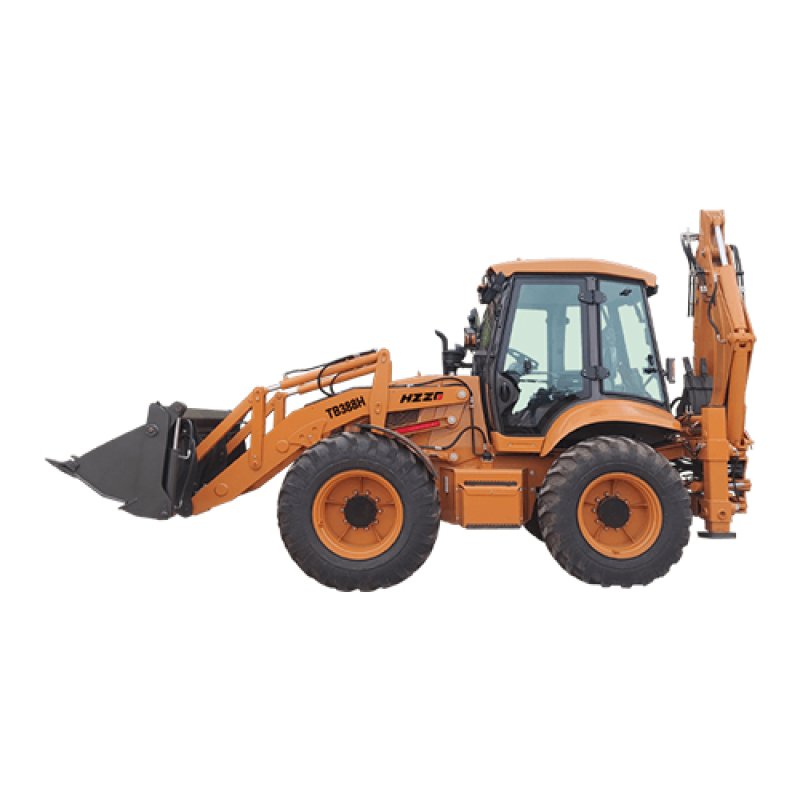

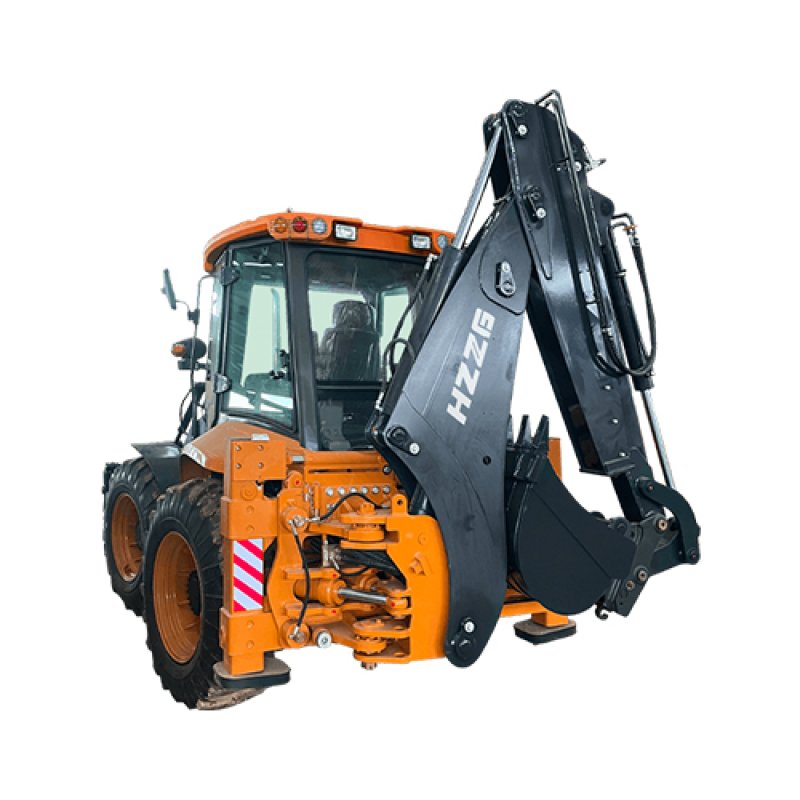

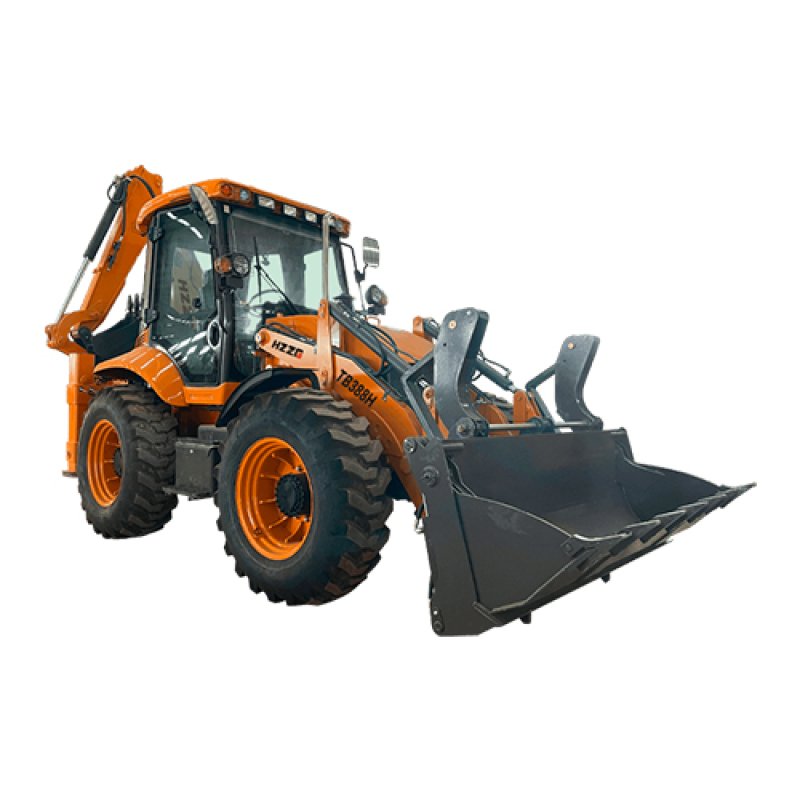

Name: TB388H Backhoe Loader - High Capacity Edition with 1.2m³ Loader Bucket
Brand: Taijin Machinery
SKU: TJ-TB388H-2026-HI-CAP
Rating: 5.0 (28 reviews)

TB388H

Inquire Now

Add to cart

Bucket Capacity

1.2m³
Backhoe Capacity

0.3m³
Rated Power

75KW

Product Details
Product Data
Inquiry Now
Customer Reviews
Recommended products

Product Details

Product Data

Model	TB388H
L×W×H	6450×2530×3120mm
Overall Operating Weight	10050kg
Wheel Base	2335mm
Min. Ground Clearance	450mm
Bucket Capacity	1.2m³
Loading Lifting Capacity	2500kg
Breakout Force	47kn
Dumping Height	3050mm
Dumping Distance	870mm
Backhoe Capacity	0.3m³
Max. Digging Depth	3820mm
Swing Angle Of Backhoe	180°
Backhoe Bucket Digging Force	50kn
Max. Traction Force	86kn
Model	Yuchai YC4A105Z-T20
Rated Power/Speed	75/2200kw/rpm
Cylinder-Inside	4-108×132
Min. Fuel Consumption	230g/km.h
Diverter Model	BZZ5-250
Steering Angle	±35°
Min. Turning Radius	6590mm
Pressure Of The System	14Mpa
Final Reducer	Wheel hub/Single Stage Final Reducer
Model	ZL30
Type	Single-stage Three Elements
Type	Fixed Shaft Power Transmission
Gears	4 Forward And 4 Reverse
Max.Speed	36km/h
F/R	16.9-28
Service Brake	Gas Pushed Oil
	Built-in-selfregulation
	Self-balance
Emergency Brake	Operation Power Implementing Brake
Emergency Brake	Manual Operation Power Terminating Brake
Pressure of Hydraulic System	20Mpa
