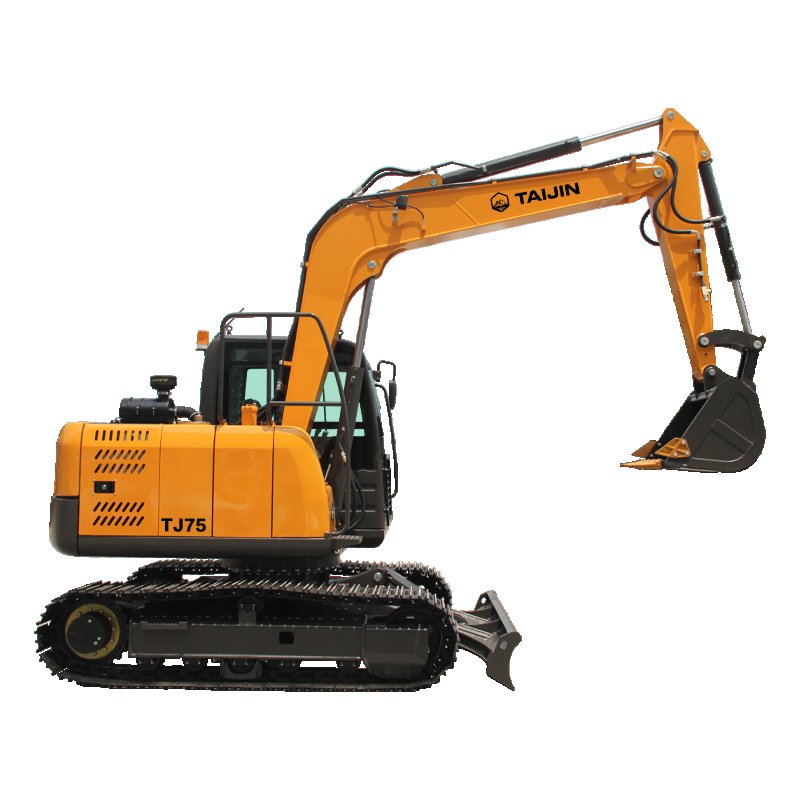

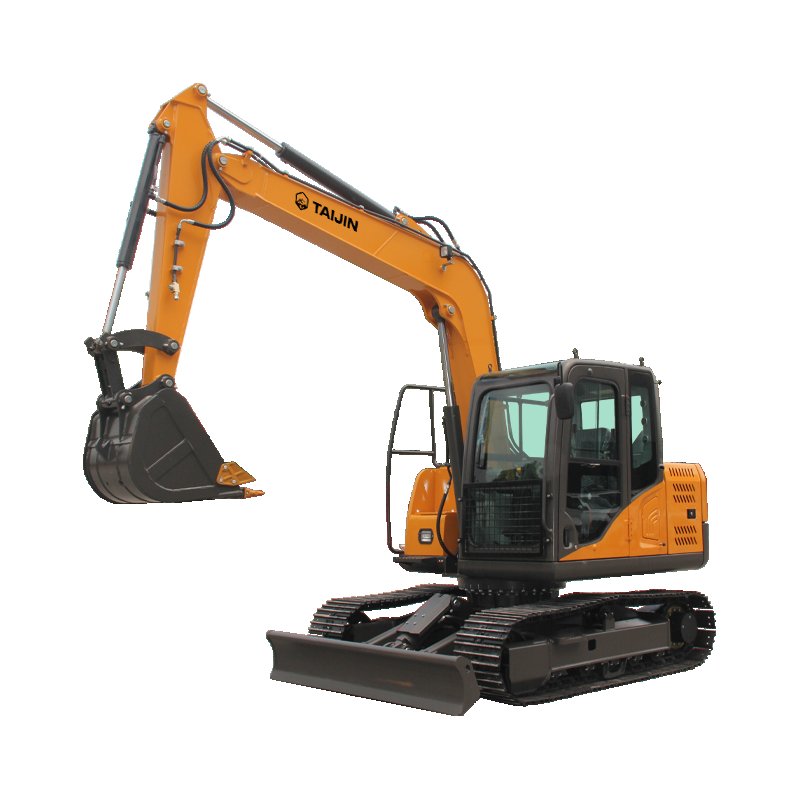

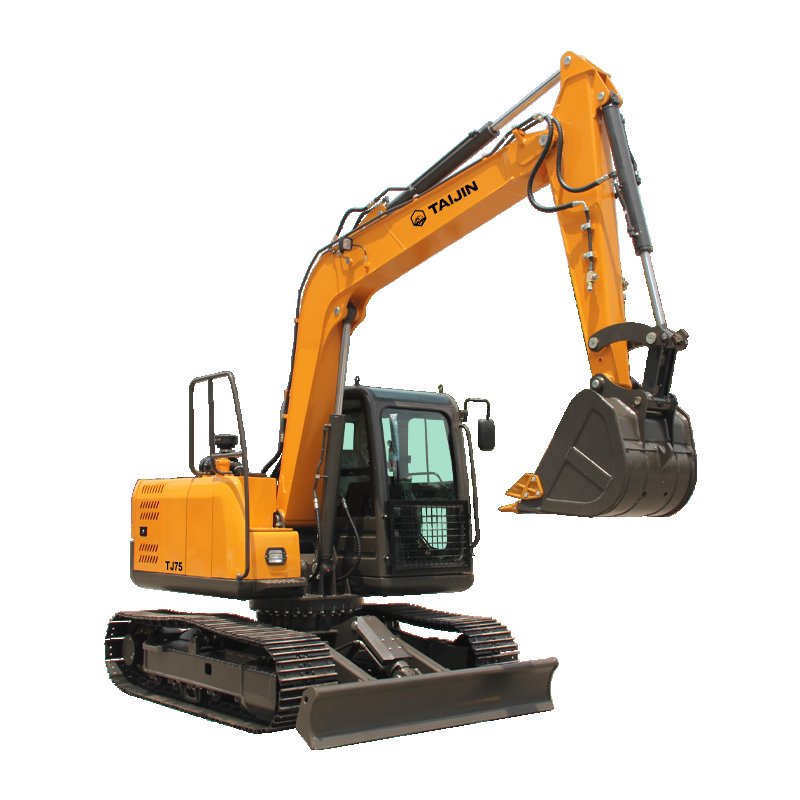

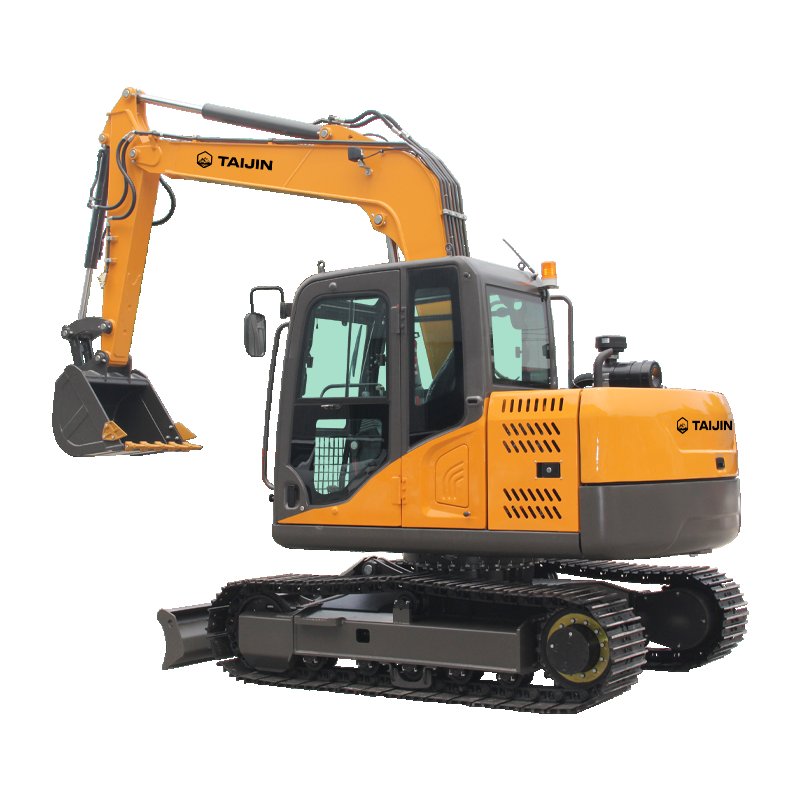

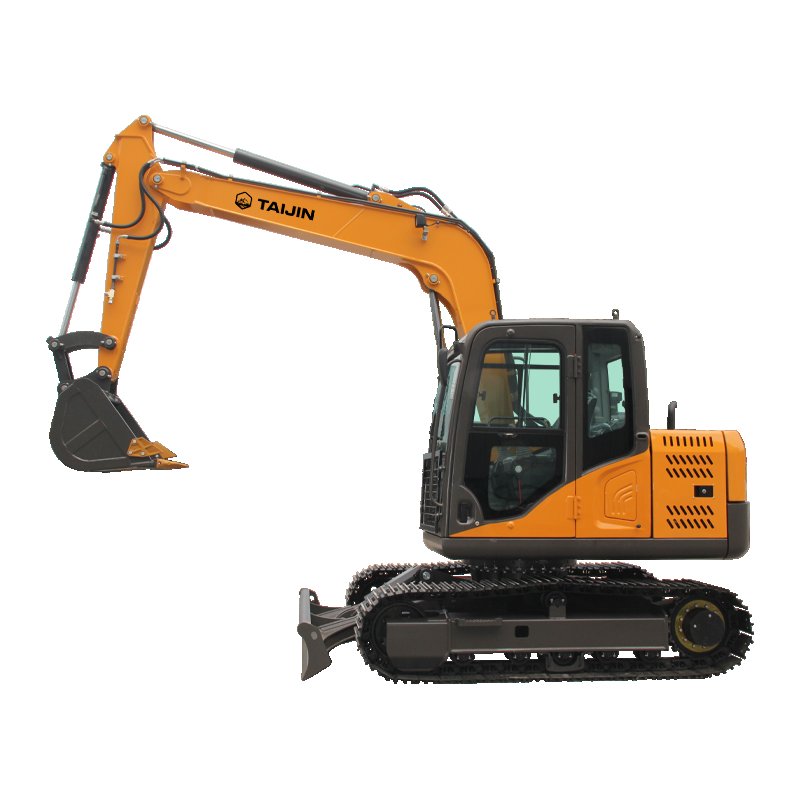

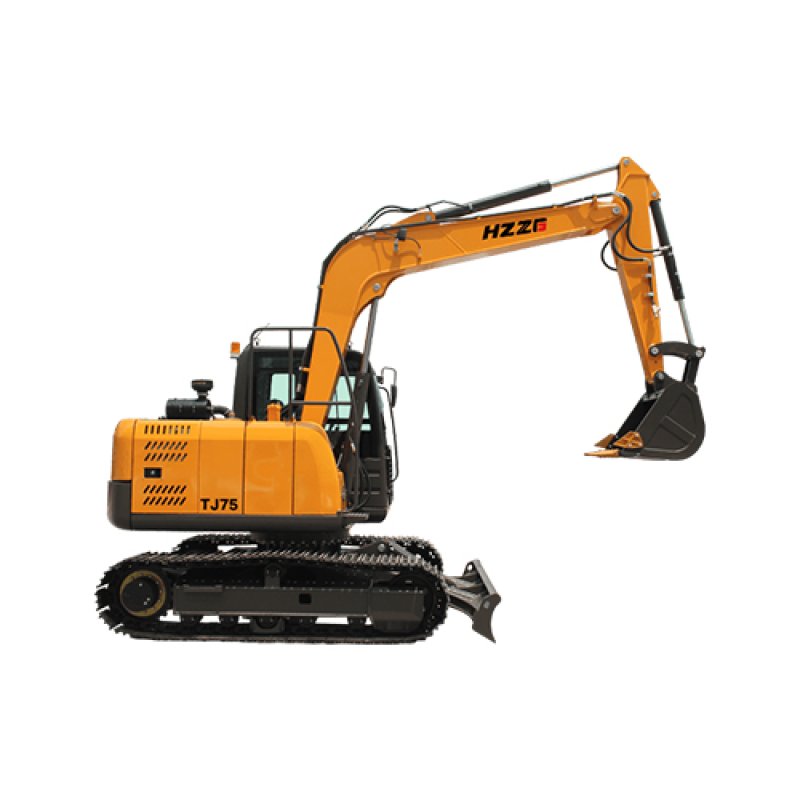

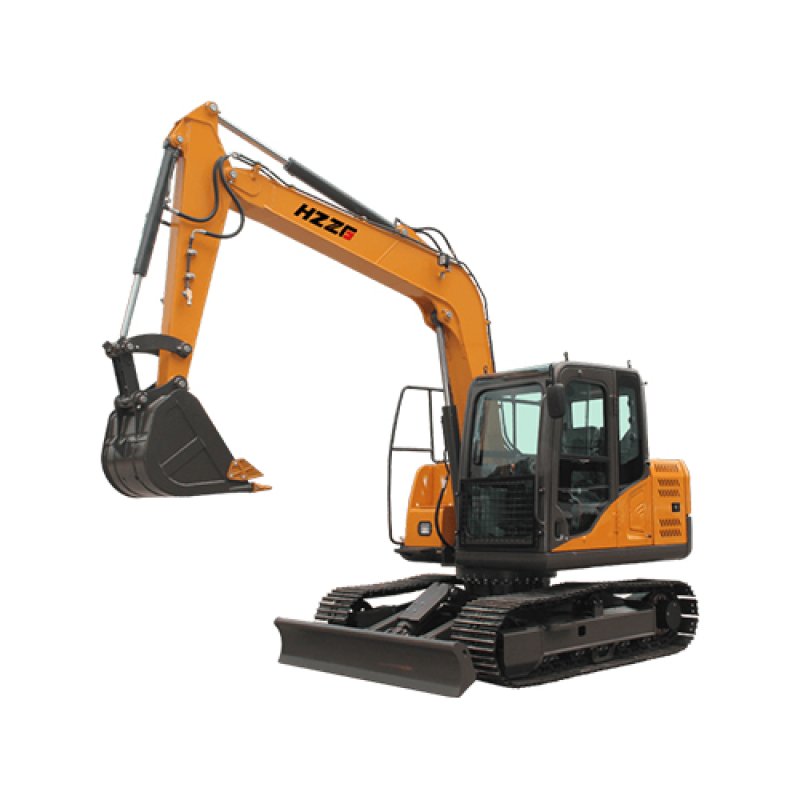

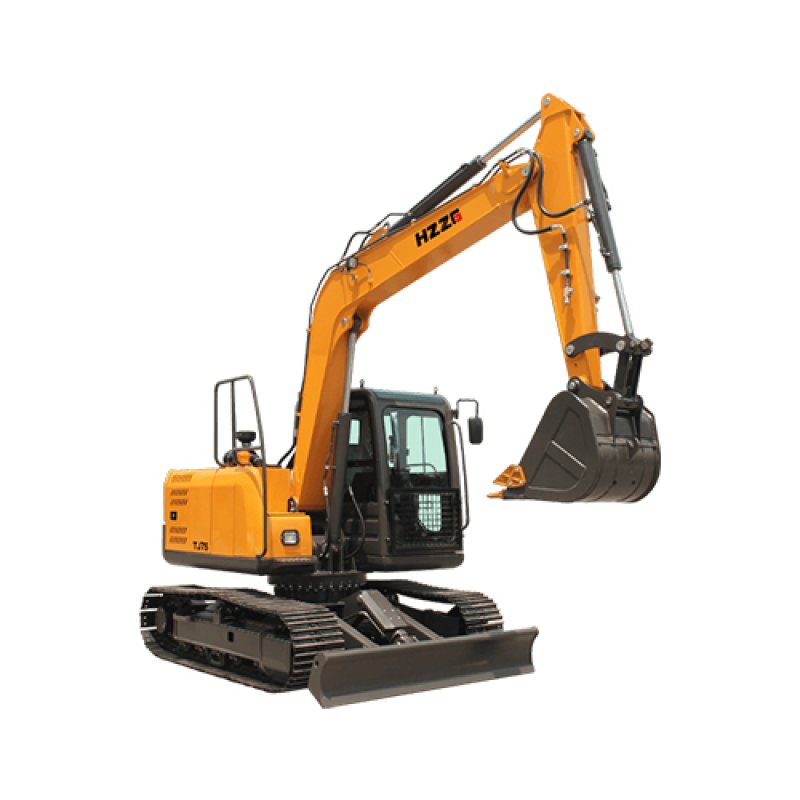

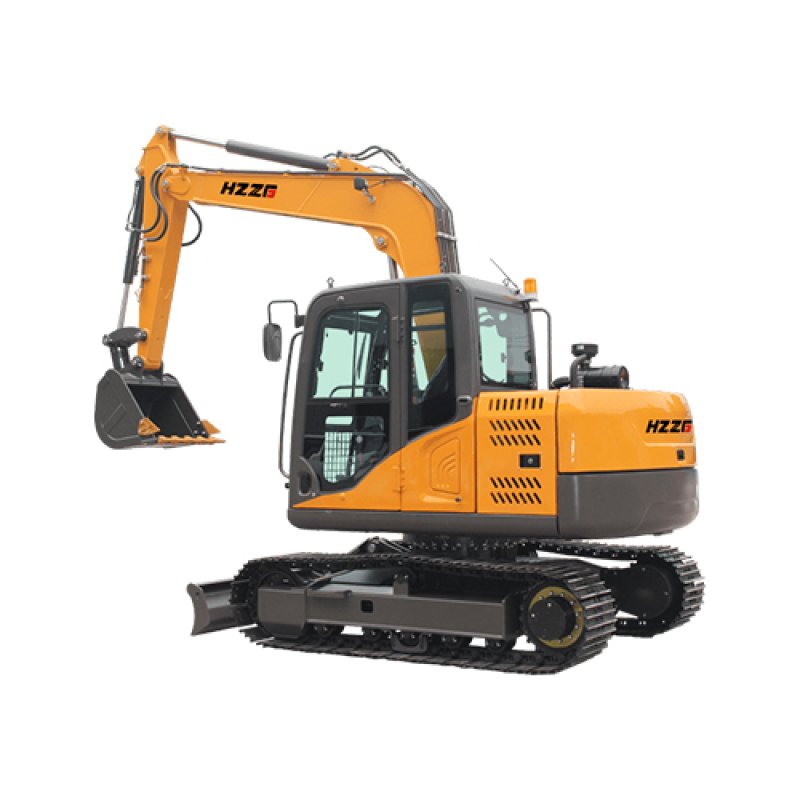

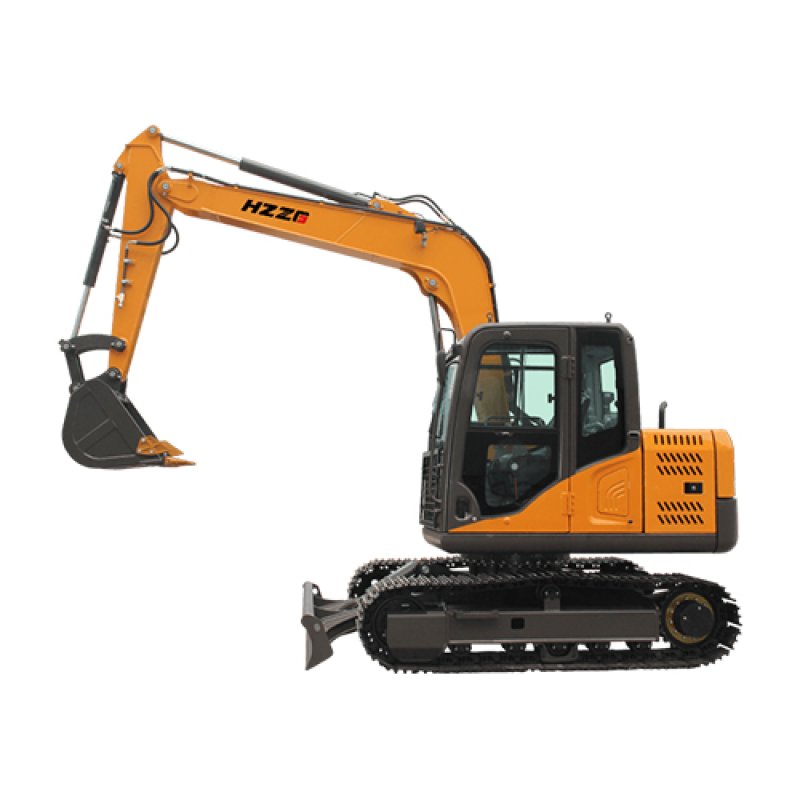

It is suitable for earthwork excavation and loading, land leveling, slope trimming, hoisting, crushing, demolition, ditching and other operations. Equipped with high-strength steel track, flexible offset boom and reinforced thickened dozer blade, it performs excellently in mines, harsh working conditions and narrow spaces, with superior off-road capability, stable operation, low operating cost and outstanding cost-effectiveness.
Operating Weight: 7500 KG
Engine: KUBOTA V2607
Max Power: 42.4 kW
Bucket Capacity: 0.28 m³
Max Digging Depth: 3.839 m
Max Dumping Height: 5.195 m
Max Digging Height: 7.023 m
Pilot control
High and low speed
Crushing line
Steel tracks
Cab
Cold air conditioning
Optional YANMAR 4TNV94L engine with a rated power of 36.2kW. It is suitable for countries and regions with no strict emission import restrictions such as Australia, South America and Asia, featuring excellent fuel economy, lower procurement and operating costs, as well as outstanding cost-effectiveness.
Optional KOHLER KD11903TCR engine with 41kW output. This engine fully meets the EPA Tier 4 Final emission standards, which can perfectly comply with the strict import requirements of the North American markets.
Rear-View Camera: Provides real-time monitoring of rear blind spots to prevent collisions with personnel and obstacles. It significantly reduces the risk of safety incidents during reversing operations, making it particularly well-suited for use in confined construction sites and complex environments.
Breaker / Ripper / Wood Grapple / Rake / Auger / Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

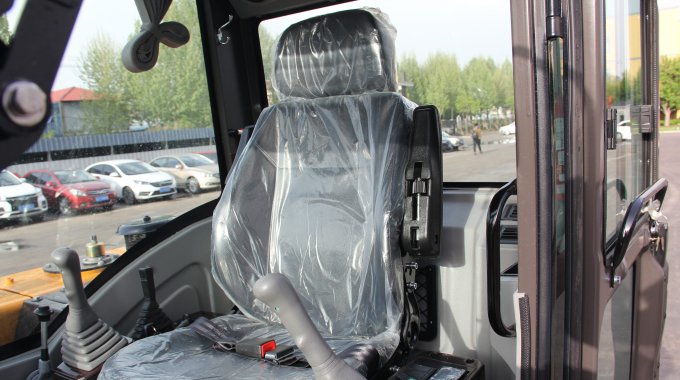

Spacious wide-body cab with ample space, equipped with a suspension shock-absorbing seat to effectively relieve waist fatigue during long-time operation; comes standard with heating and cooling air conditioning, maintaining constant comfort in winter and summer for stress-free all-weather operation.

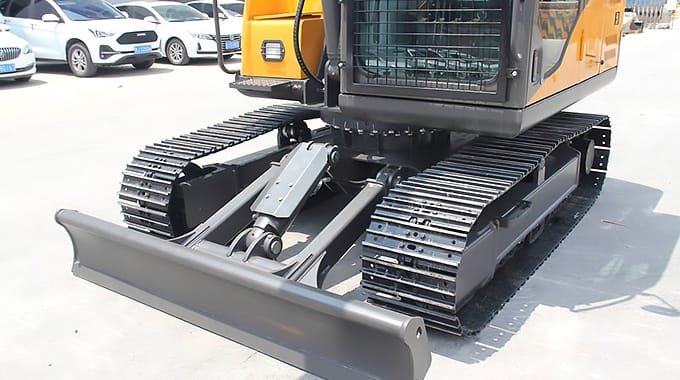

Equipped with high-strength manganese steel tracks, the machine offers exceptional wear resistance and longevity, while effectively resisting punctures, tearing, and breakage. The boom swing function enables high-precision operations without the need for frequent repositioning of the machine body. Furthermore, the thickened dozer blade is capable of withstanding heavier operational loads and serves as a stabilizing support, thereby enhancing the machine's overall resistance to tipping.

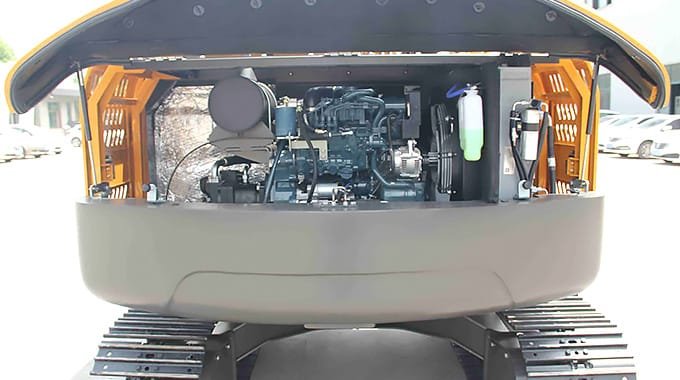

Powered by an original KUBOTA V2607 engine, it features strong power, stable performance, reliable quality, low failure rate and long service life, fully meeting the import standards of all countries.

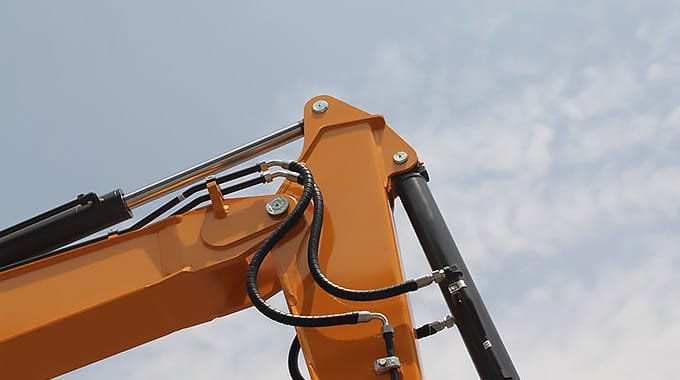

Equipped with a three-way ball valve for quick and easy attachment switching without shutdown or oil draining. Thickened and reinforced hydraulic pipelines feature higher pressure resistance, better leakproofness, stable oil flow, longer service life and stronger overall durability.
| Bucket Capacity | 0.28m³ |
| Swing Speed | 0-11rmp |
| Gradeablity | 35° |
| Max.Bucket Digging Force | 56KN |
| Max.Arm Digging Force | 38KN |
| Engine Model | KUBOTAD V2607 |
| Power/Revolution Speed | 42.4kw/2000rmp |
| System Pressure | 27MPA |
| Dimension | 6054×2216×2672mm |
| Cabin Height | 2672mm |
| Axle Base | 2209mm |
| Track Distance | 1745mm |
| Minimum Ground Clearance | 375mm |
| Tail Swing Radius | 1730mm |
| Max.Digging Height | 7023mm |
| Max.Dumping Height | 5195mm |
| Max.Digging Depth | 3898mm |
| Max.Vertical Digging Depth | 2968mm |
| Max.Digging Radius | 6182mm |
| Min.Swing Radius | 1740mm |
| Max.Dozer Blade Lifting Distance | 382mm |
| Max.Dozer Blade Cutting Distance | 332mm |
