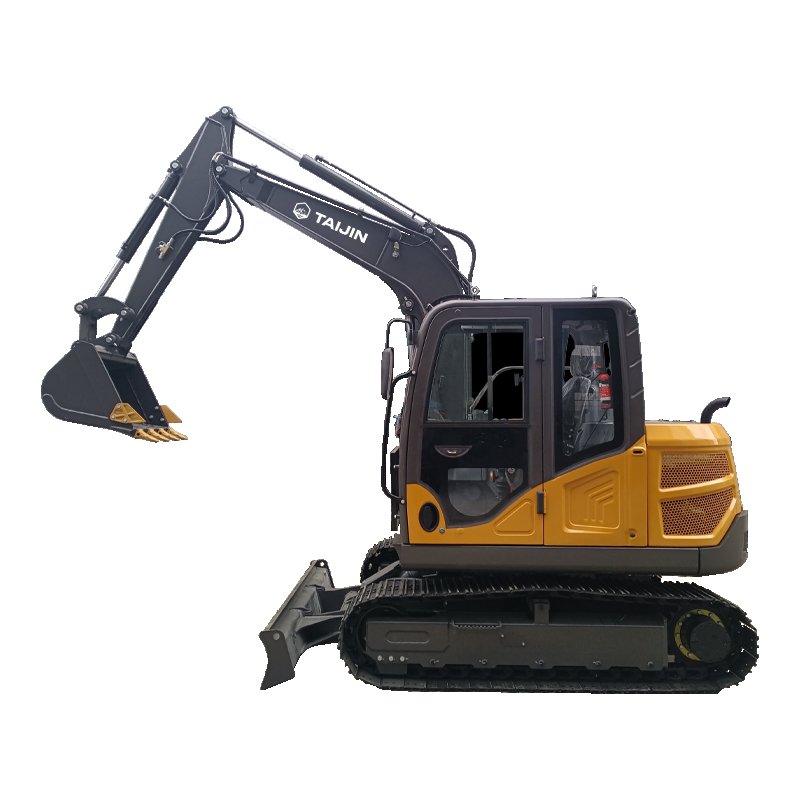

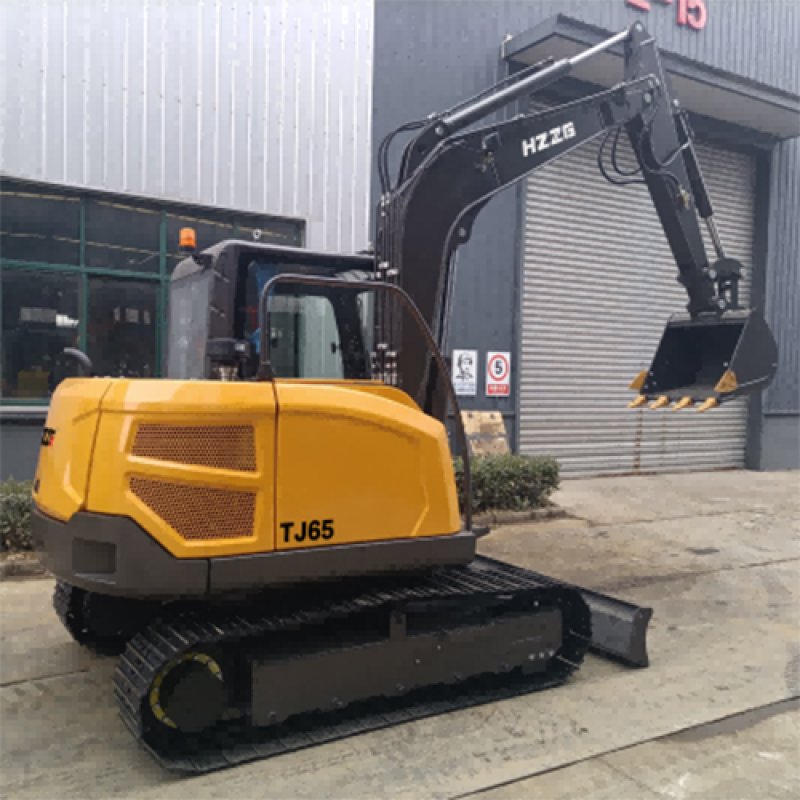

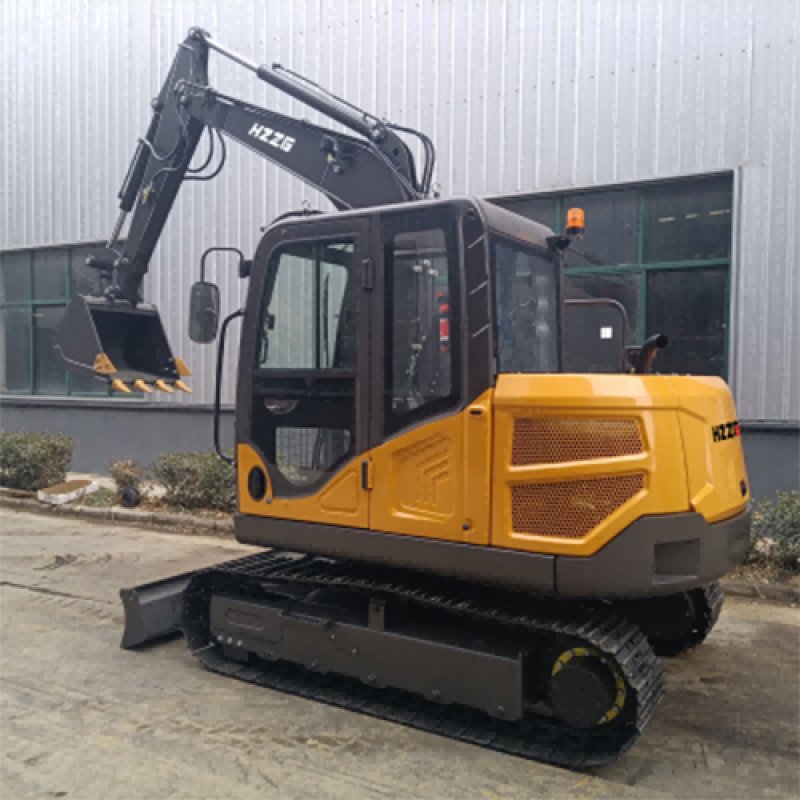

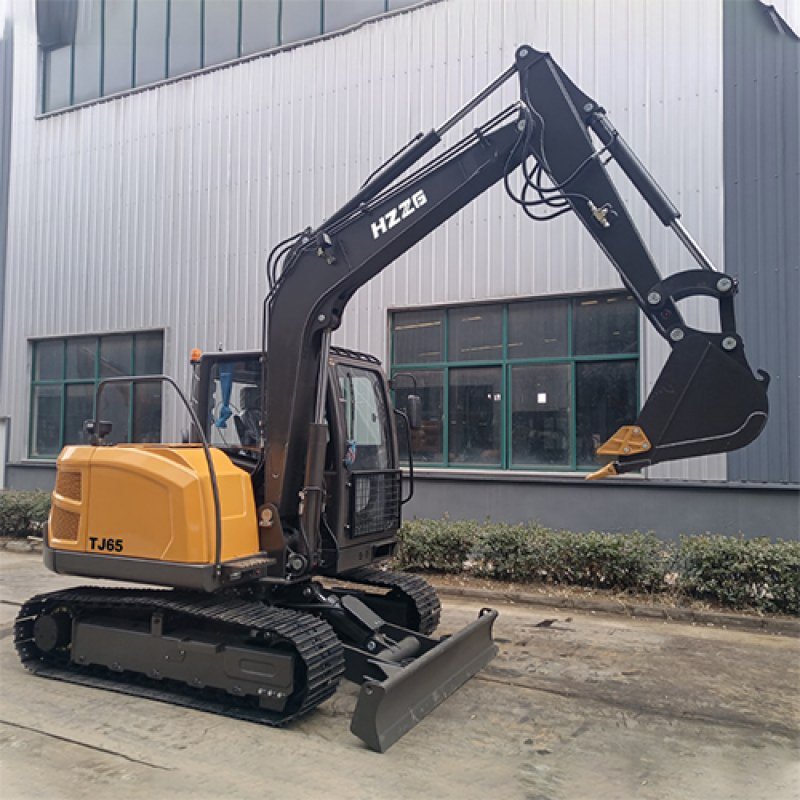

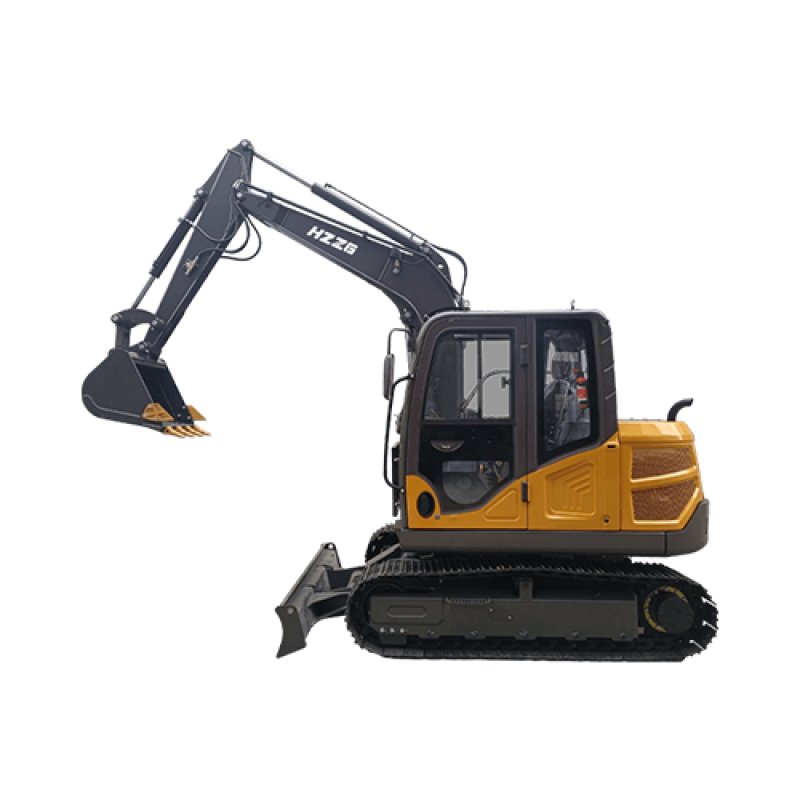

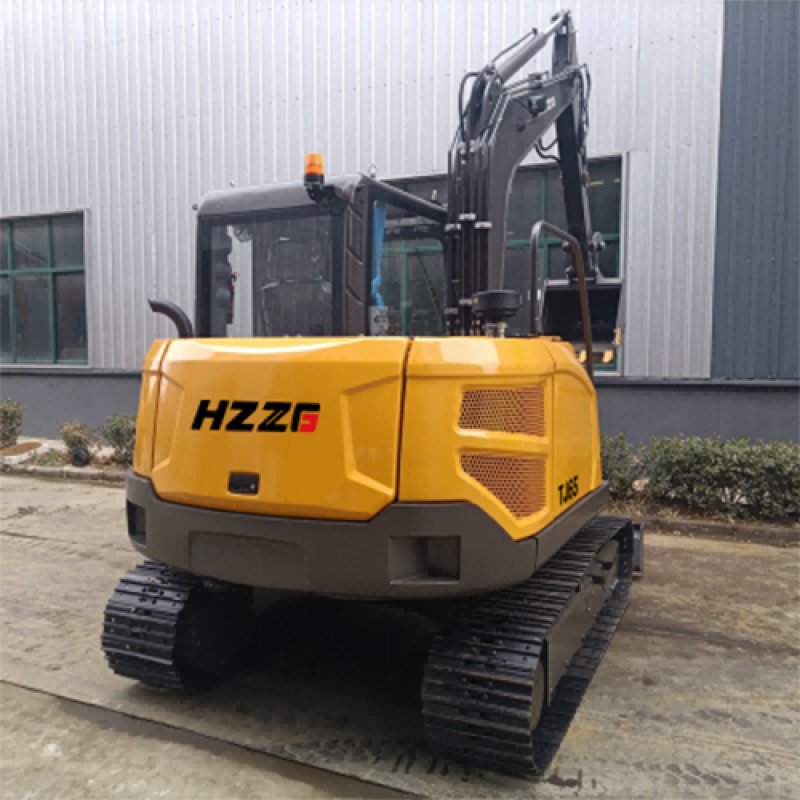

It is suitable for earthwork excavation and loading, as well as land leveling, slope trimming, hoisting, crushing, demolition, ditching and other operations. It performs excellently in mines and harsh working conditions, with strong off-road capability, low operating cost and high cost-effectiveness.
Operating Weight: 6500 KG
Engine: KUBOTA V2607
Max Power: 42.2 kW
Bucket Capacity: 0.21 m³
Max Digging Depth: 3.8 m
Max Dumping Height: 3.845 m
Max Digging Height: 5.499 m
Pilot control
High and low speed
Crushing line
Steel tracks
Cab
Cold air conditioning
Optional YANMAR 4TNV94L engine with a rated power of 36.2kW. It is suitable for countries and regions with no strict import restrictions such as Australia, South America and Asia, featuring excellent fuel economy, lower procurement and operating costs, as well as outstanding cost-effectiveness.
Optional KOHLER KD11903TCR engine with 41kW output. This engine fully meets the Euro Stage V and EPA Tier 4 Final emission standards, which can perfectly comply with the strict import requirements of the European and North American markets.
Rubber Blocks: Protect roads and concrete floors from damage and scratches; reduce working noise; improve running stability; extend the service life of steel tracks.
Rear-View Camera: Provides real-time monitoring of rear blind spots to prevent collisions with personnel and obstacles. It significantly reduces the risk of safety incidents during reversing operations, making it particularly well-suited for use in confined construction sites and complex environments.
Breaker / Ripper / Wood Grapple / Rake / Auger / Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

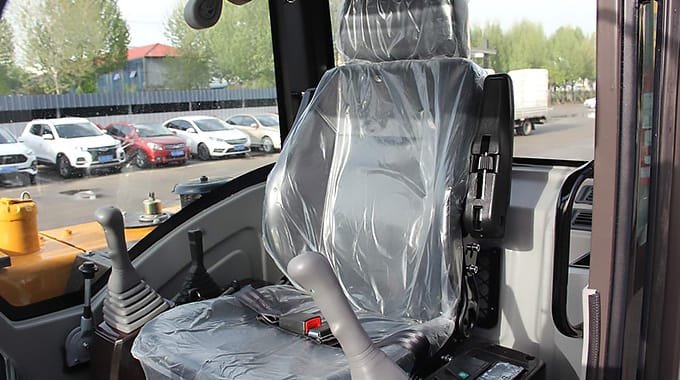

Spacious wide-body cab with ample space, equipped with a suspension shock-absorbing seat to effectively relieve waist fatigue during long-time operation; comes standard with heating and cooling air conditioning, maintaining constant comfort in winter and summer for stress-free all-weather operation.

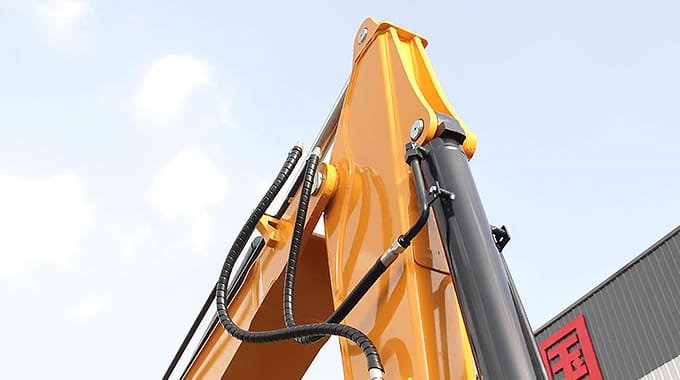

Equipped with a three-way ball valve for quick and easy attachment switching without shutdown or oil draining. Thickened and reinforced hydraulic pipelines feature higher pressure resistance, better leakproofness, stable oil flow, longer service life and stronger overall durability.

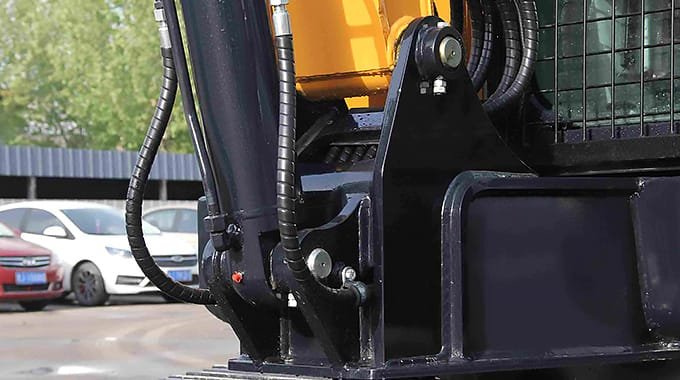

The excavator is equipped with boom side swing function, which allows left and right offset digging without frequent machine movement. It effectively expands the working range and improves construction efficiency, reduces wear and fuel consumption caused by repeated movement, and ensures flexible and convenient operation, especially ideal for narrow working spaces such as walls and ditches.

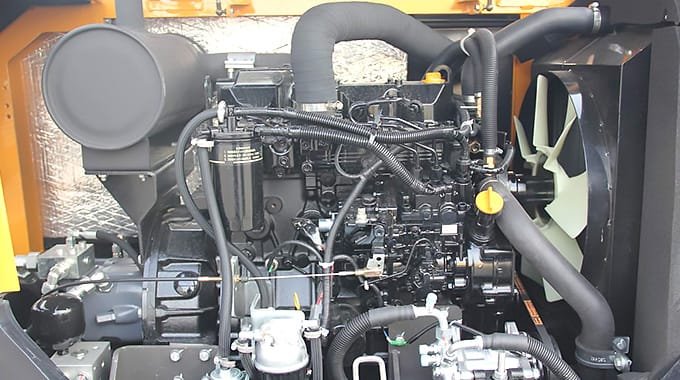

Powered by an original KUBOTA V2607 engine, it features strong power, stable performance, reliable quality, low failure rate and long service life, fully meeting the import standards of all countries.
| Bucket Capacity | 0.21m³ |
| Swing Speed | 0-11rmp |
| Gradeablity | 35° |
| Max.Bucket Digging Force | 48KN |
| Max.Arm Digging Force | 35KN |
| Engine Model | KUBOTAD V2607 |
| Power/Revolution Speed | 42.4kw/2000rmp |
| System Pressure | 28MPA |
| Dimension | 5940×1880×2570mm |
| Cabin Height | 2600mm |
| Axle Base | 1990mm |
| Track Distance | 1480mm |
| Minimum Ground Clearance | 353mm |
| Tail Swing Radius | 1689mm |
| Max.Digging Height | 5499mm |
| Max.Dumping Height | 3845mm |
| Max.Digging Depth | 3808mm |
| Max.Vertical Digging Depth | 2983mm |
| Max.Digging Radius | 6128mm |
| Min.Swing Radius | 2607mm |
| Max.Dozer Blade Lifting Distance | 376mm |
| Max.Dozer Blade Cutting Distance | 474mm |
