Widely used in mining, metallurgy, coal, building materials, chemical industry, electric power, water conservancy, waste treatment, engineering machinery and other fields, such as drying toilet renovation, engineering, construction, soil, cement, wood, pile, foundation, road, crushing, digging, cable trench, excavation, construction site, road crushing, digging, cable trench, etc.

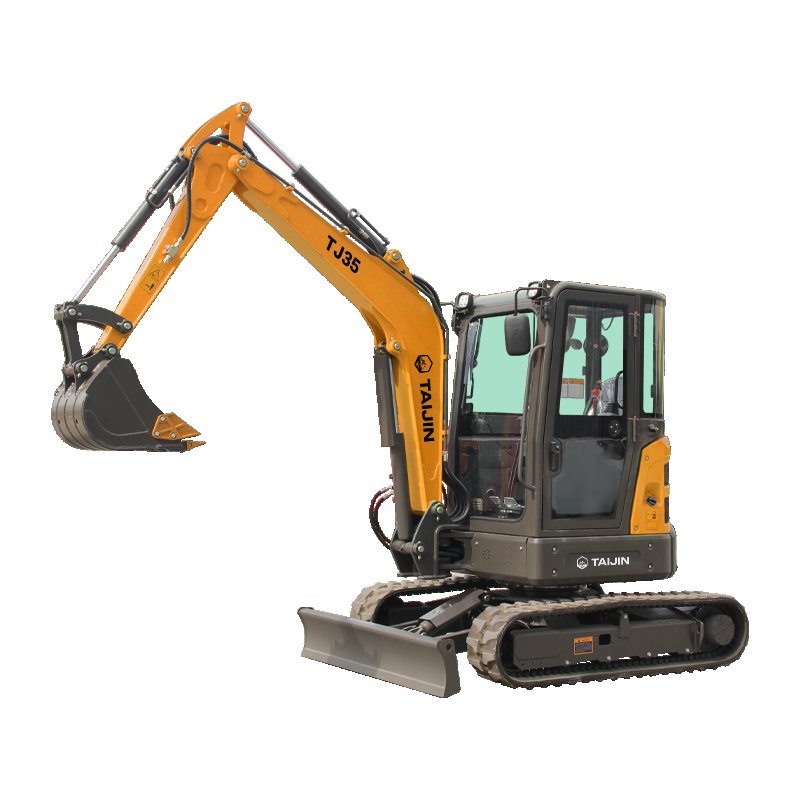

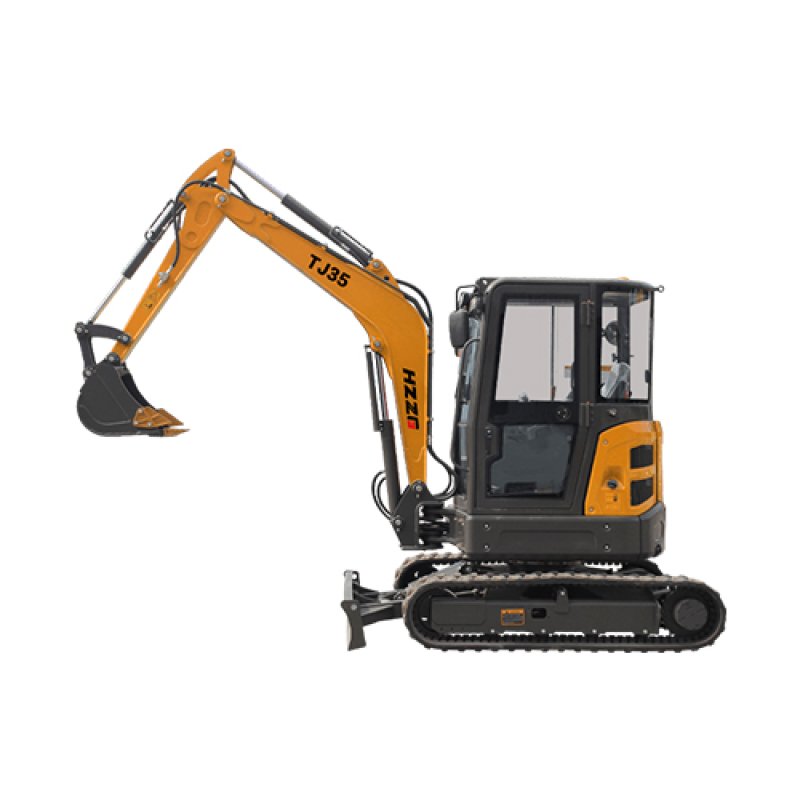

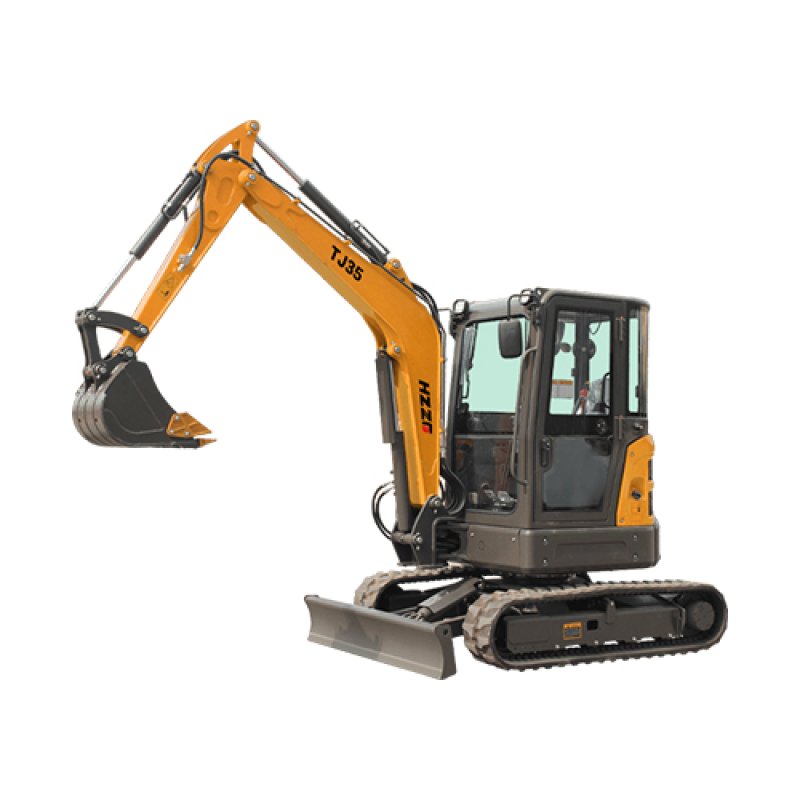

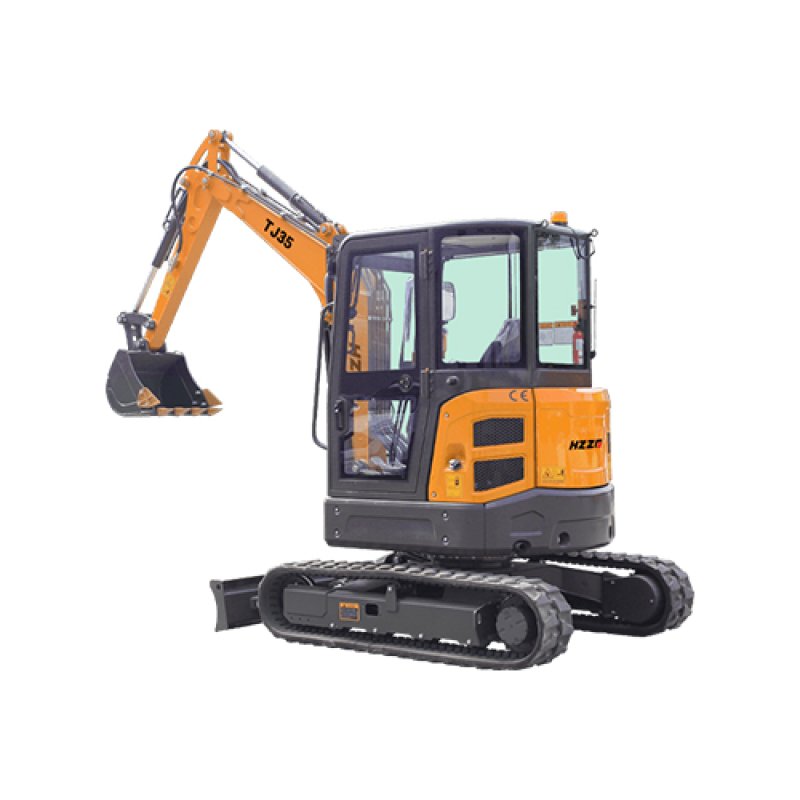

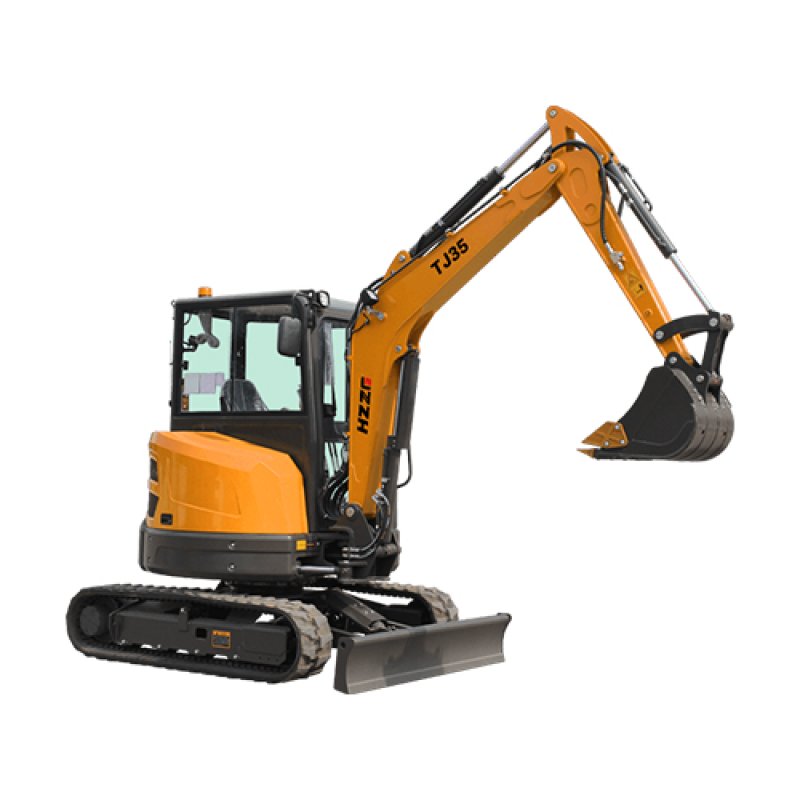

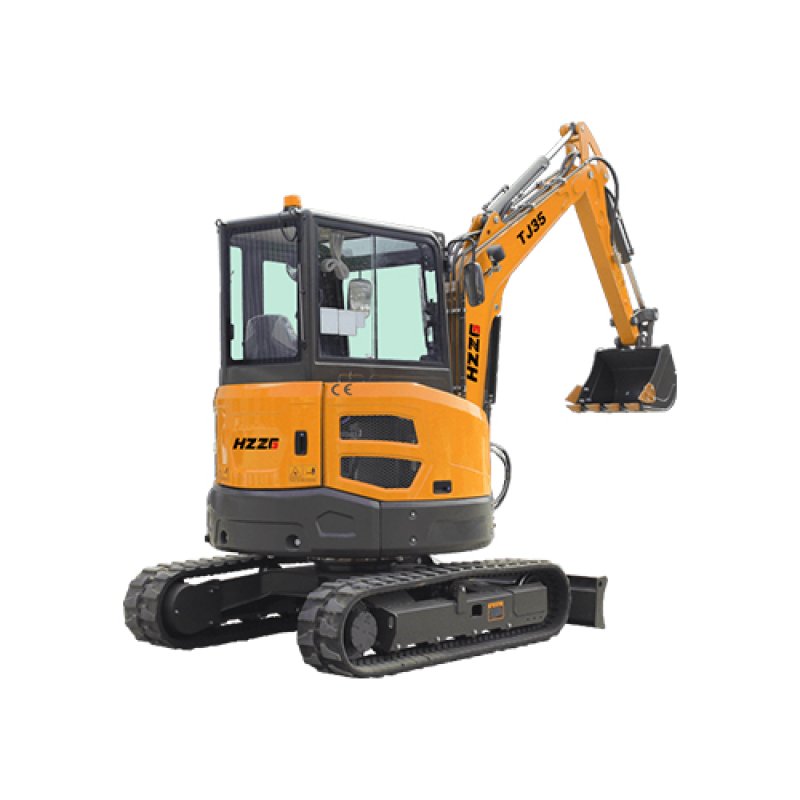

Operating Weight: 3500 KG
Engine: KUBOTA D1703
Max Power: 18.2 kW
Bucket Capacity: 0.12 m³
Max Digging Depth: 3.208 m
Max Dumping Height: 3.406 m
Max Digging Height: 4.8 m
Pilot control
Side swing
High and low speed
Crushing line
Steel tracks
Cab
Cold air conditioning
Rubber Blocks: Protect roads and concrete floors from damage and scratches; reduce working noise; improve running stability; extend the service life of steel tracks.
Rear-View Camera: Provides real-time monitoring of rear blind spots to prevent collisions with personnel and obstacles. It significantly reduces the risk of safety incidents during reversing operations, making it particularly well-suited for use in confined construction sites and complex environments.
Breaker / Ripper / Wood Grapple / Rake / Auger / Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

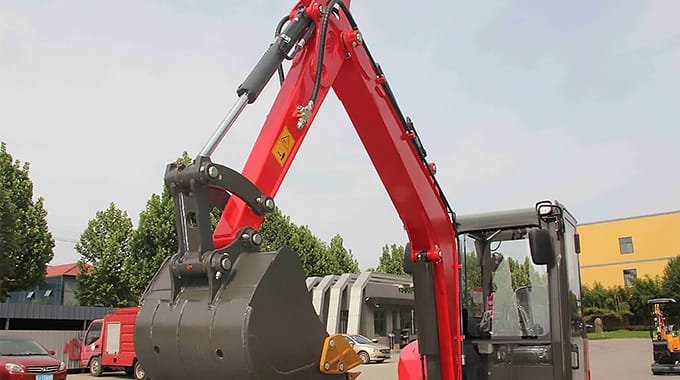

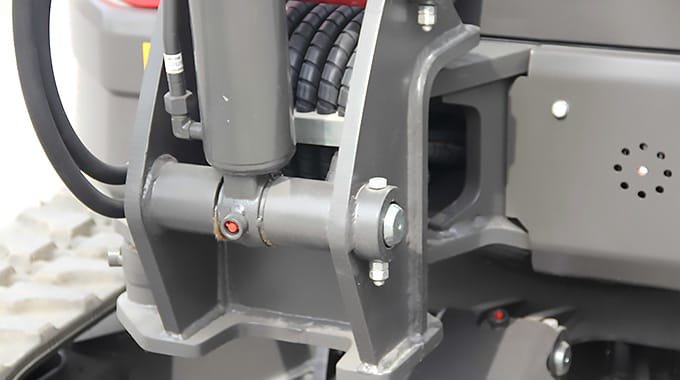

Equipped with flexible side swing function, the boom can swing left and right freely, making construction more flexible and efficient in narrow spaces. Special grease holes are reserved on the machine, allowing quick lubrication with a grease gun for easy and convenient daily maintenance. The hydraulic pipes are built inside the boom for a neat and beautiful layout, effectively avoiding scratches and wear, and prolonging service life.
Pre-installed hydraulic pipeline for breakers at the factory, compatible with various hydraulic attachments. It can easily handle crushing, demolition and drilling work, realizing multi-function in one machine, expanding working scenarios and improving cost-effectiveness.

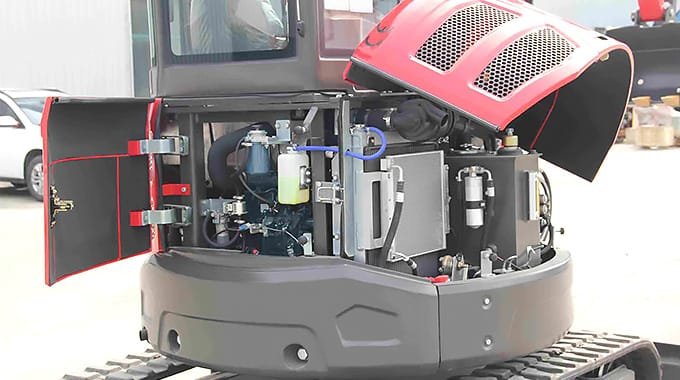

The rear guard can be opened on both sides for easy inspection and maintenance, greatly improving maintenance efficiency.
Equipped with high & low speed travel function, which can be switched freely. High speed for fast site transfer, low speed for stable and precise operation, ensuring high efficiency and excellent adaptability.

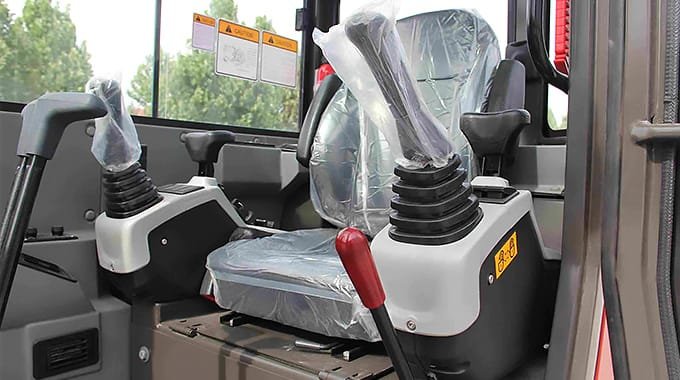

The armrest box features a flip-up design, facilitating convenient and efficient entry into and exit from the cab; it is equipped with a pilot safety lock to effectively prevent accidental operation, thereby ensuring comprehensive operational safety.

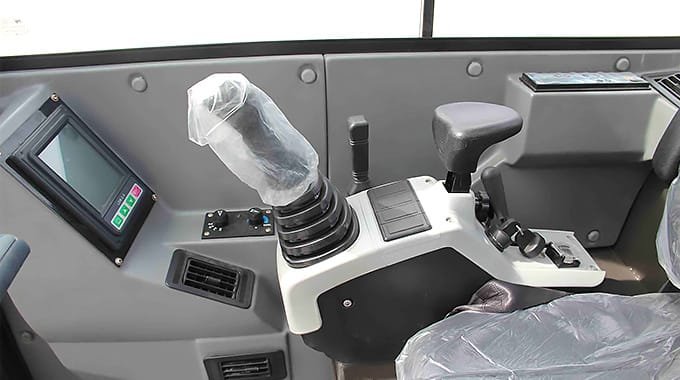

Adopted pure pilot hydraulic joystick for precise and sensitive control, ensuring stable and efficient operation. Equipped with an intelligent large display to monitor all working parameters of the machine in real time.
| Bucket Capacity | 0.12m³ |
| Swing Speed | 0-11rmp |
| Gradeablity | 30° |
| Max.Bucket Digging Force | 30KN |
| Max.Arm Digging Force | 18KN |
| Engine Model | KUBOTAD1703 |
| Power/Revolution Speed | 18.2kw/2200rmp |
| System Pressure | 22.5MPA |
| Dimension | 4915×1720×2525mm |
| Cabin Height | 2290mm |
| Axle Base | 1670mm |
| Track Distance | 1420mm |
| Minimum Ground Clearance | 295mm |
| Tail Swing Radius | 870mm |
| Max.Digging Height | 4800mm |
| Max.Dumping Height | 3406mm |
| Max.Digging Depth | 3208mm |
| Max.Vertical Digging Depth | 2957mm |
| Max.Digging Radius | 5480mm |
| Min.Swing Radius | 2530mm |
| Max.Dozer Blade Lifting Distance | 365mm |
| Max.Dozer Blade Cutting Distance | 385mm |
