• Weight
    2700KG
  • Engine
    KUBOTA D1105
  • Maximum Digging Depth
    2.83m
Product Details

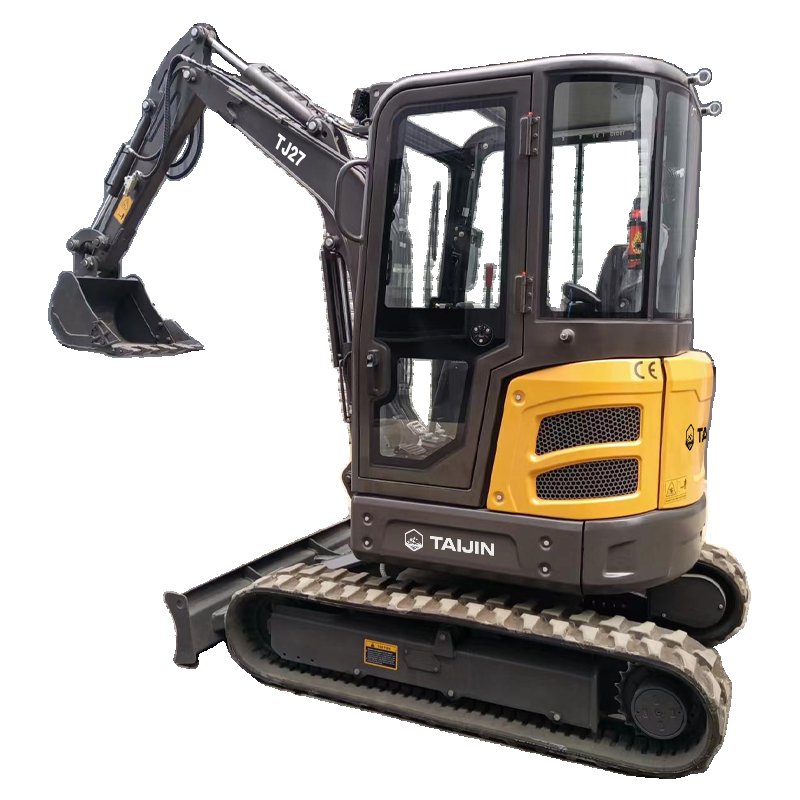

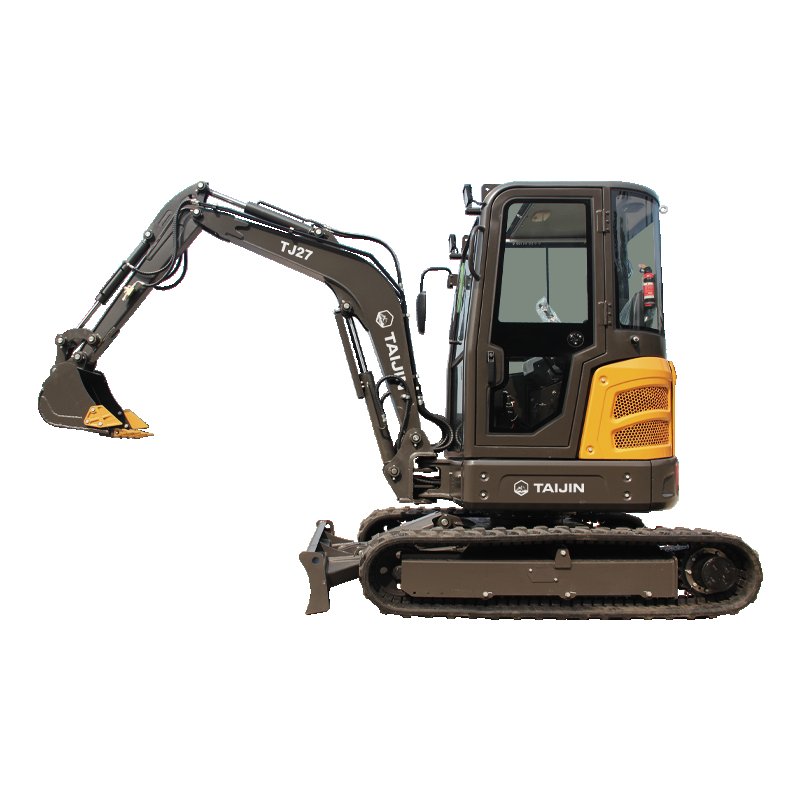

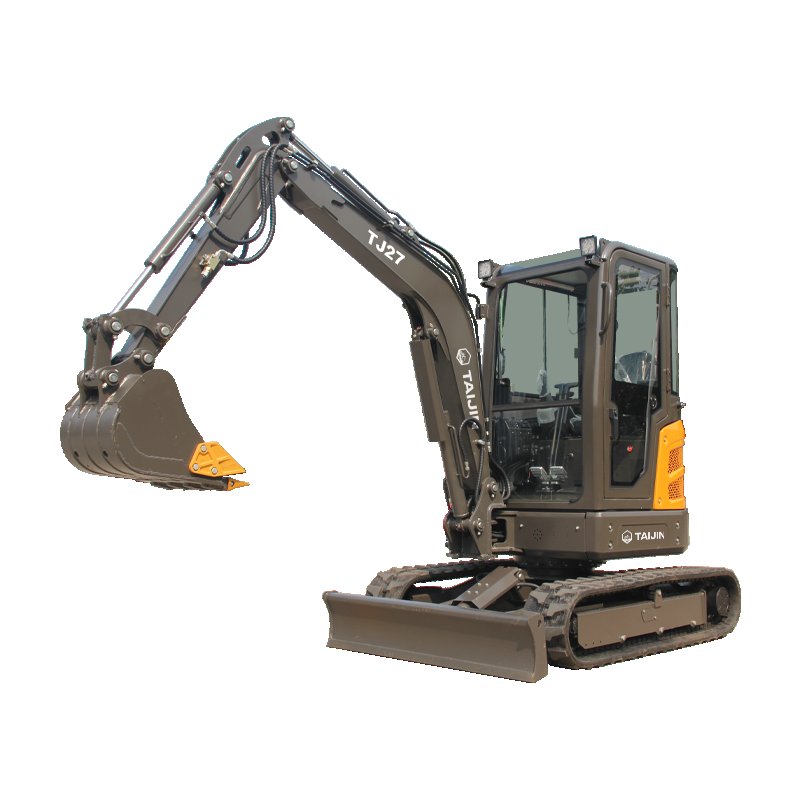

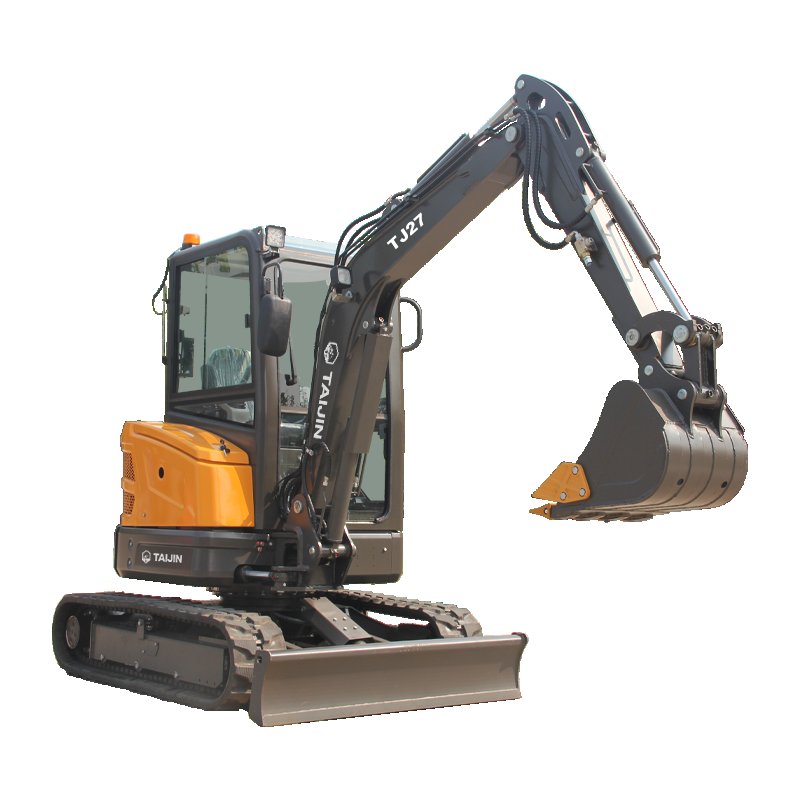

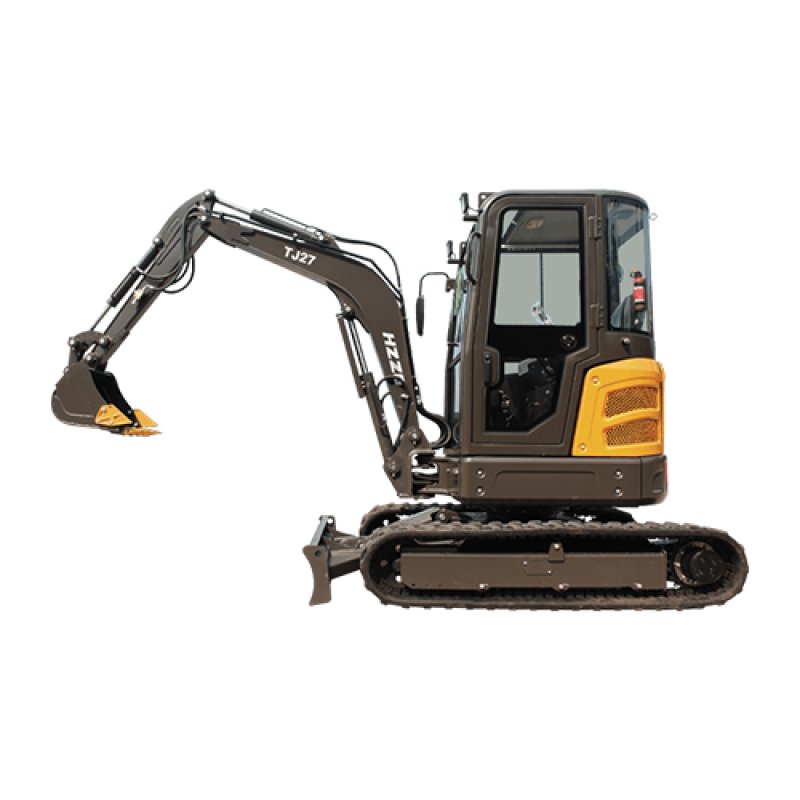

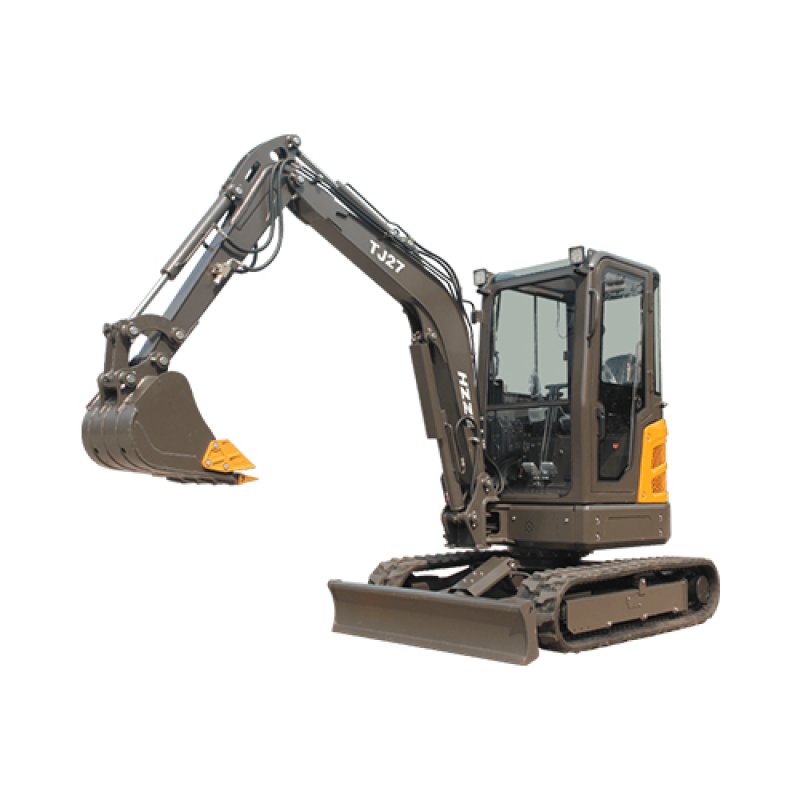

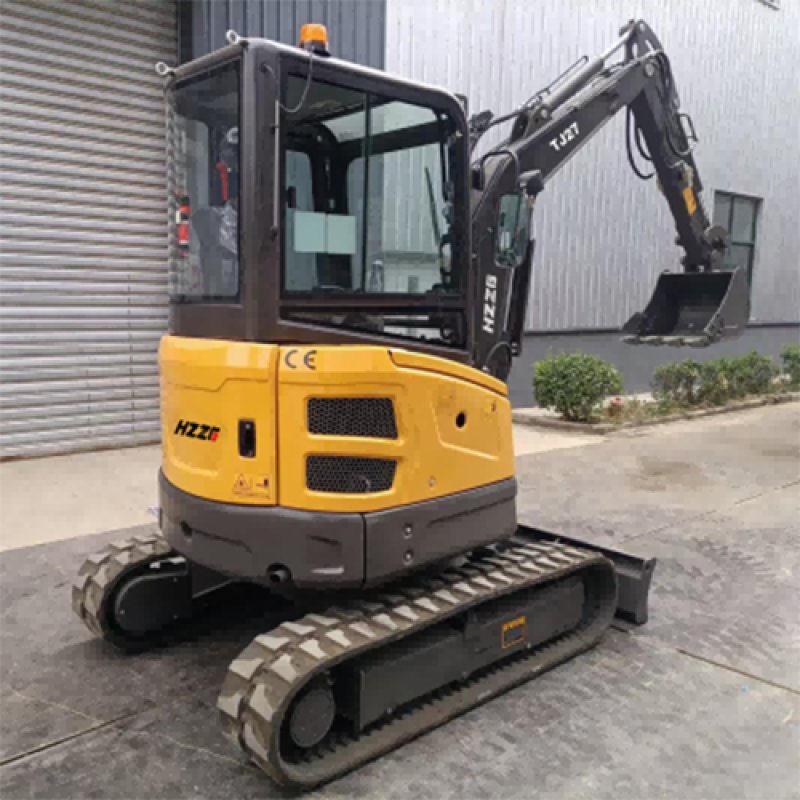

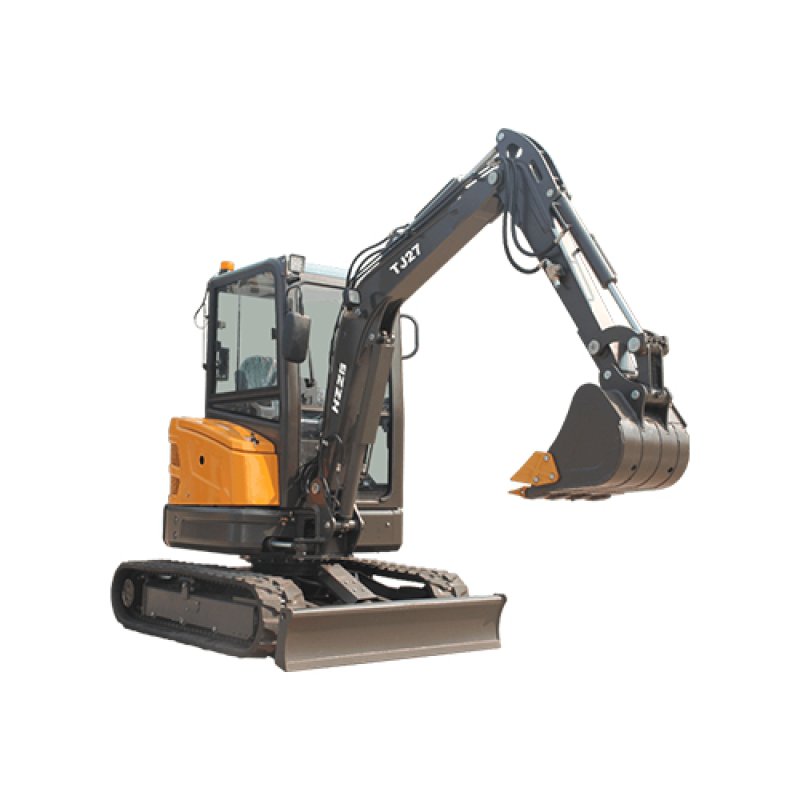

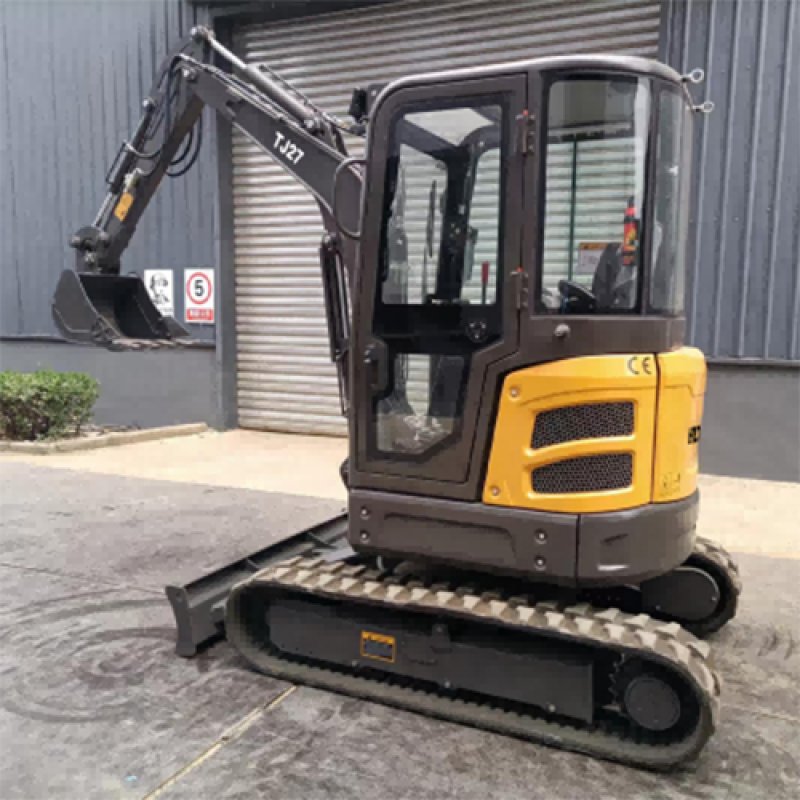

High-Quality 2.7 Ton Small Mini Excavator for Global Market

Widely used in mining, metallurgy, coal, building materials, chemical industry, electric power, water conservancy, waste treatment, engineering machinery and other fields, such as drying toilet renovation, engineering, construction, soil, cement, wood, pile, foundation, road, crushing, digging, cable trench, excavation, construction site, road crushing, digging, cable trench, etc.


Specification

Operating Weight: 2700 KG

Engine: KUBOTA D1105

Max Power: 14.2 kW

Bucket Capacity: 0.1 m³

Max Digging Depth: 2.83 m

Max Dumping Height: 3.005 m

Max Digging Height: 4.427 m


Configuration

Pilot control

Side swing

High and low speed

Crushing line

Rubber tracks

Cab

Fan Heater


Optional Features

Cab: The closed cabin effectively blocks dust, noise and bad weather, providing a safer and more comfortable operating environment. It offers better protection for the operator, improves working efficiency, and also enhances the overall durability and resale value of the machine.


Rear-View Camera: Provides real-time monitoring of rear blind spots to prevent collisions with personnel and obstacles. It significantly reduces the risk of safety incidents during reversing operations, making it particularly well-suited for use in confined construction sites and complex environments.


Multi-Attachment Compatible

Breaker / Ripper / Wood Grapple / Rake / Auger /  Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

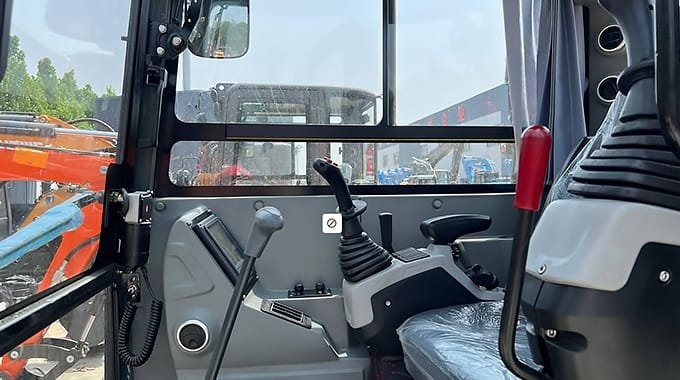

  • 未标题-1_0006_3

    The armrest box can be flipped up for easy access to the cab. Equipped with a pilot safety lock, it effectively prevents misoperation and ensures safer operation. It is equipped with an intelligent operation display that can monitor working hours, oil temperature, oil pressure and other parameters in real time, making operation intuitive and convenient.

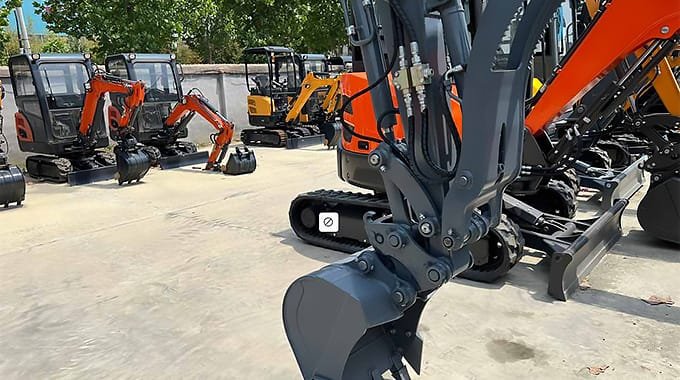

  • 未标题-1_0005_4

    Equipped with three-way ball valve for quick hydraulic circuit switching. No pipeline disassembly required, making maintenance more convenient, saving repair time, preventing oil leakage and ensuring safer and more reliable operation.Thickened and reinforced hydraulic hoses ensure long service life, effectively reducing hose damage caused by scraping and collision during work.

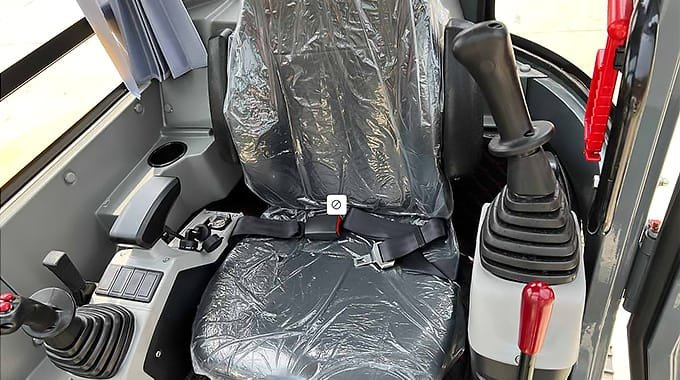

  • 未标题-1_0008_1

    The comfortable cab comes standard with a heater and offers an optional heating and cooling air conditioning system, enabling efficient operation in all four seasons. The cab features a dedicated cup holder for convenient beverage storage, while the control levers are crafted from soft silicone—offering a comfortable grip, exceptional durability, and an extended service life. The machine is equipped with an ergonomically designed comfort seat that effectively alleviates fatigue associated with prolonged operation, thereby enhancing overall driving comfort.

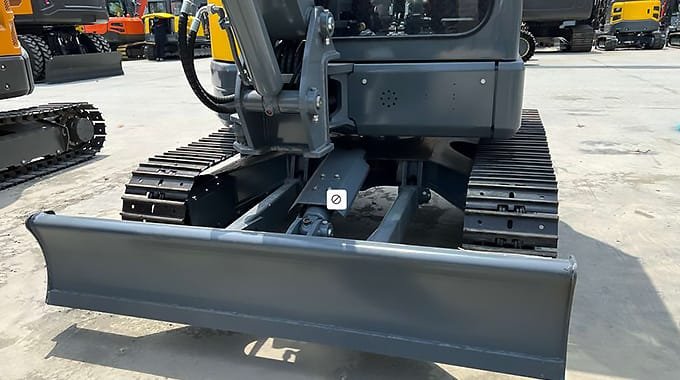

  • 未标题-1_0007_2

    Equipped with thickened and reinforced dozer blade, featuring high strength, impact resistance, deformation resistance and excellent durability. With side swing function, it can swing left and right without moving the machine, with high flexibility.

Product Data
Bucket Capacity0.1m³
Swing Speed0-10rmp
Gradeablity58°
Max.Bucket Digging Force23.5KN
Max.Arm Digging Force14KN
Engine ModelKUBOTA D1105-E4B
Power/Revolution Speed14kw/2000rmp
System Pressure20.5MPA
Dimension4915×1550×2480mm
Cabin Height2480mm
Axle Base1550mm
Track Distance1250mm
Minimum Ground Clearance285mm
Tail Swing Radius860mm
Max.Digging Height4427mm
Max.Dumping Height3005mm
Max.Digging Depth2830mm
Max.Vertical Digging Depth2500mm
Max.Digging Radius4835mm
Min.Swing Radius2160mm
Max.Dozer Blade Lifting Distance308mm
Max.Dozer Blade Cutting Distance360mm
