• Weight
    9000KG
  • Engine
    Cummins QSF2.8
  • Maximum Digging Depth
    4.015m
Product Details

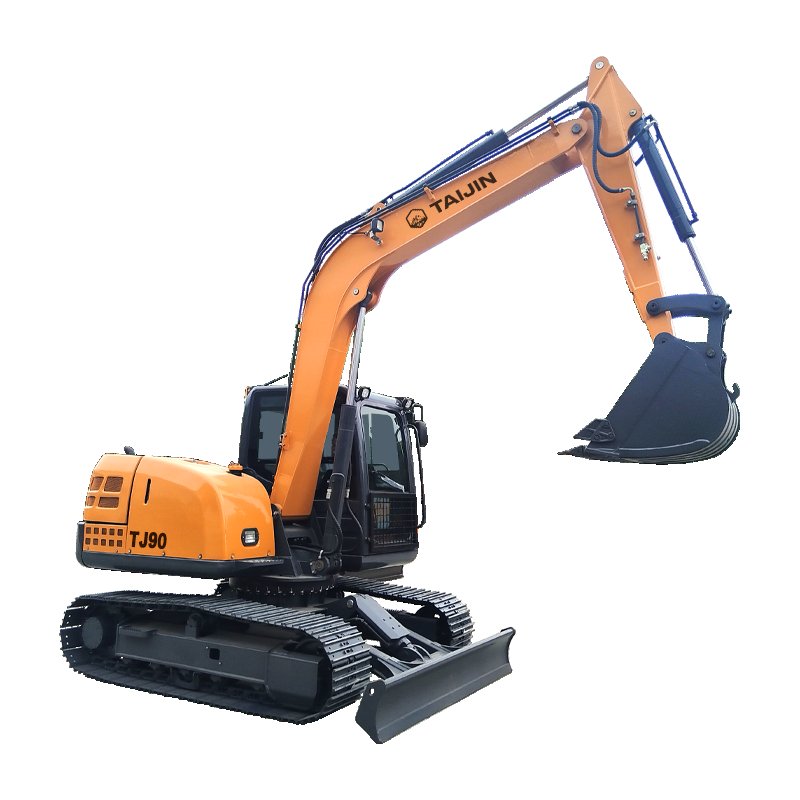

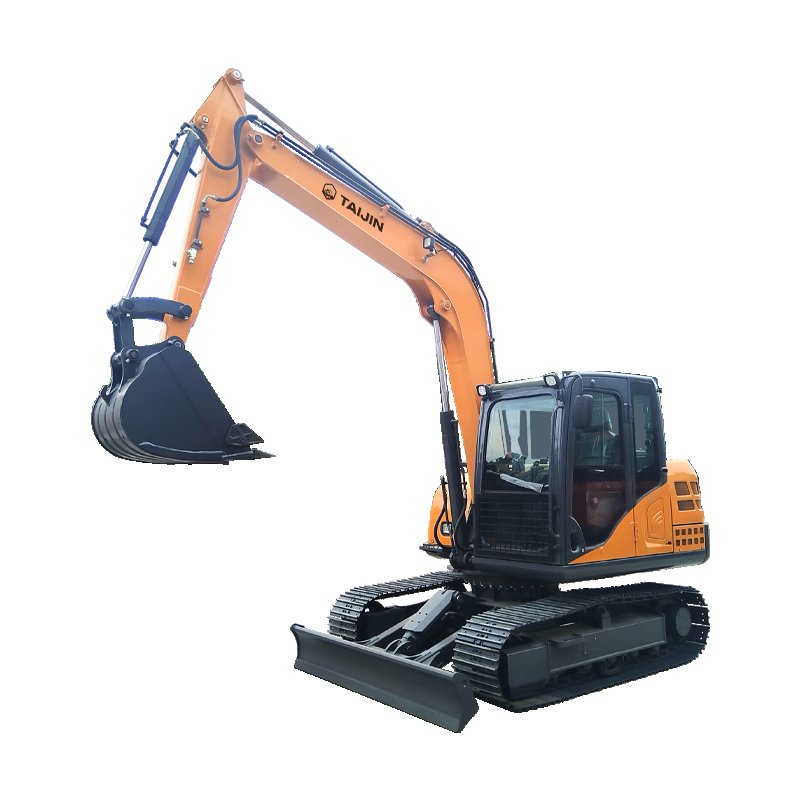

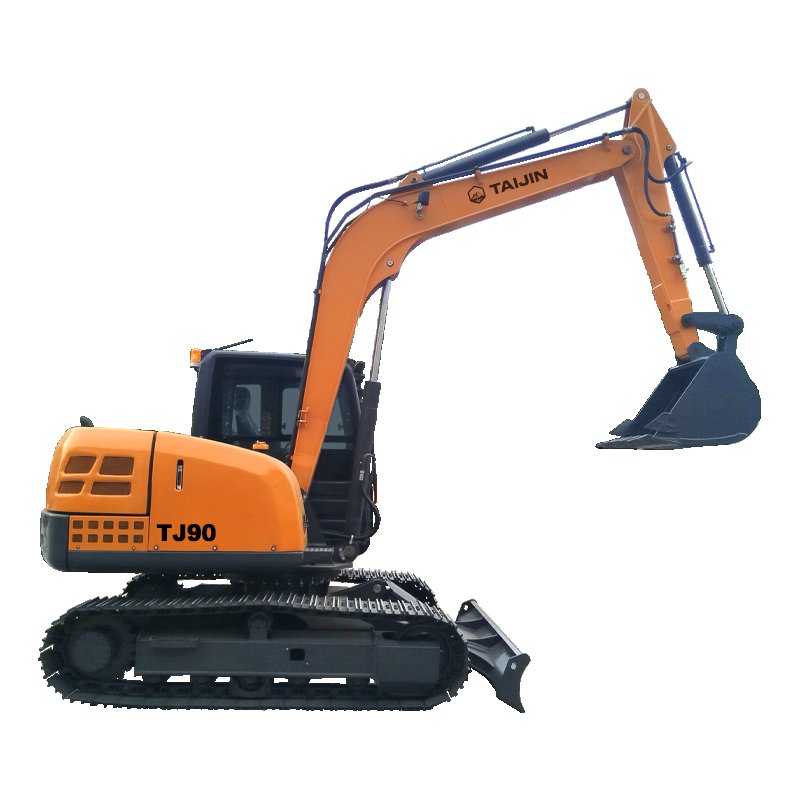

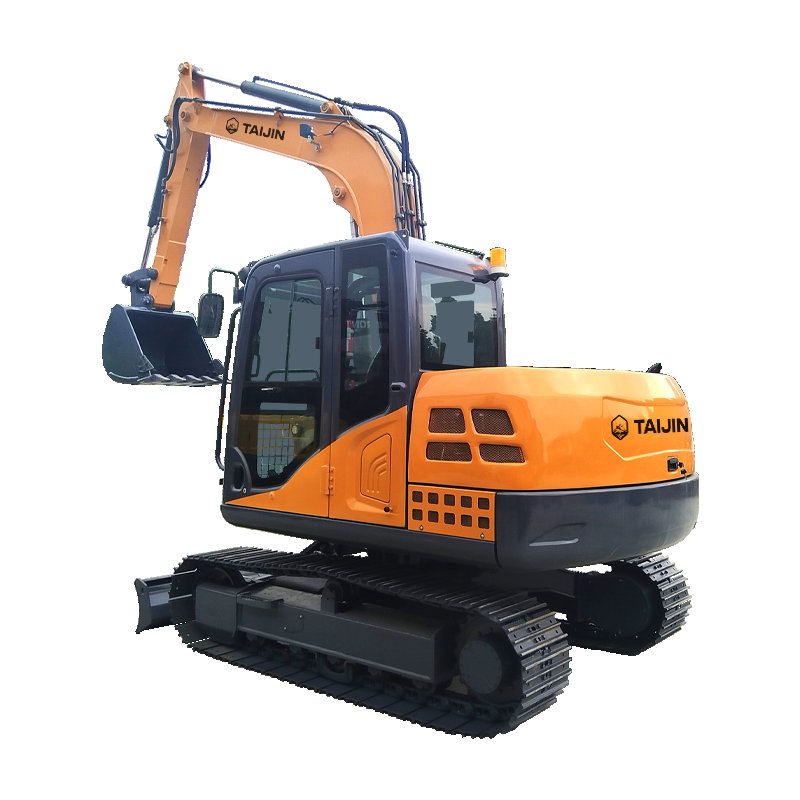

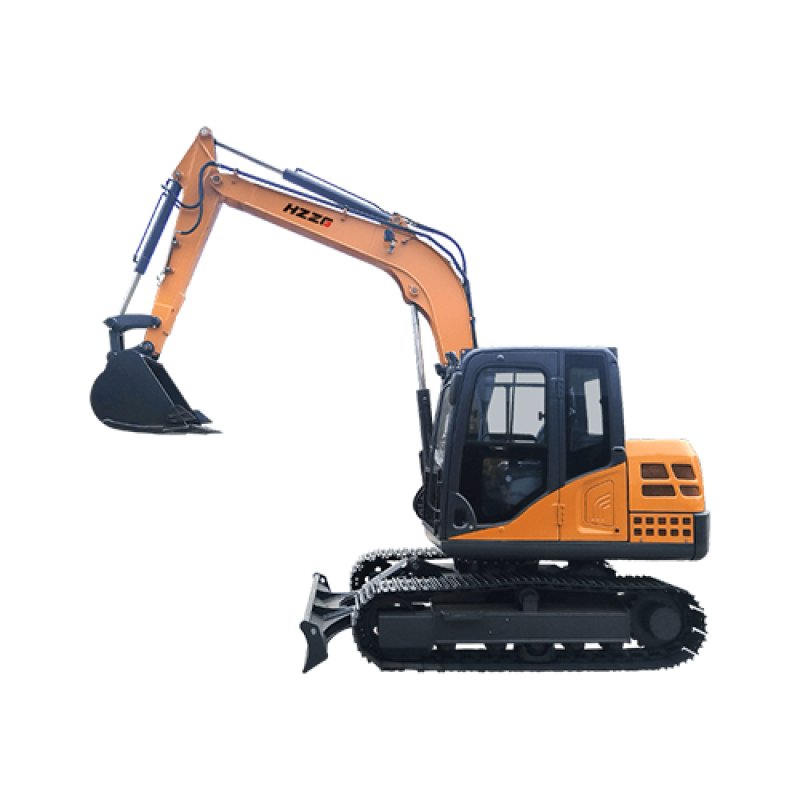

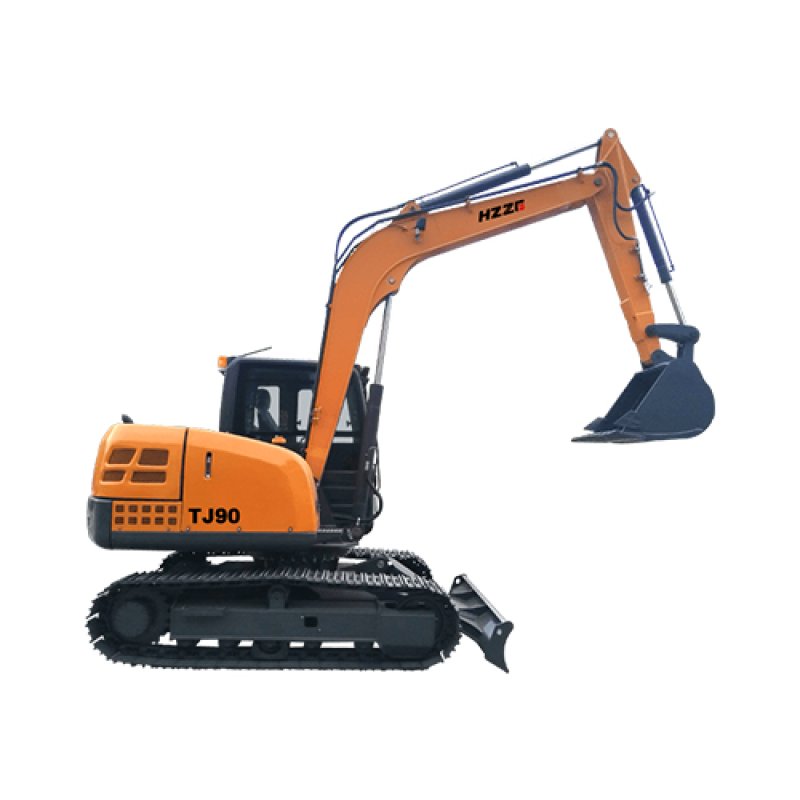

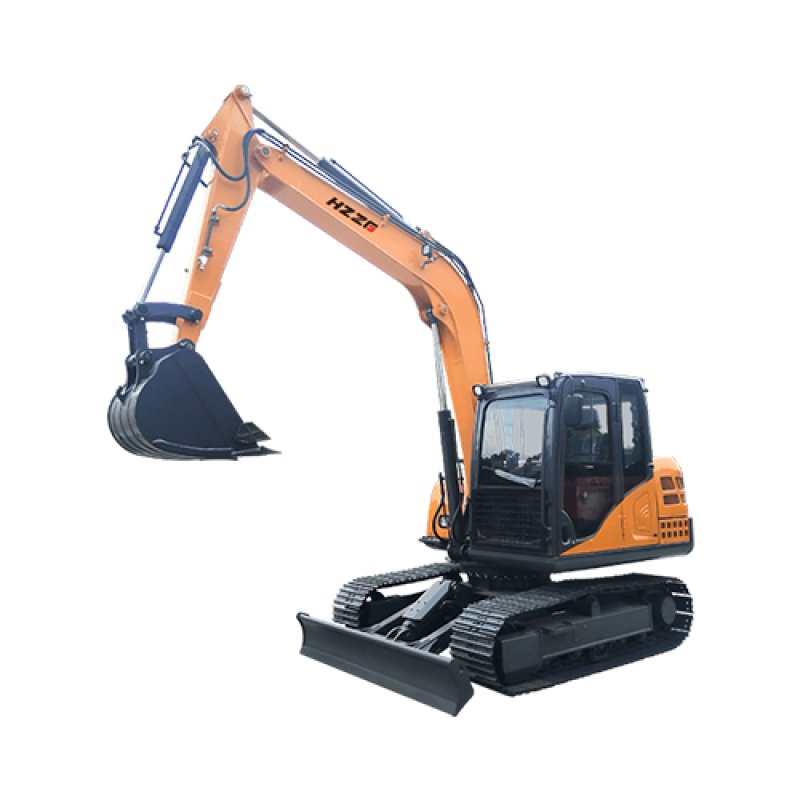

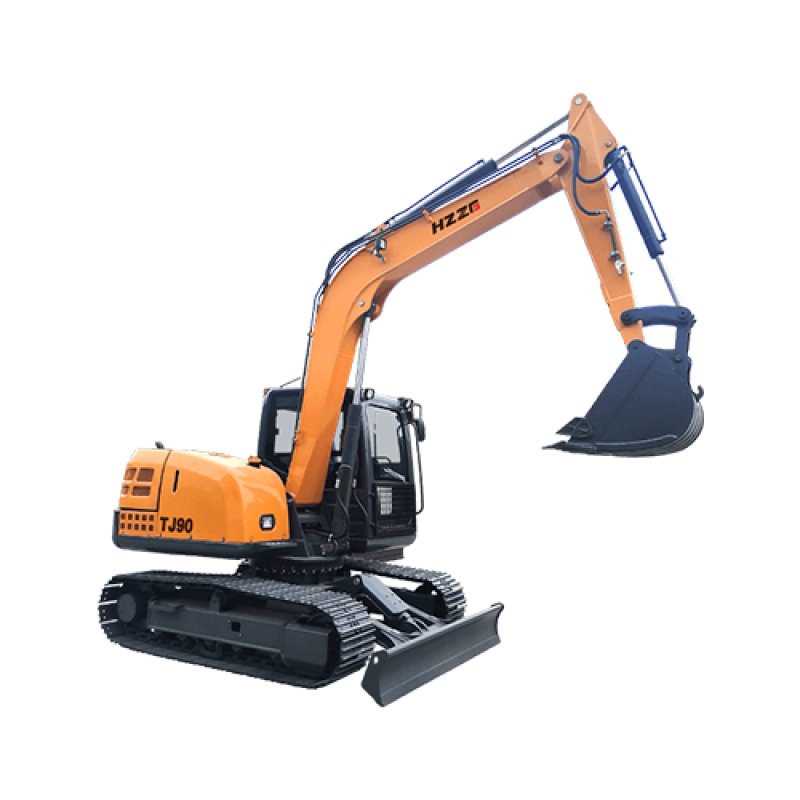

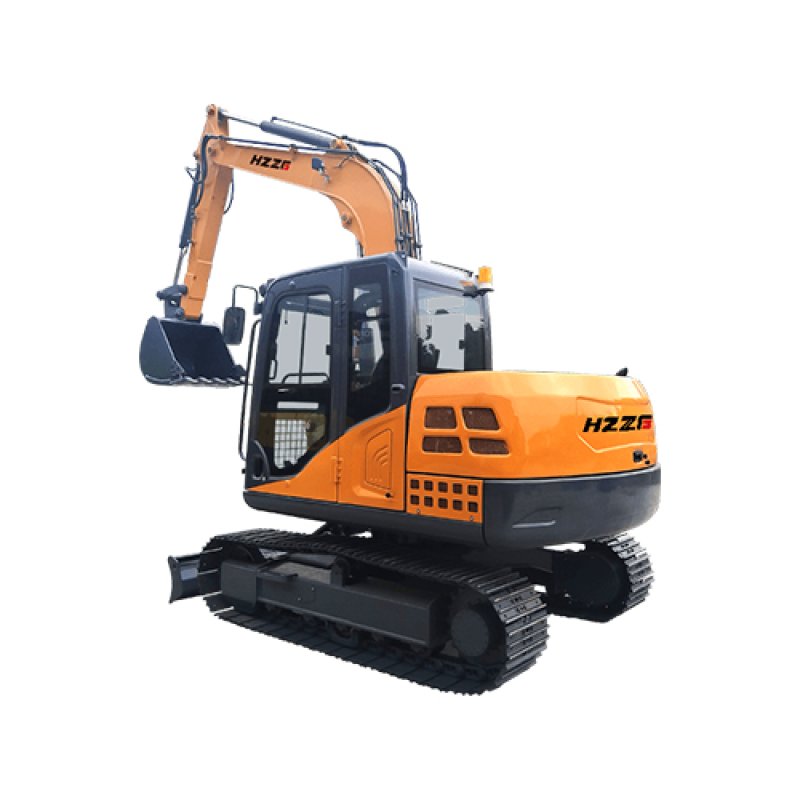

9 Ton Construction Excavator | Heavy Duty Steel Track Crawler Digger with Cummins Engine

It is suitable for earthwork excavation and loading, as well as land leveling, slope trimming, hoisting, crushing, demolition, ditching and other operations. It performs excellently in mines, infrastructure projects and harsh working conditions, with strong off-road capability, stable heavy-load performance, low operating cost and high cost-effectiveness.


Specification

Operating Weight: 9000 KG

Engine: Cummins QSF2.8

Max Power: 53 kW

Bucket Capacity: 0.4 m³

Max Digging Depth: 4.015 m

Max Dumping Height: 5.188 m

Max Digging Height: 7.050 m


Configuration

Pilot control

High and low speed

Crushing line

Steel tracks

Cab

Cold air conditioning


Optional Features

  • Rear-View Camera: Provides real-time monitoring of rear blind spots to prevent collisions with personnel and obstacles. It significantly reduces the risk of safety incidents during reversing operations, making it particularly well-suited for use in confined construction sites and complex environments.


Multi-Attachment Compatible

Breaker / Ripper / Wood Grapple / Rake / Auger /  Bucket / Enclosed Driving Cab / Mud Bucket / Tilt Bucket / Thumb Clamp

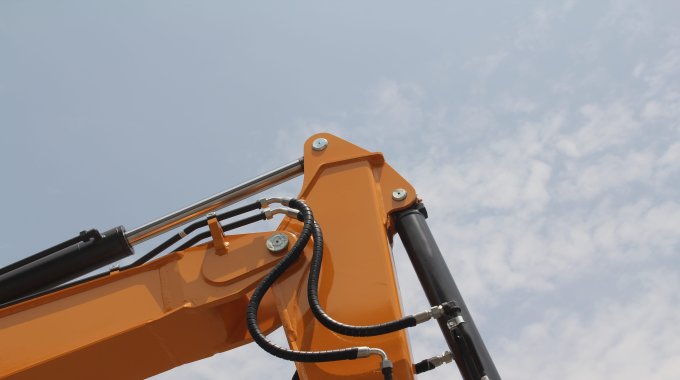

  • IMG_9731

    Equipped with a three-way ball valve for quick and easy attachment switching without shutdown or oil draining. Thickened and reinforced hydraulic pipelines feature higher pressure resistance, better leakproofness, stable oil flow, longer service life and stronger overall durability.

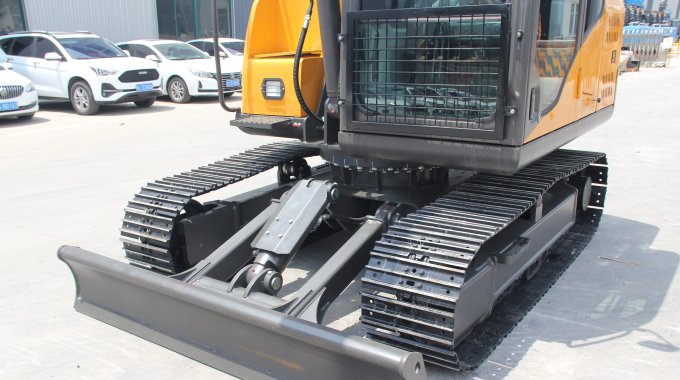

  • IMG_9733

    Equipped with high-strength manganese steel tracks, the machine offers exceptional wear resistance and longevity, while effectively resisting punctures, tearing, and breakage. The boom swing function enables high-precision operations without the need for frequent repositioning of the machine body. Furthermore, the thickened dozer blade is capable of withstanding heavier operational loads and serves as a stabilizing support, thereby enhancing the machine's overall resistance to tipping.

  • IMG_9747

    Powered by a Cummins QSF2.8 engine with a rated output of 53 kW, this unit complies with EU Stage V and US EPA Tier 4 Final emission standards. It features exceptional low-speed, high-torque characteristics and extremely rapid transient response. Supported by a global service network spanning over 190 countries and regions, it offers convenient access to genuine parts and professional maintenance services.

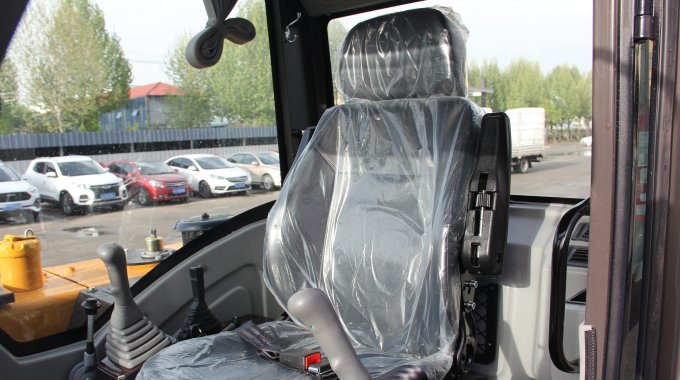

  • IMG_9065

    Spacious wide-body cab with ample space, equipped with a suspension shock-absorbing seat to effectively relieve waist fatigue during long-time operation; comes standard with heating and cooling air conditioning, maintaining constant comfort in winter and summer for stress-free all-weather operation.

Product Data
Bucket Capacity0.4m³
Swing Speed0-12rmp
Gradeablity35°
Max.Bucket Digging Force58KN
Max.Arm Digging Force40KN
Engine ModelQSF 2.8
Power/Revolution Speed53kw/2200rmp
System Pressure27.5MPA
Dimension6410×2278×2630mm
Cabin Height2630mm
Axle Base2209mm
Track Distance1750mm
Minimum Ground Clearance375mm
Tail Swing Radius1813mm
Max.Digging Height7050mm
Max.Dumping Height5188mm
Max.Digging Depth4015mm
Max.Vertical Digging Depth3550mm
Max.Digging Radius6540mm
Min.Swing Radius2140mm
Max.Dozer Blade Lifting Distance370mm
Max.Dozer Blade Cutting Distance344mm
